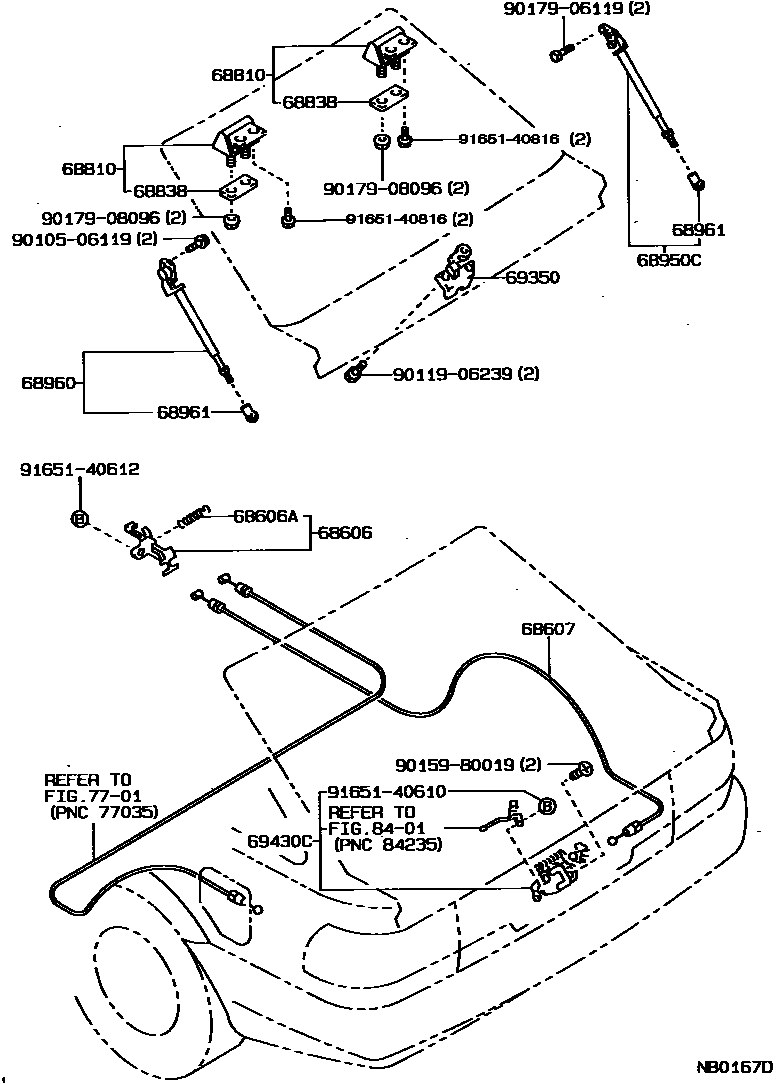

BACK DOOR LOCK & HANDLE

0001 1 0002 1 0003 1

68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN

main64606-12060iAE91,92..5D198705-199106

68606ASPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)

main90506-09034iAE91,92..5D198705-198905

68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL

main64607-12450iAE91,92..5D198705-199106

68810HINGE ASSY, BACK DOOR, UPPER

main68801-12030iAE91,92..5D198705-198808

sub68801-12031

main68801-12031iAE91,92..5D198808-199106

main68801-12050iAE95..EFI198802-198808

sub68801-12051

main68801-12051iAE95..WG198808-199009

main68801-13081iCE96,EE96,98198808-199108

68838PAD, BACK DOOR HINGE, NO.1

main68838-14021iAE91,92..5D198705-198808

sub68838-14022

68950CSTAY ASSY, BACK DOOR, RH

main68950-13070iCE96,EE96,98198808-199108

main68950-13080iCE96,EE96,98..DX,XL198808-199108

main68950-19585iAE91..5D198705-198808

sub68950-19586

main68950-19586iAE91..5D198808-199106

main68950-19595iAE92..5D198705-198808

sub68950-19596

main68950-19596iAE92..5D198808-199106

main68950-19625iAE95..AV1198802-198808

sub68950-19626

main68950-19626iAE95..AV1198808-199009

main68950-19645iAE95..AV2,RVS198802-198808

sub68950-19646

main68950-19646iAE95..AV1198808-199009

68960STAY ASSY, BACK DOOR, LH

main68960-13070iCE96,EE96,98198808-199108

main68960-13080iCE96,EE96,98..DX,XL198808-199108

main68960-19275iAE91..5D198705-198808

sub68960-19276

main68960-19276iAE91..5D198808-199106

main68960-19285iAE91..G,XI198705-198808

sub68960-19286

main68960-19286iAE92..5D198808-199106

main68960-19315iAE95..AV1198802-198808

sub68960-19316

main68960-19316iAE95..AV1198808-199009

main68960-19335iAE95..AV2,RVS198802-198808

sub68960-19336

main68960-19336iAE95..AV2,RVS198808-199009

68961BOLT, BACK DOOR STAY

main68961-12040iAE91,92..5D198803-198905

main68961-12040iAE91..(G,L,XS)..(EFI,EFIS)198803-199106

KAYABA

main68961-14030iAE91,92..5D198905-199106

TOKICO

69350LOCK ASSY, BACK DOOR

main69350-12110iAE91,92..5D198705-199106

main69350-12161iAE95..WG198802-199009

main69350-13070iCE96,EE96,98..DX,STD198808-199108

sub69350-13090

main69350-13080iCE96,EE96,98..DX,XL198808-199108

sub69350-13090

main69350-13090iCE96,EE96,98..XL198808-199108

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-12180iAE91,92..5D198705-199106

main69430-12250iAE95..WG198802-199009

7701

8401

9010506119

main90105-06119

9011906239

main90119-06239

9015980019

main90159-80019

9017906119

main90179-06119

9017908096

main90179-08096

9165140610

main91651-40610

9165140612

main91651-40612

9165140816

main91651-40816

20 parts on this diagram · 3 diagrams in section
