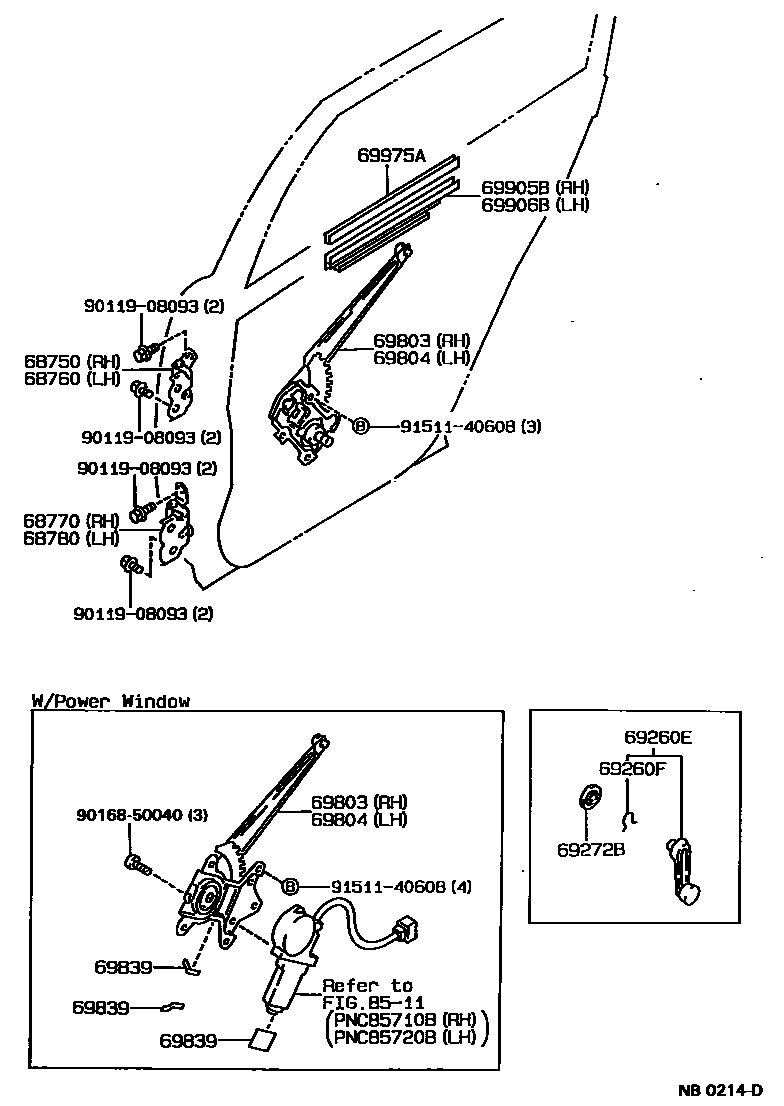

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-12040iAE9#,CE9#,EE9#198705-199108

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-12040iAE9#,CE9#,EE9#198705-199108

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-12050iAE9#,CE9#,EE9#198705-199108

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-12040iAE9#,CE9#,EE9#198705-199108

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-10040-12×2iAE91,95,CE90,95,EE90..MX198705-199106

MAROON,TRIM3#

sub69260-16010

main69260-10040-43×2iAE91,95,CE9#,EE9#..AV1,CTD,DX,L,LX,MX,RVS,STD,XL198705-199108

GRAY,TRIM1#

sub69260-16010

main69260-10040-55×2iCE96,EE96,98..DX,XL;AE91,95,CE90,EE90..AV1,L,LX,MX,RVS198705-198905

DARK BEIGE,TRIM4#

sub69260-16010

main69260-10040-58×2iAE91,95,CE90,EE90..DX,L,LX,MX198905-198908

DARK BLUE,TRIM8#

sub69260-16010

main69260-12080-02×2iAE91,95,CE90,95..SE..(DSL,EFI)198908-199106

MAROON,TRIM3#

main69260-12080-03×2iAE95..AV2198905-198908

SHADOW GRAY,TRIM1#

main69260-12080-04×2iAE91..XS;AE91,95,CE90,95..SE..(DSL,EFI)198908-199106

BLUE,TRIM8#

main69260-12080-05×2iAE91..XI;AE91,95,CE90..(G,SE)..(CBR,DSL)198705-198905

DARK BEIGE,TRIM4#

69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2iAE91,95,CE9#,EE9#..AV1,CTD,DX,L,LX,MX,RVS,STD,XL198705-199108

main90520-01005×2iAE91..XS;AE9#,CE90..(AV2,GT,SE)..(DSL,EFI)198905-198908

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69268-16010×2iAE91,95,CE9#,EE9#..AV1,CTD,DX,L,LX,MX,RVS,STD,XL198705-199108

sub69268-20020

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-12060iAE95..AV2198802-198908

main69803-12070iEE90..MX;AE91,92..GT,XS199101-199106

main69830-12130iAE95,CE96,EE96,98..V,WG198802-198908

main69830-12160iAE91..XI;AE91..CBR;AE92,95,CE90,EE90..4D,5D198705-198905

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-12060iAE95..AV2198908-199009

main69804-12070iAE91..SE..EFI198805-198905

main69840-12130iAE95,CE96,EE96,98..V,WG198802-198908

main69840-12160iAE91..XI;AE91..CBR;AE92,95,CE90,EE90..4D,5D198705-198905

69839PAD, REAR DOOR WINDOW REGULATOR

main69839-12010×4iAE91..SE..EFI199005-199106

main69839-95800×2iAE91..G,XS;AE91..SE..EFIS;AE92,EE90..GT,MX199101-199107

25X25

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-12110iAE9#,CE9#,EE9#198705-199108

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-12100iAE9#,CE9#,EE9#198705-199108

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-12010×2iAE9#,CE9#,EE9#198705-199108

8511

9011908093

main90119-08093

9016850040

main90168-50040

9151140608

main91511-40608

17 parts on this diagram · 1 diagram in section
