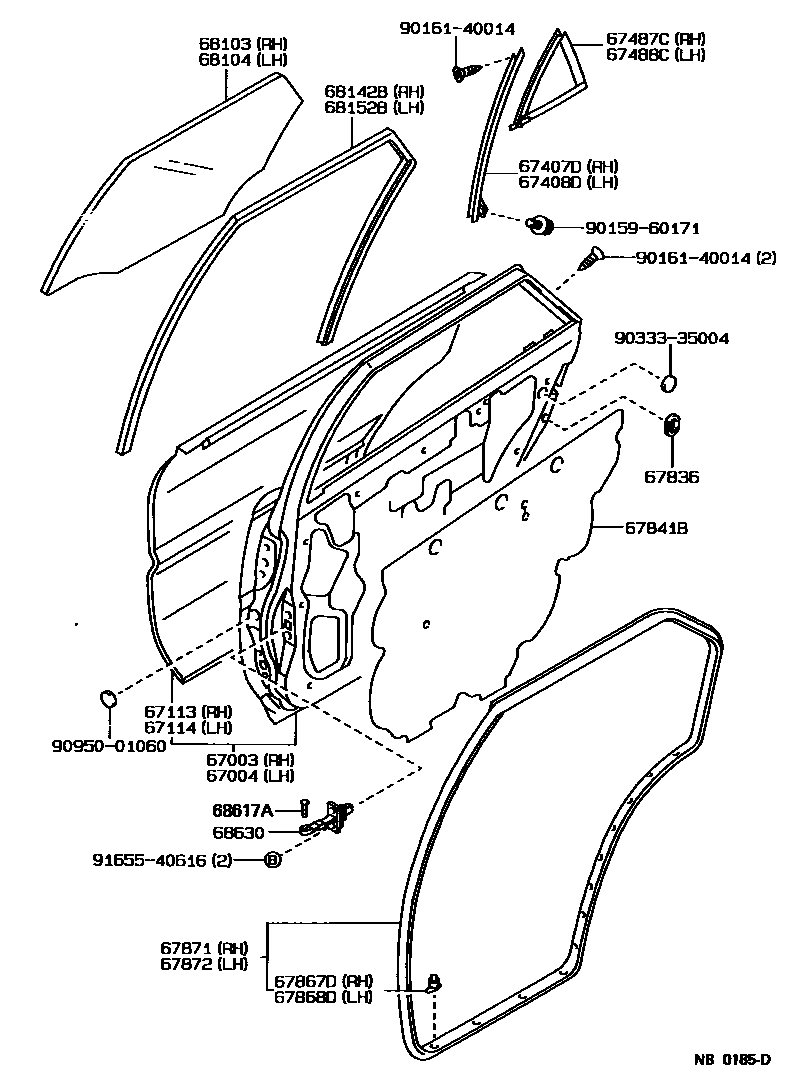

REAR DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0004 1 0005 1

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-12550iAE9#,CE90,EE90198705-198802

sub67003-12551

main67003-12551iAE9#,CE90,95,EE90..4D,5D198802-199106

main67003-12590iAE95..WG198802-199009

main67003-13210iCE96,EE96,98198808-199108

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-12550iAE9#,CE90,EE90198705-198802

sub67004-12551

main67004-12551iAE9#,CE90,95,EE90..4D,5D198802-199106

main67004-12590iAE95..WG198802-199009

main67004-13210iCE96,EE96,98198808-199108

67113PANEL, REAR DOOR, OUTER RH

main67113-12140iCE96,EE96,98198808-199108

main67113-12170iAE9#,CE90,EE90198705-198802

sub67113-12171

main67113-12171iAE9#,CE90,95,EE90198802-199106

67114PANEL, REAR DOOR, OUTER LH

main67114-12140iCE96,EE96,98198808-199108

main67114-12170iAE9#,CE90,EE90198705-198802

sub67114-12171

main67114-12171iAE9#,CE90,95,EE90198802-199106

67407DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH

main67407-12180iAE91..SE..EFIS199005-199106

main67407-12180iAE91..SE..EFI199005-199106

main67407-12180iAE9#,CE90,95,EE90..4D,5D198705-199106

67408DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH

main67408-12170iAE91..SE..EFI199005-199106

main67408-12170iAE91..SE..EFIS199005-199106

main67408-12170iAE9#,CE90,95,EE90..4D,5D198705-199106

67487CSEAL, REAR DOOR REAR GUIDE, RH

main67487-12070iAE91,CE90,EE90..DX198705-199106

main67487-12080iAE9#,CE90,95,EE90..4D..(GT,LX,MX,SE)198705-199106

sub67487-12060

main67487-12090iAE91,92..5D198705-199106

sub67487-12060

main67487-12100iAE91..SE..EFI198801-199106

sub67487-12060

main67487-12100iAE91..SE..EFI199005-199106

sub67487-12060

main67487-12100iAE91..SE..EFI198811-198812

sub67487-12060

main67487-12100iAE91..SE198909-199005

sub67487-12060

67488CSEAL, REAR DOOR REAR GUIDE, LH

main67488-12070iAE91,CE90,EE90..DX198705-199106

main67488-12080iAE9#,CE90,95,EE90..4D..(GT,LX,MX,SE)198705-199106

sub67488-12060

main67488-12090iAE91,92..5D198705-199106

sub67488-12060

main67488-12100iAE91..SE..EFIS199005-199106

sub67488-12060

main67488-12100iAE91..SE198801-199106

sub67488-12060

main67488-12100iAE91..SE..EFI198811-198812

sub67488-12060

main67488-12100iAE91..SE198909-199005

sub67488-12060

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-12030iAE9#,CE9#,EE9#198705-199106

67841BCOVER, REAR DOOR SERVICE HOLE

main67841-12220iAE9#,CE9#,EE9#198705-199108

sub67841-12210

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12120iCE96,EE96,98198808

main67868-12050iAE9#,CE90,95,EE90198705-199106

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67868-12030iAE9#,CE90,EE90..4D,5D198705-198805

sub67868-12050

main67868-12050iAE91,95,CE90,EE90..CBR,DSL198805-199106

main67868-12070iCE96,EE96,98198808-199108

main67868-12080iAE92,CE90,EE90198905-198908

sub67868-12050

67871WEATHERSTRIP, REAR DOOR, RH

main67871-12300iAE9#,CE90,EE90198705-198802

sub67871-12301

main67871-12301iAE9#,CE90,95,EE90..4D,5D198802-199106

main67871-12330iAE95..WG198802-199009

main67871-13130iCE96,EE96,98198808-199108

67872WEATHERSTRIP, REAR DOOR, LH

main67872-12300iAE9#,CE90,EE90198705-198802

sub67872-12301

main67872-12301iAE9#,CE90,95,EE90..4D,5D198802-199106

main67872-12330iAE95..WG198802-199009

main67872-13120iCE96,EE96,98198808-199108

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-12220iAE91,CE90,EE90..DX198705-199106

sub68113-12230

main68113-12230iAE92..4D;AE91,95,CE90,95,EE90..L,LX,MX,SE198705-199106

main68113-12240iAE9#,CE90..GT,L,SE,XI198705-199106

main68113-12250iAE91,92..5D..(G,GT,XS)198905-199106

sub68113-12240

main68113-12350iAE95..AV2198809-198810

main68113-12350iAE95..AV2,RVS198802-199009

main68113-13090iCE96,EE96,98..CTD,DX,STD198808-199108

sub68113-13100

main68113-13100iAE95,CE96,EE96,98..AV1,AV2,RVS,XL198802-199108

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-12220iAE91,CE90,EE90..DX198705-199106

sub68114-12230

main68114-12230iAE92..4D;AE91,95,CE90,95,EE90..L,LX,MX,SE198705-199106

main68114-12240iAE9#,CE90..GT,L,SE,XI198705-199106

main68114-12250iAE91,92..5D..(G,GT,XS)198905-199106

sub68114-12240

main68114-12350iAE95..AV2,RVS198802-199009

main68114-12350iAE95..AV2198809-198810

main68114-13090iCE96,EE96,98..CTD,DX,STD198808-199108

sub68114-13100

main68114-13100iAE95,CE96,EE96,98..AV1,AV2,RVS,XL198802-199108

68142BRUN, REAR DOOR WINDOW, RH

main68142-12130iAE9#,CE90,95,EE90..4D,5D198705-199106

main68142-13050iAE95..WG198802-199108

68152BRUN, REAR DOOR WINDOW, LH

main68152-12050iAE9#,CE90,95,EE90..4D,5D198705-199106

main68152-13010iAE95..WG198802-199108

68617APIN, REAR DOOR CHECK

main68617-12030iAE9#,CE9#,EE9#198809-199108

main68617-22020iAE9#,CE9#,EE9#198705-198809

68630CHECK ASSY, REAR DOOR

main68630-12040iAE9#,CE9#,EE9#198705-199108

9015960171

main90159-60171

9016140014

main90161-40014

9033335004

main90333-35004

9095001060

main90950-01060

9165540616

main91655-40616

25 parts on this diagram · 5 diagrams in section
