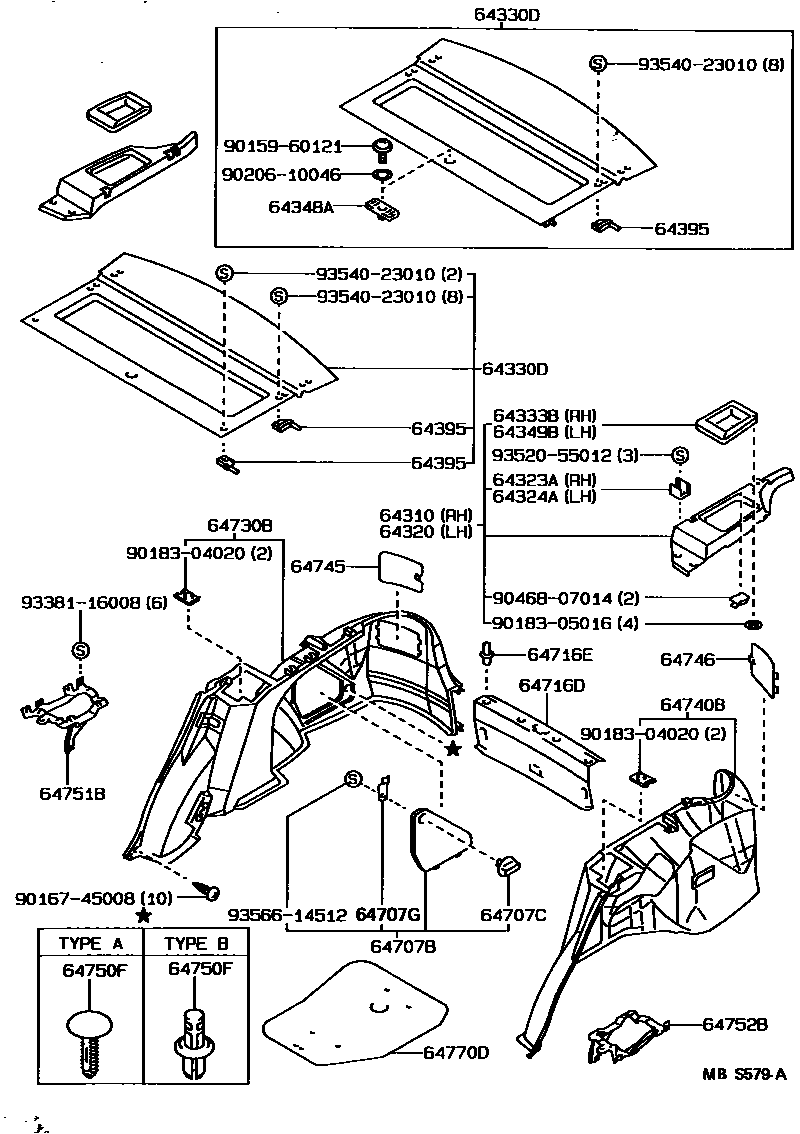

DECK BOARD & DECK TRIM COVER

0001 1 0002 1

64310BRACKET, PACKAGE TRAY TRIM, RH

main64301-12140-03iAE91,92..5D198705-198911

SHADOW GRAY,TRIM1#

sub64301-12141

main64301-12140-04iAE91..5D198905-198911

DARK BLUE,TRIM8#

sub64301-12141

main64301-12140-05iAE91..5D198705-198905

DARK BEIGE,TRIM4#

sub64301-12141

main64301-12141-03iAE91,92..5D198911-199106

SHADOW GRAY,TRIM1#

main64301-12141-04iAE91..5D198911-199106

DARK BLUE,TRIM8#

64320BRACKET, PACKAGE TRAY TRIM, LH

main64302-12140-03iAE91,92..5D198705-198911

SHADOW GRAY,TRIM1#

sub64302-12141

main64302-12140-04iAE91..5D198905-198911

DARK BLUE,TRIM8#

sub64302-12141

main64302-12140-05iAE91..5D198705-198905

DARK BEIGE,TRIM4#

sub64302-12141

main64302-12141-03iAE91,92..5D198911-199106

SHADOW GRAY,TRIM1#

main64302-12141-04iAE91..5D198911-199106

DARK BLUE,TRIM8#

64323ACLAMP, PACKAGE TRAY TRIM, RH

main64323-12020iAE91,92..5D198705-199106

main64323-12030iAE95..WG198802-199009

FRONT

main64323-12040iAE95..WG198802-199009

REAR

64324ACLAMP, PACKAGE TRAY TRIM, LH

main64323-12030iAE95..WG198802-199009

FRONT

main64323-12040iAE95..WG198802-199009

REAR

main64324-12010iAE91,92..5D198705-199106

64330DPANEL ASSY, PACKAGE TRAY TRIM

main64330-1A020-03iAE91..L198705-199106

SHADOW GRAY,TRIM1#

sub64330-1A020

main64330-1A020-04iAE91..L198908-199106

DARK BLUE,TRIM8#

sub64330-1A020

main64330-1A020-05iAE91..L198705-198905

DARK BEIGE,TRIM4#

sub64330-1A020

main64330-1A030-03iAE91,92..5D..(G,GT,XI,XS)198705-199106

SHADOW GRAY,TRIM1#

sub64330-1A030

main64330-1A030-04iAE91..G,XS198905-199106

DARK BLUE,TRIM8#

sub64330-1A030

main64330-1A030-05iAE91..G,XI198901-198905

DARK BEIGE,TRIM4#

sub64330-1A030

main64330-1A220-03iAE95..WG198802-199009

SHADOW GRAY,TRIM1#

sub64330-1A220

main64330-1A220-04iAE95..WG198908-199009

DARK BLUE,TRIM8#

sub64330-1A220

main64330-1A220-05iAE95..AV1,RVS198802-198908

DARK BEIGE,TRIM4#

sub64330-1A220

64333BCOVER, PACKAGE TRAY TRIM SIDE, RH

main64333-12060-03iAE91,92..5D198705-199106

SHADOW GRAY,TRIM1#

main64333-12060-04iAE91..5D198908-199106

DARK BLUE,TRIM8#

main64333-12060-05iAE91..5D198705-198905

DARK BEIGE,TRIM4#

64348AKNOB, PACKAGE TRAY TRIM

main64348-20010-03iAE91,92..5D..(G,GT,XI,XS)198705-199106

GRAY,TRIM1#

sub64348-20010

main64348-20010-05iAE91..G,XI198901-198905

DARK BEIGE,TRIM4#

sub64348-20010

main64348-20010-14iAE91..G,XS198905-199106

BLUE,TRIM8#

sub64348-20010

64349BCOVER, PACKAGE TRAY TRIM SIDE, LH

main64349-12020-03iAE91,92..5D198705-199106

SHADOW GRAY,TRIM1#

main64349-12020-04iAE91..5D198908-199106

DARK BLUE,TRIM8#

main64349-12020-05iAE91..5D198705-198905

DARK BEIGE,TRIM4#

64395PIN, PACKAGE TRAY TRIM HINGE

main64395-12050iAE91..L198705-199106

FRONT

main64395-12060iAE91,92..5D..(G,GT,XI,XS)198705-199106

CENTER-RH & REAR-LH

main64395-12060iAE91..L198705-199106

FRONT-RH & REAR-LH

main64395-12070iAE91,92..5D..(G,GT,XI,XS)198705-199106

FRONT-LH & REAR-RH

main64395-12070iAE91..L198705-199106

CENTER-LH & REAR-RH

main64395-12110iAE95..WG198802-199009

64707BCOVER SUB-ASSY, QUARTER TRIM JACK

main64707-12040-03iAE91,92..5D198705-199106

SHADOW GRAY,TRIM1#

sub64707-12040

main64707-12040-04iAE91..5D198908-199106

DARK BLUE,TRIM8#

sub64707-12040

main64707-12040-05iAE91..5D198705-198905

DARK BEIGE,TRIM4#

sub64707-12040

main64707-12060-03iAE95..WG198802-199009

SHADOW GRAY,TRIM1#

main64707-12060-04iAE95..WG198908-199009

DARK BLUE,TRIM8#

main64707-12060-05iAE95..AV1,RVS198802-198908

DARK BEIGE,TRIM4#

64707CKNOB, JACK COVER

main64982-16020-23iAE91,92..5D..(G,GT,L)198705-198802

GRAY,TRIM1#

sub64982-16020

main64982-16020-25iAE91..5D..CBR;AE91,95..AV1,RVS,XI198705-198908

DARK BEIGE,TRIM4#

sub64982-16020

main64982-16020-30iAE9#..5D,WG198802-199106

SHADOW GRAY,TRIM1#

sub64982-16020

main64982-16020-54iAE91,95..5D,WG198908-199106

DARK BLUE,TRIM8#

sub64982-16020

64707GSTOPPER, JACK COVER

main64981-16021iAE9#..5D,WG198705-199106

64716DCOVER, DECK TRIM, REAR

main64716-12120-03iAE91,92..5D198705-199106

SHADOW GRAY,TRIM1#

main64716-12120-04iAE91..5D198905-199106

DARK BLUE,TRIM8#

main64716-12120-05iAE91..5D198705-198905

DARK BEIGE,TRIM4#

64716ECLIP(FOR DECK TRIM REAR COVER)

main90467-07073-03iAE91,92..5D198705-199009

SHADOW GRAY,TRIM1#

sub90467-07073

main90467-07073-05iAE91..5D198705-198905

DARK BEIGE,TRIM4#

sub90467-07073

main90467-07073-B4iAE91,92..5D199009-199106

SHADOW GRAY,TRIM1#

sub90467-07073

main90467-07073-J1iAE91..5D198905-199106

DARK BLUE,TRIM8#

sub90467-07073

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-12210-03iAE95..AV2198802-199009

main64730-12210-04iAE95..AV2198908-199009

main64730-12280-03iAE95..WG198802-199009

SHADOW GRAY,TRIM1#

main64730-12280-04iAE95..WG198908-199009

DARK BLUE,TRIM8#

main64730-12280-05iAE95..AV1,RVS198802-198908

DARK BEIGE,TRIM4#

main64731-12210-03iAE91..L198705-199106

SHADOW GRAY,TRIM1#

main64731-12210-04iAE91..L198905-199106

DARK BLUE,TRIM8#

main64731-12210-05iAE91..L198705-198905

DARK BEIGE,TRIM4#

main64731-12250-03iAE91,92..5D..(G,GT,XI,XS)198705-199106

SHADOW GRAY,TRIM1#

main64731-12250-04iAE91..G,XS198905-199106

DARK BLUE,TRIM8#

64740BBOARD, DECK TRIM SIDE, LH

main64732-12240-03iAE91..L198705-199106

SHADOW GRAY,TRIM1#

main64732-12240-04iAE91..L198905-199106

DARK BLUE,TRIM8#

main64732-12240-05iAE91..L198705-198905

DARK BEIGE,TRIM4#

main64732-12250-03iAE91,92..5D..(G,GT,XI,XS)198705-199106

SHADOW GRAY,TRIM1#

main64732-12250-04iAE91..G,XS198905-199106

DARK BLUE,TRIM8#

main64740-12210-03iAE95..AV2198802-199009

main64740-12210-04iAE95..AV2198908-199009

main64740-12280-03iAE95..WG198802-199009

SHADOW GRAY,TRIM1#

main64740-12280-04iAE95..WG198908-199009

DARK BLUE,TRIM8#

main64740-12280-05iAE95..AV1,RVS198802-198908

DARK BEIGE,TRIM4#

64745COVER, REAR COMBINATION LAMP SERVICE, RH

main64745-12070-03iAE91,92..5D198705-199106

SHADOW GRAY,TRIM1#

sub64745-12070

main64745-12070-04iAE91..5D198908-199106

DARK BLUE,TRIM8#

sub64745-12070

main64745-12070-05iAE91..5D198705-198905

DARK BEIGE,TRIM4#

sub64745-12070

64746COVER, REAR COMBINATION LAMP SERVICE, LH

main64745-12070-03iAE91,92..5D198705-199106

SHADOW GRAY,TRIM1#

sub64745-12070

main64745-12070-04iAE91..5D198908-199106

DARK BLUE,TRIM8#

sub64745-12070

main64745-12070-05iAE91..5D198705-198905

DARK BEIGE,TRIM4#

sub64745-12070

64750FCLIP(FOR DECK SIDE TRIM PANEL)

main90467-06049-01iAE92..5D198705-199106

sub90467-06049

main90467-06049-01iAE92..5D198705-199106

sub90467-06049

main90467-06049-01iAE91..XI;AE91..G..CBR198705-199106

sub90467-06049

main90467-06049-01iAE95..WG198908-199106

BLACK,TRIM1#,8#

sub90467-06049

main90467-06049-01iAE95..AV2198705-198908

BLACK,TRIM1#

sub90467-06049

main90467-06049-01iAE95..AV2198705-198908

BLACK,TRIM1#,4#

sub90467-06049

main90467-06049-03iAE91,92..5D..(G,GT,XI)198705-198905

sub90467-06049

main90467-06049-03iAE95..WG198705-198908

GRAY,TRIM1#

sub90467-06049

main90467-06049-15iAE95..AV1,RVS198802-198809

DARK BEIGE,TRIM4#

sub90467-06049

main90467-06049-15iAE91..L198705-198809

sub90467-06049

main90467-06049-B0iAE91..L198905-199106

sub90467-06049

main90467-06049-B0iAE95..WG198908-199106

SHADOW GRAY,TRIM1#

sub90467-06049

main90467-06049-E0iAE95..AV1,RVS198809-198908

DARK BEIGE,TRIM4#

sub90467-06049

main90467-06049-E0iAE91..L198809-198908

sub90467-06049

main90467-06049-J1iAE91..L198905-199106

sub90467-06049

main90467-06049-J1iAE95..WG198908-199106

DARK BLUE,TRIM8#

sub90467-06049

main90467-07073-03iAE91,92..5D198705-199009

sub90467-07073

main90467-07073-05iAE91..5D198705-198905

sub90467-07073

main90467-07073-B4iAE91,92..5D199009-199106

sub90467-07073

main90467-07073-J1iAE91..5D198905-199106

sub90467-07073

64751BBRACKET, SPEAKER SET, NO.1 RH

main64751-12010iAE91,92..5D198705-199106

main64751-12030iAE95..WG198802-199009

64752BBRACKET, SPEAKER SET, NO.1 LH

main64752-12010iAE91,92..5D198705-199106

main64752-12030iAE95..WG198802-199009

64770DCOVER ASSY, SPARE WHEEL

main64770-12100iAE91,92..5D198705-199106

main64770-12150iAE95..WG198802-199009

main64770-16080iAE95..WG198802-199009

9015960121

main90159-60121

9016745008

main90167-45008

9018304020

main90183-04020

9018305016

main90183-05016

9020610046

main90206-10046

9046807014

main90468-07014

9338116008

main93381-16008

9352055012

main93520-55012

9354023010

main93540-23010

9356614512

main93566-14512

32 parts on this diagram · 2 diagrams in section
