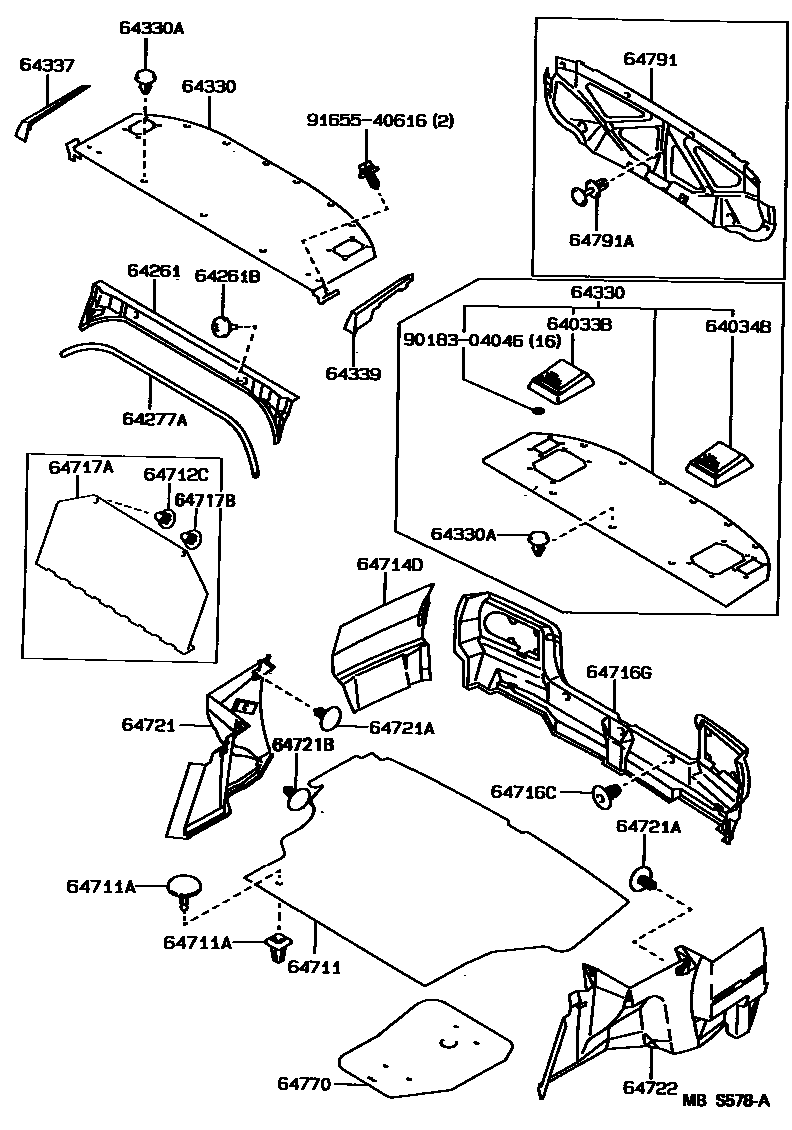

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

64033BGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-12060-02iAE91..SE..EFI198805-198909

MAROON,TRIM3#

sub64033-12060

main64033-12060-03iAE91..SE..EFIS198805-199009

SHADOW GRAY,TRIM1#

sub64033-12060

main64033-12060-04iAE91..SE..EFIS198905-198909

DARK BLUE,TRIM8#

sub64033-12060

main64033-12060-05iAE91..SE..EFI198805-198905

DARK BEIGE,TRIM4#

sub64033-12060

main64033-12060-B1iAE91..SE..EFIS199009-199106

SHADOW GRAY,TRIM1#

sub64033-12060

main64033-12060-D0iAE91..SE..EFIS198909-199106

MAROON,TRIM3#

sub64033-12060

main64033-12060-J0iAE91..SE..EFIS198909-199106

DARK BLUE,TRIM8#

sub64033-12060

64034BGRILLE SUB-ASSY, REAR SPEAKER, LH

main64033-12060-02iAE91..SE..EFI198805-198909

MAROON,TRIM3#

sub64033-12060

main64033-12060-03iAE91..SE..EFIS198805-199009

SHADOW GRAY,TRIM1#

sub64033-12060

main64033-12060-04iAE91..SE..EFIS198905-198909

DARK BLUE,TRIM8#

sub64033-12060

main64033-12060-05iAE91..SE..EFI198805-198905

DARK BEIGE,TRIM4#

sub64033-12060

main64033-12060-B1iAE91..SE..EFIS199009-199106

SHADOW GRAY,TRIM1#

sub64033-12060

main64033-12060-D0iAE91..SE..EFIS198909-199106

MAROON,TRIM3#

sub64033-12060

main64033-12060-J0iAE91..SE..EFIS198909-199106

DARK BLUE,TRIM8#

sub64033-12060

64261GARNISH, ROOM PARTITION

main64261-12040-03iAE92..4D198705-199106

SHADOW GRAY,TRIM1#

64261BCUSHION(FOR ROOM PARTITION GARNISH)

main90541-09010iAE92..4D198705-198707

main90541-09060iAE92..4D198707-199106

sub90541-09010

64277AMOULDING, ROOM PARTITION TRIM

main64277-12040-03iAE92..4D198705-199106

SHADOW GRAY,TRIM1#

sub64277-12040

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-12770-02iAE91,95,CE90,95,EE90..MX198705-199106

MAROON,TRIM3#

sub64330-12780

main64330-12770-03iAE91,95,CE90,95,EE90..DX,LX,MX198705-199106

SHADOW GRAY,TRIM1#

sub64330-12780

main64330-12770-04iAE91,95,CE90,95,EE90..DX,LX,MX198905-199106

DARK BLUE,TRIM8#

sub64330-12780

main64330-12770-05iAE91,95,CE90,EE90..LX,MX198705-198905

DARK BEIGE,TRIM4#

sub64330-12780

main64330-12780-02iAE91,95,CE90,95..SE..(DSL,EFI)198705-199106

MAROON,TRIM3#

sub64330-12780

main64330-12780-03iAE9#,CE90,95..4D..(GT,SE)..(DSL,EFI)198705-199106

SHADOW GRAY,TRIM1#

sub64330-12780

main64330-12780-04iAE91,95,CE90,95..SE..(DSL,EFI)198905-199106

DARK BLUE,TRIM8#

sub64330-12780

main64330-12780-05iAE91,95,CE90..SE..(CBR,DSL)198705-198905

DARK BEIGE,TRIM4#

sub64330-12780

main64330-12820-02iAE91..SE..EFIS198805-199106

MAROON,TRIM3#

sub64330-12820

main64330-12820-02iAE91..SE..EFI199005-199106

sub64330-12820

main64330-12820-02iAE91,95,CE90,95..MX199101-199106

sub64330-12820

main64330-12820-02iAE91..SE198909-199106

sub64330-12820

main64330-12820-02iAE91..SE198801-198803

sub64330-12820

main64330-12820-03iAE91..SE..EFI198805-199106

SHADOW GRAY,TRIM1#

sub64330-12820

main64330-12820-03iAE91..SE..EFI199005-199106

sub64330-12820

main64330-12820-03iAE91,95,CE90,95..MX199101-199106

sub64330-12820

main64330-12820-04iAE91..SE..EFIS198905-199106

DARK BLUE,TRIM8#

sub64330-12820

main64330-12820-04iAE91,95,CE90,95..MX199101-199106

sub64330-12820

main64330-12820-04iAE91..SE..EFI199005-199106

sub64330-12820

main64330-12820-05iAE91..SE..EFI198805-198905

DARK BEIGE,TRIM4#

sub64330-12820

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-08046-03iAE9#,CE90,95,EE90..4D198705-199009

GRAY,TRIM1#

sub90467-08046

sub90467-08037

main90467-08046-05iAE91,95,CE90,EE90..LX,MX,SE198705-198809

DARK BEIGE,TRIM4#

sub90467-08046

sub90467-08037

main90467-08046-12iAE91,95,CE90,EE90..MX,SE198705-198807

MAROON,TRIM3#

sub90467-08046

sub90467-08037

main90467-08046-B1iAE9#,CE90,95,EE90..4D199009-199106

SHADOW GRAY,TRIM1#

sub90467-08046

sub90467-08037

main90467-08046-D0iAE91,95,CE90,95,EE90..MX,SE198807-199106

MAROON,TRIM3#

sub90467-08046

sub90467-08037

main90467-08046-E1iAE91,95,CE90,EE90..LX,MX,SE198809-198905

DARK BEIGE,TRIM4#

sub90467-08046

sub90467-08037

main90467-08046-J0iAE91,95,CE90,95,EE90..4D198905-199106

LIGHT BLUE,TRIM8#

sub90467-08046

sub90467-08037

64337GARNISH, PACKAGE TRAY TRIM, RH

main64337-12040-02iAE91,95,CE90,95,EE90..MX,SE198705-199106

MAROON,TRIM3#

main64337-12040-03iAE9#,CE90,95,EE90..4D198705-199106

SHADOW GRAY,TRIM1#

main64337-12040-04iAE91,95,CE90,95,EE90..4D198905-199106

DARK BLUE,TRIM8#

main64337-12040-05iAE91,95,CE90,EE90..LX,MX,SE198705-198905

DARK BEIGE,TRIM4#

64339GARNISH, PACKAGE TRAY TRIM, LH

main64339-12020-02iAE91,95,CE90,95,EE90..MX,SE198705-199106

MAROON,TRIM3#

main64339-12020-03iAE9#,CE90,95,EE90..4D198705-199106

SHADOW GRAY,TRIM1#

main64339-12020-04iAE91,95,CE90,95,EE90..4D198905-199106

DARK BLUE,TRIM8#

main64339-12020-05iAE91,95,CE90,EE90..LX,MX,SE198705-198905

DARK BEIGE,TRIM4#

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-12180-03iAE91,CE90,EE90..DX198705-198905

LIGHT GRAY,TRIM1#

main64711-12180-03iAE91,CE90,EE90..DX198705-198905

LIGHT GRAY,TRIM1#,4#

main64711-12180-03iAE91,CE90,EE90..DX,LX198905-199106

LIGHT GRAY,TRIM1#,8#

main64711-12190-03iAE91,CE90,EE90..MX,SE198905-199106

LIGHT GRAY,TRIM1#,3#,8#

main64711-12190-03iAE91,CE90,EE90..MX,SE198705-198905

LIGHT GRAY,TRIM1#,3#,4#

main64711-12200-03iAE92..4D198705-199106

LIGHT GRAY,TRIM1#

main64711-12260-03iAE95..LX..CBR198710-199106

LIGHT GRAY,TRIM1#,4#

main64711-12260-03iAE95,CE95..LX..(DSL,EFI)198710-199106

LIGHT GRAY,TRIM1#,8#

main64711-12270-03iAE95,CE95..(MX,SE)..(DSL,EFI)198710-199106

LIGHT GRAY,TRIM1#,3#,8#

main64711-12270-03iAE95..(MX,SE)..CBR198710-199106

LIGHT GRAY,TRIM1#,3#,4#

64711ACLIP(FOR LUGGAGE COMPARTMENT FLOOR MAT)

main90467-07079-B3iAE92..4D198905-199106

LIGHT GRAY,TRIM1#,MALE

sub90467-07079

main90467-10023iAE92..4D198905-199106

FEMALE

64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)

main90467-10034-01iAE91,CE90,EE90..DX198705-198905

BLACK,TRIM1#,4#

sub90467-10034

main90467-10034-01iAE91,95,CE90,EE90..MX,SE198705-198905

BLACK,TRIM1#,3#,4#

sub90467-10034

main90467-10034-01iAE91,95,CE90,EE90..MX,SE198705-198905

BLACK,TRIM1#

sub90467-10034

main90467-10034-01iAE91,95,CE90,EE90..DX,LX198905-199106

BLACK,TRIM1#,8#

sub90467-10034

main90467-10034-01iAE91,95,CE90,EE90..DX,LX198905-199106

BLACK,TRIM1#,3#,8#

sub90467-10034

64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH

main64714-12120iAE9#,CE90,95,EE90..4D198705-199106

64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)

main90467-05014-23iAE91,CE90..SE198705-198809

GRAY,TRIM1#,3#,4#

sub90467-05014

main90467-05014-23iAE92..4D198705-198809

GRAY,TRIM1#

sub90467-05014

main90467-05014-B0iAE92..4D198809-199106

LIGHT GRAY,TRIM1#

sub90467-05014

main90467-05014-B0iAE95..SE..CBR198809-199106

LIGHT GRAY,TRIM1#,3#,4#

sub90467-05014

main90467-05014-B0iAE95..SE..CBR198809-199106

LIGHT GRAY,TRIM1#,3#,8#

sub90467-05014

64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR

main64716-12110-03iAE91,CE90..SE198705-198905

LIGHT GRAY,TRIM1#,3#,4#

main64716-12110-03iAE92..4D198705-199106

LIGHT GRAY,TRIM1#

main64716-12110-03iAE91,CE90..SE198905-199106

LIGHT GRAY,TRIM1#,3#,8#

main64716-12170-03iAE95..SE..CBR198710-199106

LIGHT GRAY,TRIM1#,3#,8#

main64716-12170-03iAE95,CE95..SE..(DSL,EFI)198710-199106

LIGHT GRAY,TRIM1#,3#,4#

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-12020-03iAE91,CE90,EE90..DX198705-198905

GRAY,TRIM1#,4#

main64717-12020-03iAE91,CE90,EE90..DX198705-198905

GRAY,TRIM1#

main64717-12020-03iAE91,CE90,EE90..DX198705-198905

GRAY,TRIM1#,3#,4#

main64717-12020-03iAE91,CE90,EE90..DX,LX198905-199106

GRAY,TRIM1#,8#

main64717-12020-03iAE91,CE90,EE90..DX,LX198905-199106

GRAY,TRIM1#,3#,8#

main64717-12040-03iAE95..(MX,SE)..CBR198710-199106

LIGHT GRAY,TRIM1#,8#

main64717-12040-03iAE95..(MX,SE)..CBR198710-199106

LIGHT GRAY,TRIM1#,4#

main64717-12040-03iAE95..(MX,SE)..CBR198710-199106

LIGHT GRAY,TRIM1#,3#,4#

main64717-12040-03iAE95..(MX,SE)..CBR198710-199106

LIGHT GRAY,TRIM1#,3#,8#

64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)

main90467-05020-13iAE95..SE..CBR198710-199106

GRAY,TRIM1#,3#,8#

sub90467-05020

sub90467-05027

main90467-05020-13iAE95,CE95..LX..(DSL,EFI)198710-199106

GRAY,TRIM1#,8#

sub90467-05020

sub90467-05027

main90467-05020-13iAE95,CE95..LX..(DSL,EFI)198710-199106

GRAY,TRIM1#,3#,4#

sub90467-05020

sub90467-05027

main90467-05020-13iAE95,CE95..LX..(DSL,EFI)198710-199106

GRAY,TRIM1#,4#

sub90467-05020

sub90467-05027

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-12050-03iAE91,92,CE90,EE90..4D..(DX,GT,LX)198705-198905

LIGHT GRAY,TRIM1#,3#,4#

main64721-12050-03iAE91,92,CE90,EE90..4D..(DX,GT,LX)198705-199106

LIGHT GRAY,TRIM1#

main64721-12050-03iAE92..4D198905-199106

LIGHT GRAY,TRIM1#,8#

main64721-12050-03iAE92..4D198905-199106

LIGHT GRAY,TRIM1#,3#,8#

main64721-12080-03iAE95,CE95..LX..(DSL,EFI)198710-199106

LIGHT GRAY,TRIM1#,3#,4#

main64721-12080-03iAE95,CE95..LX..(DSL,EFI)198710-199106

LIGHT GRAY,TRIM1#,3#,8#

main64721-12080-03iAE95..LX..CBR198710-199106

LIGHT GRAY,TRIM1#,8#

main64721-12080-03iAE95..LX..CBR198710-199106

LIGHT GRAY,TRIM1#,4#

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-07042-03iAE91,CE90,EE90..MX,SE198705-198807

GRAY,TRIM1#,3#,4#

sub90467-07042

sub90467-06175

main90467-07042-03iAE91,CE90,EE90..MX,SE198705-198807

GRAY,TRIM1#

sub90467-07042

sub90467-06175

main90467-07042-03iAE91,95,CE90,EE90..MX,SE198710-198807

GRAY,TRIM1#,4#

sub90467-07042

sub90467-06175

main90467-07042-B0iAE91,95,CE90,EE90..MX,SE198807-198905

LIGHT GRAY,TRIM1#,3#,4#

sub90467-07042

sub90467-06175

main90467-07042-B0iAE91,95,CE90,EE90..MX,SE198807-198905

LIGHT GRAY,TRIM1#,4#

sub90467-07042

sub90467-06175

main90467-07042-B0iAE91,95,CE90,EE90..MX,SE198807-199106

LIGHT GRAY,TRIM1#

sub90467-07042

sub90467-06175

main90467-07042-B0iAE92..4D198905-199106

LIGHT GRAY,TRIM1#,3#,8#

sub90467-07042

sub90467-06175

main90467-07042-B0iAE92..4D198905-199106

LIGHT GRAY,TRIM1#,8#

sub90467-07042

sub90467-06175

64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1

main90467-07104-03iAE91,95,CE90,95,EE90..MX,SE198906-199106

LIGHT GRAY,TRIM1#

sub90467-07104

main90467-07104-03iAE92..4D198906-199106

LIGHT GRAY,TRIM1#,8#

sub90467-07104

main90467-07104-03iAE92..4D198906-199106

LIGHT GRAY,TRIM1#,3#,8#

sub90467-07104

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-12050-03iAE91,CE90,EE90..MX,SE198705-199106

LIGHT GRAY,TRIM1#

main64722-12050-03iAE91,CE90,EE90..MX,SE198705-198905

LIGHT GRAY,TRIM1#,3#,4#

main64722-12050-03iAE92..4D198905-199106

LIGHT GRAY,TRIM1#,8#

main64722-12050-03iAE92..4D198905-199106

LIGHT GRAY,TRIM1#,3#,8#

main64722-12100-03iAE95,CE95..LX..(DSL,EFI)198710-199106

LIGHT GRAY,TRIM1#,3#,4#

main64722-12100-03iAE95,CE95..LX..(DSL,EFI)198710-199106

LIGHT GRAY,TRIM1#,3#,8#

main64722-12100-03iAE95..LX..CBR198710-199106

LIGHT GRAY,TRIM1#,8#

main64722-12100-03iAE95..LX..CBR198710-199106

LIGHT GRAY,TRIM1#,4#

64770COVER ASSY, SPARE WHEEL

main64770-12100iAE91,92,CE90,EE90..4D198705-199106

main64770-12150iAE95,CE95..4D198710-199106

main64770-16080iAE95,CE95..4D198710-199106

64791COVER, BACK DOOR TRIM

main64791-12030-03iAE92..4D198905-199106

LIGHT GRAY,TRIM1#,8#

main64791-12030-03iAE91,95,CE90,EE90..MX,SE198705-198905

LIGHT GRAY,TRIM1#,3#,4#

main64791-12030-03iAE91,95,CE90,EE90..MX,SE198705-198905

LIGHT GRAY,TRIM1#,4#

main64791-12030-03iAE91,95,CE90,EE90..MX,SE198705-199106

LIGHT GRAY,TRIM1#

main64791-12030-03iAE92..4D198905-199106

LIGHT GRAY,TRIM1#,3#,8#

64791ACLIP(FOR BACK DOOR TRIM)

main90467-07072-03iAE91,95,CE90,EE90..MX,SE198705-198905

GRAY,TRIM1#,3#,4#

sub90467-07072

main90467-07072-03iAE91,95,CE90,EE90..MX,SE198705-198905

GRAY,TRIM1#,4#

sub90467-07072

main90467-07072-03iAE91,95,CE90,EE90..MX,SE198705-199106

GRAY,TRIM1#

sub90467-07072

main90467-07072-03iAE92..4D198905-199106

GRAY,TRIM1#,3#,8#

sub90467-07072

main90467-07072-03iAE92..4D198905-199106

GRAY,TRIM1#,8#

sub90467-07072

9018304046

main90183-04046

9165540616

main91655-40616

26 parts on this diagram · 1 diagram in section
