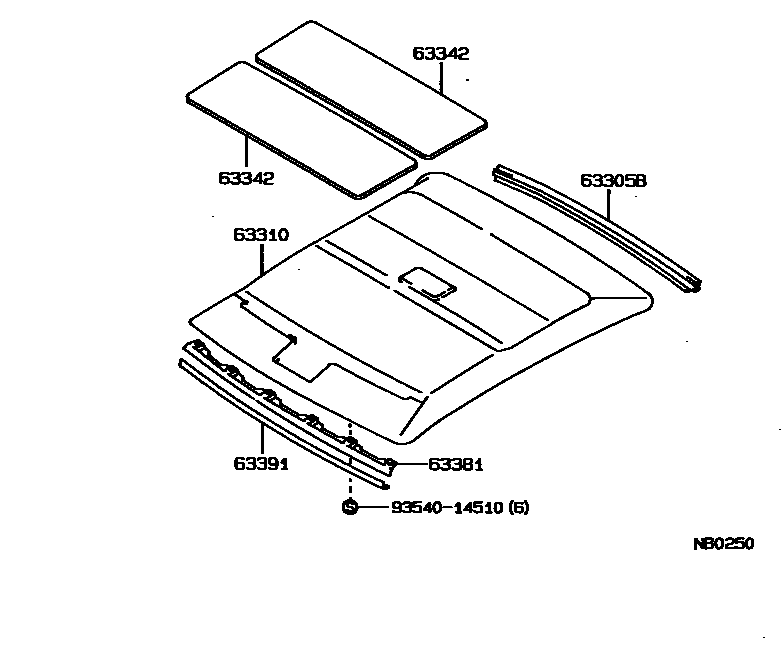

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1 0003 1 0004 1 0005 1

63305BTRIM SUB-ASSY, ROOF HEADLINING, REAR

main63305-12090-02iAE91,95,CE90,95,EE90..MX,SE198705-199009

MAROON,TRIM3#

sub63305-12090

main63305-12090-03iAE9#,CE90,95,EE90..4D198705-199009

SHADOW GRAY,TRIM1#

sub63305-12090

main63305-12090-05iAE91,95,CE90,EE90..LX,MX,SE198705-198905

DARK BEIGE,TRIM4#

sub63305-12090

main63305-12090-B1iAE9#,CE90,95,EE90..4D199009-199106

SHADOW GRAY,TRIM1#

sub63305-12090

main63305-12090-D0iAE91,95,CE90,95,EE90..MX,SE199009-199106

MAROON,TRIM3#

sub63305-12090

main63305-12090-J0iAE91,95,CE90,95,EE90..4D198905-199106

DARK BLUE,TRIM8#

sub63305-12090

main63305-12100-03iAE91,92..5D198705-199009

SHADOW GRAY,TRIM1#

sub63305-12100

main63305-12100-05iAE91..5D198705-198905

DARK BEIGE,TRIM4#

sub63305-12100

main63305-12100-B1iAE91,92..5D199009-199106

SHADOW GRAY,TRIM1#

sub63305-12100

main63305-12100-J0iAE91..5D198908-199106

DARK BLUE,TRIM8#

sub63305-12100

main63305-12130-03iAE95..WG198802-199009

SHADOW GRAY,TRIM1#

main63305-12130-04iAE95..WG198908-199009

DARK BLUE,TRIM8#

main63305-12130-05iAE95..AV1,RVS198802-198908

DARK BEIGE,TRIM4#

63310HEADLINING ASSY, ROOF

main63310-12870-02iAE91,95,CE90,95..SE198705-199106

MAROON,TRIM3#

main63310-12870-03iAE9#,CE90,95..4D..(GT,SE)198705-199106

LIGHT GRAY,TRIM1#

main63310-12870-04iAE91,95,CE90,95..SE198905-199106

LIGHT BLUE,TRIM8#

main63310-12870-05iAE91,95,CE90..SE198705-198905

LIGHT BEIGE,TRIM4#

main63310-12880-03iAE91,92..5D198705-199106

LIGHT GRAY,TRIM1#

main63310-12880-04iAE91..5D198908-199106

LIGHT BLUE,TRIM8#

main63310-12880-05iAE91..5D198705-198905

LIGHT BEIGE,TRIM4#

main63310-12890-02iAE91,95,CE90,95,EE90..MX198705-199106

MAROON,TRIM3#

sub63310-12870

main63310-12890-03iAE91,95,CE90,95,EE90..DX,LX,MX198705-199106

LIGHT GRAY,TRIM1#

sub63310-12870

main63310-12890-04iAE91,95,CE90,95,EE90..DX,LX,MX198905-199106

LIGHT BLUE,TRIM8#

sub63310-12870

main63310-12890-05iAE91,95,CE90,EE90..LX,MX198705-198905

LIGHT BEIGE,TRIM4#

sub63310-12870

main63310-13130-03iCE96,EE96,98198808-199108

LIGHT GRAY,TRIM1#

sub63310-13150

main63310-13130-04iCE96,EE96,98198908-199108

LIGHT BLUE,TRIM8#

sub63310-13150

main63310-13130-05iCE96,EE96,98..DX,XL198808-198908

LIGHT BEIGE,TRIM4#

sub63310-13150

main63310-1A010-03iAE91,92..5D..(G,GT,XS)198905-198908

LIGHT GRAY,TRIM1#

main63310-1A010-03iAE91,92..5D..(G,GT,XI)198705-199106

main63310-1A010-04iAE91..G,XS198908-199106

main63310-1A010-04iAE91..G,XS198905-198908

LIGHT BLUE,TRIM8#

main63310-1A120-03iAE95..WG198802-199009

main63310-1A120-04iAE95..WG198908-199009

main63310-1A120-05iAE95..AV1,RVS198802-198908

main63310-1A130-03iAE95..AV2,RVS198802-199009

main63310-1A130-04iAE95..AV2,RVS198908-199009

main63310-1A130-05iAE95..RVS198802-198908

main63310-1A140-03iAE95..WG198802-199009

LIGHT GRAY,TRIM1#

main63310-1A140-04iAE95..WG198908-199009

LIGHT BLUE,TRIM8#

main63310-1A140-05iAE95..AV1,RVS198802-198908

LIGHT BEIGE,TRIM4#

main63310-1A150-03iAE95..AV2,RVS198802-199009

main63310-1A150-04iAE95..AV2,RVS198908-199009

main63310-1A150-05iAE95..RVS198802-198908

63342PAD, ROOF SILENCER, NO.2

main63343-12050iAE9#,CE90,95,EE90198705-199106

63381RETAINER, HEADLINING, FRONT

main63381-12150iAE9#,CE90,95,EE90198705-199108

sub63381-12140

main63381-12190iCE96,EE96,98198705-199108

63391TRIM, ROOF HEADLINING, FRONT

main63391-12080-02iAE91,95,CE90,95,EE90..MX,SE198705-199009

MAROON,TRIM3#

sub63391-12080

main63391-12080-03iAE9#,CE90,95,EE90198705-199009

SHADOW GRAY,TRIM1#

sub63391-12080

main63391-12080-05iAE91,95,CE90,EE90..AV1,G,L,LX,MX,RVS,SE,XI198705-198908

DARK BEIGE,TRIM4#

sub63391-12080

main63391-12080-B1iAE9#,CE90,95,EE90199009-199106

SHADOW GRAY,TRIM1#

sub63391-12080

main63391-12080-D0iAE91,95,CE90,95,EE90..MX,SE199009-199106

MAROON,TRIM3#

sub63391-12080

main63391-12080-J0iAE91,95,CE90,EE90..4D198905-199106

DARK BLUE,TRIM8#

sub63391-12080

main63391-13040-03iCE96,EE96,98198808-199004

SHADOW GRAY,TRIM1#

sub63391-13041

main63391-13040-04iCE96,EE96,98198908-199004

DARK BLUE,TRIM8#

sub63391-13041

main63391-13040-05iCE96,EE96,98..DX,XL198808-198908

DARK BEIGE,TRIM4#

sub63391-13041

main63391-13041-03iCE96,EE96,98199004-199108

SHADOW GRAY,TRIM1#

main63391-13041-04iCE96,EE96,98199004-199108

DARK BLUE,TRIM8#

9354014510

main93540-14510

6 parts on this diagram · 5 diagrams in section
