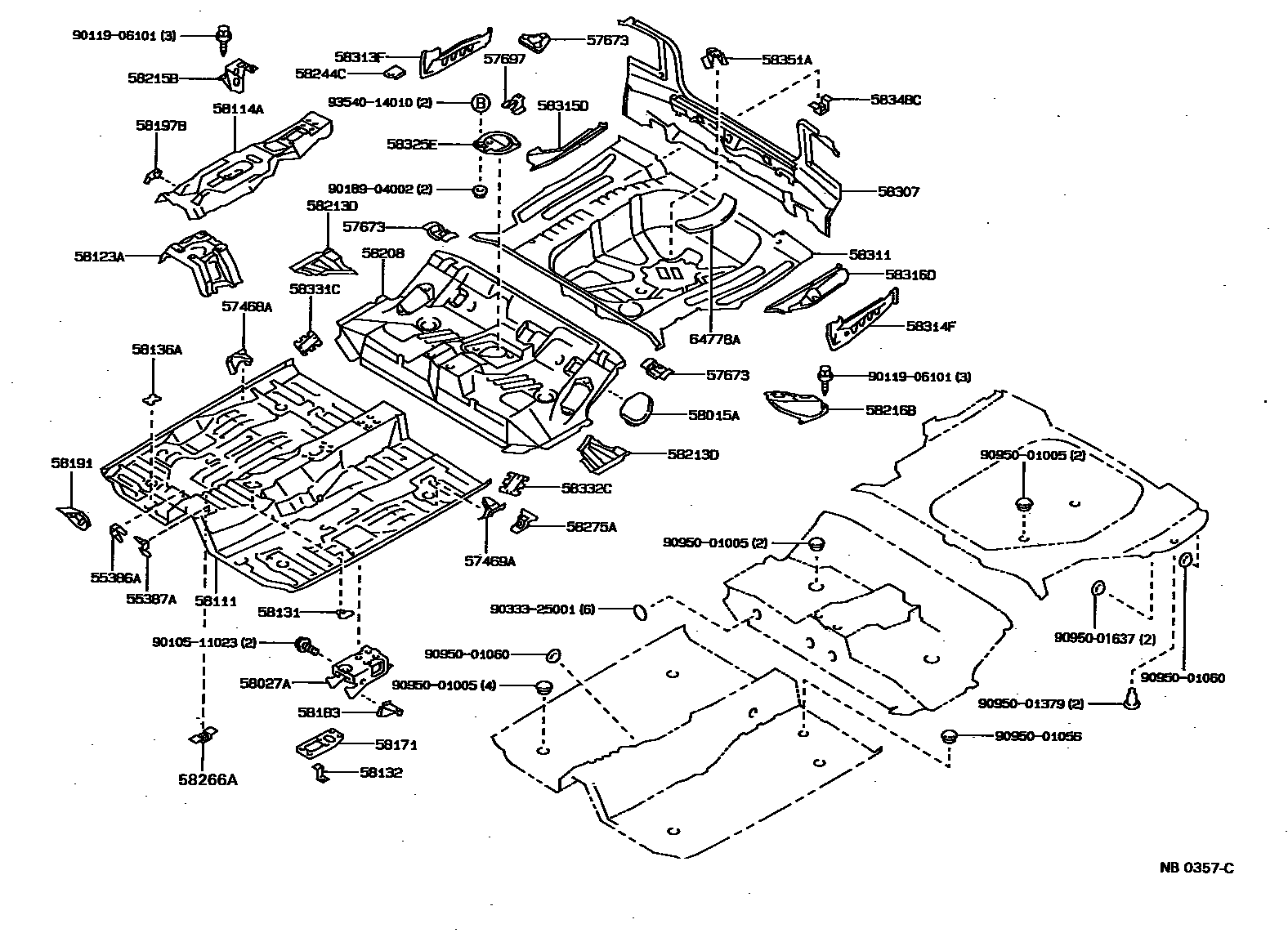

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1 0004 1

55386ABRACKET, COMPUTER MOUNTING, NO.1

main55386-12040iAE91,92,CE90,96,EE9#198705-199108

main55386-12050iAE95,CE95198710-199106

55387ABRACKET, COMPUTER MOUNTING, NO.2

main55387-12020iAE91,92,CE90,96,EE9#198705-199108

main55387-12050iAE95,CE95198710-199106

57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH

main57468-12030iAE91,92,CE90,96,EE9#198705-199108

main57468-12040iAE95,CE95198710-199106

57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH

main57469-12030iAE91,92,CE90,96,EE9#198705-199108

main57469-12040iAE95,CE95198710-199106

57673BRACKET, REAR SEATBACK HINGE MOUNTING

main57607-12020iAE91,92..G,GT,L,XI198705-199106

main57607-12020iAE91,92..5D..(G,GT,XS)198905-199106

CTR

main57607-12030iAE95..WG198802-199009

main57671-12020iAE91,92..5D..(G,GT,XI,XS)198705-199106

main57672-12020iAE91,92..5D..(G,GT,XI,XS)198705-199106

main57673-12060iAE95,CE95..4D198710-199106

57697RETAINER, REAR SEAT CUSHION

main57697-12020iAE9#,CE90,EE90198705-199106

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-12020iAE91,92,CE90,EE90..DX,G,GT,LX,MX,SE,XS198705-199106

main58015-13010iCE96,EE96,98198808-199108

58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR

main58027-12030iAE91,92,CE90,EE90198705-198905

main58027-12040iAE95,CE95198710-199106

main58027-12050iCE96,EE96..(4F,4FC,5F)..(DX,XL)198905-199008

sub58027-12060

main58027-12060iAE92;AE91..EFIS198905-199106

main58027-12100iAE91,CE90,96,EE9#..CBR,DSL,EFI199006-199108

58111PAN, FRONT FLOOR

main58111-12200iAE91,92,CE90,96,EE9#198705-199108

main58111-12210iAE95198710-199008

sub58111-12211

sub90950-01060

main58111-12211iAE95,CE95199008-199106

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-12050iAE91,92,CE90,96,EE9#198705-199108

main58114-12060iAE95,CE95198710-199008

sub58114-12061

main58114-12061iAE95,CE95199008-199106

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-12040iAE91,92,CE90,96,EE9#198705-199108

main58123-12050iAE95,CE95198802-199106

58131BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1

main58131-12060iAE92,EE98;AE91..EFIS198705-199106

58132BRACKET, FRONT FLOOR HEAT INSULATOR, NO.2

main58132-32010iAE92,EE98;AE91..EFIS198705-199106

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-12020iAE91,92,CE9#,EE9#198705-199108

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-12080iAE91,92,CE90,96,EE9#198705-199108

58183BRACKET, FRONT SEAT MOUNTING, INNER

main58183-12090iAE91,92,CE90,96,EE9#198705-199108

main58183-12110iAE95,CE95198710-199106

main58184-12110iAE91,92,CE90,96,EE9#198705-199108

main58184-12120iAE95,CE95198710-199106

58191FOOTREST, FRONT FLOOR

main58191-12100iCE90..SE;AE9#,CE95..(4FC,5F)..(AV1,AV2,G,GT,LX,MX,RVS,SE,XI,XS)198705-199108

58197BRETAINER, INSTRUMENT PANEL BRACE MOUNTING BRACKET

main58197-12010iAE91,92,CE90,EE90198705-199108

58208PAN, CENTER FLOOR

main58211-12170iAE91..L;AE92..4D199008-199106

W(SPLIT SEAT)

main58211-12170iAE91,92..G,GT,L,XI,XS198705-199008

main58211-12180iAE91,CE90,EE90..4D198705-199106

PLANT NO.A31,A32

main58211-12240iAE95198710-198808

sub58211-12241

main58211-12241iAE95,CE95198808-199106

main58211-12250iAE95..AV2198802-198808

sub58211-12251

main58211-12260iAE91,CE90,EE90..4D198705-199106

PLANT NO.M12,B11,K21

main58211-12270iAE92..4D199008-199106

W(SPLIT SEAT)

main58211-12270iAE91..L;AE92..4D198705-199008

58213DREINFORCEMENT, CENTER FLOOR PANEL

main58213-12020iAE91,92,CE90,EE90198705-199106

main58214-12010iAE91,92,CE90,EE90..DX,G,GT,LX,MX,SE,XS198705-199106

58215BBRACKET, REAR SEAT MOUNTING, RH

main58215-13020iCE96,EE96,98198808-199108

main58215-16010iAE91,92,CE90,EE90198705-199106

58216BBRACKET, REAR SEAT MOUNTING, LH

main58216-13020iCE96,EE96,98198808-199108

main58216-16010iAE91,92,CE90,EE90198705-199106

58244CBRACKET, REAR SEAT CUSHION MOUNTING, RH

main58244-16030iAE91,92,CE90,EE90..DX,G,GT,LX,MX,SE,XS198705-199108

58266ABRACKET, FUEL TUBE CLAMP

main58266-22040iAE91..EFIS198705-199106

58275ARETAINER, REAR SEATBACK TO CENTER FLOOR

main58275-12010iAE95,CE95..4D198710-199106

main58275-12020iAE91,CE90,EE90..4D198705-199106

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-1A050iAE91,92..5D198705-198910

sub58307-1A051

main58307-1A051iAE91,92..5D198910-199106

main58307-1A150iAE91,92,CE90,EE90..4D198705-198905

main58307-1A151iAE91,92,CE90..4D..(GT,SE)198905-198910

sub58307-1A152

main58307-1A152iAE91,CE90,EE90..DX,LX,MX198905-199106

main58307-1A200iAE95..CBR198710-198905

sub58307-1A202

main58307-1A201iAE95..SE198905-198910

sub58307-1A202

main58307-1A202iAE95..LX,MX198905-199106

58311PAN, REAR FLOOR

main58311-12120iAE91,92,CE90,EE90198705-199106

main58311-12190iAE95..WG198802-199009

main58311-12200iAE95,CE95..4D198710-199106

main58311-13100iCE96,EE96,98198808-198905

main58311-13130iCE96,EE96,98198905-199108

main58311-13140iEE96..4F198908-199108

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58313-12210iAE91,92,CE90,EE90..4D198705-199106

main58313-12230iAE95..WG198802-199009

main58313-12240iAE95,CE95..4D198710-199106

main58313-13090iCE96,EE96,98198808-199108

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58314-12210iAE91,92,CE90,EE90..4D198705-199106

main58314-12230iAE95..WG198802-199009

main58314-12240iAE95,CE95..4D198710-199106

main58314-13080iCE96,EE96,98198808-199108

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-12030iAE91,92,CE90,EE90198705-199106

main58315-12050iAE95..WG198802-199009

main58315-12060iAE95,CE95..4D198710-199106

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-12030iAE91,92,CE90,EE90198705-199106

main58316-12050iAE95..WG198802-199009

main58316-12060iAE95,CE95..4D198710-199106

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-12020iAE91,92,CE90,96,EE9#198705-199108

main58325-12060iAE95,CE95198710-199106

58331CCOVER, REAR FLOOR SIDE SERVICE HOLE, RH

main58331-12010iAE91,92,CE90,EE90..4D198705-199106

58332CCOVER, REAR FLOOR SIDE SERVICE HOLE, LH

main58332-12010iAE92..4D;AE91,CE90,EE90..DX,L,LX,MX,SE198705-199106

58348CBRACKET, REAR FLOOR HEAT INSULATOR, NO.3

main58348-12010iAE91,92,EE90198705-199106

58351ABRACKET, SPARE WHEEL CARRIER

main58351-12020iAE91,92,CE90,EE90198705-199106

64778APROTECTOR, SPARE WHEEL

main64778-12050iAE9#,CE90,95,EE90198705-199106

sub64778-12030

9010511023

main90105-11023

9011906101

main90119-06101

9018904002

main90189-04002

9033325001

main90333-25001

9095001005

main90950-01005

9095001056

main90950-01056

9095001060

main90950-01060

9095001379

main90950-01379

9095001637

main90950-01637

9354014010

main93540-14010

47 parts on this diagram · 4 diagrams in section
