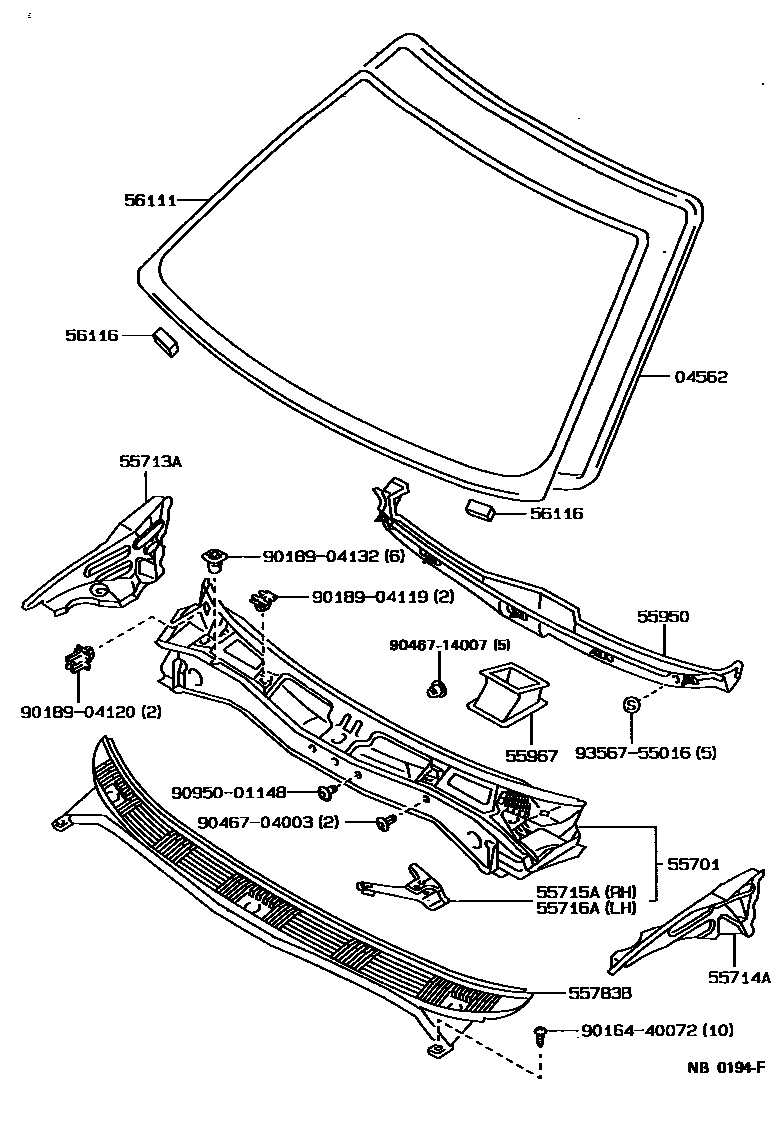

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-12010iCE96,EE96,98;AE9#,CE90,EE90..AV1,AV2,G,GT,L,LX,MX,RVS,SE,XS198705-199108

55701PANEL SUB-ASSY, COWL

main55700-12450iAE91198705-198801

sub55700-12460

main55700-12460iAE91,95198710-199106

main55700-12470iEE9#198705-198905

sub55700-12750

main55700-12480iCE9#198705-199108

main55700-12490iAE92198705-199106

main55700-12750iEE9#198905-199108

55713APANEL, COWL TOP SIDE, RH

main55713-12070iAE9#,CE9#,EE9#198705-199108

55714APANEL, COWL TOP SIDE, LH

main55714-12070iAE9#,CE9#,EE9#198705-199108

55715ABRACE, COWL TOP TO APRON, RH

main55715-12090iAE9#,CE9#,EE9#198705-199108

55716ABRACE, COWL TOP TO APRON, LH

main55716-12090iAE9#,CE9#,EE9#198705-199108

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55708-12020iAE9#,CE9#,EE9#198705-199108

main55708-12060iAE9#,CE9#,EE9#198705-199108

55950NOZZLE ASSY, DEFROSTER

main55950-12100iAE9#,CE9#,EE9#198705-199108

55967NOZZLE, DEFROSTER, LOWER

main55967-12010iAE9#,CE9#,EE9#198705-199108

56111GLASS, WINDSHIELD

main56111-1A090iAE91,CE90,EE90..DX198705-198708

sub56111-1A240

main56111-1A100iAE9#,CE90,EE90..G,GT,L,LX,MX,XI198705-198708

sub56111-1A250

main56111-1A110iAE91,CE90..SE198705-198708

sub56111-1A290

main56111-1A110iAE91,CE90..SE198705-198708

sub56111-1A290

main56111-1A120iAE9#,CE90,EE90..G,GT,L,MX,SE,XI198705-198708

sub56111-1A280

main56111-1A220iCE96,EE96,98..CTD,DX,STD198808-199108

main56111-1A230iCE96,EE96,98..XL198808-199108

sub56111-1A270

main56111-1A240iAE91,CE90,EE90..DX198708-199106

sub56111-1A360

main56111-1A250iAE92..4D;AE91,95,CE90,95,EE90..AV1,AV2,L,LX,RVS198708-199106

sub56111-1A290

main56111-1A280iAE95..AV2,RVS,SE;AE91,92,CE90,EE90..G,GT,L,MX,SE,XI198708-199106

main56111-1A290iAE91,95,CE90..SE198708-199106

main56111-1A290iAE95..AV2,RVS198708-199009

main56111-1A370iAE91,95,CE90..SE198801-198905

main56111-1A370iAE91..SE..EFI198811-198812

main56111-1A370iAE91..SE198909-199005

main56111-1A370iAE95..AV2198809-198810

main56111-1A370iAE91..SE199005-199106

main56111-1A380iAE91,92..5D..(G,GT,XS)198905-199106

sub56111-1A280

56116SPACER, WINDSHIELD GLASS

main56116-12020iAE9#,CE90,95,EE90..AV1,AV2,G,GT,L,LX,MX,RVS,SE,XS198907-199009

8 X 6.5 X 20

main56116-12020iAE92..4D;AE91,95,CE90,EE90..DX,L,LX,MX,SE198907-198910

main56116-24010iAE92..4D;AE91,95,CE9#,EE9#..AV1,AV2,CTD,DX,L,LX,MX,RVS,SE,STD,XL198907-199009

10.5 X 12.5 X 20

main56116-24010iAE91..SE198705-199108

9016440072

main90164-40072

9018904119

main90189-04119

9018904120

main90189-04120

9018904132

main90189-04132

9046704003

main90467-04003

9046714007

main90467-14007

9095001148

main90950-01148

9356755016

main93567-55016

19 parts on this diagram · 1 diagram in section
