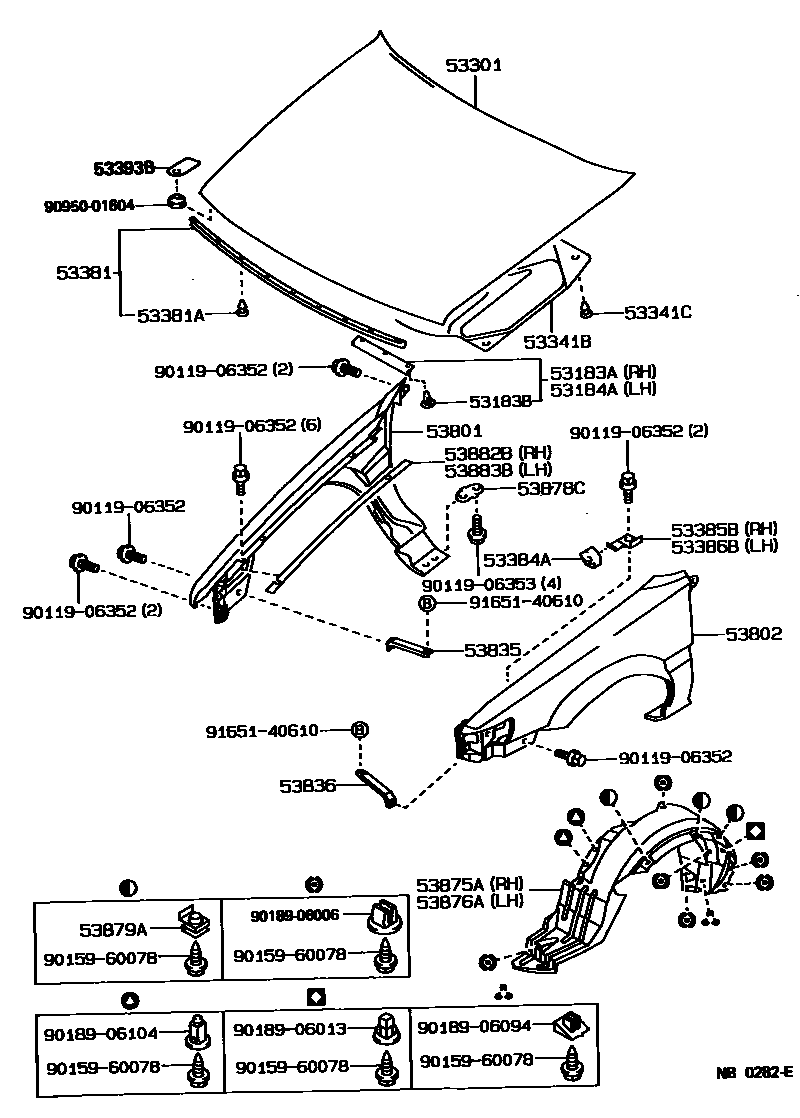

HOOD & FRONT FENDER

53183ASEAL, HEADLAMP COVER, RH

main53183-12050iAE95..WG198802-199009

main53183-12060iAE9#,CE90,EE90..4D,5D198705-198905

main53183-12080iAE9#,CE90,95,EE90..4D,5D198905-199106

sub53183-12060

53183BCLIP(FOR HEADLAMP COVER SEAL)

main90467-08011iAE95..WG198802-199009

main90467-08044iAE9#,CE90,95,EE90..4D,5D198705-199106

sub90467-08011

53184ASEAL, HEADLAMP COVER, LH

main53184-12040iAE95..WG198802-199009

main53184-12050iAE9#,CE90,EE90..4D,5D198705-198905

main53184-12070iAE9#,CE90,95,EE90..4D,5D198905-199106

sub53184-12050

53301HOOD SUB-ASSY

main53301-12561iCE96,EE96,98198808-199108

main53301-12580iAE9#,CE90,95,EE90..4D,5D198705-199106

main53301-12660iAE95..WG198802-199009

53341BINSULATOR, HOOD

main53341-12040iCE9#198705-199108

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iCE9#198705-199108

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-12140iAE9#,CE9#,EE9#198705-199108

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iAE9#,CE9#,EE9#198705-199108

53384ABUMPER, FENDER TO HOOD

main53384-12030iAE9#,CE90,95,EE90..4D,5D198705-199106

main53384-12040iCE96,EE96,98198808-199108

sub53384-12050

main53384-12060iAE95..WG198803-199009

sub53384-12030

53385BBRACKET, FENDER TO HOOD BUMPER, RH

main53385-12020iAE9#,CE9#,EE9#198705-199108

53386BBRACKET, FENDER TO HOOD BUMPER, LH

main53386-12020iAE9#,CE9#,EE9#198705-199108

53393BPROTECTOR, HOOD, FRONT

main53393-12020iAE9#,CE90,95,EE90198905-199106

53801FENDER SUB-ASSY, FRONT RH

main53801-1E390iCE96,EE96,98198808-199108

main53801-1E410iEE98..(3FC,5F)..XL198808-199108

main53801-1E430iAE95..AV2198705-199106

main53801-1E430iAE91,95,CE90,EE90..AV1,DX198705-199106

main53801-1E510iAE91..L198905-199106

main53801-1E570iAE9#,CE90,95,EE90..G,GT,L,MX,SE,XS198905-199106

main53801-1E630iAE91,95,CE90,EE90..AV1,DX198705-199106

main53801-1E630iAE9#,CE90,EE90..AV2,G,GT,L,LX,MX,RVS,SE,XI198705-199106

53802FENDER SUB-ASSY, FRONT LH

main53802-1A810iCE96,EE96,98198808-199108

main53802-1E290iEE96;EE98..4F;CE96,EE98..(3FC,4FC,5F)..(CTD,DX)198808-199108

main53802-1E310iAE95..AV2198705-199106

main53802-1E310iAE91,95,CE90,EE90..AV1,DX198705-199106

main53802-1E390iAE9#,CE90,95,EE90..G,GT,MX,SE,XS198905-199106

main53802-1E450iAE9#,CE90,95,EE90..G,GT,L,MX,SE,XS198905-199106

main53802-1E510iAE91,95,CE90,95,EE90..AV2,LX,RVS198705-199106

main53802-1E510iAE91,95,CE90,EE90..AV1,DX198705-199106

53835BRACE, FRONT FENDER TO EXTENSION, RH

main53835-12050iAE9#,CE9#,EE9#198705-199108

53836BRACE, FRONT FENDER TO EXTENSION, LH

main53835-12050iAE9#,CE9#,EE9#198705-199108

53875ALINER, FRONT FENDER, RH

main53875-12150iAE9#,CE9#,EE9#198705-199108

main53875-12180iAE9#,CE90,95,EE90..4D,5D198905-199106

53876ALINER, FRONT FENDER, LH

main53876-12140iAE95,CE96,EE96,98..V,WG198705-199108

main53876-12170iAE9#,CE90,95,EE90..4D,5D198905-199106

53878CSPACER, FRONT FENDER

main53878-20030iAE9#,CE9#,EE9#198705-199108

53879ARETAINER, FRONT FENDER LINER

main53879-14010iAE9#,CE9#,EE9#198705-199108

53882BSEAL, FRONT FENDER, RH

main53882-12080iAE9#,CE9#,EE9#198705-199108

53883BSEAL, FRONT FENDER, LH

main53882-12080iAE9#,CE9#,EE9#198705-199108

9011906352

main90119-06352

9011906353

main90119-06353

9015960078

main90159-60078

9018906006

main90189-06006

9018906013

main90189-06013

9018906094

main90189-06094

9018906104

main90189-06104

9095001604

main90950-01604

9165140610

main91651-40610

31 parts on this diagram · 1 diagram in section
