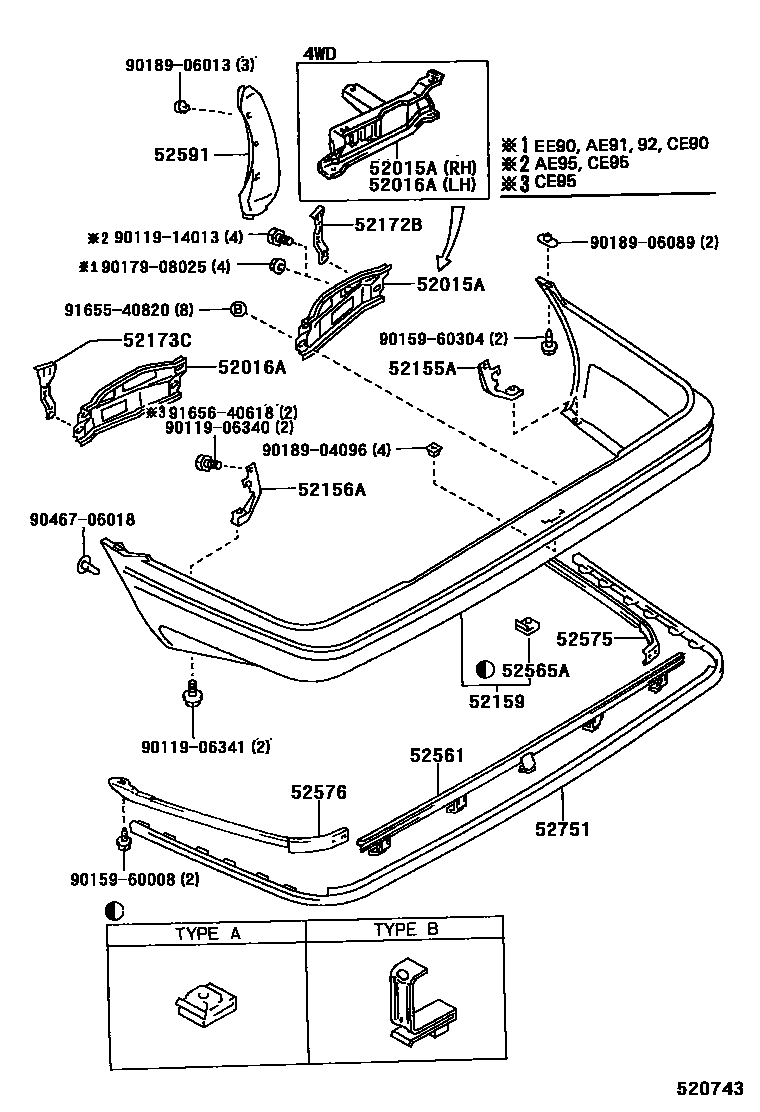

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-12210iAE95..AV1198802-199009

main52015-12230iAE95198710-198802

sub52015-12231

sub90119-14002

main52015-12231iAE95,CE95..4D198802-199106

main52015-13070iCE96,EE96,98198808-199108

main52181-12280iAE91,92,CE90,EE90..4D..(GT,LX,MX,SE)198705-199106

main52181-12300iAE91,92..5D198705-199106

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-12210iAE95..AV1198802-199009

main52016-12220iAE95198710-198802

sub52016-12221

sub90119-14002

main52016-12221iAE95,CE95..4D198802-199106

main52016-13060iCE96,EE96,98198808-199108

main52182-12230iAE91,92,CE90,EE90..4D198705-199106

main52182-12250iAE91,92..5D198705-199106

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-12150iAE9#,CE90,95,EE90..4D,5D198705-199106

main52155-13030iCE96,EE96,98198808-199108

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-12140iAE91,92,CE90,EE90198705-199106

main52156-12170iAE95,CE95..4D198710-199106

main52156-13030iCE96,EE96,98198808-199108

52159COVER, REAR BUMPER

main52159-12750iAE91,95,CE90,EE90..DX,LX198705-198905

main52159-12751iAE91,CE90,EE90..DX,LX198905-199106

main52159-12751iAE91,92,CE90,EE90..4D..(GT,LX,MX,SE)198905-199106

W/O PAINTED

main52159-12760-02iAE9#,CE90,EE90..4D..(GT,MX,SE)198705-198905

SUPER RED 2,3E5

sub52159-12750

main52159-12760-03iAE9#,CE90,EE90..4D..(GT,MX,SE)198705-198905

GRAY M,168

sub52159-12750

main52159-12760-05iAE91,95,CE90,EE90..MX,SE198705-198905

M BEIGE M,4H6

sub52159-12750

main52159-12760-08iAE9#,CE90,EE90..4D..(GT,MX,SE)198705-198905

SUPER WHITE 2,040

sub52159-12750

main52159-12760-12iAE91,95,CE90,EE90..MX,SE198708-198905

RED MICA,3H4

sub52159-12750

main52159-12760-15iAE95..SE;AE91,CE90,EE90..MX,SE198705-198905

BEIGE M,25E

sub52159-12750

main52159-12760-18iAE91..SE198801-198803

sub52159-12750

main52159-12761-02iAE9#,CE90,95,EE90..4D..(GT,LX,MX,SE)198905-199106

RED MICA,3H4

sub52159-12751

main52159-12761-03iAE9#,CE90,95,EE90..4D..(GT,LX,MX,SE)198905-199106

GRAY M,168

sub52159-12751

main52159-12761-04iAE9#,CE90,95,EE90..4D..(GT,LX,MX,SE)198905-199106

DARK BLUE MICA M,8E9

sub52159-12751

main52159-12761-05iAE91,95,CE90,95,EE90..LX,MX,SE198905-199106

LIGHT BEIGE M,4K1

sub52159-12751

main52159-12761-07iAE9#,CE90,95,EE90..4D..(GT,LX,MX,SE)198905-199106

GRAYISH GREEN M,6K6

sub52159-12751

main52159-12761-08iAE9#,CE90,95,EE90..4D..(GT,LX,MX,SE)198905-199106

SUPER WHITE 2,040

sub52159-12751

main52159-12761-12iAE91,95,CE90,95,EE90..LX,MX,SE198905-199004

DARK ROSE M,3J1

sub52159-12751

main52159-12770iAE91,92..5D198705-199106

main52159-12780-02iAE91,92..5D..(G,GT,XI)198705-198905

SUPER RED 2,3E5

sub52159-12770

main52159-12780-03iAE91..L..EFI;AE91,92..5D..(G,GT,XI,XS)198705-199106

GRAY M,168

sub52159-12770

main52159-12780-04iAE91,92..5D198905-199106

DARK BLUE MICA M,8E9

sub52159-12770

main52159-12780-05iAE91..G,XI198705-198905

M BEIGE M,4H6

sub52159-12770

main52159-12780-07iAE91,92..5D198905-199106

GRAYISH GREEN M,6K6

sub52159-12770

main52159-12780-08iAE91..L..EFI;AE91,92..5D..(G,GT,XI,XS)198705-199106

SUPER WHITE 2,040

sub52159-12770

main52159-12780-12iAE91,92..5D198905-199106

RED MICA,3H4

sub52159-12770

main52159-12780-13iAE91,92..5D..(G,GT,XS)198905-199108

M GRAY M,22M

sub52159-12770

main52159-12780-13iAE91,92..5D..(G,GT,XI)198705-198905

M GRAY M,26E

sub52159-12770

main52159-13020iCE96,EE96,98198808-199108

main52159-1A060iAE95..AV1198802-199009

main52159-1A100iAE95..RVS198802-199009

main52159-1A110-02iAE95..AV2,RVS198802-199009

SUPER RED 2,3E5

main52159-1A110-03iAE95..AV2,RVS198802-199009

GRAY M,168

main52159-1A110-03iAE95..AV2198809-198810

main52159-1A110-04iAE95..AV2,RVS198802-198908

DARK BLUE M,22G

main52159-1A110-07iAE95..AV2,RVS198802-198908

DARK GREEN M,21G

main52159-1A110-08iAE95..AV2,RVS198802-199009

SUPER WHITE 2,040

main52159-1A110-13iAE95..AV2,RVS198802-199009

GRAY,20G

main52159-1A110-14iAE95..AV2,RVS198908-199009

DARK BLUE MICA M,25M ,8E9

main52159-1A110-17iAE95..AV2,RVS198908-199009

GRAYISH GREEN M,26M

main52159-1A110-17iAE95..AV2198909-198910

main52159-1A320-08iAE91,95,CE90..SE198901-198905

main52159-1A380-08iAE91..SE..EFIS199005-199106

main52159-1A380-08iAE91..SE..EFI199010-199106

main52159-1A380-08iAE91..SE..EFI199005-199010

main52159-1A380-08iAE91..SE198909-199005

52172BREINFORCEMENT, REAR BUMPER, NO.2

main52172-12140iAE91,92..5D198705-199106

52173CREINFORCEMENT, REAR BUMPER, NO.3

main52173-12130iAE91,92..5D198705-199106

52561RETAINER, REAR BUMPER, UPPER CENTER

main52508-12010iAE95..AV2,RVS198802-199009

main52561-12130iAE9#,CE90,EE90..4D..(GT,LX,MX,SE)198905-199106

52565ARETAINER, REAR BUMPER, LOWER

main52565-12040iAE91..L198705-199108

TYPE A

main52565-12040iAE9#,CE90,EE90..4D198705-198910

main52565-12070iAE95..AV2,RVS198802-199009

main52565-12100iAE9#,CE90,EE90..4D198705-198805

main52565-12160iAE91..L198805-198905

main52565-12160iAE91,92..5D198905-199106

main52565-16020iAE91,92..5D198910-199106

main52565-16020iAE91,92..5D198910-199106

TYPE A

52575RETAINER, REAR BUMPER SIDE, RH

main52575-12080iAE9#,CE90,95,EE90..4D198905-199106

52576RETAINER, REAR BUMPER SIDE, LH

main52576-12080iAE9#,CE90,95,EE90..4D198905-199106

52591SEAL, REAR BUMPER SIDE, RH

main52591-12050iAE9#,CE90,EE90..4D,5D198705-198905

sub52591-12051

main52591-12051iAE9#,CE90,95,EE90..4D,5D198905-199106

52751MOULDING, REAR BUMPER

main52751-12140iAE9#,CE90,EE90..4D198705-198905

main52751-12150iAE91,92..5D198705-199106

main52751-12210iAE91..LX198905-199106

main52751-12220iAE9#,CE90,95,EE90..4D..(GT,LX,MX,SE)198905-199106

W(COLORED BUMPER)

sub52751-12210

9011906340

main90119-06340

9011906341

main90119-06341

9011914013

main90119-14013

9015960008

main90159-60008

9015960304

main90159-60304

9017908025

main90179-08025

9018904096

main90189-04096

9018906013

main90189-06013

9018906089

main90189-06089

9046706018

main90467-06018

9165540820

main91655-40820

9165640618

main91656-40618

25 parts on this diagram · 4 diagrams in section
