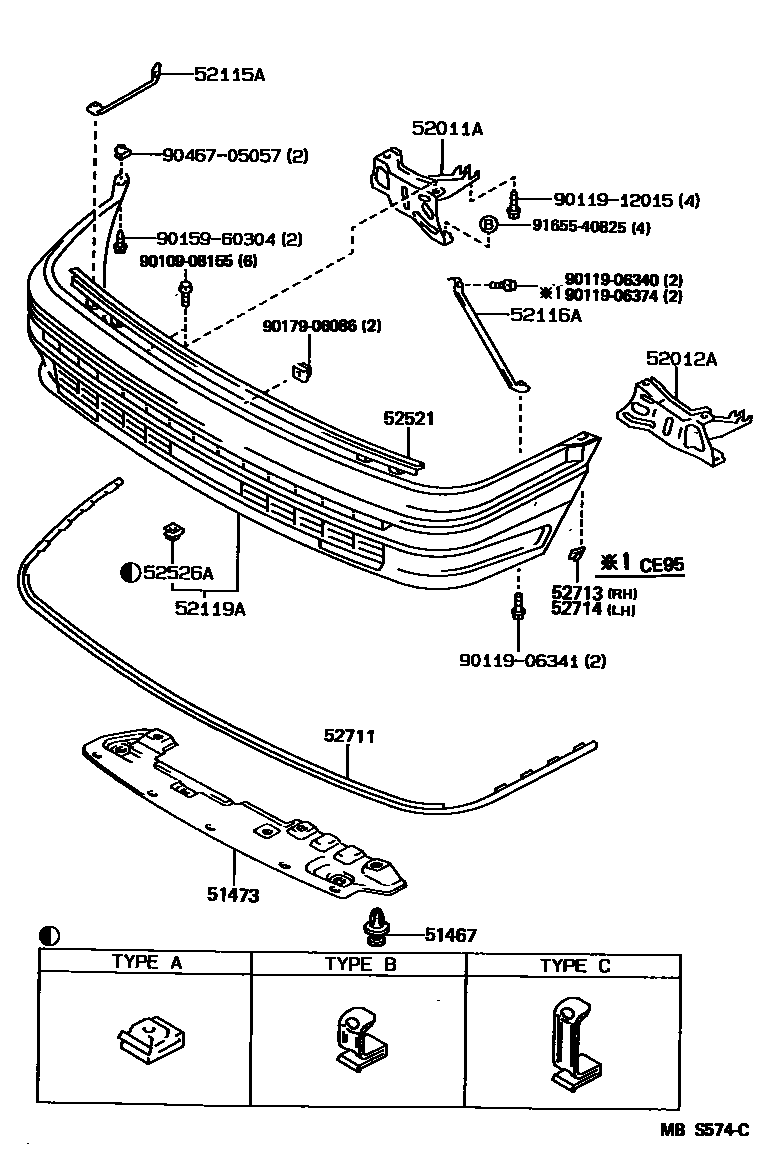

FRONT BUMPER & BUMPER STAY

0001 1 0003 1

51467RETAINER, ENGINE UNDER COVER

main51467-12020iAE9#,CE90,95,EE90..4D,5D198905-199106

sub90467-08186

51473COVER, ENGINE UNDER, NO.5 FRONT

main51473-12020iAE9#,CE90,95,EE90..4D,5D198905-199106

52011AARM SUB-ASSY, FRONT BUMPER, RH

main52011-12360iCE96,EE96,98198808-198908

main52011-12370iAE9#,CE90,EE90..AV1,DX,G,GT,L,LX,MX,SE,XI198705-199009

main52011-12420iCE96,EE96,98198908-199108

main52011-12430iAE9#,CE90,95,EE90..4D,5D198905-199106

52012AARM SUB-ASSY, FRONT BUMPER, LH

main52012-12370iCE96,EE96,98198808-198908

main52012-12380iAE95..AV1198705-199009

main52012-12430iCE96,EE96,98198908-199108

main52012-12440iAE9#,CE90,95,EE90..4D,5D198905-199106

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-12260iAE91198705-199108

main52115-12270iAE95..AV2,RVS198802-199009

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-12200iAE92,CE90,95,EE90198705-199108

main52116-12210iAE95..AV2,RVS198802-199009

52119ACOVER, FRONT BUMPER

main52119-12350iAE95..RVS198802-199009

main52119-12670-02iAE95..AV2,RVS198802-199009

SUPER RED 2,3E5

main52119-12670-03iAE95..AV2198809-198810

main52119-12670-03iAE95..AV2,RVS198802-199009

GRAY M,168

main52119-12670-04iAE95..AV2,RVS198802-198908

DARK BLUE M,22G

main52119-12670-07iAE95..AV2,RVS198802-198908

DARK GREEN N,21G

main52119-12670-08iAE95..AV2,RVS198802-199009

SUPER WHITE 2,040

main52119-12670-13iAE95..AV2,RVS198802-199009

SILVER,20G

main52119-12670-14iAE95..AV2,RVS198908-199009

DARK BLUE MICA M,25M ,8E9

main52119-12670-17iAE95..AV2,RVS198908-199009

GRAYISH GREEN M,26M

main52119-12670-17iAE95..AV2198909-198910

main52119-12840iCE96,EE96,98198908-199108

main52119-1A230iAE9#,CE90,EE90..AV1,DX,G,GT,L,LX,MX,SE,XI198705-199009

main52119-1A240-02iAE9#,CE90,EE90..G,GT,MX,SE,XI198705-198905

SUPER RED 2,3E5

sub52119-1A230

main52119-1A240-03iAE95..MX,SE198705-198905

GRAY M,168

sub52119-1A230

main52119-1A240-05iAE91,95,CE90,EE90..G,MX,SE,XI198705-198905

M BEIGE M,4H6

sub52119-1A230

main52119-1A240-08iAE95..MX,SE198705-198905

SUPER WHITE 2,040

sub52119-1A230

main52119-1A240-08iAE91..SE..EFI198811-198812

sub52119-1A230

main52119-1A240-12iAE95..MX,SE198708-198905

RED MICA,3H4

sub52119-1A230

main52119-1A240-13iAE91,92..5D..(G,GT,XI)198705-198905

M GRAY M,26E

sub52119-1A230

main52119-1A240-15iAE95..MX,SE198705-198905

BEIGE M,25E

sub52119-1A230

main52119-1A240-18iAE91..SE198801-198803

sub52119-1A230

main52119-1A350iCE96,EE96,98198808-198908

main52119-1A630iAE9#,CE90,95,EE90..4D,5D198905-199106

main52119-1A640-02iAE9#,CE90,95..G,GT,L,LX,MX,SE,XS198905-199106

RED MICA,3H4

sub52119-1A630

main52119-1A640-03iAE9#,CE90,95..G,GT,L,LX,MX,SE,XS198905-199106

GRAY M,168

sub52119-1A630

main52119-1A640-04iAE9#,CE90,95..G,GT,L,LX,MX,SE,XS198905-199106

DARK BLUE MICA M,8E9

sub52119-1A630

main52119-1A640-05iAE91,95,CE95..LX,MX,SE198905-199106

LIGHT BEIGE M,4K1

sub52119-1A630

main52119-1A640-07iAE9#,CE90,95..G,GT,L,LX,MX,SE,XS198905-199106

GRAYISH GREEN M,6K6

sub52119-1A630

main52119-1A640-08iAE9#,CE90,95..G,GT,L,LX,MX,SE,XS198905-199106

SUPER WHITE 2,040

sub52119-1A630

main52119-1A640-12iAE91,95,CE90,95,EE90..LX,MX,SE198905-199004

DARK ROSE M,3J1

sub52119-1A630

main52119-1A640-13iAE91,92..5D..(G,GT,XS)198905-199106

M GRAY M,22M

sub52119-1A630

main52119-1A810-08iAE91,95,CE90..SE198901-198905

main52119-1A840-08iAE91..SE..EFIS199005-199106

sub52119-1A630

main52119-1A840-08iAE91..SE..EFI199005-199106

sub52119-1A630

main52119-1A840-08iAE91..SE..EFI199010-199106

sub52119-1A630

main52119-1A840-08iAE91..SE198909-199005

sub52119-1A630

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-12090iAE95..AV2,RVS198802-198810

main52521-12091iAE95..AV2,RVS198810-199009

main52521-12100iCE96,EE96,98198908-199108

main52521-12110iAE9#,CE90,95,EE90..4D,5D198905-199106

52526RETAINER, FRONT BUMPER, LOWER SIDE

main52526-12030iAE95..AV2,RVS198802-199009

52526ARETAINER, FRONT BUMPER, LOWER NO.1

main52565-12040iAE95,CE96,EE96,98..AV1,DX,STD,XL198705-198910

main52565-12040iAE95,CE96,EE96,98..AV1,DX,STD,XL198905-198908

TYPE A

main52565-12090iAE95..AV1198705-199009

main52565-12110iAE9#,CE90,EE90..AV1,DX,G,GT,L,LX,MX,SE,XI198705-199009

main52565-16020iAE95..AV1198910-199009

main52565-16020iCE96,EE96,98198908-199108

TYPE A

52711MOULDING, FRONT BUMPER

main52711-12040iAE9#,CE90,EE90..4D,5D198712-198905

main52711-12130iAE9#,CE90,EE90..4D,5D198705-198905

sub52711-12040

main52711-12160-02iAE95..AV2,RVS198802-199009

RED,040 ,168 ,20G

sub52711-12160

main52711-12160-03iAE95..RVS198802-198908

GRAY,21G ,22G ,3E5

sub52711-12160

main52711-12160-03iAE95..AV2198802-198908

GRAY,21G ,22G ,3E5 ,4H7

sub52711-12160

main52711-12160-03iAE95..AV2198809-198910

sub52711-12160

main52711-12160-03iAE95..AV2198909-198910

sub52711-12160

main52711-12160-03iAE95..AV2,RVS198908-199009

GRAY,25M ,26M ,3E5 ,8E9

sub52711-12160

main52711-12170-02iAE95..AV1198802-199009

RED,040 ,168

sub52711-12170

main52711-12170-03iAE95..AV1198908-199009

GRAY,3E5 ,8E9

sub52711-12170

main52711-12170-03iAE95..AV1198802-198908

GRAY,3E5 ,4H7

sub52711-12170

main52711-12190iCE90,EE90..DX198905-199106

W/O(COLORED BUMPER)

main52711-12230iAE9#,CE90,95,EE90..G,GT,L,LX,MX,SE,XS198905-199106

W(COLORED BUMPER)

sub52711-12190

52713PLUG, FRONT BUMPER MOULDING

main52713-12020iCE96,EE96,98198908-199108

52714PLUG, FRONT BUMPER MOULDING, LH

main52714-12010iCE96,EE96,98198908-199108

9010908155

main90109-08155

9011906340

main90119-06340

9011906341

main90119-06341

9011906374

main90119-06374

9011912015

main90119-12015

9015960304

main90159-60304

9017906086

main90179-06086

9046705057

main90467-05057

9165540825

main91655-40825

22 parts on this diagram · 2 diagrams in section
