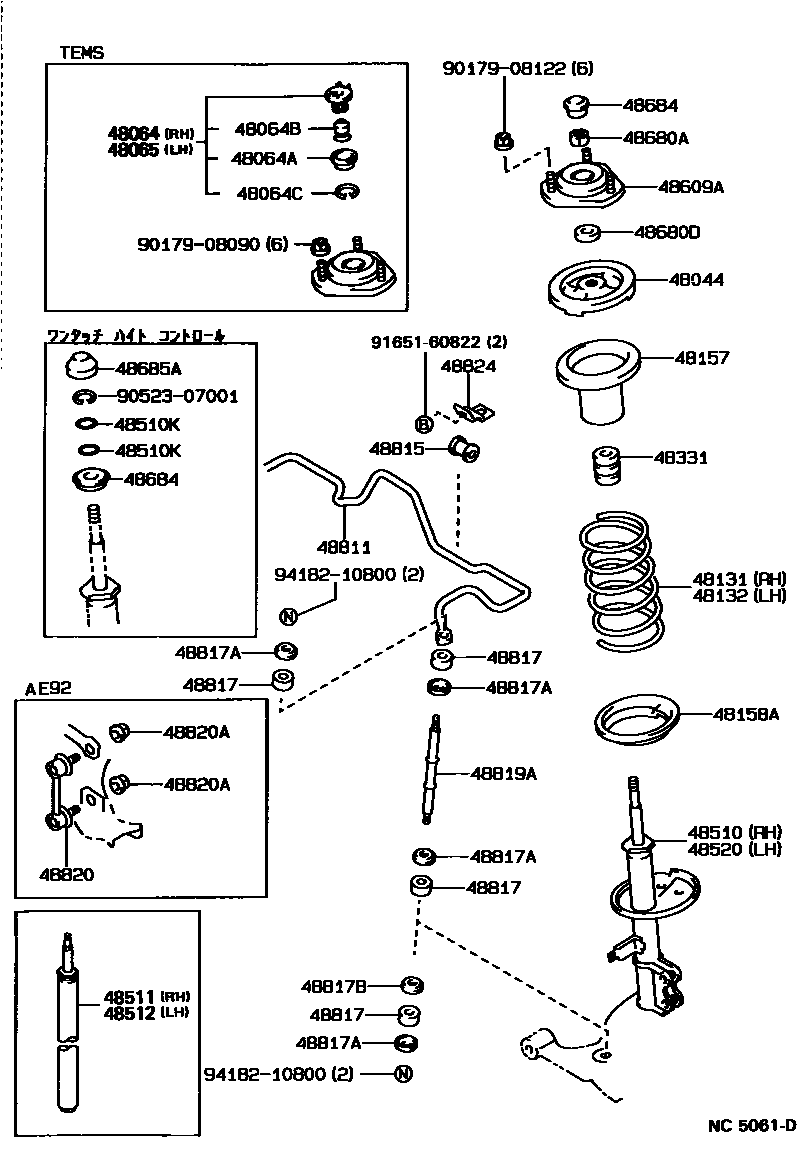

FRONT SPRING & SHOCK ABSORBER

48044SEAT SUB-ASSY, FRONT SPRING, NO.1

main48044-12090iAE9#,CE9#,EE9#..CBR,DSL,EFI¥2,170198705-199106

48064COVER SUB-ASSY, FRONT SUSPENSION SUPPORT, RH

main48064-12010iAE92¥1,510198705-199106

48064ASEAL, DUST(FOR FRONT SUSPENSION SUPPORT COVER)

main90304-26001iAE92¥310198705-199106

48064BGROMMET(FOR FRONT SUSPENSION SUPPORT COVER)

main90480-13019iAE92¥190198705-199106

48064CRING, SET(FOR FRONT SUSPENSION SUPPORT COVER)

main90522-24001iAE92¥180198705-199106

48065COVER SUB-ASSY, FRONT SUSPENSION SUPPORT, LH

main48065-12010iAE92¥1,510198705-199106

48131SPRING, FRONT COIL, RH

main48131-1E720iAE91..3FC..MX¥10,800198905-199106

main48131-1E740iAE95..5F..CBR;CE90..5F..(DX,LX);AE91..4FC..SE..CBR¥11,900198705-199106

main48131-1E760iAE95..4FC..CBR;CE90..5F..(MX,SE)¥9,200198705-199106

main48131-1E780iCE90..4FC..(MX,SE)¥9,800198705-199106

main48131-1E860iAE91..5F..SE..EFI¥10,100198908-199106

main48131-1E860iAE92..5F¥10,100198705-198905

main48131-1E880iAE91,92..5F..(GT,XI)¥10,800198705-199106

main48131-1E880iAE92..4FC¥10,800198705-198905

main48131-1E890iAE91,92..4FC..EFI¥11,400198705-198905

main48131-1E890iAE91..4FC..EFIS¥11,400198905-199106

main48131-1H050iAE91..4FC..SE..EFI¥9,200198805-198806

main48131-1H130iAE91..5F..G¥10,100198705-198905

main48131-1H150iAE92..5D..5F¥10,100198905-199106

main48131-1H170iAE91..4FC..G;AE91..5F..EFI¥10,300198705-199106

main48131-1H180iCE96..4FC¥9,300198808-198908

sub48131-2D210¥9,100

main48131-1H210iEE96..3FC;EE98..MTM¥9,800198808-199108

main48131-1H230iAE92..4D..5F¥8,700198905-199106

main48131-1H230iEE98..3FC¥8,700198808-199108

main48131-1H240iAE92..4D..5F¥10,300198905-199106

main48131-1H260iAE92..4D..4FC¥8,000198905-199106

main48131-1H370iAE91..3FC;AE91..5F..SE..CBR¥10,500198705-199106

main48131-1H440iEE90..4F..(DX,LX)¥9,100198705-199106

main48131-1H460iEE90..3FC;AE91..MTM..(DX,L,LX,MX)¥9,500198705-199106

main48131-1H510iAE92..5D..4FC¥8,200198905-199106

main48131-1H510iAE91..4FC..EFI¥8,200198705-199108

main48131-1H530iCE96..5F..XL;AE95..4D..4FC;AE92..5D..4FC¥8,800198808-199108

main48131-1H550iAE92..4D..4FC¥9,100198905-199106

main48131-1H620iEE96..4F¥9,200198808-199108

sub48131-1H060¥9,200

main48131-1H650iAE95..5F..AV2¥9,200198802-198908

main48131-1H670iAE95..5F..AV2;AE95..4FC..(AV1,RVS)¥9,800198802-198908

main48131-1H690iAE95..4FC..AV2¥10,100198802-198908

main48131-1H870iAE95..5F..AV2¥9,200198908-199009

main48131-1H890iAE95..4FC..AV2¥9,800198908-199009

main48131-1K010iAE95..4FC..AV2¥10,000198908-199009

main48131-1K230iCE95¥10,100198910-199106

48132SPRING, FRONT COIL, LH

main48131-1E720iCE90..5F..DX;AE91..4FC..EFI¥10,800198705-199106

main48131-1E740iAE95..4FC..CBR;CE90..5F..(MX,SE)¥11,900198705-199106

main48131-1E760iCE90..4FC¥9,200198705-199106

main48131-1E840iAE92..5F¥9,800198705-198905

main48131-1E840iAE91..5F..SE..EFI¥9,800198908-199106

main48131-1E860iAE91,92..5F..EFI¥10,100198705-199106

main48131-1E860iAE92..4FC¥10,100198705-198905

main48131-1E880iAE91..4FC..EFIS¥10,800198908-199106

main48131-1E880iAE91..5F..SE..EFI;AE91,92..4FC..(GT,XI)¥10,800198705-198905

main48131-1H020iAE91..4FC..SE..EFI¥9,100198805-198806

main48131-1H060iAE91..5F..G¥9,200198705-198905

main48131-1H130iAE92..5D..5F¥10,100198905-199106

main48131-1H150iAE91..4FC..G¥10,100198705-199106

main48131-1H170iAE95,CE96..5F..(DX,LX,MX,SE,STD)..(DSL,EFI)¥10,300198705-199108

main48131-1H170iAE92..5D..4FC¥10,300198905-199106

main48131-1H180iCE95¥9,300198910-199106

sub48131-2D210¥9,100

main48131-1H210iEE98..3FC¥9,800198808-199108

main48131-1H210iAE92..4D..5F¥9,800198905-199106

main48131-1H230iAE92..4D..5F¥8,700198905-199106

main48131-1H240iAE92..4D..4FC¥10,300198908-199106

main48131-1H260iAE92..4D..4FC¥8,000198905-199106

main48131-1H370iAE91..3FC..MX¥10,500198905-199106

main48131-1H420iEE90..4F¥8,700198705-199106

main48131-1H440iEE90..4F..MX;EE90..3FC..(DX,LX)¥9,100198705-199106

main48131-1H460iAE91..4F..MX;EE90..3FC..MX;AE91..(3FC,4F,5F)..(DX,G,L,LX,SE)..EFI¥9,500198705-199106

main48131-1H510iCE96..5F..XL;AE95..4D..4FC;AE92..5D..4FC¥8,200198808-199108

main48131-1H530iCE96..4FC¥8,800198808-198908

main48131-1H550iAE95..5F..AV2¥9,100198802-198908

main48131-1H610iEE96..4F¥8,600198808-199108

main48131-1H620iEE96..3FC;EE98..MTM¥9,200198808-199108

sub48131-1H060¥9,200

main48131-1H650iAE95..4FC..AV2¥9,200198802-198908

main48131-1H670iAE95..4FC..AV2¥9,800198802-198908

main48131-1H840iAE95..5F..(AV1,RVS)¥8,200198908-199009

sub48131-1H800¥8,200

main48131-1H870iAE95..4FC..AV2¥9,200198908-199009

main48131-1H890iAE95..4FC..AV2¥9,800198908-199009

48157INSULATOR, FRONT COIL SPRING, UPPER

main48157-12060iAE91,95,CE9#,EE9#..CBR,DSL,EFI¥740199103-199106

main48157-12060iAE9#,CE9#,EE9#¥740198705-199108

main48157-12070iAE95..AV2¥1,000198802-199009

48158AINSULATOR, FRONT COIL SPRING, LOWER

main48158-12030iCE96,EE9#¥680198705-199108

48331BUMPER, FRONT SPRING, NO.1

main48331-12100iAE91,EE9#..CBR,EFI¥780198705-199108

sub48331-12120¥610

main48331-12130iAE92,95;AE91,CE9#..DSL,EFIS¥2,080198705-199108

main48331-12130iAE91..SE..EFI¥2,080198905-199103

main48331-12130iAE92¥2,080199103-199108

main48331-20040iAE95,CE9#¥2,090199009-199103

sub48331-12130¥2,080

main48331-20040iAE92,95;AE91,CE9#..DSL,EFIS¥2,090199103-199108

sub48331-12130¥2,080

main48331-20040iAE92¥2,090198705-198905

sub48331-12130¥2,080

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-12520iAE91,EE9#..(CTD,DX,G,L,LX,MX,SE,STD,XL)..(CBR,EFI)¥24,300198705-199108

sub48510-1A260¥24,300

main48510-12550iAE91,CE90..DSL,EFI¥24,400198705-198805

sub48510-12590¥24,700

main48510-12560iAE91..SE..EFI¥24,300198905-199106

sub48510-12590¥24,700

main48510-12560iAE92¥24,300198705-199108

sub48510-12590¥24,700

main48510-12610iAE92¥46,000198705-198905

sub48510-12611¥45,600

main48510-12611iAE92¥45,600198905-199106

main48510-12650iAE95..WG¥25,600198802-198908

sub48510-12652¥25,600

main48510-12651iAE95..WG¥25,500198908-199009

sub48510-12650¥25,600

main48510-12660iAE95..CBR¥24,700198710-198905

sub48510-12661¥25,900

main48510-12661iAE95,CE95..4D¥25,900198905-199106

sub48510-12600¥24,300

main48510-12670iAE95..AV2¥23,500198802-198908

sub48510-12671¥23,300

main48510-12671iAE95..AV2¥23,300198908-199009

sub48510-12672¥23,300

main48510-12720iAE92¥24,300198905-199106

sub48510-12721¥24,300

48510KRING, O(FOR FRONT SHOCK ABSORBER)

main90301-06007iAE95..AV2¥220198802-199009

48511ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)

main48511-12310iAE91,EE9#..(CTD,DX,G,L,LX,MX,SE,STD,XL)..(CBR,EFI)¥14,600198705-199108

sub48511-12320¥14,700

main48511-12330iAE91,CE90,96..DSL,EFIS¥14,600198705-199108

sub48511-12410¥14,800

main48511-12330iAE91..SE..EFI¥14,600198905-199106

sub48511-12410¥14,800

main48511-12360iAE95..WG¥14,700198802-198908

sub48511-12370¥14,700

main48511-12370iAE95..CBR¥14,700198710-198905

main48511-12410iAE92¥14,800198905-199106

main48511-12420iAE95..WG¥14,800198908-199009

sub48511-12370¥14,700

main48511-12430iAE95,CE95..4D¥14,800198908-199106

sub48511-12370¥14,700

48512ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)

main48511-12310iAE91,EE9#..(CTD,DX,G,L,LX,MX,SE,STD,XL)..(CBR,EFI)¥14,600198705-199108

sub48511-12320¥14,700

main48511-12330iAE91..SE..EFI¥14,600198905-199106

sub48511-12410¥14,800

main48511-12330iAE91,CE90,96..DSL,EFIS¥14,600198705-199108

sub48511-12410¥14,800

main48511-12360iAE95..WG¥14,700198802-198908

sub48511-12370¥14,700

main48511-12370iAE95..CBR¥14,700198710-198905

main48511-12410iAE92¥14,800198905-199106

main48511-12420iAE95..WG¥14,800198908-199009

sub48511-12370¥14,700

main48511-12430iAE95,CE95..4D¥14,800198908-199106

sub48511-12370¥14,700

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-12390iAE91,EE9#..(CTD,DX,G,L,LX,MX,SE,STD,XL)..(CBR,EFI)¥24,300198705-199108

sub48520-1A130¥24,300

main48520-12420iAE91,CE90..DSL,EFI¥24,400198705-198805

sub48520-12460¥24,700

main48520-12430iAE91..SE..EFI¥24,300198905-199106

sub48520-12460¥24,700

main48520-12430iAE92¥24,300198705-199108

sub48520-12460¥24,700

main48520-12480iAE92¥46,000198705-198905

sub48520-12481¥45,600

main48520-12481iAE92¥45,600198905-199106

main48520-12520iAE95..WG¥25,600198802-198908

sub48520-12522¥25,600

main48520-12521iAE95..WG¥25,500198908-199009

sub48520-12520¥25,600

main48520-12530iAE95..CBR¥24,700198710-198905

sub48520-12531¥25,900

main48520-12531iAE95,CE95..4D¥25,900198905-199106

sub48520-12470¥24,300

main48520-12540iAE95..AV2¥23,500198802-198908

sub48520-12541¥23,300

main48520-12541iAE95..AV2¥23,300198908-199009

sub48520-12542¥23,300

main48520-12590iAE92¥24,300198905-199106

sub48520-12591¥24,300

48609ASUPPORT SUB-ASSY, FRONT SUSPENSION

main48609-12190iAE91,95,CE90,EE90..AV1,AV2,DX,G,L,LX,MX,RVS,SE¥6,000198705-198808

sub48609-12191¥6,000

main48609-12191iAE91,95,CE9#,EE9#..AV1,AV2,DX,G,L,LX,MX,RVS,SE,STD,XL¥6,000198808-198905

sub48609-12192¥5,900

main48609-12192iAE91,95,CE9#,EE9#..CBR,DSL,EFI¥5,900198905-199108

main48609-12210iAE91,92..GT,XI¥6,500198705-198808

sub48609-12211¥6,400

main48609-12220iAE95..AV2¥6,200198802-198808

sub48609-12221¥6,100

main48609-12220iAE92¥6,200198705-198808

sub48609-12221¥6,100

main48609-12221iAE95..AV2¥6,100198808-198908

sub48609-12222¥6,100

main48609-12221iAE92¥6,100198808-198809

sub48609-12222¥6,100

main48609-12222iAE95..AV2¥6,100198908-199009

main48609-12230iAE91,92..GT,XI¥6,500198808-198905

sub48609-12231¥6,400

main48609-12231iAE92;AE91..EFIS¥6,400198905-199103

main48609-12240iAE92¥6,100198809-198905

sub48609-12241¥6,100

main48609-12241iAE92¥6,100199103-199106

main48609-12241iAE92¥6,100198905-199103

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90179-14029iAE92¥190198808-199106

main90179-14029iAE92¥190198705-199103

main94182-11400iAE9#,CE9#,EE9#¥310198705-199108

48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)

main90303-22049iAE9#,CE9#,EE9#¥260198705-199108

48684COVER, BEARING DUST

main48684-12050iAE95..AV2¥390198802-199009

main48684-32010iAE9#,CE9#,EE9#¥590198705-199108

48685ACOVER, HOSE UNION

main48685-12020iAE95..AV2¥330198802-199009

48811BAR, STABILIZER, FRONT

main48811-12490iCE96¥12,100198705-199108

main48811-12510iAE92¥12,100198705-199106

main48811-12530iCE90¥10,500198705-199106

main48811-12580iAE95..WG;AE95..CBR¥10,000198710-198908

main48811-12620iAE91..XI,XS;AE91..SE..EFIS¥9,100198805-199106

main48811-12660iAE92..4D¥10,200198905-199108

main48811-12670iAE95,CE95..4D¥10,200198905-199106

main48811-12690iAE95..WG¥15,500198908-199009

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-12140iAE92,95,CE96¥590198705-199108

main48815-12160iCE90¥590198705-199106

main48815-12170iAE91..XI,XS;AE91..SE..EFIS¥590198805-199106

main48815-12180iAE92,95,CE95..4D,WG¥590198905-199108

48817CUSHION, FRONT STABILIZER

main48817-30020iAE91..SE..EFIS¥260198705-199108

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02032iAE95,CE9#¥200198705-199108

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02015iAE91..SE..EFIS¥90198705-199108

48819ABOLT, FRONT STABILIZER

main48819-20030iAE91..SE..EFIS¥370198705-199108

48820LINK ASSY, FRONT STABILIZER

main48820-20010iAE92¥5,300198705-199108

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-10054iAE92¥110198705-199106

48824BRACKET, STABILIZER, FRONT

main48824-12090iAE91..SE..EFIS¥400198705-199108

9017908090

main90179-08090¥200

9017908122

main90179-08122¥440

9052307001

main90523-07001¥190

9165160822

main91651-60822¥130

9418210800

main94182-10800¥230

35 parts on this diagram · 1 diagram in section
