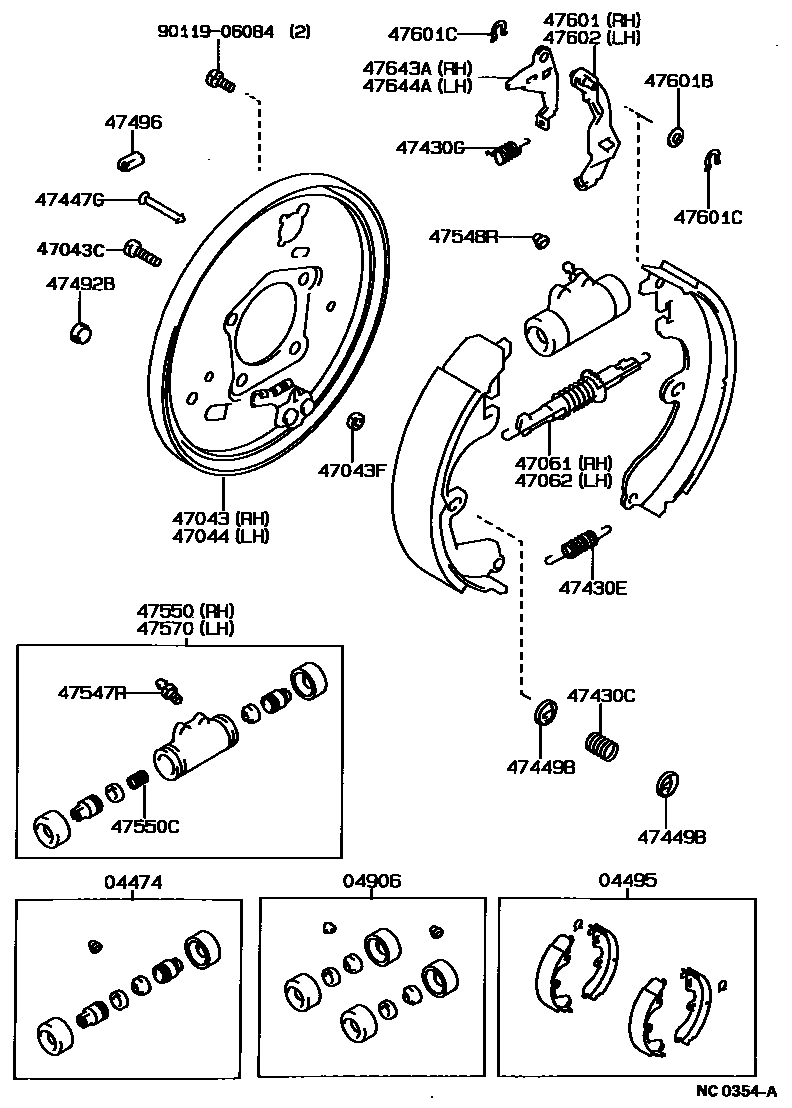

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1

04474CYLINDER KIT, REAR WHEEL

main04474-10032iAE95,CE95198710-199106

sub04474-63020

main04474-16020iAE91,CE90,96,EE9#198705-199108

04495SHOE KIT, REAR BRAKE

main04495-12100iAE91,CE9#,EE9#198705-198809

sub04495-12101

main04495-12101iAE91,CE90,96,EE9#198809-199108

sub04495-12210

main04495-12130iAE95198710-198809

sub04495-12131

main04495-12131iAE95..WG;AE95..CBR198809-198908

sub04495-12230

main04495-12181iAE95,CE95198905-199106

main04497-12080iCE96,EE96,98198705-198908

main04497-12090iAE95..WG;AE95..CBR198710-198908

main04497-12100iAE95..4D198905-198908

main04497-12100iAE95,CE95198908-199106

04906CUP KIT, REAR WHEEL CYLINDER

main04906-10021iAE95,CE95198710-199108

main04906-16020iAE91,CE90,96,EE9#198705-199108

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-12070iAE91,CE90,96,EE9#198705-199108

main47043-16030iAE95,CE95198710-199106

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main42184-22020iAE95,CE95,96,EE96,98198710-199108

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90179-10095iAE95,CE95198710-199106

main94181-11000iCE96,EE96,98198808-199108

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-12070iAE91,CE90,96,EE9#198705-199108

main47044-16030iAE95,CE95198710-199106

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-12020iAE95,CE95198710-199106

main47061-32010iAE91,CE90,96,EE9#198705-199108

sub47061-20020

47062STRUT SET, PARKING BRAKE SHOE, LH

main47062-12020iAE95,CE95198710-199106

main47062-32010iAE91,CE90,96,EE9#198705-199108

sub47062-20020

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main47446-10010iAE95,CE95198710-199106

main90501-18017iCE90,96,EE9#198705-199108

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-18034iAE91198705-199108

main90506-18299iAE95..WG;AE95..CBR198710-199106

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12036iCE96,EE96,98198705-199108

main90506-12276iAE95..4D198710-199106

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-10010iAE95..4D198710-199106

main47447-30010iCE96,EE96,98198705-199108

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30030iCE96,EE96,98198705-199108

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-32010iAE91,95,CE9#,EE9#198705-199108

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011iAE91,95,CE90,EE90..4D,5D198705-199108

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010iAE95,CE96,EE96,98198705-199108

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iAE91,95,CE9#,EE9#198705-199108

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-10042iAE95,CE95198710-199106

main47550-16030iAE91,CE9#,EE9#198705-199006

sub47550-20120

main47550-20120iCE90,96,EE9#199006-199108

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90501-07006iAE91,CE90,EE90198705-199108

sub90029-60014

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-10042iAE95,CE95198710-199106

main47570-16010iAE91,CE9#,EE9#198705-199006

sub47570-20030

main47570-20030iCE90,96,EE9#199006-199108

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-32010iAE91,CE90,96,EE9#198705-199108

main47611-12050iAE95,CE95198710-199106

47601BSHIM, REAR PARKING BRAKE SHOE LEVER

main90564-08150iAE91,CE90,96,EE9#198705-199108

main90564-08151iAE91,CE90,96,EE9#198705-199108

main90564-08152iAE91,CE90,96,EE9#198705-199108

main90564-08172iAE91,CE90,96,EE9#198705-199108

main90564-08173iAE91,CE90,96,EE9#198705-199108

main90564-08174iAE91,CE90,96,EE9#198705-199108

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013iAE95..4D198705-199108

main90213-06013iEE96198808-198908

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-32010iAE91,CE90,96,EE9#198705-199108

main47612-12050iAE95,CE95198710-199106

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-12030iAE95,CE95198710-199106

main47643-32010iAE91,CE90,96,EE9#198705-199108

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-12030iAE95,CE95198710-199106

main47644-32010iAE91,CE90,96,EE9#198705-199108

9011906084

main90119-06084

28 parts on this diagram · 2 diagrams in section
