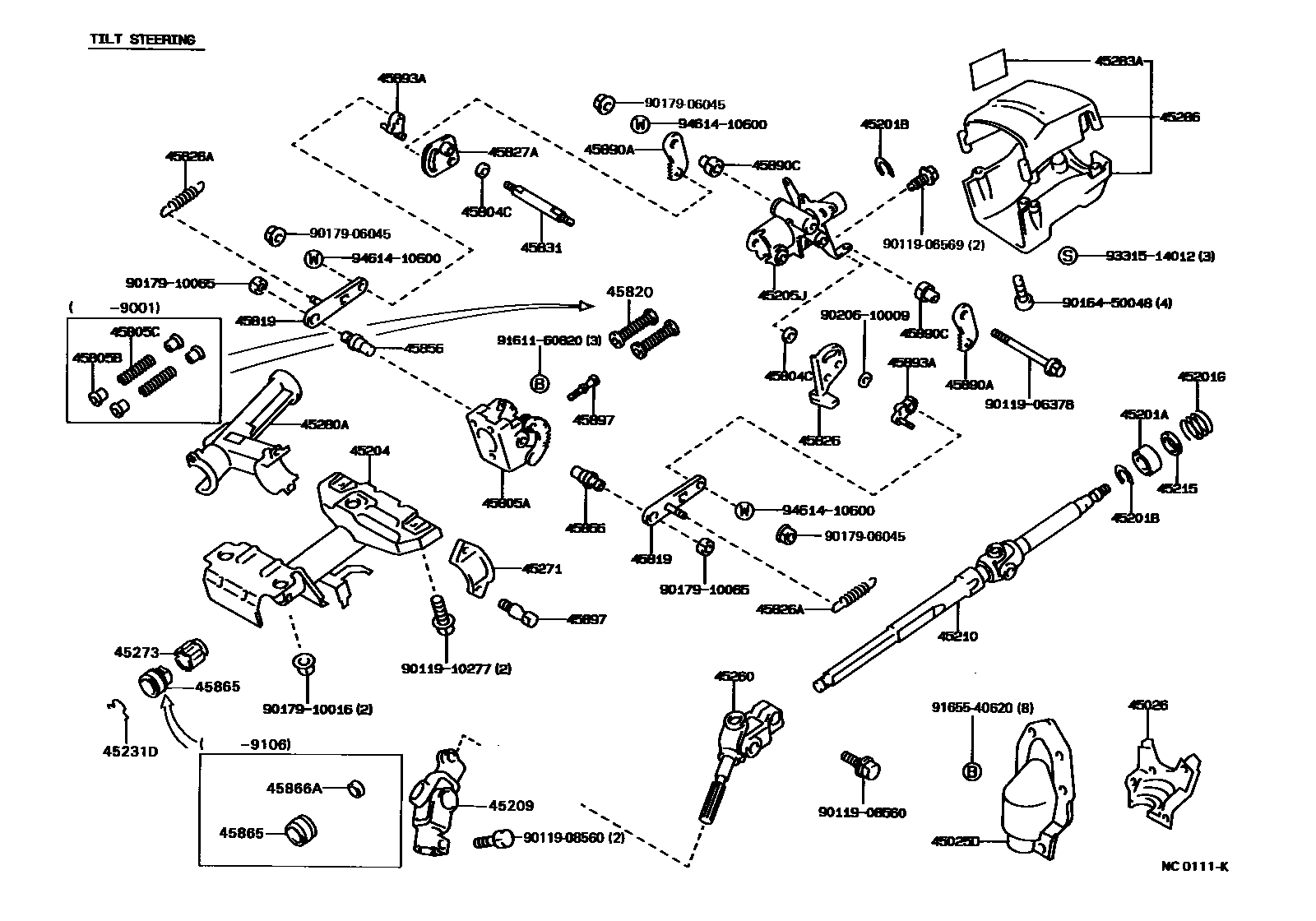

STEERING COLUMN & SHAFT

0001 1(9101- )MX��-������� 0003 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-12170iEE90;AE91,95,CE9#,EE96,98..AV1,DX,L,LX,RVS,STD,XL198705-199108

main45025-12180iEE96;EE90..LX,MX;CE96,EE98..DX,XL;AE91,95,CE90..AV1,L,LX,RVS198705-199108

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-12010iAE91..MX198705-199108

main45026-12020iEE96;EE90..LX,MX;CE96,EE98..DX,XL;AE91,95,CE90..AV1,L,LX,RVS198705-199108

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18004iAE9#,CE90..AV2,GT,SE198705-198809

sub90363-18005

main90363-18005iCE90..5F..MX;AE95..4FC..SE;AE95,CE95..MX;CE90..4FC..(MX,SE);AE91,92,EE90..(3FC,4F,4FC)..(GT,LX,MX,SE,XS)198809-199106

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iAE9#,CE9#,EE9#198705-199108

main90520-17196iAE91,95,CE9#,EE9#..AV1,AV2,CTD,DX,G,L,LX,MX,RVS,STD,XI,XL198705-199108

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-40017iAE9#,CE90..AV2,GT,SE,XS198705-199106

45204TUBE ASSY, STEERING COLUMN, LOWER

main45204-12090iAE91,EE90..LX198705-198905

sub45204-12091

main45204-12091iAE9#,CE90..AV2,GT,SE,XS198905-199006

sub45204-12092

sub45273-22020

main45204-12092iAE95..AV2199006-199106

sub45204-12093

45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER

main45205-12250iAE91,EE90..LX198705-198809

sub45205-12251

main45205-12251iAE91,EE90..LX198809-199106

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-12050iEE90..LX,MX;CE96,EE96,98;AE91,95,CE90..AV1,L,LX198705-199108

main45209-12050iCE95;AE9#,CE90..AV2,G,GT,MX,RVS,SE,XS198908-199106

main45209-32010iEE90;AE91,95,CE90,96,EE96,98..AV1,CTD,DX,L,LX,XL198705-199108

sub45209-10020

45210SHAFT ASSY, STEERING MAIN

main45210-12300iAE91..MX198705-199108

sub45210-12420

main45210-12320iEE96;EE90..LX,MX;CE96,EE98..DX,XL;AE91,95,CE90..AV1,L,LX,RVS198705-199108

main45210-12400iAE91,95,CE90..ATM..MX199101-199106

sub45210-12560

main45210-12400iAE91,EE90..LX198705-198905

sub45210-12560

main45210-12400iAE95..AV2198802-198908

sub45210-12560

main45210-12400iAE95..AV2198908-199009

sub45210-12560

main45210-12400iAE9#,CE90,95..GT,SE,XS198705-199101

sub45210-12560

45215COLLAR, MAIN SHAFT BEARING THRUST

main45215-12010iAE91,EE90..LX198705-199106

45231DRING, HOLE SNAP(FOR STEERING MAIN SHAFT)

main90521-01005iAE9#,CE90..GT,SE198705-199006

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-12170iAE91,EE90..LX198705-199106

45271CLAMP, STEERING COLUMN, UPPER

main45271-12050iAE91,95,CE90,EE90..DX,G,L,LX,MX,XI198705-199108

main45271-12060iAE9#,CE90,95..GT,SE,XS198705-199104

main45271-12060iAE95..AV2198908-199009

main45271-12060iAE95..AV2198905-199108

main45271-12060iAE91,95,CE90,95..MX199101-199104

main45271-12080iAE91,95,CE90..ATM..MX199104-199106

45273BUSH, STEERING MAIN SHAFT

main45273-16010iAE91,95,CE90,EE90..AV1,AV2,DX,G,L,LX,MX,RVS,XI198705-199108

main45273-16010iAE9#,CE9#,EE9#198905-199006

main45273-22020iAE9#,CE90..4FC..(GT,SE,XS)199101-199106

main45273-22020iAE95..AV2199006-199009

main45273-22020iAE9#,CE90,95..GT,SE,XS199006-199101

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-12100iAE95..5F..MX;CE96,EE90,96..4F,4FC,5F;AE91,CE90..MTM..(DX,G,L,LX,MX);AE95,EE98..AV1,AV2,DX,LX,RVS,XL198705-199104

sub45280-12110

main45280-12110iAE91,95,CE9#,EE9#..MTM..(CTD,DX,G,L,LX,MX,XL)199104-199108

main45280-12120iAE95..5F..AV2198905-199108

sub45280-12130

main45280-12120iAE91..SE..CBR;AE92,95,CE90..GT,SE198705-199104

sub45280-12130

main45280-12120iAE95..5F..AV2198908-199009

sub45280-12130

main45280-12120iAE91,95,CE90,95..MTM..MX199101-199104

sub45280-12130

main45280-12130iAE91..4FC..EFI198805-198905

main45280-12140iAE91,95,CE90..ATM..(G,MX)198905-198912

main45280-12140iEE90..3FC..(LX,MX);AE91,CE90..ATM..(L,LX)198905-198912

main45280-12140iAE91,95,CE90,96,EE9#..ATM..(CTD,DX,G,L,LX,MX,XL)199104-199108

main45280-12150iAE91,95,CE90..ATM..MX199104-199106

main45280-12180iAE91,95,CE90,96,EE9#..ATM..(AV1,AV2,CTD,DX,G,L,LX,MX,RVS,XL)198908-199104

sub45280-12140

main45280-12180iEE90..3FC;AE91,CE90..ATM..(DX,L,LX)198905-198908

sub45280-12140

main45280-12180iAE95..4FC..AV2198912-199205

sub45280-12140

main45280-12190iAE95..4FC..AV2198905-199104

sub45280-12150

main45280-12190iAE91,95,CE90..ATM..MX199101-199104

sub45280-12150

main45280-12190iAE95..4FC..AV2198905-199104

sub45280-12150

main45280-12190iAE95..4FC..AV2198908-199009

sub45280-12150

45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION

main45283-22010iAE9#,CE9#,EE9#198705-199108

45286COVER, STEERING COLUMN

main45286-12940-01iAE95..AV2198802-199009

BLACK,TRIM1#

sub45286-12940

main45286-12940-02iAE91,95,CE90,EE90..MX198705-199108

MAROON,TRIM3#

sub45286-12940

main45286-12940-03iAE95..LX,MX198905-198908

SHADOW GRAY,SHADOW GRAY,TRIM1#

sub45286-12940

main45286-12940-03iAE91,95,CE9#,EE9#..AV1,AV2,DX,G,L,LX,MX,RVS,STD,XI,XL198705-199108

SHADOW GRAY,TRIM1#

sub45286-12940

main45286-12940-04iAE91,95,CE9#,EE9#..AV1,AV2,CTD,DX,G,L,LX,MX,RVS,XL198908-199108

DARK BLUE,TRIM8#

sub45286-12940

main45286-12940-05iAE95,CE96,EE96,98..AV1,DX,RVS,XL198705-198908

BEIGE,TRIM4#

sub45286-12940

main45286-12942-01iAE92198705-199106

BLACK,TRIM1#

sub45286-12942

main45286-12942-01iAE95..AV2198802-199009

sub45286-12942

main45286-12942-02iAE91,95,CE90..SE198705-199106

MAROON,TRIM3#

sub45286-12942

main45286-12942-03iAE91,95,CE90..SE198705-199106

SHADOW GRAY,TRIM1#

sub45286-12942

main45286-12942-03iAE91,95,CE90..SE198705-198905

sub45286-12942

main45286-12942-03iAE95..AV2198802-199009

sub45286-12942

main45286-12942-04iAE91,95,CE90,95..SE,XS198908-199106

DARK BLUE,TRIM8#

sub45286-12942

main45286-12942-04iAE95..AV2198908-199009

sub45286-12942

main45286-12942-05iAE91,95,CE90..SE198705-198905

BEIGE,TRIM4#

sub45286-12942

main45286-12942-05iAE91,EE90..LX198705-198905

sub45286-12942

main45286-12942-05iAE9#,CE90..GT,SE,XS198905-198908

BEIGE,BEIGE,TRIM4#

sub45286-12942

45804CWASHER, PLATE(FOR STEERING TILT LEVER)

main90201-10283iAE9#,CE90..AV2,GT,SE,XS198705-199106

45805ASUPPORT SUB-ASSY, TILT STEERING

main45805-12010iAE9#,CE90..4FC..(GT,SE,XS)198705-199106

45805BBUSH(FOR TILT STEERING SUPPORT)

main90386-06031iAE91,EE90..LX..CBR198705-199001

45805CSPRING, COMPRESSION(FOR TILT STEERING SUPPORT)

main90501-20072iAE91,EE90..LX..CBR198705-199001

sub45820-12010

45819RETAINER, TILT LEVER

main45819-12010iAE9#,CE90,95..AV2,GT,SE,XS198705-199106

sub45819-12020

45820SPRING ASSY, TILT STEERING SUPPORT

main45820-12010iAE9#,CE90,95..GT,SE,XS199001-199106

45826LEVER, STEERING TILT

main45826-12020iAE9#,CE90..AV2,GT,SE198705-198905

main45826-12021iAE91,95,CE90..ATM..MX199101-199106

main45826-12021iAE9#,CE90..AV2,GT,SE,XS198905-199101

main45826-12021iAE95..AV2198908-199009

45826ASPRING, TENSION(FOR STEERING TILT LEVER)

main90507-12029iAE91,EE90..LX198705-198905

main90507-12029iAE9#,CE90..AV2,GT,SE,XS198705-199101

main90507-12029iAE95..AV2198908-199009

main90507-12029iAE9#,CE90..4FC..(GT,SE,XS)199101-199106

45827ALEVER, STEERING TILT SUB

main45827-12010iAE9#,CE90..AV2,GT,SE198705-198905

main45827-12011iAE95..AV2198908-199009

main45827-12011iAE9#,CE90,95..AV2,GT,SE,XS198905-199106

main45827-12011iAE91,95,CE90,95..MX199101-199106

45831BOLT, TILT LEVER LOCK, NO.1

main45831-12010iAE9#,CE90..AV2,GT,SE,XS198705-199106

45855BOLT, TILT STEERING, NO.1

main45855-12010iAE9#,CE90..GT,SE198705-199106

main45855-12020iAE9#,CE90..GT,SE198705-199106

45856BOLT, TILT STEERING, NO.2

main45856-12010iAE9#,CE90..GT,SE198705-199106

main45856-12020iAE9#,CE90..GT,SE198705-199106

45865COLLAR, STEERING MAIN SHAFT

main45865-12050iAE9#,CE90..GT,SE198705-199106

sub45865-12060

45866ASTOPPER, STEERING MAIN SHAFT BUSH

main45866-12010iAE9#,CE90..GT,SE198705-199106

45890APAWL ASSY, TILT STEERING

main45890-12020iAE91,EE90..LX198705-198905

sub45890-12H00

main45890-12021iAE91,95,CE90..ATM..MX198905-199106

main45890-12030iAE91,EE90..LX198705-198905

sub45890-12H00

main45890-12031iAE9#,CE90..4FC..(GT,SE,XS)198905-199106

45890CCOLLAR(FOR TILT STEERING PAWL)

main90389-07004iAE91,95,CE90..ATM..MX198705-199106

main90389-07005iAE91,95,CE90..ATM..MX198705-199106

main90389-07006iAE91,95,CE90..ATM..MX198705-199106

main90389-07007iAE9#,CE90..4FC..(GT,SE,XS)198705-199106

main90389-07008iAE95..AV2198705-199106

main90389-07009iAE9#,CE90..4FC..(GT,SE,XS)198705-199106

main90389-07010iAE91,95,CE90..ATM..MX198705-199106

main90389-07011iAE91,95,CE90..ATM..MX198705-199106

45893ASTOPPER, TILT STEERING PAWL

main45893-12020iAE91,EE90..LX198705-198905

main45893-12021iAE9#,CE90,95..GT,SE,XS198905-199106

main45893-12070iAE91,EE90..LX198705-198905

main45893-12071iAE9#,CE90..AV2,GT,SE,XS198905-199106

main45893-12120iAE9#,CE90..4FC..(GT,SE,XS)198905-199106

main45893-12130iAE9#,CE90..4FC..(GT,SE,XS)198905-199106

main45893-12140iAE9#,CE90..4FC..(GT,SE,XS)198905-199106

main45893-12150iAE9#,CE90..4FC..(GT,SE,XS)198905-199106

main45893-12160iAE9#,CE90,95..GT,SE,XS198905-199106

main45893-12170iAE9#,CE90..4FC..(GT,SE,XS)198905-199106

main45893-12180iAE9#,CE90,95..GT,SE,XS198905-199106

main45893-12190iAE91,95,CE90..ATM..MX198905-199106

45897BOLT, STEERING LOCK SET

main45897-12020iAE9#,CE9#,EE9#198705

9011906378

main90119-06378

9011906569

main90119-06569

9011908560

main90119-08560

9011910277

main90119-10277

9016450048

main90164-50048

9017906045

main90179-06045

9017910016

main90179-10016

9017910065

main90179-10065

9020610009

main90206-10009

9161160820

main91611-60820

9165540620

main91655-40620

9331514012

main93315-14012

9461410600

main94614-10600

48 parts on this diagram · 2 diagrams in section
