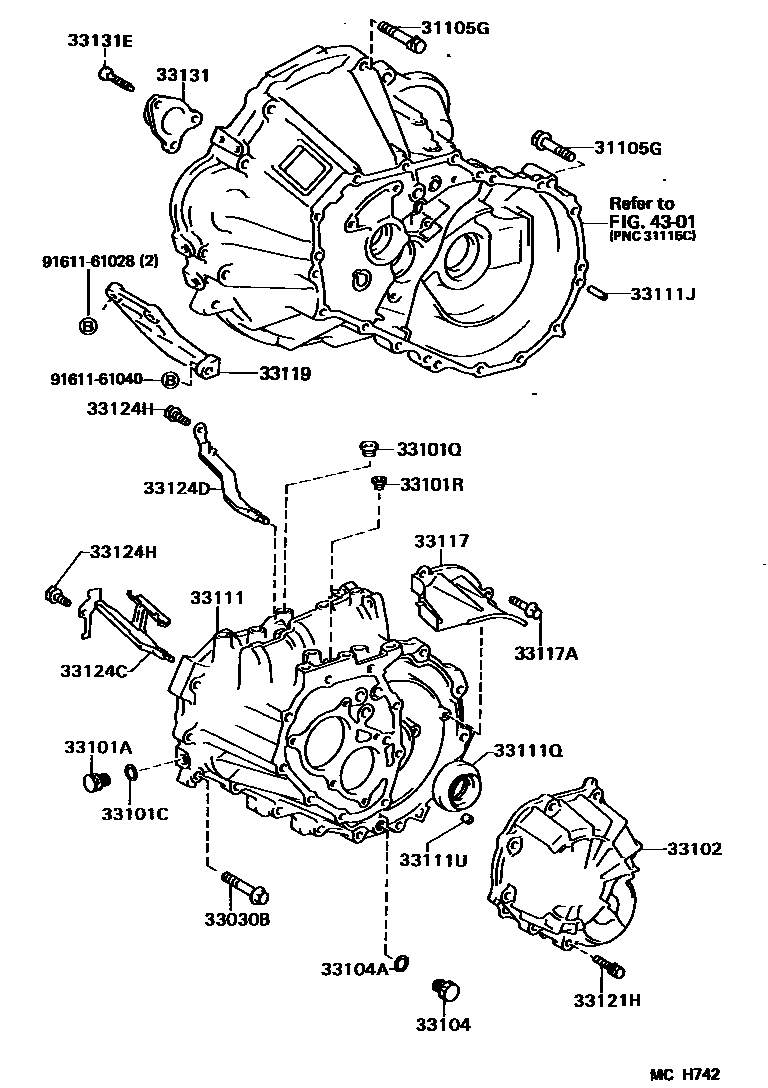

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1C40,C50,C52 0002 1S50 0003 1E55F5,E57F5 0004 1E59F

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-08040iCE9#..5F198705-199108

sub91641-H0820

main90105-10077iAE9#,CE9#..MTM198705-199108

main90105-10097iEE9#..MTM198705-199108

main90119-12042iAE91,92..MTM198705-199106

main90119-12128iAE95..5F198710-199106

main90119-12168iAE9#..MTM198705-199108

main91611-61025iAE91,92..MTM198705-199106

sub91612-61025

main91619-61260iEE9#..MTM198705-199108

main91621-60614iEE9#..MTM198705-199108

main91651-41022iCE95198910-199106

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08042iCE90,96..5F198705-199108

sub90105-08430

main90105-08064iAE91,92..MTM198705-199108

sub90105-08353

main90105-08086iAE91,92,EE9#..MTM198705-199108

main90105-08126iAE95,CE95..4D..5F198710-199108

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18002iCE90,96..5F198705-199003

main90341-18006iAE91,92,EE9#..MTM198705-199108

main90341-18033iAE95,CE9#..5F198710-199108

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iCE96,EE96..MTM198705-199108

33101QPLUG, NO.1(FOR TRANSMISSION CASE)

main90341-14008iAE91,EE9#..4F198705-199108

33101RPLUG, NO.2(FOR TRANSMISSION CASE)

main90341-10065iAE91,EE9#..4F198705-199008

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-12010iAE91,EE9#..4F198705-199108

main33102-12020iAE91,92,EE98..5F198705-199105

sub33102-12021

main33102-12021iAE91,92,EE98..5F199105-199108

main33102-12030iAE95,CE95..5F198710-199103

sub33102-12040

main33102-12040iAE95,CE95..5F199103-199106

sub33102-12041

sub33124-12041

main33102-32011iCE90,96..5F198705-199004

sub33102-32012

main33102-32012iCE90,96..5F199004-199108

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iAE91..MTM198705-199108

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iAE95..4D..5F198705-199108

33111CASE, MANUAL TRANSMISSION

main33101-12150iAE95..5F198710-198907

sub33101-12151

sub90560-10019

sub91511-61016

main33101-12151iAE95..5F198907-199106

sub33101-12160

sub33261-12070

sub90364-15003

main33101-32011iCE95198910-199106

sub33101-12170

sub33261-12070

sub90364-15003

main33111-16040iAE91,92,EE90..MTM198705-199107

sub33111-16070

sub90109-12073

main33111-16041iEE9#..MTM199107-199108

main33111-20140iCE9#..5F198906-198910

sub33111-20141

main33111-20141iCE90,96..5F198910-199102

sub33111-33020

main33111-32014iCE9#..5F198705-198906

sub33111-20140

main33111-33020iCE90,96..5F199102-199108

sub33111-33030

sub33124-32020

sub33214-33020

sub33261-33010

sub90384-14005

sub90384-15002

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iAE92,CE95,EE90,98..MTM198705-199108

33111QSEAL, OIL(FOR TRANSMISSION CASE)

main90311-34008iAE91,92,EE90..MTM198705-199108

sub90311-34017

main90311-44003iAE95,CE95..4D..5F198710-199106

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iAE91,92,EE9#..MTM198705-199108

33117PROTECTOR, MANUAL TRANSMISSION CASE

main33117-12011iAE91,EE9#..MTM198705-199011

sub33117-16010

main33117-16010iAE92,EE9#..MTM199011-199108

main33117-17010iAE92..5F198705-199011

sub33117-16010

main33117-20020iAE95,CE95..5F198710-199106

main33117-32011iCE90,96..5F198705-199108

33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)

main90105-08040iAE9#,CE9#,EE9#..MTM198705-199108

sub91641-H0820

33119PLATE, STIFFENER, LH(MTM)

main33119-12110iCE95198910-199106

main33119-17011iAE92..5F198905-199106

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90105-08089iCE9#..5F198705-199011

sub90105-08273

main90105-08273iCE90,96..5F199011-199108

main90119-08630iAE95,CE95..4D..5F198710-199106

main91611-60835iAE91,92,EE9#..MTM198705-199108

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-12010iAE91,92,EE9#..MTM198705-199108

main33124-12030iAE95,CE95..5F198710-199106

main33124-32011iCE90,96..5F198705-199004

main33124-32012iCE90,96..5F199004-199108

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-12020iAE91,92,EE9#..MTM198705-199108

main33124-12040iAE95,CE95..5F198710-199106

sub33124-12041

33124HBOLT(FOR OIL RECEIVER PIPE)

main90119-08648iAE95,CE95..5F198710-199106

sub90119-08830

main91611-60820iAE91,92,EE9#..MTM198705-199108

sub91611-G0820

main91651-60618iCE90,96..5F198705-199108

33131RETAINER, BEARING, FRONT(MTM)

main33131-12070iAE9#..MTM198705-198708

sub33131-12071

main33131-12071iAE91,92..MTM198708-199106

sub33131-12080

33131ESCREW(FOR BEARING RETAINER FRONT)

main90149-60028iAE91,92..MTM198705-199106

4301

9161161028

main91611-61028

9161161040

main91611-61040

25 parts on this diagram · 4 diagrams in section
