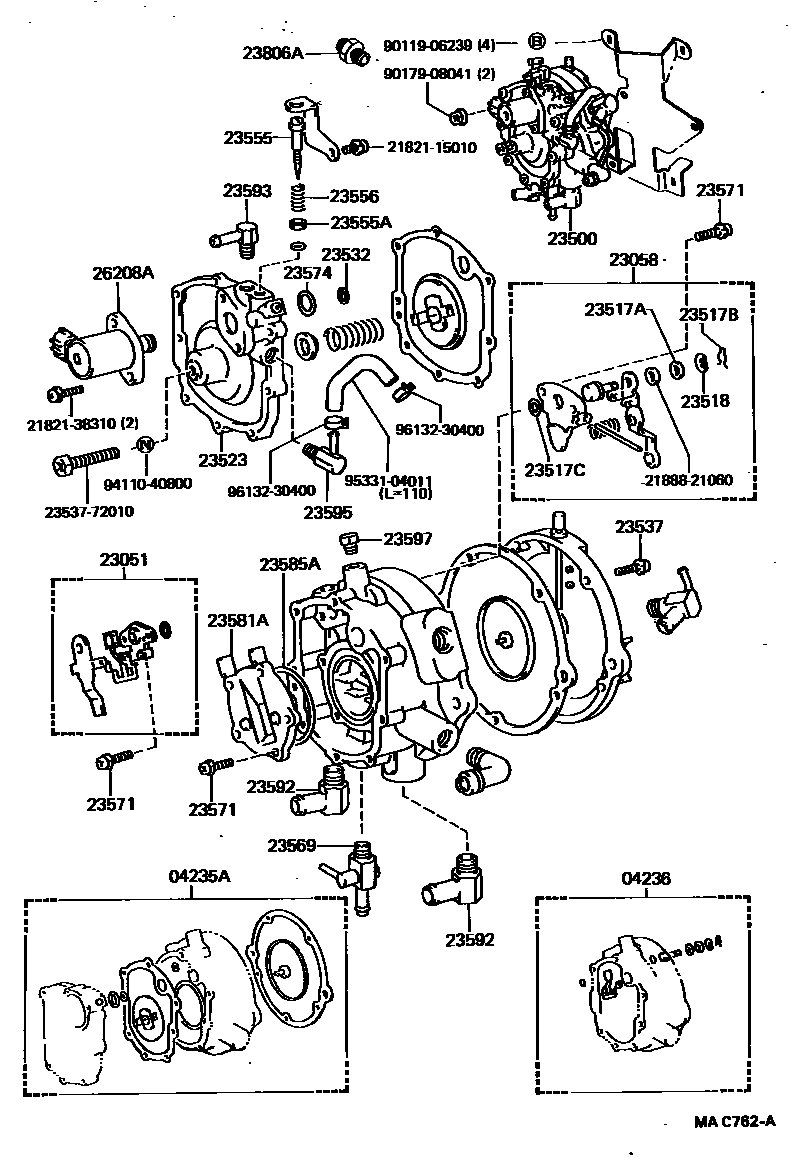

LPG OR CNG REGULATOR
04235ADIAPHRAGM KIT, LPG REGULATOR, W/O VALVE
04236VALVE KIT, LPG REGULATOR
23051VALVE SUB-ASSY, 1ST
23058VALVE SUB-ASSY, 2ND
23500REGULATOR ASSY, LPG(CNG)
23517AWASHER(FOR ELASTIC FACE VALVE SET)
23517BRING, SNAP(FOR ELASTIC FACE VALVE SET)
23517CGASKET(FOR ELASTIC FACE VALVE)
23518WASHER, WAVE(FOR ELASTIC FACE VALVE SET)
23523COVER, 1ST REGULATOR
sub23523-70040
23532RING, O, NO.2(FOR BULB)
23537SCREW(FOR 2ND REGULATOR COVER SET)
23555SCREW, IDLE ADJUST
sub23555-73130
23555AWASHER, IDLE ADJUST SCREW
23556SPRING, IDLE ADJUST SCREW
23569COCK, DRAIN
23571SCREW(FOR VACUUM LOCK DIAPHRAGM RING SET)
23574RING, O, NO.1(FOR BULB)
23581ACOVER, UPPER PREHEATER
23585ARING, O(FOR PREHEATER)
23592UNION, NO.2, FUEL HOSE
23593UNION, NO.3
23595UNION, NO.5
sub23591-41070
23806AUNION(FOR LPG REGULATOR)
26208AVALVE SUB-ASSY, SOLENOID(FOR LPG REGULATOR)
sub26206-73130
2182115010SCREW, 2ND THROTTLE VALVE SET
main21821-15010
2182138310SCREW, 2ND THROTTLE VALVE SET
main21821-38310
2188821060WASHER(FOR POSITIONER VALVE SET)
main21888-21060
2353772010SCREW(FOR 2ND REGULATOR COVER SET)
main23537-72010
9011906239
main90119-06239
9017908041
main90179-08041
9411040800
main94110-40800
9533104011
main95331-04011
9613230400
main96132-30400
35 parts on this diagram · 1 diagram in section
