FUEL PUMP & PIPE

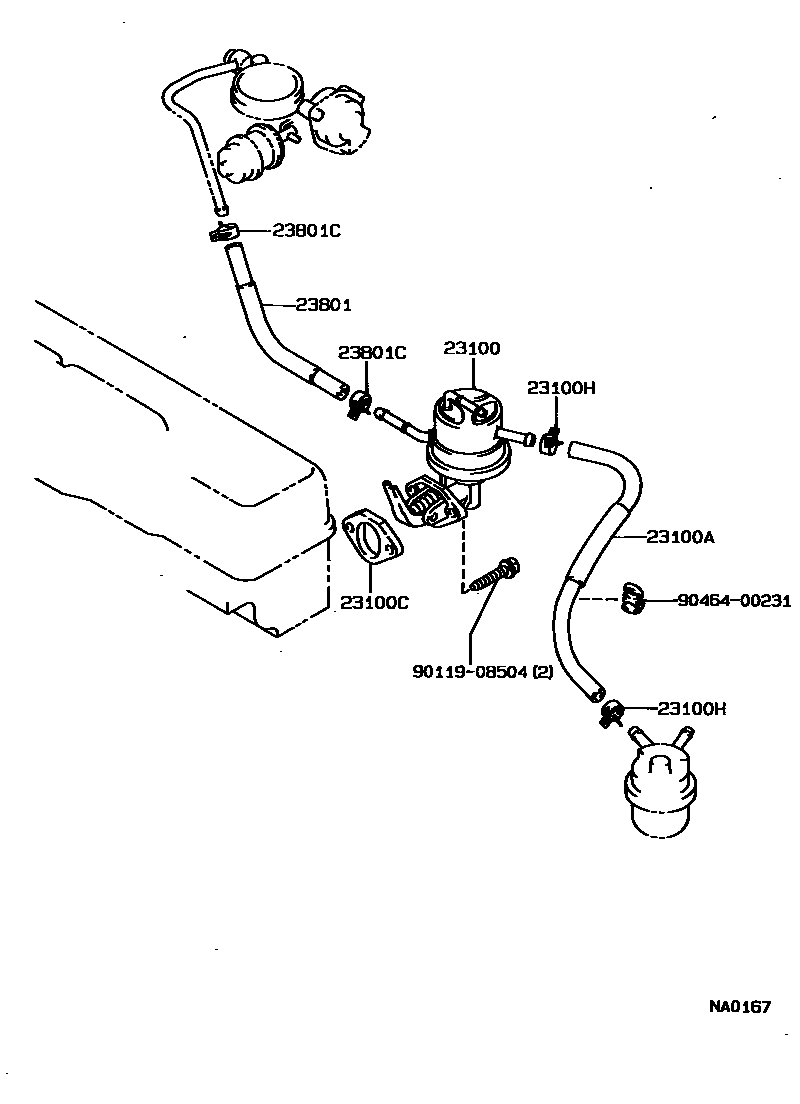

Parts diagram
23100PUMP ASSY, FUEL
main23100-11031i198705-198710
main23100-11032i198710-198807
sub23100-11033
main23100-11033i198807-198908
main23100-11051i198808-199108
main23100-11080i198905-199108
sub23100-11081
main23100-15080i198705-198801
sub23100-15081
main23100-15081i198801-198908
sub23100-15082
23100AHOSE, FUEL
main90445-12213i198705-199108
main90445-12229i199004-199108
main95333-06040i198705-199004
23100CINSULATOR, FUEL PUMP
main23915-10020i198705
sub23915-10021
main23915-63020i198705-198905
sub23915-16010
23100HCLIP(FOR FUEL HOSE)
main96132-30600i198705-199108
sub96132-51100
23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
main95333-06010i198905-199108
main95333-06020i198705-199108
sub95337-06020
main95333-06030i198705-198908
sub95338-06030
23801CCLIP(FOR CARBURETOR FUEL HOSE)
main90467-11009i198707-199011
sub96135-51100
main96132-30600i198705-198908
sub96132-51100
main96135-41100i199011-199108
sub96135-51100
9011908504
main90119-08504
9046400231
main90464-00231

8 parts on this diagram · 2 diagrams in section
