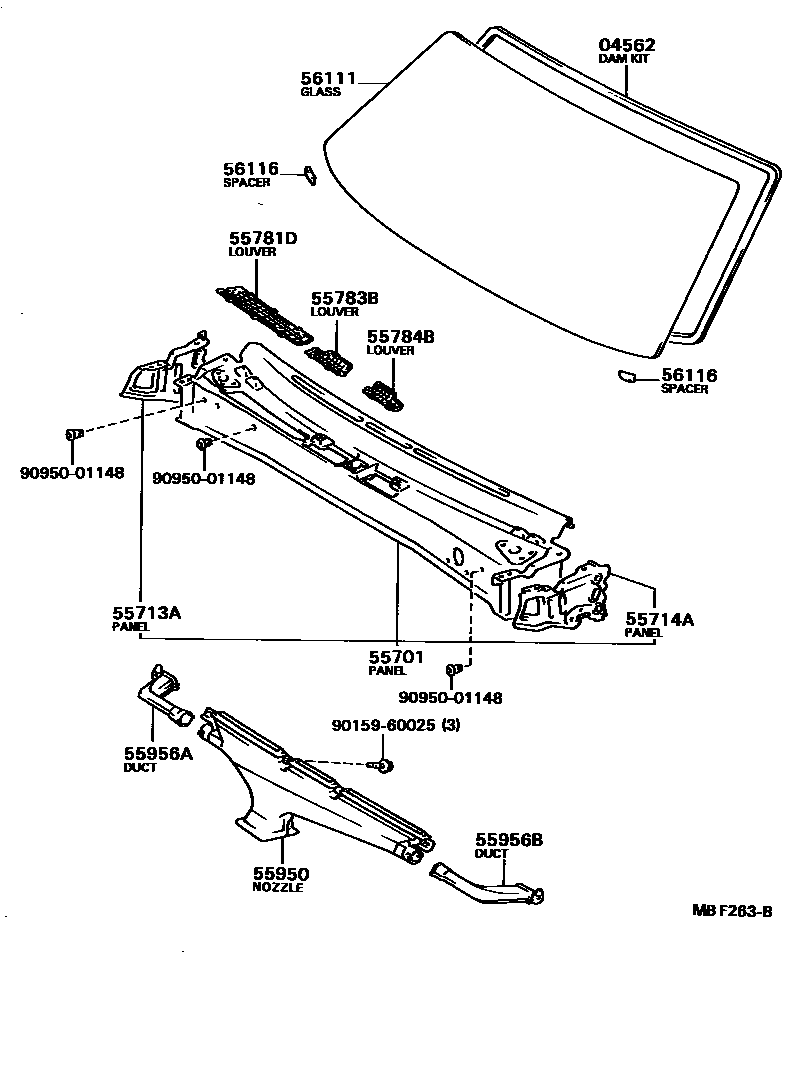

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-30030iAE8#,CE80¥2,680198305-198308

sub04562-30040¥2,390

main04562-30040iAE8#,CE80,EE80¥2,390198308-198704

55701PANEL SUB-ASSY, COWL

main55700-12270iAE80,81,EE80¥38,600198305-198704

sub55700-12370¥38,600

main55700-12280iCE80¥38,600198305-198704

sub55700-12380

main55700-12310iAE82..SE,SR,SX,ZX198305-198704

main55700-12340iAE82..GT¥38,600198410-198704

sub55700-12360¥38,600

55713APANEL, COWL TOP SIDE, RH

main55713-12060iAE8#,CE80,EE80¥1,980198305-198704

55714APANEL, COWL TOP SIDE, LH

main55714-12060iAE8#,CE80,EE80¥1,980198305-198704

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-12130iAE8#,CE80,EE80¥1,440198305-198704

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-12160iAE8#,CE80,EE80¥920198305-198610

sub55783-12190¥930

main55783-12190iAE8#,CE80,EE80¥930198610-198704

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-12030iAE8#,CE80,EE80¥920198305-198610

sub55784-12060¥930

main55784-12060iAE8#,CE80,EE80¥930198610-198704

55950NOZZLE ASSY, DEFROSTER

main55950-12060iAE8#,CE80,EE80¥5,700198305-198704

55956ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55970-12040iAE8#,CE80,EE80¥1,920198305-198704

55956BDUCT, SIDE DEFROSTER NOZZLE, NO.2

main55980-12030iAE8#,CE80,EE80¥1,920198305-198704

56111GLASS, WINDSHIELD

main56111-12580iAE80,EE80..SPD¥46,000198305-198605

*ZT,T=5.0

sub56111-12610¥99,000

main56111-12590iEE80..SPD¥87,000198508-198704

*LAM,T=5.3

sub56111-12610¥99,000

main56111-12600iAE81..SE,SX,XL,ZX¥52,100198305-198605

*TZT,T=5.0

sub56111-12610¥99,000

main56111-12610iAE8#,CE80,EE80¥99,000198508-198704

*TL,T=5.3

sub56111-12690¥107,000

main56111-12620iAE8#,CE80,EE80..GT,SE,SR,SX,XL,ZX¥70,100198305-198605

*ZT,T=5.0,BRONZE

sub56111-12780¥115,000

main56111-12670iAE81..DX¥103,000198305-198401

*TL,T=4.7

main56111-12670iAE81..DX¥103,000198401-198505

W/KNOCK CONTROL,*TL,T=4.7

main56111-12730iEE80..SPD¥87,000198505-198704

*LAM,T=4.7,*52

sub56111-12590¥87,000

main56111-12780iAE8#,CE80,EE80..GT,SE,XL,ZX¥115,000198508-198704

*LAM,T=5.3,BRONZE

56116SPACER, WINDSHIELD GLASS

main56116-24010iAE8#,CE80,EE80¥230198305-198704

9015960025

main90159-60025¥200

9095001148

main90950-01148¥120

14 parts on this diagram · 1 diagram in section
