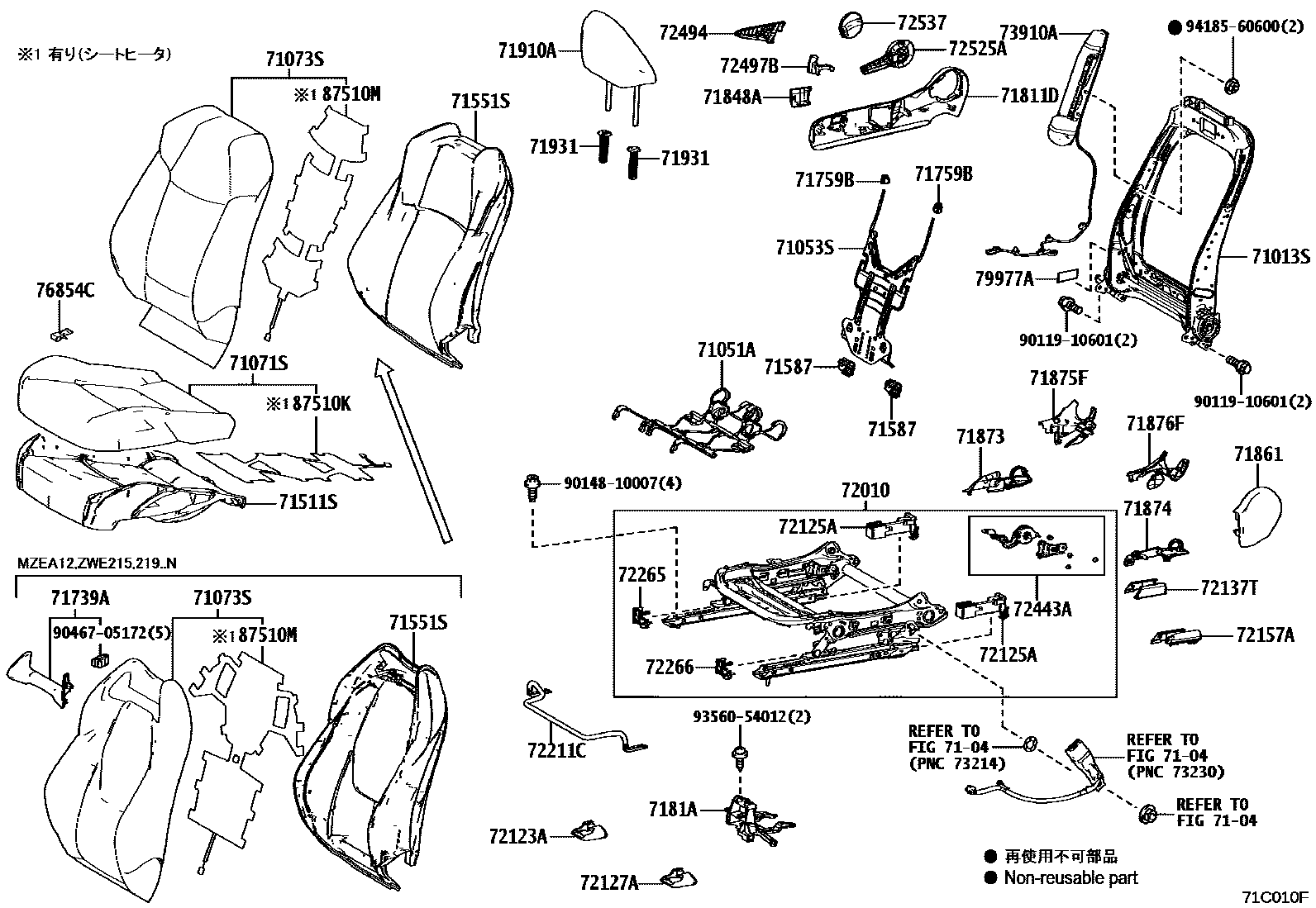

FRONT SEAT & SEAT TRACK

0001 1������ 0002 1�������

71013SFRAME SUB-ASSY, FRONT SEATBACK, RH

main71013-33550iMZEA12202006

sub71013-33390

main71013-42210iZWE215,219..HBDWB202210-202404

main71013-42210iZWE215,219..HBDWB202210-202404

main71013-42210iMZEA17201908-202504

7104

71051ASPRING SUB-ASSY, FRONT SEAT CUSHION, RH

main71051-47090iMZEA12,NRE210,ZRE212,ZWE211,214201908-202504

71053SSPRING SUB-ASSY, FRONT SEATBACK, RH

main71053-47050iMZEA12,NRE210,ZRE212,ZWE211,214201908-202504

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-1AA90-B5iZRE212,ZWE211,214..HBDS,S201908

LT. GRAY,TRIM20

main71071-1AA90-B6iZRE212,ZWE211,214..HBDS,S201908

BLACK,TRIM21

main71071-1AL40-C1iNRE210,ZRE212,ZWE21#..HBDWB,WB201908-202003

BLACK,TRIM2#

sub71071-1AL40

main71071-1AL40-C3iNRE210,ZRE212,ZWE211,214..HBDWB,WB202003

BLACK,TRIM2#

sub71071-1AL40

main71071-1AM10-B0iZRE212,ZWE211,214..GX,HBDGX201908

GRAY,TRIM20

main71071-1AM10-C0iZRE212,ZWE211,214..GX,HBDGX201908

BLACK,TRIM21

main71071-1AM50-C1iMZEA12202006

BLACK / GRAY DOT,TRIM2#

main71071-1AR20-B0iMZEA17,ZWE215,219..G,HBDG202210-202402

BLACK,TRIM2#

main71071-1AR21-B1iMZEA17..G202402-202504

DK. GRAY,TRIM2#

main71071-1AR80-C1iZWE215,219..ACT202404

BLACK,TRIM2#

main71071-1AS00-C0iMZEA17,ZWE215,219..HBDX,X202210-202402

BLACK,TRIM2#

main71071-1AS01-C1iMZEA17..X202402-202504

BLACK,TRIM2#

main71071-1AS10-C0iMZEA17,ZWE215,219..HBDWB,WB202210-202404

BLACK,TRIM2#

main71071-1AS20-C0iMZEA17..WB202404-202504

BLACK,TRIM2#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-12P70-B4iZRE212,ZWE211,214..HBDS,S201908

GRAY,TRIM20

main71073-12P70-C3iZRE212,ZWE211,214..HBDS,S201908

BLACK,TRIM21

main71073-1AL20-C3iNRE210,ZRE212,ZWE211,214..HBDWB,WB201908

BLACK,TRIM2#

main71073-1AM10-B0iZRE212,ZWE211,214..GX,HBDGX201908

GRAY,TRIM20

main71073-1AM10-C0iZRE212,ZWE211,214..GX,HBDGX201908

BLACK,TRIM21

main71073-1AM50-C1iMZEA12202006

BLACK / GRAY DOT,TRIM2#

main71073-1AS30-C0iMZEA17..G202210-202504

BLACK,TRIM2#

main71073-1AT10-C1iZWE215,219..ACT202404

BLACK,TRIM2#

main71073-1AT20-C0iMZEA17..X202210-202504

BLACK,TRIM2#

main71073-1AT30-C0iMZEA17,ZWE215,219..HBDWB,WB202210-202402

BLACK,TRIM2#

sub71073-1AT31

main71073-1AT31iMZEA17,ZWE215,219..HBDWB,WB202402-202404

main71073-1AT41-C1iMZEA17..WB202404-202504

BLACK/BEIGE,TRIM2#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-12C50iZRE212,ZWE211,214..HBDS,S201908-202504

main71511-12C70iMZEA17..WB201908-202504

main71511-12C90iMZEA12202006

main71511-12D20iZWE215,219..HBDX201908-202504

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-12D40iZWE215,219..HBDG201908-202504

main71551-12E20iNRE210,ZRE212,ZWE211,214..HBDWB,WB201908-202504

main71551-12E30iMZEA12202006

main71551-12E40iZRE212,ZWE211,214..GX,HBDGX201908-202504

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-47010iZWE215,219..HBDWB202210-202404

main71587-47010iMZEA12,NRE210,ZRE212,ZWE211,214201908-202504

main71587-47010iZWE215,219..HBDWB202210-202404

71739ABEZEL, FRONT SEATBACK

main71739-12030iMZEA12202006

main71739-12040iZWE215,219..ACT202404

71759BHOOK, FRONT SEATBACK

main71759-50040iZWE215,219..HBDWB202210-202404

main71759-50040iZWE215,219..HBDWB202210-202404

main71759-50040iMZEA17201908-202504

main71759-52050iMZEA12202006

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-47140-C1iMZEA12,NRE210,ZRE212,ZWE211,214201908-202504

BLACK,TRIM2#

sub71811-47140

7181AHOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH

main7181A-47010iMZEA12,NRE210,ZRE212,ZWE211,214201908-202504

71848ACAP, SEAT ADJUSTER COVER, RH

main71848-10020-C0iZWE215,219202304-202504

BLACK,TRIM2#

main71848-47040-C1iMZEA12,NRE210,ZRE212,ZWE211,214201908-202304

BLACK,TRIM2#

sub71848-47040

sub71848-10020

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-47070-C1iMZEA12,NRE210,ZRE212,ZWE211,214201908-202504

BLACK,TRIM2#

sub71861-47070

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-47070iMZEA12,NRE210,ZRE212,ZWE211,214201908-202504

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71873-47080iMZEA12,NRE210,ZRE212,ZWE211,214201908-202504

71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

main71875-47040-C1iMZEA12,NRE210,ZRE212,ZWE211,214201908-202504

BLACK,TRIM2#

sub71875-47040

71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

main71875-47070-C1iMZEA17201908-202504

BLACK,TRIM2#

sub71875-47070

71910AHEADREST ASSY, FRONT SEAT

main71910-12M60-C2iMZEA12202006

BLACK / GRAY DOT,TRIM2#

main71910-12N50-B0iZRE212,ZWE211,214..HBDS,S201908

GRAY,TRIM20

main71910-12N50-C0iZWE215,219..HBDG202210-202402

BLACK,TRIM2#

main71910-12N50-C0iZRE212,ZWE211,214..HBDS,S201908

BLACK,TRIM21

main71910-12N51-C0iZWE215,219..HBDG202402-202404

BLACK,TRIM2#

main71910-12N70-C0iNRE210,ZRE212,ZWE211,214..HBDWB,WB201908-202008

BLACK,TRIM2#

sub71910-12N70

sub71910-12N72

main71910-12N71-C2iNRE210,ZRE212,ZWE211,214..HBDWB,WB202008-202402

BLACK,TRIM2#

sub71910-12N71

main71910-12N72-C6iZWE215,219..HBDWB202402

BLACK/BEIGE,TRIM2#

main71910-12P20-B0iZRE212,ZWE211,214..GX,HBDGX201908

LT.GRAY,TRIM20

main71910-12P20-C0iZWE215,219..HBDX202210-202402

BLACK,TRIM2#

main71910-12P20-C0iZRE212,ZWE211,214..GX,HBDGX201908

BLACK,TRIM21

main71910-12P21-C1iZWE215,219..HBDX202402

BLACK,TRIM2#

main71910-12Q90-C0iMZEA17..X202210-202402

BLACK,TRIM2#

main71910-12Q91-C1iMZEA17..X202402-202504

BLACK,TRIM2#

main71910-12R00-C0iMZEA17..G202210-202504

BLACK,TRIM2#

main71910-12R01-C0iMZEA17..G202402-202404

BLACK,TRIM2#

main71910-12R10-C0iMZEA17..WB202210-202402

BLACK,TRIM2#

main71910-12R11-C1iMZEA17..WB202402-202504

BLACK/BEIGE,TRIM2#

main71910-12R81-C2iZWE215,219..ACT202404

BLACK,TRIM2#

71931SUPPORT, FRONT SEAT HEADREST

main71930-47050-A7iZWE215,219..HBDWB202210-202504

main71930-47050-B8iZRE212,ZWE211,214..GX,HBDGX201908

main71930-47050-C5iMZEA17..G,X201908-202504

main71930-47050-C5iMZEA17..G,X201908-202504

main71930-47050-C5iNRE210,ZRE212..WG..WB201909

main71931-47030-A7iMZEA17..WB202210-202504

main71931-47030-B9iZRE212,ZWE211,214..GX,HBDGX201908

main71931-47030-C4iMZEA17..G,X201908-202504

main71931-47030-C4iZRE212,ZWE211,214..GX,HBDGX201908-202504

main71931-47030-C4iNRE210,ZRE212..WG..WB201909

main71931-47030-C4iNRE210,ZRE212..WG..WB201909

72010ADJUSTER ASSY, FRONT SEAT, RH

main72010-47361iMZEA12,NRE210,ZRE212,ZWE211,214201908-202504

72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH

main72123-10100iMZEA12,NRE210,ZRE212,ZWE211,214201908-202504

72125ACOVER, SEAT TRACK, UPPER REAR

main72125-47010iMZEA12,NRE210,ZRE212,ZWE211,214201908-202504

72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH

main72123-10100iMZEA12,NRE210,ZRE212,ZWE211,214201908-202504

72137TCOVER, SEAT TRACK BRACKET, OUTER REAR RH

main72137-47060iMZEA12,NRE210,ZRE212,ZWE211,214201908-202504

72157ACOVER, SEAT TRACK BRACKET, INNER RH

main72157-47080iMZEA12,NRE210,ZRE212,ZWE211,214201908-202504

72211CHANDLE, SEAT TRACK ADJUSTING

main72211-47050iMZEA12,NRE210,ZRE212,ZWE211,214201908-202504

72265COVER, SEAT TRACK UPPER RAIL, RH

main72265-47010iMZEA12,NRE210,ZRE212,ZWE211,214201908-202504

72266COVER, SEAT TRACK UPPER RAIL, LH

main72265-47010iMZEA12,NRE210,ZRE212,ZWE211,214201908-202504

72443AGEAR, VERTICAL ADJUSTER, RH

main72443-47011iMZEA12,NRE210,ZRE212,ZWE211,214201908-202504

72494HANDLE, VERTICAL ADJUSTING, RH

main72494-12080-C0iZWE215,219202304-202504

BLACK,TRIM2#

main72494-47030-C1iMZEA12,NRE210,ZRE212,ZWE211,214201908-202304

BLACK,TRIM2#

sub72494-47030

72497BCOVER, VERTICAL ADJUSTER BRACKET, RH

main72498-47010iMZEA12,NRE210,ZRE212,ZWE211,214201908-202504

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-33050-C0iMZEA12,NRE210,ZRE212,ZWE211,214201908-202504

BLACK,TRIM2#

72537COVER, RECLINING HINGE OUTER, RH

main72551-33010-C0iMZEA12,NRE210,ZRE212,ZWE211,214201908-202504

BLACK,TRIM2#

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-12100iMZEA12,NRE210,ZRE212,ZWE211,214201908-202504

76854CRETAINER, FRONT SEAT CUSHION COVER

main76854-44010iMZEA17..WB202210-202504

79977AFELT, SEATBACK

main79977-12090iMZEA12,NRE210,ZRE212,ZWE211,214201908-202504

87510KHEATER ASSY, FRONT SEAT CUSHION, RH

main87510-12330iMZEA17..WB202404-202504

main87510-12360iMZEA12202006

sub87510-12361

main87510-12361iZWE215,219..ACT202404

87510MHEATER ASSY, FRONT SEATBACK, RH

main87530-12090iZWE215,219..HBDWB202404-202504

main87530-12110iMZEA12202006

9011910601

main90119-10601

9014810007

main90148-10007

9046705172

main90467-05172

9356054012

main93560-54012

9418560600

main94185-60600

45 parts on this diagram · 2 diagrams in section
