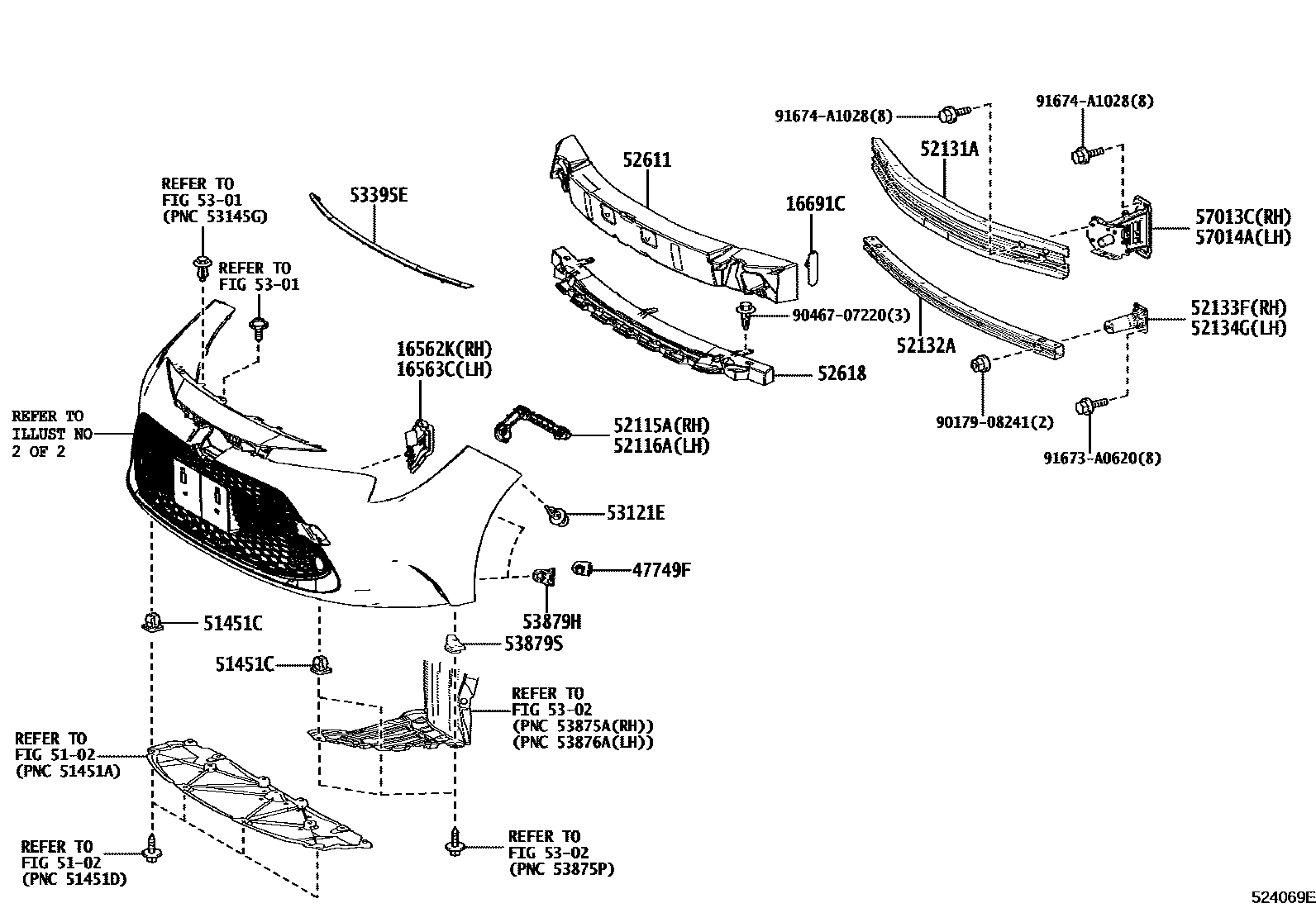

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

16562KSEAL, RADIATOR TO SUPPORT, NO.2

main16562-37040iM15AFKS..MZEA17201908-202504

16563CSEAL, RADIATOR TO SUPPORT, NO.3

main16563-37040i2ZRFXE..ZWE215,219..HBDG,HBDWB,HBDX202210-202406

main16563-37040iM15AFKS..MZEA17201908-202504

16691CPLATE, RADIATOR SIDE AIR GUIDE, FRONT

main16691-37020iM15AFKS..MZEA17202210-202406

main16691-37020iM15AFKS..MZEA17201908-202504

47749FCLIP, PIN HOLD

main47749-33030iMZEA17201908-202504

5102

51451CGROMMET(FOR ENGINE UNDER COVER)

main90189-06237iMZEA17201908-202504

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-12480iMZEA17201908-202504

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-12440iMZEA17201908-202504

52131AREINFORCEMENT, FRONT BUMPER

main52131-12320iMZEA12,NRE210,ZRE212,ZWE211,214201908-202504

52132AREINFORCEMENT, FRONT BUMPER, NO.2

main52132-12150iMZEA17,ZWE215,219..G,HBDG,HBDX,X201908-202409

main52132-12151iZWE215,219..HBDG202410-202505

main52132-12160iZRE212,ZWE211,214..GX,HBDGX,HBDS,S201908-202409

main52132-12161iMZEA17..WB202410-202505

52133FBRACKET, FRONT BUMPER, RH

main52133-12190iMZEA17201908-202504

52134GBRACKET, FRONT BUMPER, LH

main52133-12190iMZEA12,NRE210,ZRE212,ZWE211,214201908-202504

52611ABSORBER, FRONT BUMPER ENERGY

main52611-12450iZWE215,219202210-202407

main52611-12450iMZEA12,NRE210,ZRE212,ZWE211,214201908-202504

52618ABSORBER, FRONT BUMPER, LOWER

main52618-12130iZWE215,219..HBDG,HBDWB,HBDX202210-202407

main52618-12130iMZEA12,NRE210,ZRE212,ZWE211,214201908-202504

5301

5302

53121ECLIP(FOR FRONT BUMPER), NO.1

main90467-05170iZWE215,219201908-202504

53395ESEAL, HOOD TO FRONT END PANEL

main53395-12140iZWE215,219201908-202504

53879HRETAINER, FRONT FENDER LINER

main53879-33030iMZEA12,NRE210,ZRE212,ZWE211,214201908-202504

53879SRETAINER, FRONT FENDER LINER

main53879-17020iMZEA12,NRE210,ZRE212,ZWE211,214201908-202504

57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-12080iMZEA12,NRE210,ZRE212,ZWE211,214201908-202504

57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-12080iMZEA12,NRE210,ZRE212,ZWE211,214201908-202504

9017908241

main90179-08241

9046707220

main90467-07220

91673A0620

main91673-A0620

91674A1028

main91674-A1028

26 parts on this diagram · 4 diagrams in section
