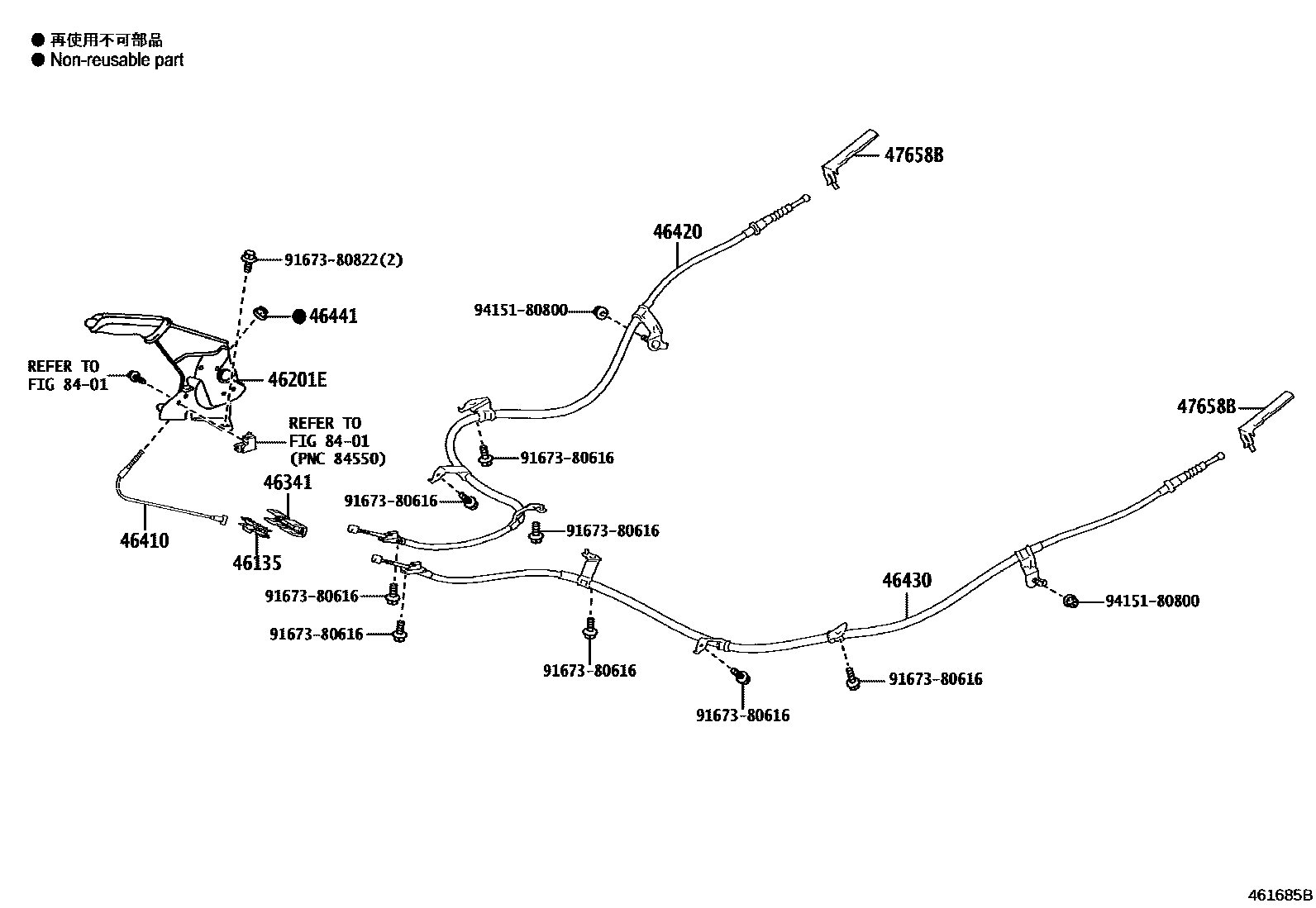

PARKING BRAKE & CABLE

0001 1����� 0002 1����� 0003 1��������

46135STOPPER, PARKING BRAKE CABLE END

main46135-02100iZRE212..GX201908-202504

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-02590-C0iZRE212..GX201908-202504

BLACK,TRIM2#

46341EQUALIZER, PARKING BRAKE

main46341-02120iZRE212..GX201908-202504

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-02250iZRE212..GX201908-202504

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-12860iZRE212..GX201908

main46420-12880iMZEA17..X202210-202504

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-12860iZRE212..GX201908

main46430-12880iMZEA17..X202210-202504

46441NUT, WIRE ADJUSTING, NO.1

main90177-06003iZRE212..GX201908-202504

47658BPROTECTOR, PARKING BRAKE LEVER

main47658-47010iZRE212..GX201908-202504

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9167380616

main91673-80616

9167380822

main91673-80822

9415180800

main94151-80800

12 parts on this diagram · 3 diagrams in section
