MUDGUARD & SPOILER

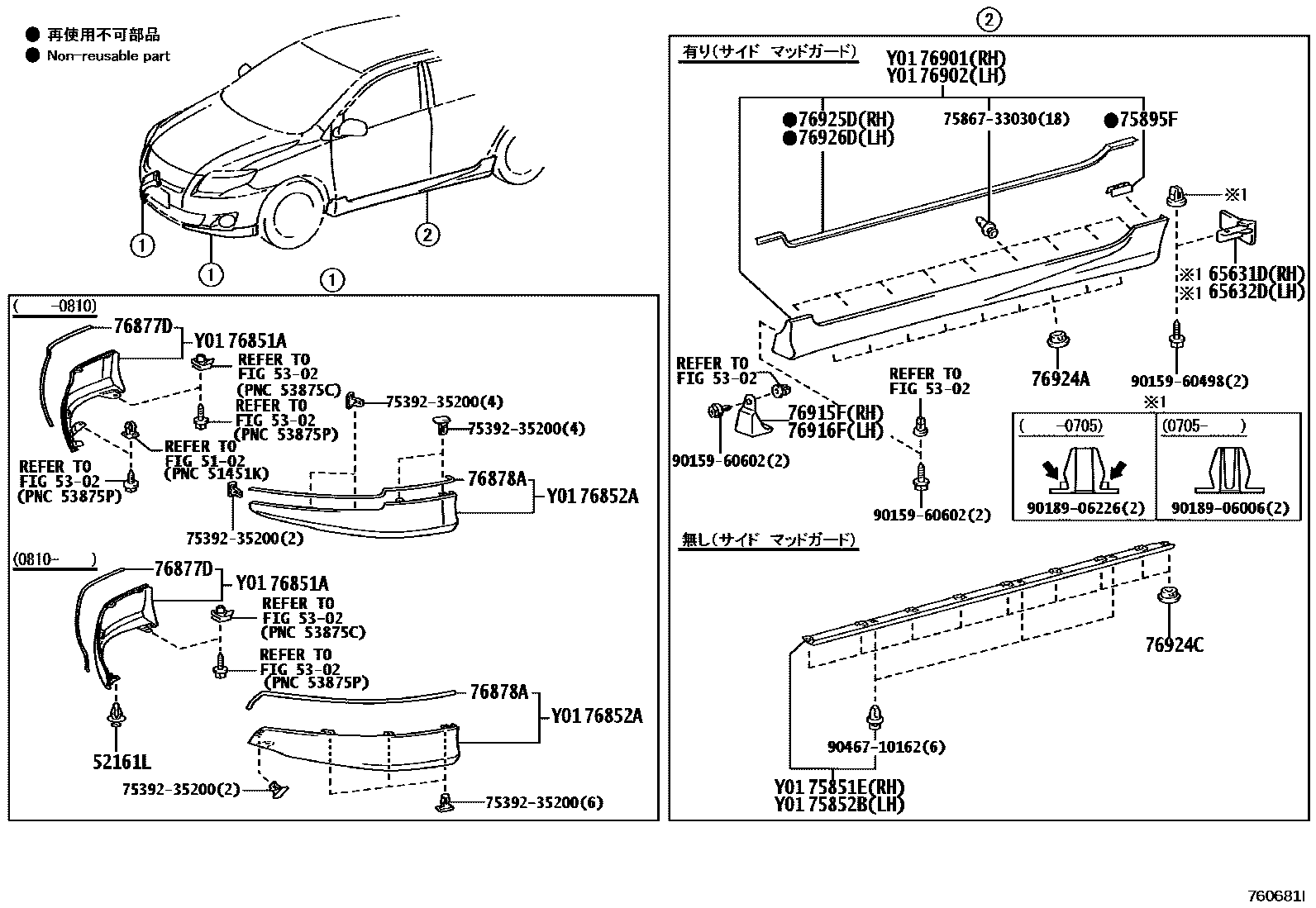

Parts diagram
5102
52161LPIECE, FRONT SPOILER
main52161-16010×2i200910-201204
5302
65631DPLATE, REAR WHEEL HOUSE, FRONT RH
main65631-12030i200609-200705
sub90189-06006
main65631-12031i200810
65632DPLATE, REAR WHEEL HOUSE, FRONT LH
main65632-12030i200609-200705
sub90189-06006
main65632-12031i200810
75851EMOULDING, BODY ROCKER PANEL, RH
main75851-12100i200609-200810
75852BMOULDING, BODY ROCKER PANEL, LH
main75852-12070i200609-200810
75895FTAPE, MOULDING, NO.1
main75895-13040×2i200810
76851ACOVER, FRONT SPOILER, RH
main76851-13140-A0i200609-200810
main76851-13140-B0i200609-200810
main76851-13140-C0i200609-200810
main76851-13140-D0i200609-200810
main76851-13140-E0i200609-200810
main76851-13140-J0i200609-200810
main76851-13140-J1i200609-200810
main76851-13150-A0i201005-201204
main76851-13150-A1i201106-201204
main76851-13150-B0i201106-201204
main76851-13150-C0i200910-201204
main76851-13150-C1i200910-201204
main76851-13150-D0i201005-201204
main76851-13150-E0i200810-201204
main76851-13150-F0i201005-201204
main76851-13150-J0i200810-201204
main76851-13150-J1i201106-201204
76852ACOVER, FRONT SPOILER, LH
main76852-13120-A0i200609-200810
main76852-13120-B0i200609-200810
main76852-13120-C0i200609-200810
main76852-13120-D0i200609-200810
main76852-13120-E0i200609-200810
main76852-13120-J0i200609-200810
main76852-13120-J1i200609-200810
main76852-13130-A0i201005-201204
main76852-13130-A1i201106-201204
main76852-13130-B0i201106-201204
main76852-13130-C0i201005-201204
main76852-13130-C1i201005-201204
main76852-13130-D0i201106-201204
main76852-13130-E0i200810-201204
main76852-13130-F0i200910-201204
main76852-13130-J0i201005-201204
main76852-13130-J1i201106-201204
76877DPROTECTOR, FRONT SPOILER SIDE, RH
main76877-13090-B0i200910-201204
main76877-13090-B1i201005-201204
main76877-13100-B0i200609-200810
main76877-13100-B1i200609-200810
76878APROTECTOR, FRONT SPOILER SIDE, LH
main76878-13080-B0i200810-201204
main76878-13080-B1i201106-201204
main76878-13090-B0i200609-200810
main76878-13090-B1i200609-200810
76901MUDGUARD SUB-ASSY, SIDE, RH
main76901-13050-A0i200610
main76901-13050-A1i201106-201204
main76901-13050-B0i200810-201204
main76901-13050-C0i200609-200810
main76901-13050-C1i200910-201204
main76901-13050-D0i201005-201204
main76901-13050-E0i200703
main76901-13050-E1i200810-201204
main76901-13050-F0i201106-201204
main76901-13050-J0i200609-200810
main76901-13050-J1i200703
main76901-13050-J2i200810-201204
main76901-13050-J3i201106-201204
76902MUDGUARD SUB-ASSY, SIDE, LH
main76902-13050-A0i200810-201204
main76902-13050-A1i201106-201204
main76902-13050-B0i200610
main76902-13050-C0i200910-201204
main76902-13050-C1i201005-201204
main76902-13050-D0i200703
main76902-13050-E0i200609-200810
main76902-13050-E1i200810-201204
main76902-13050-F0i200910-201204
main76902-13050-J0i200610
main76902-13050-J1i200610
main76902-13050-J2i201005-201204
main76902-13050-J3i201106-201204
76915FMUDGUARD, SIDE, FR RH
main76915-13040i200609-200810
76916FMUDGUARD, SIDE, FR LH
main76916-13040i200810
76924ARETAINER, SIDE MUDGUARD, NO.2
main76924-12040×18i201005
main76924-52021×18i200609-200706
76924CRETAINER, SIDE MUDGUARD, NO.2
main76924-12040×18i200810
main76924-52021×18i200609-200706
76925DPROTECTOR, SIDE MUDGUARD, RH
main76925-13040-B0i201106-201204
main76925-13040-B1i200610
76926DPROTECTOR, SIDE MUDGUARD, LH
main76925-13040-B0i201005
main76925-13040-B1i201106-201204
7539235200RETAINER, OUTSIDE MOULDING
main75392-35200
7586733030MOULDING, FRONT PANEL
main75867-33030
9015960498
main90159-60498
9015960602
main90159-60602
9018906006
main90189-06006
9018906226
main90189-06226
9046710162
main90467-10162

27 parts on this diagram · 3 diagrams in section
