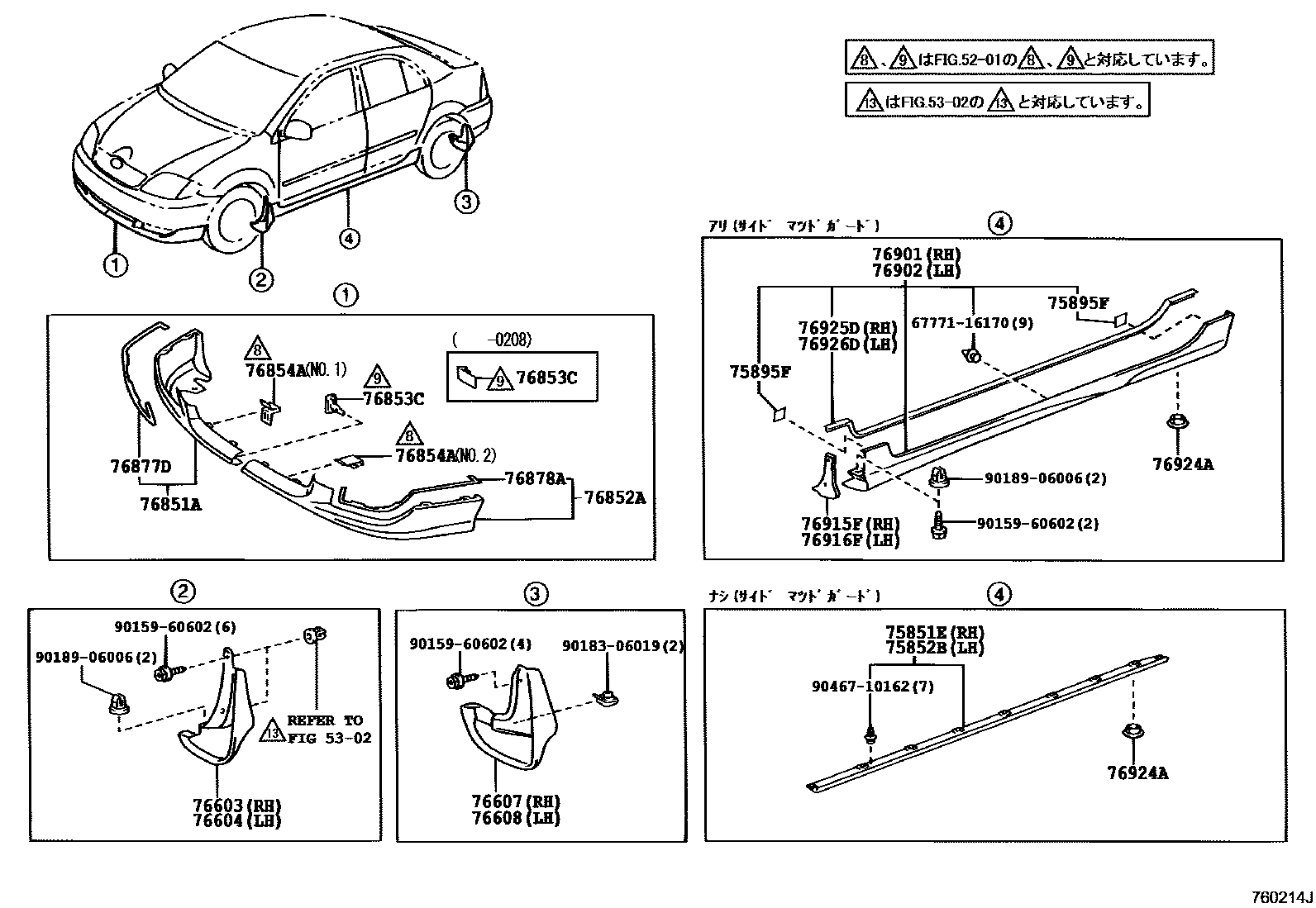

MUDGUARD & SPOILER

0001 1 0002 1 0003 1

5302

75851EMOULDING, BODY ROCKER PANEL, RH

main75851-12090iCE121,NZE12#,ZZE12#200008-200105

main75851-12091iCE121,NZE12#,ZZE12#200105-200209

75852BMOULDING, BODY ROCKER PANEL, LH

main75852-12060iCE121,NZE12#,ZZE12#200008-200105

main75852-12061iCE121,NZE12#,ZZE12#200105-200209

75895FTAPE, MOULDING, NO.1

main75895-13020×4iCE121,NZE121,124,ZZE12#..WG200008-200209

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-12200-A1iCE121,NZE12#,ZZE12#200209-200404

SUPER WHITE 2,040

main76621-12200-A2iCE121,NZE12#..SED..X200112-200209

WHITE PM.,057

main76621-12200-A3iNZE121,124..G200309-200404

main76621-12200-A4iNZE121,124,ZZE122,124..WG200512-200609

main76621-12200-B1iCE121,NZE12#,ZZE12#200008-200209

SILVER ME.,199

main76621-12200-B2iCE121,NZE12#,ZZE122,124..G,LXL,X200209-200404

SILVER ME.GR.,1D9

main76621-12200-B3iNZE12#..SED200309-200404

main76621-12200-C0iCE121,NZE12#,ZZE12#200008-200110

BLACK ME,205

main76621-12200-C1iNZE12#,ZZE12#200404-200609

BLACK MC.,209

main76621-12200-D0iCE121,NZE121,124..WG200110-200209

SUPER RED II,3E5

main76621-12200-D2iCE121,NZE12#,ZZE12#200209-200404

BORDEAUX MC.,3P2

main76621-12200-G1iCE121,NZE121,124,ZZE122,124..G,LXL200209-200404

DK.GREEN MC.P.I.O.,6N9

main76621-12200-H0iCE121,NZE12#,ZZE12#200008-200209

TURQUOISE M.M.,769

main76621-12200-J0iCE121,NZE12#,ZZE12#200008-200209

DK.BLUE M.M.,8P4

main76621-12200-J6iNZE12#,ZZE12#200404-200609

LT.BLUE ME.,8Q6

main76621-12200-K0iCE121,NZE121,124,ZZE12#..WG200209-200404

DARK PURPLE MC.,946

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-12200-A1iNZE12#..SED200309-200404

main76622-12200-A2iCE121,NZE121,124,ZZE122,124..G,LXL200008-200209

WHITE PM.,057

main76622-12200-A3iNZE121,124..G200309-200404

main76622-12200-A4iNZE12#,ZZE122,124..SED200404-200609

WHITE PEARL CS.,073

main76622-12200-B1iCE121,NZE12#,ZZE12#200008-200209

SILVER ME.,199

main76622-12200-B2iNZE12#,ZZE12#200404-200609

SILVER ME.GR.,1D9

main76622-12200-B3iNZE12#,ZZE12#200404-200609

SILVER M.M.,1E7

main76622-12200-C0iCE121,NZE12#,ZZE12#200008-200110

BLACK ME,205

main76622-12200-C1iNZE12#,ZZE12#200404-200609

BLACK MC.,209

main76622-12200-D0iCE121,NZE121,124..WG200110-200209

SUPER RED II,3E5

main76622-12200-D2iCE121,NZE12#,ZZE12#200209-200404

BORDEAUX MC.,3P2

main76622-12200-G1iZZE122,124..LXL200110-200209

main76622-12200-H0iCE121,NZE12#,ZZE12#200008-200209

TURQUOISE M.M.,769

main76622-12200-J0iCE121,NZE12#,ZZE12#200008-200209

DK.BLUE M.M.,8P4

main76622-12200-J6iNZE12#,ZZE12#200404-200609

LT.BLUE ME.,8Q6

main76622-12200-K0iCE121,NZE121,124,ZZE12#..WG200209-200404

DARK PURPLE MC.,946

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-12480-A1iNZE12#,ZZE12#200404-200609

SUPER WHITE 2,040

main76625-12480-A2iCE121,NZE12#..SED..X200112-200209

WHITE PM.,057

main76625-12480-A3iNZE121,124..G200309-200404

main76625-12480-A4iNZE121,124,ZZE122,124..WG200512-200609

main76625-12480-B1iCE121,NZE12#,ZZE12#200008-200209

SILVER ME.,199

main76625-12480-B2iNZE12#..SED200309-200404

main76625-12480-B3iNZE12#,ZZE12#200404-200609

SILVER M.M.,1E7

main76625-12480-C0iCE121,NZE12#,ZZE12#200008-200110

BLACK ME,205

main76625-12480-C1iCE121,NZE12#,ZZE12#200209-200404

BLACK MC.,209

main76625-12480-D0iCE121,NZE121,124..WG200110-200209

SUPER RED II,3E5

main76625-12480-D2iCE121,NZE12#,ZZE12#200209-200404

BORDEAUX MC.,3P2

main76625-12480-G1iZZE122,124..LXL200110-200209

main76625-12480-H0iCE121,NZE12#,ZZE12#200008-200209

TURQUOISE M.M.,769

main76625-12480-J0iNZE12#,ZZE12#200404-200609

DK.BLUE M.M.,8P4

main76625-12480-J3iNZE12#,ZZE12#200404-200609

LT.BLUE ME.,8Q6

main76625-12480-K0iCE121,NZE121,124,ZZE12#..WG200209-200404

DARK PURPLE MC.,946

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-12480-A1iNZE12#,ZZE12#200404-200609

SUPER WHITE 2,040

main76626-12480-A2iCE121,NZE12#..SED..X200112-200209

WHITE PM.,057

main76626-12480-A3iNZE121,124..G200309-200404

main76626-12480-A4iNZE12#,ZZE122,124..SED200404-200609

WHITE PEARL CS.,073

main76626-12480-B1iCE121,NZE12#,ZZE12#200008-200209

SILVER ME.,199

main76626-12480-B2iCE121,NZE12#,ZZE122,124..G,LXL,X200008-200209

SILVER ME.GR.,1D9

main76626-12480-B3iNZE12#..SED200309-200404

main76626-12480-C0iCE121,NZE12#,ZZE12#200008-200110

BLACK ME,205

main76626-12480-C1iCE121,NZE12#,ZZE12#200209-200404

BLACK MC.,209

main76626-12480-D0iCE121,NZE121,124,ZZE12#..WG200209-200404

SUPER RED II,3E5

main76626-12480-D2iCE121,NZE12#,ZZE12#200209-200404

BORDEAUX MC.,3P2

main76626-12480-G1iCE121,NZE121,124,ZZE122,124..G,LXL200209-200404

DK.GREEN MC.P.I.O.,6N9

main76626-12480-H0iCE121,NZE12#,ZZE12#200008-200209

TURQUOISE M.M.,769

main76626-12480-J0iNZE12#,ZZE12#200404-200609

DK.BLUE M.M.,8P4

main76626-12480-J3iNZE12#,ZZE12#200404-200609

LT.BLUE ME.,8Q6

main76626-12480-K0iCE121,NZE121,124,ZZE12#..WG200209-200404

DARK PURPLE MC.,946

76851ACOVER, FRONT SPOILER, RH

main76851-13050-A0iCE121,NZE121,124,ZZE12#..WG200008-200209

SUPER WHITE 2,040

main76851-13050-B0iCE121,NZE121,124..WG200008-200209

SILVER,1D9

main76851-13050-B1iCE121,NZE121,124,ZZE12#..WG200008-200209

SILVER ME.,199

main76851-13050-C0iCE121,NZE121,124,ZZE12#..WG200008-200110

BLACK ME.,205

main76851-13050-C1iCE121,NZE121,124,ZZE12#..WG200110-200209

BLACK MC.,209

main76851-13050-D0iZZE12#..WG200008-200209

SUPER RED 11,3E5

main76851-13050-H0iCE121,NZE121,124,ZZE12#..WG200008-200209

TURQUOISE M.M.,769

main76851-13050-J0iCE121,NZE121,124,ZZE12#..WG200008-200209

DK. BLUE M.M.,8P4

main76851-13090-A0iCE121,NZE121,124,ZZE12#..WG200209-200404

SUPER WHITE 2,040

main76851-13090-B0iCE121,NZE121,124..WG200209-200404

SILVER ME.GR.,1D9

main76851-13090-B1iCE121,NZE121,124,ZZE12#..WG200209-200404

SILVER M.M.,1E7

main76851-13090-C0iCE121,NZE121,124,ZZE12#..WG200209-200404

BLACK MC.,209

main76851-13090-D0iCE121,NZE121,124,ZZE12#..WG200209-200404

SUPER RED II,3E5

main76851-13090-D1iCE121,NZE121,124,ZZE12#..WG200209-200404

BORDEAUX MC.,3P2

main76851-13090-K0iCE121,NZE121,124,ZZE12#..WG200209-200404

DARK PURPLE MC.,946

main76851-13120-A0iNZE121,124,ZZE12#..WG200404-200609

SUPER WHITE 2,040

main76851-13120-A1iNZE121,124,ZZE122,124..WG200512-200609

main76851-13120-B0iNZE121,124,ZZE12#..WG200404-200609

SILVER ME.GR.,1D9

main76851-13120-B1iNZE121,124,ZZE12#..WG200404-200609

SILVER M.M.,1E7

main76851-13120-C0iNZE121,124,ZZE12#..WG200404-200609

BLACK MC.,209

main76851-13120-D0iNZE121,124,ZZE12#..WG200404-200609

SUPER RED II,3E5

main76851-13120-J0iNZE121,124,ZZE12#..WG200404-200609

DK.BLUE M.M.,8P4

main76851-13120-J1iNZE121,124,ZZE12#..WG200404-200609

LT.BLUE ME.,8Q6

76852ACOVER, FRONT SPOILER, LH

main76852-13040-A0iCE121,NZE121,124,ZZE12#..WG200008-200209

SUPER WHITE 2,040

main76852-13040-B0iCE121,NZE121,124..WG200008-200209

SILVER ME.GR.,1D9

main76852-13040-B1iCE121,NZE121,124,ZZE12#..WG200008-200209

SILVER ME.,199

main76852-13040-C0iCE121,NZE121,124,ZZE12#..WG200008-200110

BLACK ME.,205

main76852-13040-C1iCE121,NZE121,124,ZZE12#..WG200110-200209

BLACK MC.,209

main76852-13040-D0iZZE12#..WG200008-200209

SUPER RED 11,3E5

main76852-13040-H0iCE121,NZE121,124,ZZE12#..WG200008-200209

TURQUOISE M.M.,769

main76852-13040-J0iCE121,NZE121,124,ZZE12#..WG200008-200209

DK. BLUE M.M.,8P4

main76852-13070-A0iCE121,NZE121,124,ZZE12#..WG200209-200404

SUPER WHITE 2,040

main76852-13070-B0iCE121,NZE121,124..WG200209-200404

SILVER ME.GR.,1D9

main76852-13070-B1iCE121,NZE121,124,ZZE12#..WG200209-200404

SILVER M.M.,1E7

main76852-13070-C0iCE121,NZE121,124,ZZE12#..WG200209-200404

BLACK MC.,209

main76852-13070-D0iCE121,NZE121,124,ZZE12#..WG200209-200404

SUPER RED II,3E5

main76852-13070-D1iCE121,NZE121,124,ZZE12#..WG200209-200404

BORDEAUX MC.,3P2

main76852-13070-K0iCE121,NZE121,124,ZZE12#..WG200209-200404

DARK PURPLE MC.,946

main76852-13100-A0iNZE121,124,ZZE12#..WG200404-200609

SUPER WHITE 2,040

main76852-13100-A1iNZE121,124,ZZE122,124..WG200512-200609

main76852-13100-B0iNZE121,124,ZZE12#..WG200404-200609

SILVER ME.GR.,1D9

main76852-13100-B1iNZE121,124,ZZE12#..WG200404-200609

SILVER M.M.,1E7

main76852-13100-C0iNZE121,124,ZZE12#..WG200404-200609

BLACK MC.,209

main76852-13100-D0iNZE121,124,ZZE12#..WG200404-200609

SUPER RED II,3E5

main76852-13100-J0iNZE121,124,ZZE12#..WG200404-200609

DK.BLUE M.M.,8P4

main76852-13100-J1iNZE121,124,ZZE12#..WG200404-200609

LT.BLUE ME.,8Q6

76853CRETAINER, FRONT SPOILER, NO.1

main75392-35200×11iCE121,NZE121,124,ZZE12#..WG200208-200209

main76853-10010×11iCE121,NZE121,124,ZZE12#..WG200008-200207

76854ARETAINER, FRONT SPOILER, NO.2

main76854-13010×4iCE121,NZE121,124,ZZE12#..WG200008-200209

main76854-44010×6iCE121,NZE121,124,ZZE12#..WG200008-200209

76877DPROTECTOR, FRONT SPOILER SIDE, RH

main76877-13030-B0iZZE12#..WG200008-200209

SILVER ME.,040 ,199

main76877-13030-B1iCE121,NZE121,124..WG200207-200209

SILVER ME.,040 ,199

main76877-13030-B2iCE121,NZE121,124,ZZE12#..WG200207-200209

DARK GRAY,209 ,3E5 ,8P4

main76877-13030-C0iZZE12#..WG200008-200110

BLACK,205 ,3E5 ,769 ,8P4

main76877-13050-B0iZZE12#..WG200209-200404

SILVER ME.,040 ,1D9 ,1E7

main76877-13050-B1iCE121,NZE121,124,ZZE12#..WG200209-200404

DARK GRAY,209 ,3E5 ,3P2 ,946

main76877-13080-B0iNZE121,124,ZZE12#..WG200404-200609

SILVER ME.,040 ,1D9 ,1E7 ,8Q6

main76877-13080-B1iNZE121,124,ZZE12#..WG200404-200609

DARK GRAY,209 ,3E5 ,8P4

76878APROTECTOR, FRONT SPOILER SIDE, LH

main76878-13020-B0iCE121,NZE121,124..WG200008-200207

SILVER ME.,040 ,199 ,1D9

main76878-13020-B1iCE121,NZE121,124..WG200207-200209

SILVER ME.,040 ,199

main76878-13020-B2iCE121,NZE121,124,ZZE12#..WG200207-200209

DARK GRAY,209 ,3E5 ,8P4

main76878-13020-C0iZZE12#..WG200008-200110

BLACK,205 ,3E5 ,769 ,8P4

main76878-13040-B0iZZE12#..WG200209-200404

SILVER ME.,040 ,1D9 ,1E7

main76878-13040-B1iCE121,NZE121,124,ZZE12#..WG200209-200404

DARK GRAY,209 ,3E5 ,3P2 ,946

main76878-13070-B0iNZE121,124,ZZE122,124..WG200512-200609

main76878-13070-B1iNZE121,124,ZZE12#..WG200404-200609

DARK GRAY,209 ,3E5 ,8P4

76901MUDGUARD SUB-ASSY, SIDE, RH

main76901-13030-A0iCE121,NZE121,124,ZZE12#..WG200209-200404

SUPER WHITE 2,040

sub75867-33030

sub76911-13902

main76901-13030-A4iNZE121,124,ZZE122,124..WG200512-200609

sub75867-33030

sub76911-13902

main76901-13030-B0iNZE121,124,ZZE12#..WG200404-200609

SILVER ME.GR.,1D9

sub75867-33030

sub76911-13902

main76901-13030-B1iCE121,NZE121,124,ZZE12#..WG200008-200209

SILVER ME.,199

sub75867-33030

sub76911-13902

main76901-13030-B2iNZE121,124,ZZE12#..WG200404-200609

SILVER M.M.,1E7

sub75867-33030

sub76911-13902

main76901-13030-C0iCE121,NZE121,124,ZZE12#..WG200008-200110

BLACK ME,205

sub75867-33030

sub76911-13902

main76901-13030-C1iCE121,NZE121,124,ZZE12#..WG200110-200209

BLACK MC.,209

sub75867-33030

sub76911-13902

main76901-13030-D0iZZE12#..WG200008-200209

SUPER RED II,3E5

sub75867-33030

sub76911-13902

main76901-13030-D2iCE121,NZE121,124,ZZE12#..WG200209-200404

BORDEAUX MC.,3P2

sub75867-33030

sub76911-13902

main76901-13030-H0iCE121,NZE121,124,ZZE12#..WG200008-200209

TURQUOISE M.M.,769

sub75867-33030

sub76911-13902

main76901-13030-J0iCE121,NZE121,124,ZZE12#..WG200008-200209

DK.BLUE M.M.,8P4

sub75867-33030

sub76911-13902

main76901-13030-J7iNZE121,124,ZZE12#..WG200404-200609

LT.BLUE ME.,8Q6

sub75867-33030

sub76911-13902

main76901-13030-K0iCE121,NZE121,124,ZZE12#..WG200209-200404

DARK PURPLE MC.,946

sub75867-33030

sub76911-13902

76902MUDGUARD SUB-ASSY, SIDE, LH

main76902-13030-A0iNZE121,124,ZZE12#..WG200404-200609

SUPER WHITE 2,040

sub75867-33030

sub76912-13902

main76902-13030-A4iNZE121,124,ZZE122,124..WG200512-200609

sub75867-33030

sub76912-13902

main76902-13030-B0iCE121,NZE121,124..WG200209-200404

SILVER ME.GR.,1D9

sub75867-33030

sub76912-13902

main76902-13030-B1iCE121,NZE121,124,ZZE12#..WG200008-200209

SILVER ME.,199

sub75867-33030

sub76912-13902

main76902-13030-B2iNZE121,124,ZZE12#..WG200404-200609

SILVER M.M.,1E7

sub75867-33030

sub76912-13902

main76902-13030-C0iCE121,NZE121,124,ZZE12#..WG200008-200110

BLACK ME,205

sub75867-33030

sub76912-13902

main76902-13030-C1iCE121,NZE121,124,ZZE12#..WG200110-200209

BLACK MC.,209

sub75867-33030

sub76912-13902

main76902-13030-D0iNZE121,124,ZZE12#..WG200404-200609

SUPER RED II,3E5

sub75867-33030

sub76912-13902

main76902-13030-D2iCE121,NZE121,124,ZZE12#..WG200209-200404

BORDEAUX MC.,3P2

sub75867-33030

sub76912-13902

main76902-13030-H0iCE121,NZE121,124,ZZE12#..WG200008-200209

TURQUOISE M.M.,769

sub75867-33030

sub76912-13902

main76902-13030-J0iNZE121,124,ZZE12#..WG200404-200609

DK.BLUE M.M.,8P4

sub75867-33030

sub76912-13902

main76902-13030-J7iNZE121,124,ZZE12#..WG200404-200609

LT.BLUE ME.,8Q6

sub75867-33030

sub76912-13902

main76902-13030-K0iCE121,NZE121,124,ZZE12#..WG200209-200404

DARK PURPLE MC.,946

sub75867-33030

sub76912-13902

76915FMUDGUARD, SIDE, FR RH

main76915-13020iNZE121,124,ZZE12#..WG200404-200609

76916FMUDGUARD, SIDE, FR LH

main76916-13020iCE121,NZE121,124,ZZE12#..WG200008-200209

76924ARETAINER, SIDE MUDGUARD, NO.2

main76924-52020×16iCE121,NZE12#,ZZE12#200008-200105

main76924-52021×16iCE121,NZE12#,ZZE12#200105-200209

76925DPROTECTOR, SIDE MUDGUARD, RH

main76925-13030-B0iZZE12#..WG200008-200207

GRAY,040 ,199 ,1D9

main76925-13030-B3iNZE121,124,ZZE122,124..WG200512-200609

main76925-13030-B4iCE121,NZE121,124,ZZE12#..WG200207-200209

DARK GRAY,209 ,3E5 ,8P4

main76925-13030-C0iZZE12#..WG200008-200110

BLACK,205 ,3E5 ,769 ,8P4

76926DPROTECTOR, SIDE MUDGUARD, LH

main76925-13030-B0iZZE12#..WG200008-200207

GRAY,040 ,199 ,1D9

main76925-13030-B3iZZE12#..WG200209-200404

SILVER ME.,040 ,1D9 ,1E7

main76925-13030-B4iNZE121,124,ZZE12#..WG200404-200609

DARK GRAY,209 ,3E5 ,8P4

main76925-13030-C0iZZE12#..WG200008-200110

BLACK,205 ,3E5 ,769 ,8P4

6777116170WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-16170

9015960602

main90159-60602

9018306019

main90183-06019

9018906006

main90189-06006

9046710162

main90467-10162

26 parts on this diagram · 3 diagrams in section
