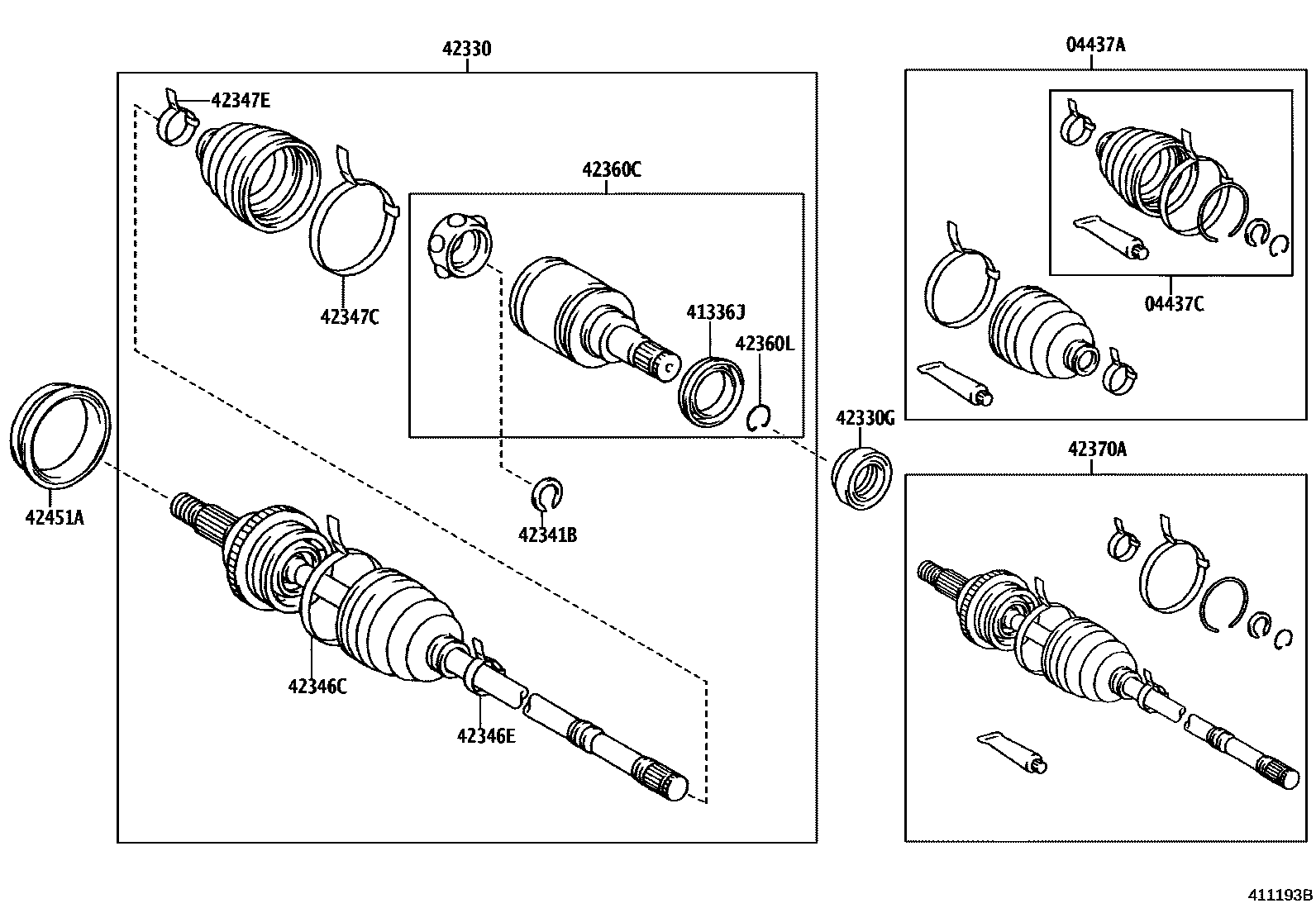

REAR AXLE SHAFT & HUB
04437ABOOT KIT, REAR DRIVE SHAFT, RH
04437CBOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, RH
41336JCOVER, REAR DRIVE SHAFT DUST, RH
42330SHAFT ASSY, REAR DRIVE, RH
42330GOIL SEAL, REAR DRIVE SHAFT, RH
42341BRING, SNAP (FOR REAR DRIVE SHAFT RH)
42346CCLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
���a���V�S�D�R
���a���V�S�D�R
���a���V�S�D�R
42346ECLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
42347CCLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
���a���V�S�D�R
���a���V�S�D�R
���a���V�S�D�R
42347ECLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
42360CJOINT ASSY, REAR DRIVE SHAFT INBOARD, RH
42360LRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH)
42370ASHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH
42451ADEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH
14 parts on this diagram · 4 diagrams in section
