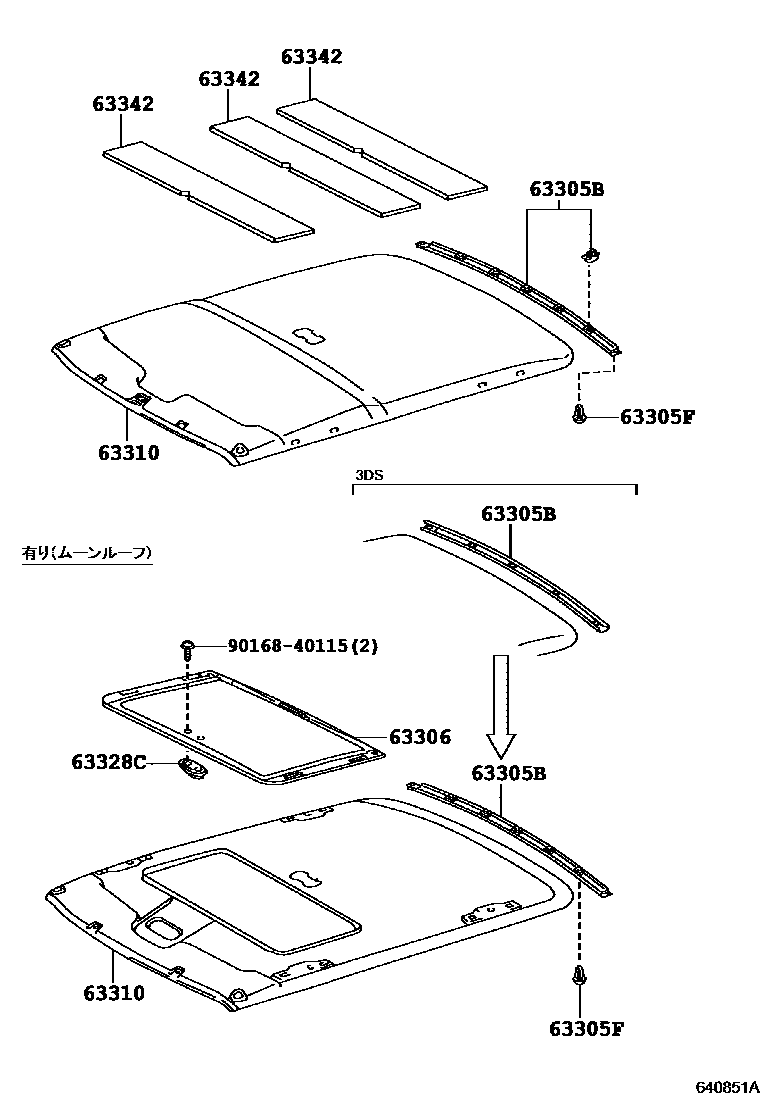

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1 0003 1

63305BTRIM SUB-ASSY, ROOF HEADLINING, REAR

main63305-12140-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199505

TAUPE,TRIM9#

sub63305-12140

main63305-12140-P0iAE10#,CE100,104,EE101..4DS199106-199505

SHADOW GRAY,TRIM1#

sub63305-12140

main63305-12140-W3iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

sub63305-12140

main63305-12160-B0iAE101..3DS199205-199505

SHADOW GRAY,TRIM1#

63305FCLIP(FOR ROOF HEADLINING TRIM)

main90467-05062-B0iAE10#,CE100,104,EE101..4DS199106-199505

SHADOW GRAY,TRIM1#

sub90467-05062

main90467-05062-J1iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199206-199305

DARK BLUE,TRIM8#

sub90467-05062

main90467-05062-K0iAE100,104..ATM..(LX,SEL)199206-199505

TAUPE,TRIM9#

sub90467-05062

63306TRIM SUB-ASSY, SUNSHADE

main63306-12020-K1iAE10#,CE100,104..SEG,SEL,XE199106-199505

LIGHT TAUPE,TRIM9#

main63306-12020-S3iAE10#,CE100,104..GT,SEG,SEL,SJ,XE199106-199505

LIGHT GRAY,TRIM1#

main63306-12020-W5iAE10#,CE100,104..SEG,SEL,XE199106-199305

LIGHT BLUE,TRIM8#

main63306-13030-B0iAE100,101,104,CE100,101199705-200008

LT. GRAY,TRIM1#

63310HEADLINING ASSY, ROOF

main63310-13170-S3iCE106,109,EE102,103,106,107199109-199409

LIGHT GRAY,TRIM1#

main63310-13180-B0iAE100,101,104,CE100..WG199109-200008

LIGHT GRAY,TRIM1#

main63310-13230-B0iCE106,109,EE102,103,106,107..05S199109-199409

LIGHT GRAY,TRIM1#

sub63310-13170

main63310-13230-B0iCE108,EE104,108199109-199409

sub63310-13170

main63310-13370-B0iAE101..4FC,6F;AE100,104,CE100,101..G199704-200008

LT. GRAY,TRIM1#

main63310-13380-B0iAE101..4FC,6F;AE100,104,CE100,101199704-200008

main63310-1A020-K1iAE100,104,CE100,104,EE101..LX,XE199106-199111

LIGHT TAUPE,TRIM9#

sub63310-1A021

main63310-1A020-S3iAE100,104,CE100,104,EE101..DX,LX,XE199106-199111

LIGHT GRAY,TRIM1#

sub63310-1A021

main63310-1A020-W5iAE100,104,CE100,104,EE101..LX,XE199106-199111

LIGHT BLUE,TRIM8#

sub63310-1A021

main63310-1A021-K1iAE100,104,CE100,104,EE101..LX,XE199111-199505

LIGHT TAUPE,TRIM9#

sub63310-1A021

main63310-1A021-S3iAE100,104,CE100,104,EE101..DX,LX,XE199111-199505

LIGHT GRAY,TRIM1#

sub63310-1A021

main63310-1A021-W5iAE100,104,CE100,104,EE101..LX,XE199111-199305

LIGHT BLUE,TRIM8#

sub63310-1A021

main63310-1A220-K1iAE10#,CE100,104..SEG,SEL199106-199111

LIGHT TAUPE,TRIM9#

sub63310-1A221

main63310-1A220-S3iAE10#,CE100,104..GT,SEG,SEL199106-199111

LIGHT GRAY,TRIM1#

sub63310-1A221

main63310-1A220-W5iAE10#,CE100,104..SEG,SEL199106-199111

LIGHT BLUE,TRIM8#

sub63310-1A221

main63310-1A221-K1iAE10#,CE100,104..SEG,SEL199111-199505

LIGHT TAUPE,TRIM9#

sub63310-1A221

main63310-1A221-S3iAE10#,CE100,104..4DS..(GT,SEG,SEL)199111-199505

LIGHT GRAY,TRIM1#

sub63310-1A221

main63310-1A221-W5iAE10#,CE100,104..SEG,SEL199111-199305

LIGHT BLUE,TRIM8#

sub63310-1A221

main63310-1A230-K1iAE10#,CE100,104..SEG,SEL,XE199106-199505

main63310-1A230-S3iAE10#,CE100,104..4DS..(GT,SEG,SEL,XE)199106-199505

main63310-1A230-W5iAE10#,CE100,104..SEG,SEL,XE199106-199305

main63310-1A350-B1iAE101..3DS199205-199505

LIGHT GRAY,TRIM1#

main63310-1A360-B0iAE101..3DS199205-199505

63328CKNOB, SUNSHADE TRIM

main63328-12020-K1iAE10#,CE100,104..SEG,SEL,XE199106-199505

LIGHT TAUPE,TRIM9#

main63328-12020-S3iAE10#,CE100,104..GT,SEG,SEL,SJ,XE199106-199505

LIGHT GRAY,TRIM1#

main63328-12020-W5iAE10#,CE100,104..SEG,SEL,XE199106-199305

LIGHT BLUE,TRIM8#

63342PAD, ROOF SILENCER, NO.2

main63342-12060iAE10#,CE100,104,EE101..3DS,4DS199106-199505

9016840115

main90168-40115

7 parts on this diagram · 3 diagrams in section
