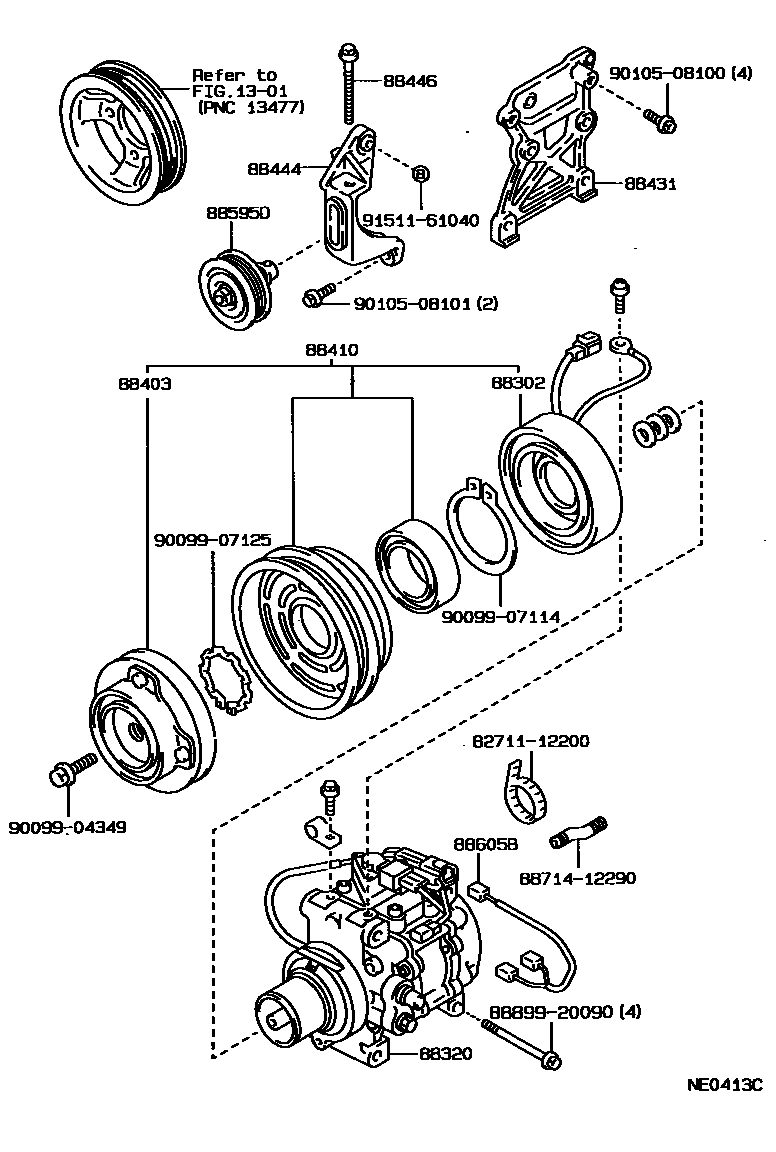

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0006 1

1301

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-14050iCE95;CE90..SE,XE198905-199106

main88411-16021iEE96..3FC;EE90,97,98198705-199205

sub88411-60030

main88411-60030iAE91..FXVS;AE91,95..(FXG,FXL,FXV,G,LT,SE,TX,XE)..EFI198905-199205

88320COMPRESSOR ASSY, COOLER

main88320-12360iCE96198705-199109

sub88320-35H90

main88320-12530iEE97,98;EE90..FXD,FXL,TX,XE198705-198803

sub88320-12860

main88320-12550iAE92198705-198803

main88320-12560iAE91,95..FXG,FXZI,G,SE198705-198803

main88320-12570iEE97,98;EE90..FXD,FXL,TX,XE198705-198803

main88320-12580iEE9#198705-198803

main88320-12600iEE9#198705-198803

main88320-12610iCE90..5F..TX198705-199109

main88320-12610iCE96198908-199109

main88320-12620iEE96,97,98198803-198908

sub88320-12750

main88320-12630iEE96,97,98;EE90..FXD,FXL,TX,XE198803-198908

sub88320-12760

main88320-12650iAE91..CBR198803-198908

sub88320-12780

main88320-12650iEE96..4F198908-199109

sub88320-12780

main88320-12660iAE92198803-198905

main88320-12670iEE97,98;EE90..FXD,FXL,TX,XE198803-198905

sub88320-12810

main88320-12680iEE9#198803-198908

sub88320-12800

main88320-12750iEE9#198905-199109

main88320-12760iEE96..4F198905-199109

main88320-12780iAE91,95..(FXG,FXL,FXV,FXVS,FXZS,G,LT,SE,TX,XE)..(EFI,EFIS)198905-199205

main88320-12790iAE92..FXGT,GT198905-199205

main88320-12800iEE90,96,97198908-199109

A/C SW.=1PB

main88320-12810iEE96..3FC;EE90,97..L,TX,XE198905-199109

main88320-12870iAE92..FXGTV198905-199205

main88320-20560iCE90..5F..TX198705-198905

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-12030iCE95;CE90..SE,XE198905-199106

main88403-16011iEE96..3FC;EE90,97,98198705-199205

88410CLUTCH ASSY, MAGNET

main88410-10210iEE90198905-199205

sub88410-1A080

main88410-12160iCE96,97..DX,GL198705-198908

main88410-12170iCE90..DX;CE96..STD198705-198908

main88410-12250iAE91,95..FXG,FXL,FXZI,G,SE,TX,XE198705-198908

main88410-12290iAE91..DX198905-199205

sub88410-1A090

main88410-12340iCE97198905-199109

main88410-12350iCE90..DX198905-199109

main88410-16050iEE90,97,98198705-198908

sub88410-1A080

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-12370iEE96..4F198705-199109

main88431-12390iAE92..FXGTV198705-199205

main88431-12390iAE92198803-198905

main88431-12400iAE91,95..MTM..(DX,FXL,TX,XE)198705-199205

main88431-12410iAE92..FXGTV198905-199205

main88431-12430iAE91,95..DX,FXL,TX,XE198712-199106

main88431-12440iAE92198803-198905

main88431-12470iCE90,95..SE,TX,XE198905-199109

main88431-12490iAE91..EFIS198905-199205

88444BRACKET, IDLE PULLEY

main88444-10031iEE96..4F198705-199109

main88444-12040iCE9#..DX,GL,STD198705-198908

main88444-12050iCE90,96,97..CTD,DX,GL,L,STD198905-199109

main88444-16030iEE98198708-199109

88446BOLT, IDLE PULLEY

main88446-12030iAE91,95..FXG,FXZI,G,SE198705-199205

main88446-35010iAE92198705-199205

88595DPULLEY ASSY, IDLE

main88440-12170iCE96,97,EE90,97,98198705-199109

main88440-12190iCE90..DX198905-199109

main88440-17010iAE91,95..DX,FXL,TX,XE198705-199205

main88440-32030iAE92198705-199205

88605BHARNESS SUB-ASSY, AIR CONDITIONER WIRING

main88605-1A710iAE92198705-198905

main88605-1A750iEE97,98;EE90..FXD,FXL,TX,XE198705-199109

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8871412290HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-12290

8889920090COVER, EVAPORATOR

main88899-20090

9009904349

main90099-04349

9009907114

main90099-07114

9009907125

main90099-07125

9010508100

main90105-08100

9010508101

main90105-08101

9151161040

main91511-61040

19 parts on this diagram · 5 diagrams in section
