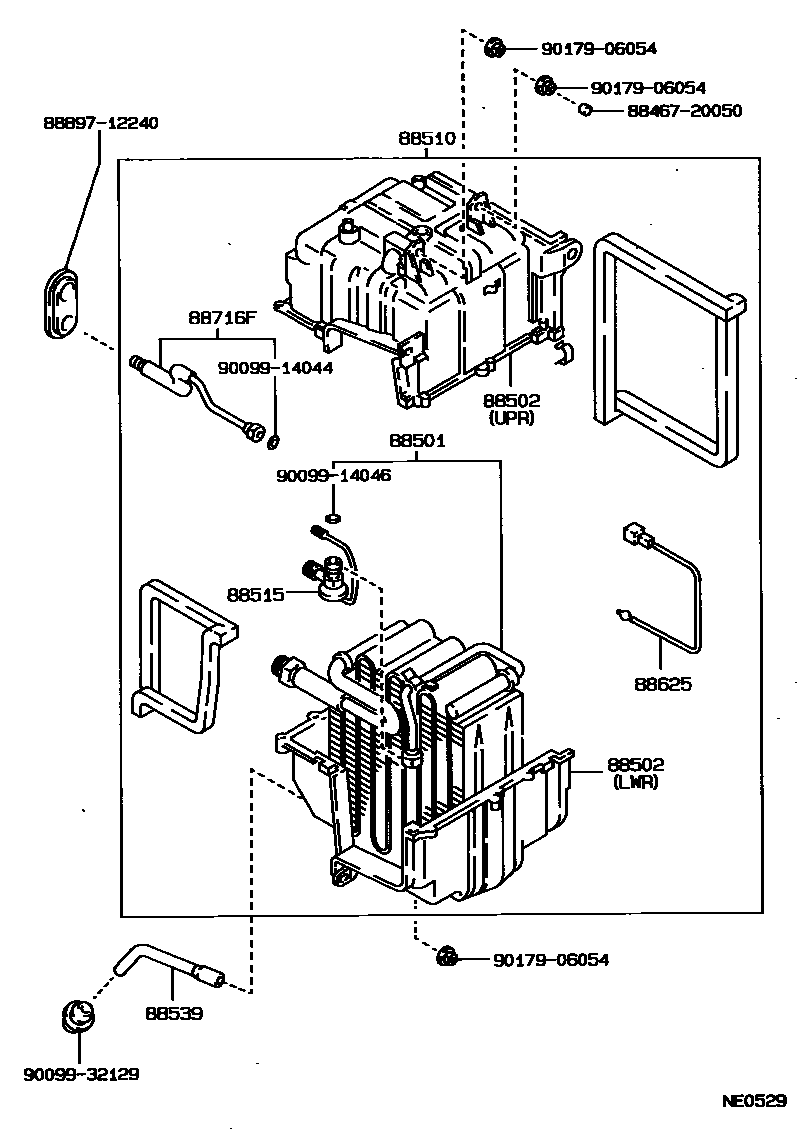

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-12330iCE90..5F..(SE,XE);CE90..4FC..(SE,TX,XE);AE9#,CE95..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,GT,LT,SE,TX,XE198705-199205

88502CASE SUB-ASSY, COOLING UNIT

main88502-12140iEE96..4F..(DX,GL,STD)198705-199109

main88502-12150iEE97,98..MTM..(DX,GL)198705-199109

88510UNIT ASSY, COOLER

main88510-12830iEE90;EE96..3FC;AE91,CE90,96,97,EE97,98..CTD,DX,GL,L,STD198705-199205

88515VALVE, COOLER EXPANSION

main88515-16040iEE90;EE96..3FC;AE91,CE90,96,97,EE97,98..CTD,DX,GL,L,STD¥7,100198705-199205

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-12090iAE91,95,CE9#,EE90,97,98..DX,FXD,FXL,GL,STD,TX,XE198705-199205

88625THERMISTOR, COOLER, NO.1

main88625-32040iAE9#,CE90..FXG,FXGT,FXZI,G,GT,SE198705-199205

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88726-12300iAE91,95,CE9#,EE90,97,98..DX,FXD,FXL,GL,STD,TX,XE¥2,710198705-199205

8846720050CUSHION, COOLER CONDENSER, NO.1

main88467-20050

8889712240VALVE, COOLER MAGNET

main88897-12240

9009914044

main90099-14044

9009914046

main90099-14046

9009932129

main90099-32129

9017906054

main90179-06054¥100

13 parts on this diagram · 2 diagrams in section
