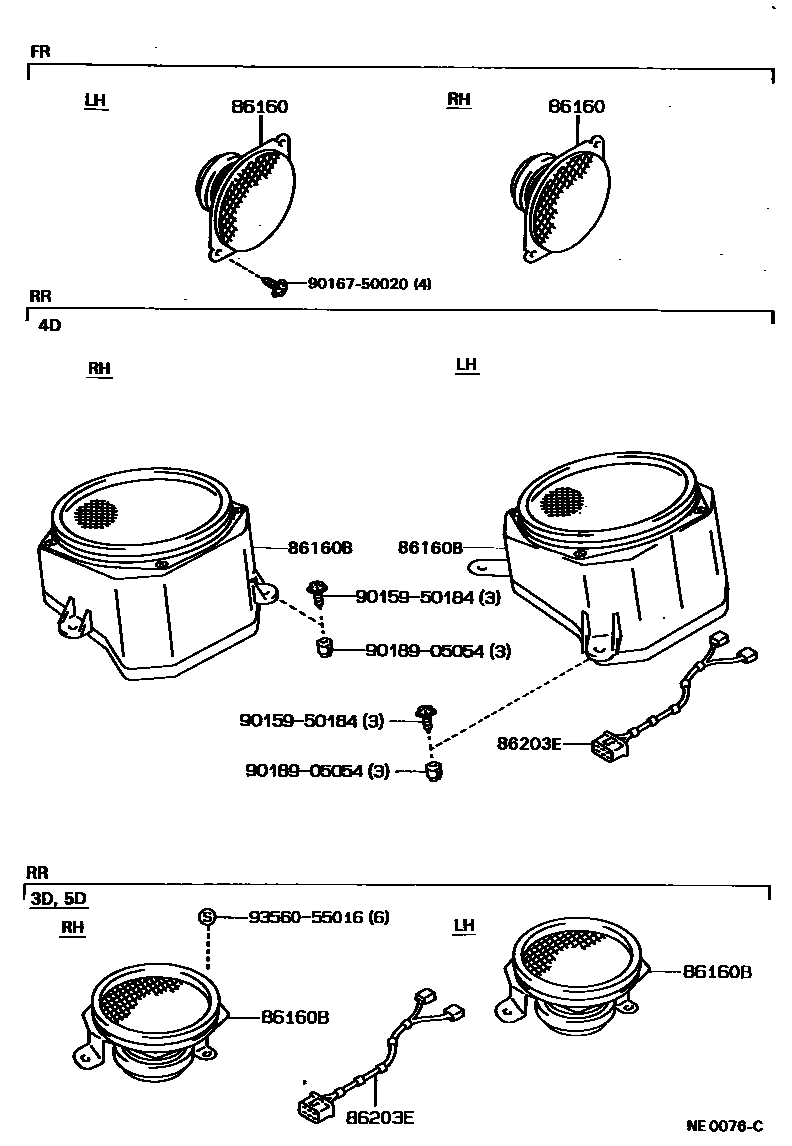

SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-12280iAE91..LT198705-199205

main86160-12290iAE9#,CE9#,EE9#..CTD,DX,FXG,FXGTV,FXL,FXV,FXVS,GL,L,LT,STD198705-199205

86160BSPEAKER ASSY, REAR

main86160-12231iAE91..SE198805-199106

main86160-12231iAE91..SE..EFI198909-199106

main86160-12241iAE91..SE198805-199106

main86160-12241iAE91..SE..EFI198909-199106

main86160-12270iAE91,92,EE90..3D,5D198705-198905

86203EWIRE, STEREO COMPONENT SPEAKER, NO.1

main86205-12010iAE91..FXZI;AE92,95,CE90;EE90..FXD,FXL,TX,XE;AE91..(3D,4D,5D)..CBR198705-198905

9015950184

main90159-50184

9016750020

main90167-50020

9018905054

main90189-05054

9356055015

main93560-55015

7 parts on this diagram · 1 diagram in section
