REAR WIPER

0001 1 0002 1

85110RMOTOR ASSY, REAR WIPER

main85110-12700iAE91,92,EE90..3D,5D198705-199205

main85110-13040iEE98..4F;EE98..3FC..DX;AE91,CE96,97,EE96,97..(V,WG)..(DX,G,GL)198708-198710

main85110-13050iEE98..4F;EE98..3FC..DX;AE91,CE96,97,EE96,97..(V,WG)..(DX,G,GL)198710-199109

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85179-12700iAE91,92,EE90..3D,5D198705-199205

main85179-16150iEE98..(3FC,5F)..GL198708-199109

85190RARM ASSY, REAR WIPER

main85190-12860iAE91,92,EE90..3D,5D198705-199205

sub85190-12861

main85190-13060iEE98..4F;EE98..3FC..DX;AE91,CE96,97,EE96,97..(V,WG)..(DX,G,GL)198708-198710

main85190-13070iEE98..4F;EE98..3FC..DX;AE91,CE96,97,EE96,97..(V,WG)..(DX,G,GL)198710-198907

sub85190-13071

main85190-13071iEE98..4F;EE98..3FC..DX;AE91,CE96,97,EE96,97..(DX,G,GL)..(CBR,DSL)198907-199109

85192RCOVER, REAR WIPER ARM

main85192-13060iCE96,EE98..(3FC,4FC,5F)..GL198705-199205

85220RBLADE ASSY, REAR WIPER

main85220-12600iEE90..FXD198705-199205

sub85220-12601

main85220-12620iAE91,92,EE90..FXG,FXGT,FXL,FXZI198705-199003

sub85291-12010

main85220-14170iAE91,92..(3D,5D)..(4FC,5F)198705-199003

sub85291-14010

main85220-22590iEE98..(3FC,5F)..GL198708-198710

main85220-22620iEE98..4F;EE98..3FC..DX;CE96,97,EE96,97..DX,GL198710-198907

sub85220-22621

main85220-22621iEE98..4F;EE98..3FC..DX;CE96,97,EE96,97..DX,GL198907-199109

main85220-22630iCE96,97,EE96,97,98..DX,GL,L198710-199003

sub85291-13010

main85220-95712iCE96,97,EE96,97,98..DX,GL198708-198710

sub85291-27010

main85291-12010iAE91,92..3D,5D199003-199205

main85291-13010iCE96,97,EE96,97,98..DX,GL,L199003-199109

main85291-14010iAE91,92..(3D,5D)..(4FC,5F)199003-199205

sub85291-28H00

85221RBLADE, REAR WIPER

main85221-13010iEE98..(3FC,5F)..GL198710-199109

sub85214-12H90

main85221-16070iEE98..4F;EE98..3FC..DX;AE91,CE96,97,EE96,97..(V,WG)..(DX,G,GL)198708-198710

sub85214-12H90

main85221-16090iAE91,92,EE90..3D,5D198705-199205

sub85221-91C01

9009900925

main90099-00925

9009905157

main90099-05157

9017906158

main90179-06158

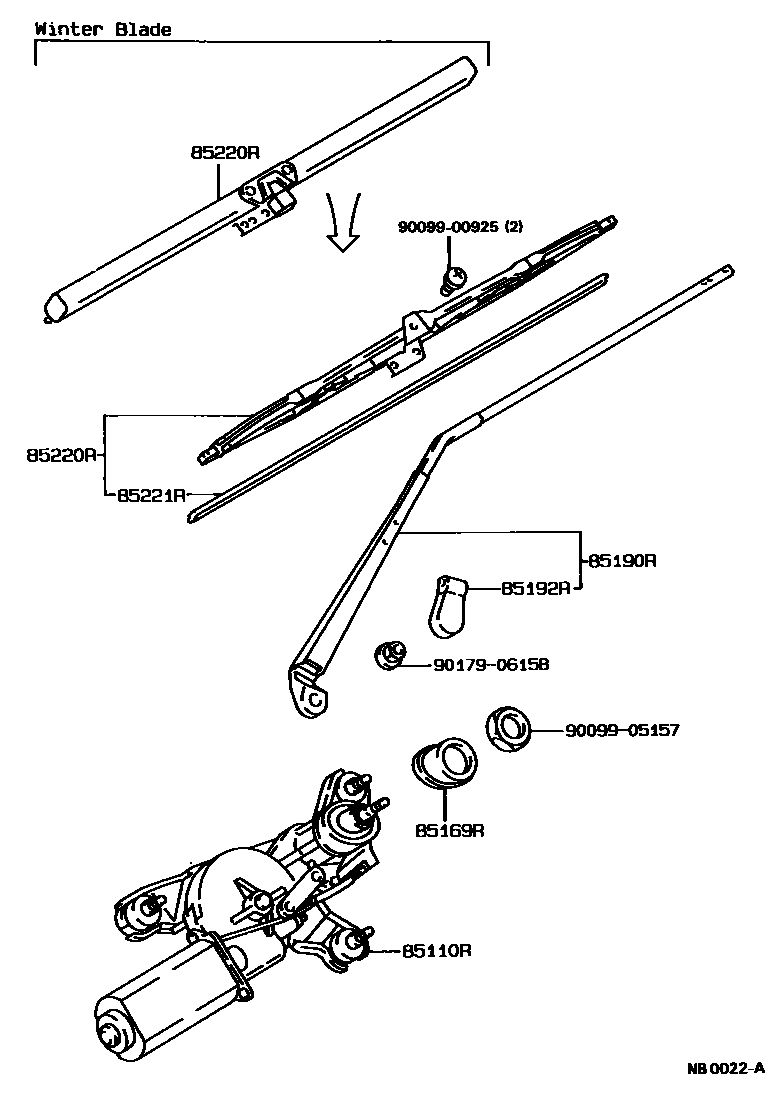

9 parts on this diagram · 2 diagrams in section
