CRUISE CONTROL (AUTO DRIVE)

83731CABLE, CRUISE CONTROL

main83731-12010iAE92198705-199205

84630SWITCH ASSY, CRUISE CONTROL MAIN

main84630-12030-01iAE92198705-198905

BLACK,TRIM1#

main84630-12080-01iAE92..FXGT,GT198905-199205

BLACK,TRIM1#

sub84630-12080

main84630-12080-03iAE92..FXGTV198905-199205

SHADOW GRAY,TRIM1#

sub84630-12080

main84630-12080-04iAE92..FXGTV198905-199205

DARK BLUE,TRIM8#

sub84630-12080

88200BHOSE, CRUISE CONTROL VACUUM

main95411-19960iAE92198705-199205

sub90999-92003

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-12090iAE92198705-198804

sub88200-12091

main88200-12091iAE92198804-199205

88212ACOVER, CRUISE CONTROL ACTUATOR

main88212-12070iAE92198705-199205

88240COMPUTER ASSY, CRUISE CONTROL

main88240-12120iAE92198705-199205

88280CSWITCH ASSY, CLUTCH

main88280-12030iAE92..5F198708-199205

main88280-20010iAE92..5F198705-198708

88290ABELLCRANK ASSY, CRUISE CONTROL

main88290-12010iAE92198705-199205

88291BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1

main88291-12080iAE92198705-199205

9011906339

main90119-06339

9020505002

main90205-05002

9046400184

main90464-00184

9046400220

main90464-00220

9165140614

main91651-40614

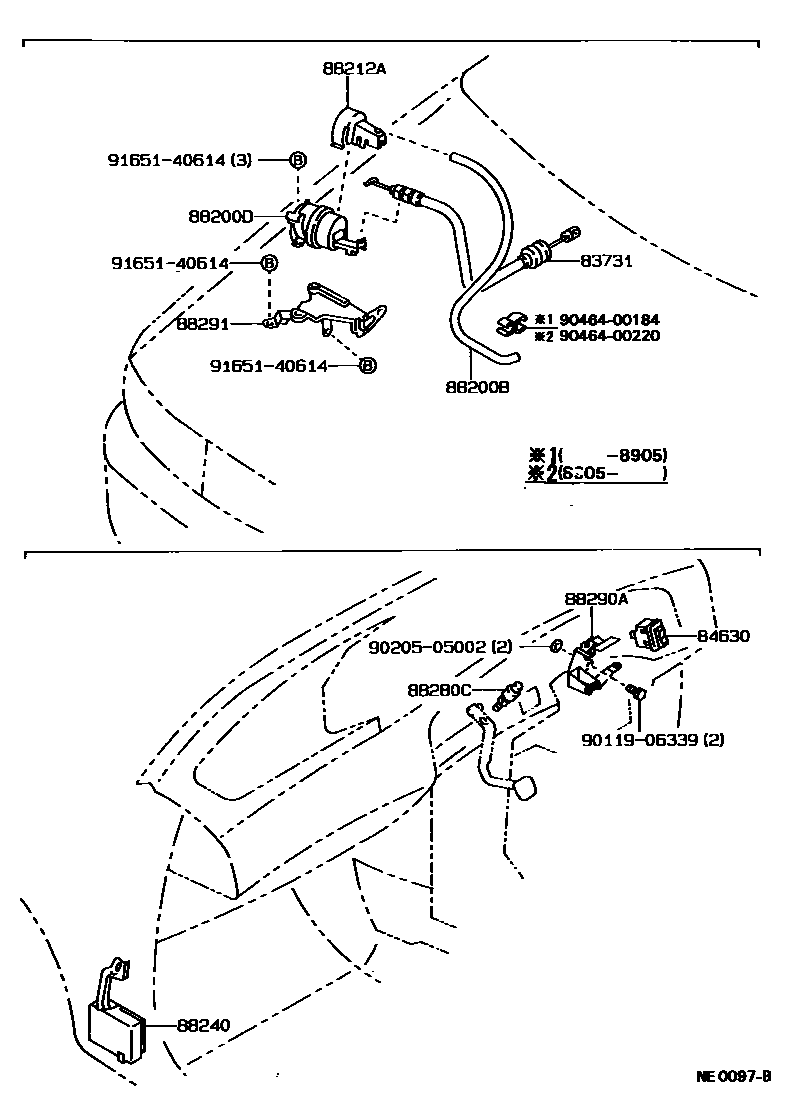

14 parts on this diagram · 1 diagram in section
