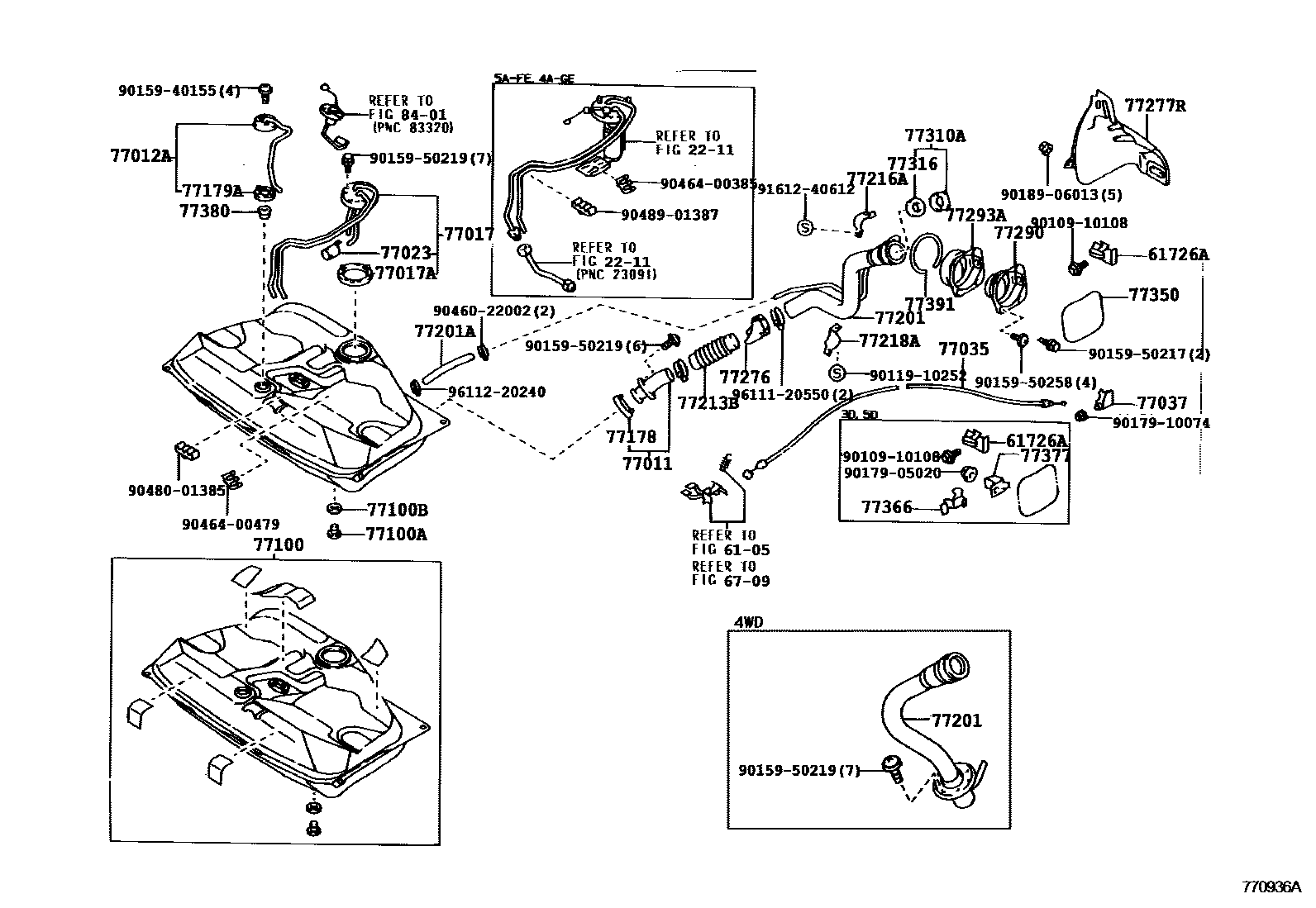

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1 0009 1 0010 1 0011 1 0012 1LPG 0013 1LPG 0014 1LPG

2211

6105

61726APLATE, FUEL INLET BOX COVER

main61726-12050iAE91,CE9#,EE9#..DX,FXD,GL,STD198705-199109

main61726-13020iEE96198708-199109

6709

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-12040iAE91,92,EE90198708-199205

main77011-12060iAE9#,EE90198705-198708

sub77011-12040

main77011-12080iCE90198705-199106

main77011-13020iCE96,97,EE96,97,98198708-198901

sub77011-13040

main77011-13030iCE96,97,EE96,97,98198908-199001

sub77011-13040

main77011-13040iCE96,97,EE96,97,98198901-199109

77012ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.1

main77012-12010iAE9#,CE90,EE90198705-198708

sub77012-12030

main77012-12030iAE91,92,CE90,96,97,EE9#198708-199205

main77012-12060iAE95,CE95198710-199106

77017TUBE SUB-ASSY, FUEL AND EVAPORATION VENT

main77017-12270iAE91,EE90..CBR198705-198708

sub77017-12310

main77017-12310iAE91,EE9#..CBR198708-199109

main77017-12320iCE90,96,97198705-199109

main77017-12400iAE95198710-198905

main77017-12420iCE95198910-198912

sub77017-12430

main77017-12430iCE95198912-199106

77017AGASKET, FUEL TANK VENT

main77169-12020iAE95;AE91,CE9#,EE9#..CBR,DSL198705-199109

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-14030iAE91,95,EE9#..CBR198705-199109

main77023-32010iCE9#198705-199109

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-12130iEE96..GL198708-199109

main77035-12130iAE91..WG..EFI198708-199109

PLANT.B11,K21

main77035-12230iAE91..WG..EFI198705-199205

PLANT.A31,32

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-12050iCE97..4FC..GL;AE9#,CE90,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZI,FXZS,G,GT,SE,TX,XE198705-199205

77100TANK ASSY, FUEL

main77001-19555iAE91,92..FXGT,FXZS,GT199001-199205

sub77001-19595

sub77001-19605

main77001-19555iCE97..5F;AE91,92,CE90,96..DSL,EFI198705-198912

sub77001-19595

sub77001-19605

main77001-19555iAE91,92,CE90..DX,FXG,FXGTV,FXL,FXV,FXVS,G,LT,SE,TX,XE198912-199001

sub77001-19595

sub77001-19605

main77001-19555iAE91,92,CE90..DX,FXG,FXGTV,FXL,FXV,FXVS,G,LT,SE,TX,XE198912-199001

sub77001-19595

sub77001-19605

main77001-19555iAE91,92,CE90..DX,FXG,FXGTV,FXL,FXV,FXVS,G,LT,SE,TX,XE199001-199205

sub77001-19595

sub77001-19605

main77001-19565iAE95,CE95198905-199106

sub77001-19585

main77001-19575iAE91,EE9#..CBR198705-198908

sub77001-19595

main77001-19585iAE95198710-198905

main77001-19595iEE9#198908-199109

main77001-19605iCE96,97198911-199205

77100APLUG(FOR FUEL TANK)

main90341-20004iAE91,EE9#..CBR198705-199205

77100BGASKET(FOR FUEL TANK)

main90430-20007iAE91,92..FXGT,FXZS,GT198912-199205

main90430-20007iAE91,EE9#..CBR198705-198912

main90430-42255iEE96198708-199109

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-12010iAE91,92,CE96,97,EE9#198705-198901

main77178-20010iAE91,92,CE90,EE90198805-199205

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-16010iAE95..CBR;AE91,92,CE9#,EE9#;AE95..(TX,XE)..EFI198705-199205

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-12330iAE91,92,CE90,EE90198705-199205

sub77201-12350

main77201-12350iAE9#,CE90,EE90198912-199001

main77201-12350iAE91,92,CE90,EE90199001-199205

main77201-12410iAE95,CE95198710-199106

main77201-13100iEE96..4F198708-199109

main77201-13110iCE96,97,EE96,97,98198908-199001

sub77201-13120

main77201-13120iCE96,97,EE96,97,98198708-199109

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main77259-13030iCE96,97,EE96,97,98198708-199109

main90445-22011iAE95198912-199001

sub90445-22024

main90445-22011iAE91,92,CE90,EE90198705-199205

sub90445-22024

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-12140iAE95198912-199001

main77213-12140iAE91,92,CE90,EE90198705-199205

main77213-13060iCE96,97,EE96,97,98198708-199109

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-12040iAE95198912-199001

main77216-12040iAE91,92,CE90,EE90198705-199205

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-12010iAE91,92,CE90,EE90198705-199205

main77218-12020iAE91,92,CE90,EE90199001-199205

main77218-12020iAE9#,CE90,EE90198912-199001

77276PROTECTOR, FUEL HOSE

main77276-12040iAE95198912-199001

main77276-12040iAE91,92,CE90,EE90198705-199205

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-01020iAE91,92,CE90,EE90..4D199008-199106

main77277-01020iAE91,92,CE90,EE90..4D198911-199008

FOR USA

main77277-12080iAE91,92,CE90,EE90..4D198705-198905

sub77277-12081

main77277-12081iAE91,92,CE90,EE90..4D198905-199106

main77277-12090iAE91,92,EE90..3D,5D198705-199205

main77277-12120iAE95198710-198905

sub77277-12121

main77277-12121iAE95,CE95198905-199106

main77277-13020iCE96,97,EE96,97,98198708-199109

main77277-13030iAE91..WG198708-199109

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77291-12060iAE9#,CE9#,EE9#198705-199205

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-12030iAE9#,CE9#,EE9#198705-199205

77310ACAP ASSY, FUEL TANK

main77310-12100iAE9#,EE9#198705-199205

main77310-35061iCE9#198705-199109

77316GASKET, FUEL TANK CAP

main77316-12050iAE9#,CE9#,EE9#198705-199205

77350LID ASSY, FUEL FILLER OPENING

main77350-12160iEE90..FXD198705-198905

main77350-12190iCE96,EE96,98..CTD,DX198708-199109

main77350-12200iCE96,97,EE96,97,98..GL198708-198908

main77350-12200iCE97..4FC;AE91,CE96,EE96,98..G,GL,LT198908-199109

main77350-12220iAE91,92,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZI,FXZS198705-199205

main77350-12250iAE91,CE90,EE90..DX198705-199106

main77350-12260iAE9#,CE90,95,EE90..GT,SE,TX,XE198705-199106

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-12010iAE91,92,CE96,97,EE9#..3D,5D,V,WG198705-199205

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12040iEE96..DX,STD198705-199205

77380VALVE ASSY, FUEL CUT OFF

main77380-14020iAE95..CBR;AE91,92,CE9#,EE9#;AE95..(TX,XE)..EFI198705-199205

77391RING, FUEL INLET BOX

main77391-14020iAE9#,CE9#,EE9#198705-199205

8401

9010910108

main90109-10108

9011910252

main90119-10252

9015940155

main90159-40155

9015950217

main90159-50217

9015950219

main90159-50219

9015950258

main90159-50258

9017905020

main90179-05020

9017910074

main90179-10074

9018906013

main90189-06013

9046022002

main90460-22002

9046400385

main90464-00385

9046400479

main90464-00479

9048001385

main90480-01385

9048901387

main90489-01387

9161240612

main91612-40612

9611120550

main96111-20550

9611220240

main96112-20240

50 parts on this diagram · 12 diagrams in section
