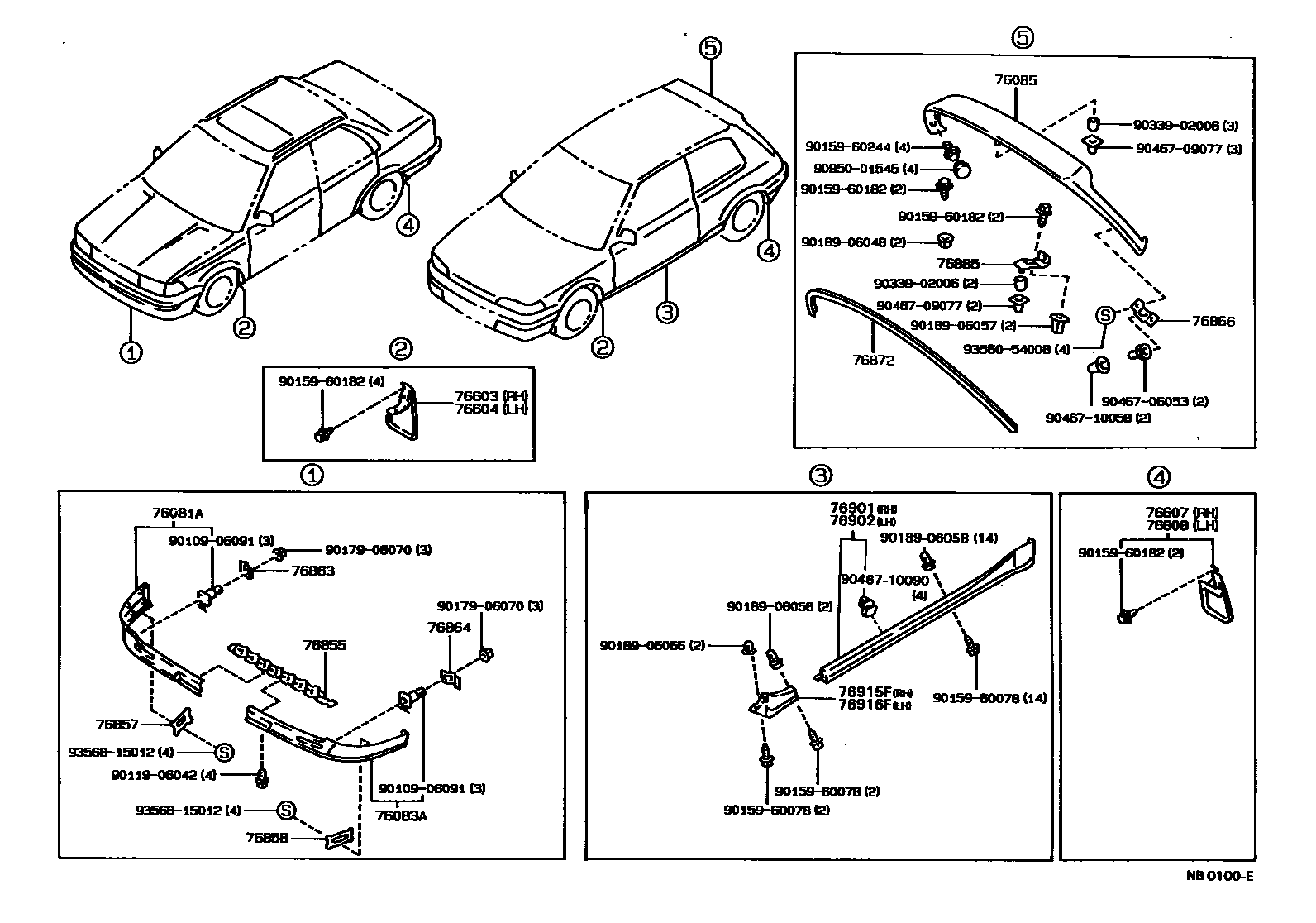

MUDGUARD & SPOILER

0001 1 0002 1

76081ASPOILER SUB-ASSY, FRONT RH

main76081-12030-02iAE92..GT198705-198905

SUPER RED 2,3E5

main76081-12030-03iAE92..GT198705-198905

GRAY M,168

main76081-12030-08iAE91..SE..EFI198901-198905

main76081-12030-08iAE92..GT198705-198905

SUPER WHITE 2,040

main76081-12030-08iAE91..SE..EFI198811-198812

76083ASPOILER SUB-ASSY, FRONT LH

main76083-12030-02iAE92..GT198705-198905

SUPER RED 2,3E5

main76083-12030-03iAE92..GT198705-198905

GRAY M,168

main76083-12030-08iAE91..SE..EFI198811-198812

main76083-12030-08iAE91..SE..EFI198901-198905

main76083-12030-08iAE92..GT198705-198905

SUPER WHITE 2,040

76085SPOILER SUB-ASSY, REAR

main76085-12900iAE91,92..(3D,5D)..(4FC,5F)198705-198905

main76085-12900iAE92..FXGT198901-198905

main76085-12907iAE91,92..(3D,5D)..(4FC,5F)198905-199205

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-12050iCE96,97,EE96,97,98;AE9#,CE90,EE90..FXG,G,GT,SE,XE198705-199202

main76621-12060-01iAE91,92..3D,5D198905-199205

BLACK M,205

sub76621-12060

main76621-12060-02iAE91,92..3D,5D198705-199205

SUPER RED 2,3E5

sub76621-12060

main76621-12060-02iAE91,95,CE90,EE90..XE198805-198905

sub76621-12060

main76621-12060-03iAE91,95,CE90,EE90..XE198805-198905

sub76621-12060

main76621-12060-03iAE9#,CE90..FXG,FXGT,FXZI,G,GT,SE198705-198905

GRAY M,168

sub76621-12060

main76621-12060-05iAE91,95,CE90..SE198705-198905

BEIGE M,27E

sub76621-12060

main76621-12060-05iAE91,95,CE90..SE198705-198905

BEIGE M,25E

sub76621-12060

main76621-12060-05iAE91,CE90,EE90..XE198805-198905

sub76621-12060

main76621-12060-05iAE91..3D..FXZS198905-199108

BEIGE M,8E9

sub76621-12060

main76621-12060-08iAE9#,CE90..FXG,FXGT,FXZI,G,GT,SE198705-199205

SUPER WHITE 2,040

sub76621-12060

main76621-12060-08iAE91,95,CE90,EE90..XE198805-198905

sub76621-12060

main76621-12060-12iAE9#,CE90,95,EE90..G,GT,SE,XE198710-199108

RED MAICA,3H4

sub76621-12060

main76621-12060-12iAE91,95,CE90,EE90..XE198805-198905

sub76621-12060

main76621-12060-15iAE91,95,CE90,95,EE90..SE,XE198905-199104

LIGHT BEIGE M,4K1

sub76621-12060

main76621-12060-17iAE91,92..3D,5D198905-199205

GRAYISH GREEN M,040 ,205 ,6K6

sub76621-12060

main76621-12060-17iAE9#,CE90,95,EE90..GT,SE,XE198905-199205

GRAYISH GREEN M,6K6

sub76621-12060

main76621-12060-22iAE91,95,CE90,95,EE90..SE,XE198905-199004

DARK ROSE M,3J1

sub76621-12060

main76621-12060-23iAE91..G..CBR198708-199109

SILVER M,23E ,24M

sub76621-12060

main76621-12060-23iAE91..G..CBR198708-199109

SILVER M,23E

sub76621-12060

main76621-12060-J0iAE9#..3D199108-199205

DK BLUE MICA M,8J7

sub76621-12060

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-12050iCE96,EE96,97,98;AE9#,CE90,97,EE90..FXD,FXG,FXL,G,GL,GT,SE,XE198705-199202

main76622-12060-01iAE91,92..3D,5D198905-199205

BLACK M,205

sub76622-12060

main76622-12060-02iAE9#,CE90..FXG,FXGT,FXZI,GT,SE198705-199205

SUPER RED 2,3E5

sub76622-12060

main76622-12060-02iAE91,95,CE90,EE90..XE198805-198905

sub76622-12060

main76622-12060-03iAE91,95,CE90,EE90..XE198805-198905

sub76622-12060

main76622-12060-03iAE9#,CE90..FXG,FXGT,FXZI,G,GT,SE198705-198905

GRAY M,168

sub76622-12060

main76622-12060-05iAE91,92..FXGT,FXGTV,FXV,FXVS198905-199108

BEIGE M,8E9

sub76622-12060

main76622-12060-05iAE91,95,CE90..SE198705-198905

BEIGE M,25E

sub76622-12060

main76622-12060-05iAE91,95,CE90..SE198705-198905

BEIGE M,27E

sub76622-12060

main76622-12060-05iAE91,CE90,EE90..XE198805-198905

sub76622-12060

main76622-12060-08iAE91,95,CE90,EE90..XE198805-198905

sub76622-12060

main76622-12060-08iAE9#,CE90,95,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,GT,SE,XE198705-199205

SUPER WHITE 2,040

sub76622-12060

main76622-12060-12iAE91,95,CE90,EE90..XE198805-198905

sub76622-12060

main76622-12060-12iAE9#,CE90,95,EE90..G,GT,SE,XE198710-199108

RED MAICA,3H4

sub76622-12060

main76622-12060-15iAE91,95,CE90,95,EE90..SE,XE198905-199106

LIGHT BEIGE M,4K1

sub76622-12060

main76622-12060-17iAE91,92..3D,5D198905-199205

GRAYISH GREEN M,040 ,205 ,6K6

sub76622-12060

main76622-12060-17iAE91,92..3D,5D198905-199205

GRAYISH GREEN M,6K6

sub76622-12060

main76622-12060-22iAE91,95,CE90,95,EE90..SE,XE198905-199004

DARK ROSE M,3J1

sub76622-12060

main76622-12060-23iAE91..G..CBR198708-199109

SILVER M,23E

sub76622-12060

main76622-12060-23iAE91..G..CBR198708-199109

SILVER M,23E ,24M

sub76622-12060

main76622-12060-J0iAE9#..3D199108-199205

DK BLUE MICA M,8J7

sub76622-12060

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-19225iAE91,EE90..(3D,5D)..CBR198705-198905

main76625-19235-02iAE91,92..(3D,5D)..(4FC,5F)198705-198905

SUPER RED 2,3E5

main76625-19235-03iAE91,92..(3D,5D)..(4FC,5F)198705-198905

GRAY M,168

main76625-19235-05iAE91,92..(3D,5D)..(4FC,5F)198705-198905

BEIGE M,27E

main76625-19235-08iAE91,92..(3D,5D)..(4FC,5F)198705-198905

SUPER WHITE 2,040

main76625-19245iAE9#,CE90,EE90..GT,SE,XE198705-199202

main76625-19265iAE91..WG198708-199109

main76625-19275-02iAE91,95,CE90,EE90..XE198805-198905

sub76625-19275

main76625-19275-02iAE9#,CE90..GT,SE198705-198905

SUPER RED 2,3E5

sub76625-19275

main76625-19275-03iAE9#,CE90..GT,SE198705-198905

GRAY M,168

sub76625-19275

main76625-19275-03iAE91,95,CE90,EE90..XE198805-198905

sub76625-19275

main76625-19275-05iAE91,CE90,EE90..XE198805-198905

sub76625-19275

main76625-19275-05iAE91,95,CE90..SE198705-198905

BEIGE M,25E

sub76625-19275

main76625-19275-07iAE9#,CE90,95,EE90..GT,SE,XE198905-199106

GRAYISH GREEN M,6K6

sub76625-19275

main76625-19275-08iAE91,95,CE90,EE90..XE198805-198905

sub76625-19275

main76625-19275-08iAE9#,CE90,95,EE90..GT,SE,XE198705-199106

SUPER WHITE,040

sub76625-19275

main76625-19275-12iAE91,95,CE90,EE90..XE198805-198905

sub76625-19275

main76625-19275-12iAE9#,CE90,95,EE90..GT,SE,XE198710-199106

RED MAICA,3H4

sub76625-19275

main76625-19275-15iAE91,95,CE90,95,EE90..SE,XE198905-199106

LIGHT BEIGE M,4K1

sub76625-19275

main76625-19275-22iAE91,95,CE90,95,EE90..SE,XE198905-199004

DARK ROSE M,3J1

sub76625-19275

main76625-19295-03iAE91..G..CBR198708-199109

SILVER M,23E

sub76625-19295

main76625-19295-03iAE91..G..CBR198708-199109

SILVER M,23E ,24M

sub76625-19295

main76625-19295-08iAE91..G198708-199109

SUPER WHITE 2,040

sub76625-19295

main76625-19315-01iAE91,92..3D,5D198905-199205

BLACK M,205

main76625-19315-02iAE91,92..3D,5D198905-199205

SUPER RED 2,3E5

main76625-19315-05iAE9#..3D199108-199205

BEIGE M,8J7

main76625-19315-05iAE91,92..3D198905-199108

BEIGE M,8E9

main76625-19315-07iAE91,92..3D,5D198905-199205

GRAYISH GREEN M,6K6

main76625-19315-08iAE91,92..3D,5D198905-199205

SUPER WHITE 2,040

main76625-19335-07iAE91,92..3D198905-199205

GRAYISH GREEN M,040 ,205 ,6K6

sub76625-19315

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-19235iAE91,EE90..(3D,5D)..CBR198705-198905

main76626-19245-01iAE92..FXGT198901-198905

main76626-19245-02iAE91,92..(3D,5D)..(4FC,5F)198705-198905

SUPER RED 2,3E5

main76626-19245-03iAE91,92..(3D,5D)..(4FC,5F)198705-198905

GRAY M,168

main76626-19245-05iAE91,92..(3D,5D)..(4FC,5F)198705-198905

BEIGE M,27E

main76626-19245-08iAE91,92..(3D,5D)..(4FC,5F)198705-198905

SUPER WHITE 2,040

main76626-19255iAE9#,CE90,EE90..GT,SE,XE198705-199202

main76626-19275iCE97..4FC;CE97..5F..GL;CE96,EE96,97,98..GL198708-199109

main76626-19285-02iAE9#,CE90..GT,SE198705-198905

SUPER RED 2,3E5

sub76626-19285

main76626-19285-02iAE91,95,CE90,EE90..XE198805-198905

sub76626-19285

main76626-19285-03iAE91,95,CE90,EE90..XE198805-198905

sub76626-19285

main76626-19285-03iAE9#,CE90..GT,SE198705-198905

GRAY M,168

sub76626-19285

main76626-19285-05iAE91,95,CE90..SE198705-198905

BEIGE M,25E

sub76626-19285

main76626-19285-05iAE91,CE90,EE90..XE198805-198905

sub76626-19285

main76626-19285-07iAE9#,CE90,95,EE90..GT,SE,XE198905-199106

GRAYISH GREEN M,6K6

sub76626-19285

main76626-19285-08iAE9#,CE90,95,EE90..GT,SE,XE198705-199106

SUPER WHITE 2,040

sub76626-19285

main76626-19285-08iAE91,95,CE90,EE90..XE198805-198905

sub76626-19285

main76626-19285-12iAE91,95,CE90,EE90..XE198805-198905

sub76626-19285

main76626-19285-12iAE9#,CE90,95,EE90..GT,SE,XE198710-199106

RED MAICA,3H4

sub76626-19285

main76626-19285-15iAE91,95,CE90,95,EE90..SE,XE198905-199106

LIGHT BEIGE M,4K1

sub76626-19285

main76626-19285-22iAE91,95,CE90,95,EE90..SE,XE198905-199004

DARK ROSE M,3J1

sub76626-19285

main76626-19305-03iAE91..G..CBR198708-199109

SILVER M,23E

sub76626-19305

main76626-19305-03iAE91..G..CBR198708-199109

SILVER M,23E ,24M

sub76626-19305

main76626-19305-08iAE91..G198708-199109

SUPER WHITE 2,040

sub76626-19305

main76626-19325-01iAE91,92..3D,5D198905-199205

BLACK M,205

main76626-19325-02iAE91,92..3D,5D198905-199205

SUPER RED 2,3E5

main76626-19325-05iAE91,92..3D198905-199108

BEIGE M,8E9

main76626-19325-05iAE9#..3D199108-199205

BEIGE M,8J7

main76626-19325-07iAE91,92..3D,5D198905-199205

GRAYISH GREEN M,6K6

main76626-19325-08iAE91,92..3D,5D198905-199205

SUPER WHITE 2,040

main76626-19345-07iAE91,92..3D198905-199109

GRAYISH GREEN M,040 ,205 ,6K6

sub76626-19325

76855RETAINER, FRONT SPOILER, LOWER NO.1 CENTER

main76855-12060iAE91..SE..EFI198811-198812

main76855-12060iAE91..SE..EFI198901-198905

main76855-12060iAE92..GT198705-198905

76857RETAINER, FRONT SPOILER SIDE, RH

main76857-12050iAE91..SE..EFI198811-198812

main76857-12050iAE91..SE..EFI198901-198905

main76857-12050iAE92..GT198705-198905

76858RETAINER, FRONT SPOILER SIDE, LH

main76858-12050iAE91..SE..EFI198811-198812

main76858-12050iAE91..SE..EFI198901-198905

main76858-12050iAE92..GT198705-198905

76863RETAINER, FRONT SPOILER, LOWER NO.2 RH

main76863-12040iAE91..SE..EFI198811-198812

main76863-12040iAE91..SE..EFI198901-198905

main76863-12040iAE92..GT198705-198905

76864RETAINER, FRONT SPOILER, LOWER NO.2 LH

main76863-12040iAE91..SE..EFI198901-198905

main76863-12040iAE91..SE..EFI198811-198812

main76863-12040iAE92..GT198705-198905

76866RETAINER, REAR SPOILER, NO.2

main76866-12030iAE91,92..(3D,5D)..(4FC,5F)198705-199205

76872PROTECTOR, REAR SPOILER, NO.1

main76872-12070iAE91,92..(3D,5D)..(4FC,5F)198705-198905

main76872-12090iAE91,92..(3D,5D)..(4FC,5F)198905-199205

sub90999-91056

76885RETAINER, REAR SPOILER, NO.5

main76885-12050iAE91,92..(3D,5D)..(4FC,5F)198705-199205

76901MUDGUARD SUB-ASSY, SIDE, RH

main76911-12030-01iAE92..FXGT198901-198905

main76911-12030-02iAE91,92..3D..(4FC,5F)198705-198905

SUPER RED 2,3E5

main76911-12030-03iAE91,92..3D..(4FC,5F)198705-198905

GRAY M,168

main76911-12030-05iAE91,92..3D..(4FC,5F)198705-198905

BEIGE M,27E

main76911-12030-08iAE91,92..3D..(4FC,5F)198705-198905

SUPER WHITE 2,040

76902MUDGUARD SUB-ASSY, SIDE, LH

main76912-12030-01iAE92..FXGT198901-198905

main76912-12030-02iAE91,92..3D..(4FC,5F)198705-198905

SUPER RED,3E5

main76912-12030-03iAE91,92..3D..(4FC,5F)198705-198905

GRAY M,168

main76912-12030-05iAE91,92..3D..(4FC,5F)198705-198905

BEIGE M,27E

main76912-12030-08iAE91,92..3D..(4FC,5F)198705-198905

SUPER WHITE 2,040

76915FMUDGUARD, SIDE, FR RH

main76915-12030-01iAE92..FXGT198901-198905

main76915-12030-02iAE91,92..3D..(4FC,5F)198705-198905

SUPER RED 2,3E5

main76915-12030-03iAE91,92..3D..(4FC,5F)198705-198905

GRAY M,168

main76915-12030-05iAE91,92..3D..(4FC,5F)198705-198905

BEIGE M,27E

main76915-12030-08iAE91,92..3D..(4FC,5F)198705-198905

SUPER WHITE 2,040

76916FMUDGUARD, SIDE, FR LH

main76916-12030-01iAE92..FXGT198901-198905

main76916-12030-02iAE91,92..3D..(4FC,5F)198705-198905

SUPER RED 2,3E5

main76916-12030-03iAE91,92..3D..(4FC,5F)198705-198905

GRAY M,168

main76916-12030-05iAE91,92..3D..(4FC,5F)198705-198905

BEIGE M,27E

main76916-12030-08iAE91,92..3D..(4FC,5F)198705-198905

SUPER WHITE 2,040

9010906091

main90109-06091

9011906042

main90119-06042

9015960078

main90159-60078

9015960182

main90159-60182

9015960244

main90159-60244

9017906070

main90179-06070

9018906048

main90189-06048

9018906057

main90189-06057

9018906058

main90189-06058

9018906066

main90189-06066

9033902006

main90339-02006

9046706053

main90467-06053

9046709077

main90467-09077

9046710058

main90467-10058

9046710090

main90467-10090

9095001545

main90950-01545

9356054008

main93560-54008

9356815012

main93568-15012

37 parts on this diagram · 2 diagrams in section
