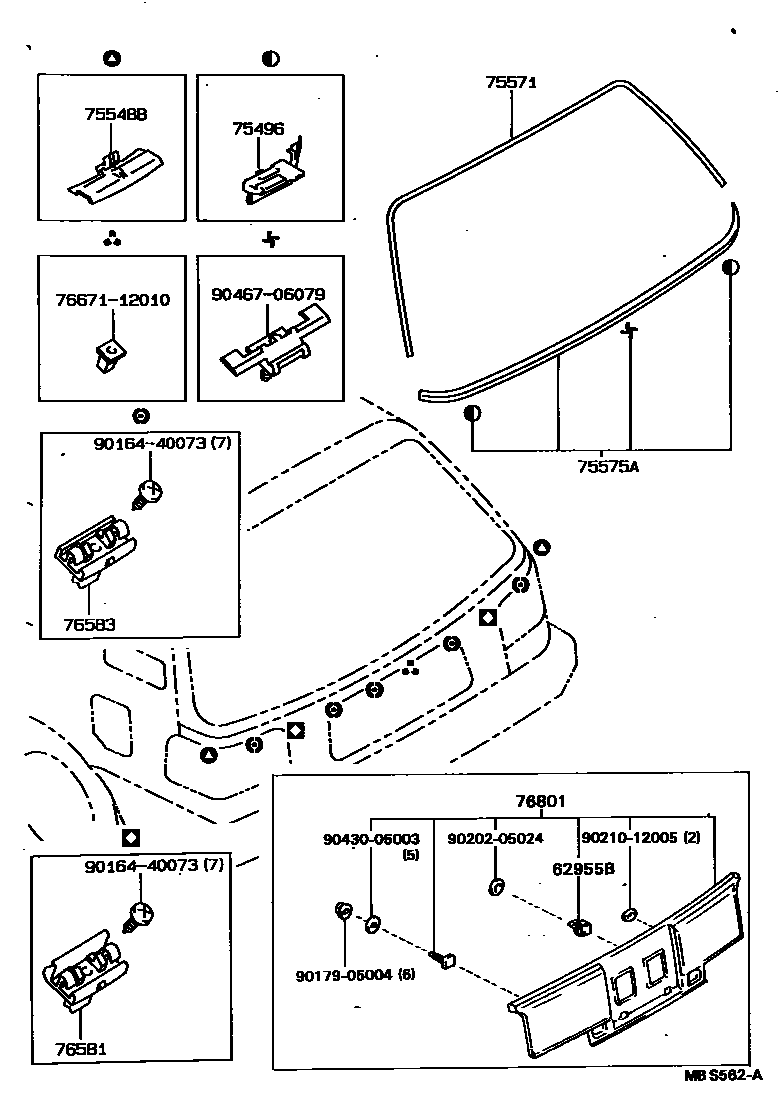

REAR MOULDING

0001 1 0002 1

62955BRETAINER, BACK DOOR GARNISH

main62955-12010×6iAE91..4FC..FXZS;AE91..5D..5F..EFIS;AE91,92..FXG,FXGT,FXGTV,FXL,FXV,FXVS199105-199205

75496CLIP, BACK WINDOW OUTSIDE MOULDING, NO.1

main75496-12010iAE91,92,EE90..3D,5D198705-199205

main75497-12010iAE91,92,EE90..3D,5D198705-199205

main76671-12010×6iAE91,92,EE90..3D198705-198905

75548BFASTENER, BACK WINDOW OUTSIDE MOULDING

main75548-12100×2iAE91,92,EE90..3D,5D198705-199205

75571MOULDING, BACK WINDOW, OUTSIDE UPPER

main75571-12270iAE91,95,CE90,95,EE90..DX,TX198705-199106

main75571-12280iAE9#,CE90,95,EE90..GT,SE,XE198705-199106

main75571-12410iAE91,92,EE90..3D,5D198705-199205

75575AMOULDING, BACK WINDOW, OUTSIDE LOWER

main75507-12030iAE91,92,EE90..3D,5D198705-199205

main75575-12210iAE91,95,CE90,95,EE90..DX,TX198705-199106

main75575-12220iAE9#,CE90,95,EE90..GT,SE,XE198705-199106

main75575-12330iAE9#,CE90,95,EE90..GT,SE,XE198905-199106

76581RETAINER, BACK WINDOW OUTSIDE MOULDING

main76581-12010×2iAE9#,CE90,95,EE90..4D198705-199106

main76581-12030×2iAE91,92,EE90..3D,5D198705-199205

76583RETAINER, BACK WINDOW OUTSIDE LOWER MOULDING, RH

main76583-12020×5iAE91,92,EE90..3D,5D198705-199205

main76583-12030iAE9#,CE90,95,EE90..4D198705-199106

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-12330iAE91,92..(3D,5D)..ATM198905-199205

7667112010CLIP, QUARTER BELT MOULDING, NO.1

main76671-12010

9016440073

main90164-40073

9017905004

main90179-05004

9020205024

main90202-05024

9021012005

main90210-12005

9043005003

main90430-05003

9046706079

main90467-06079

15 parts on this diagram · 2 diagrams in section
