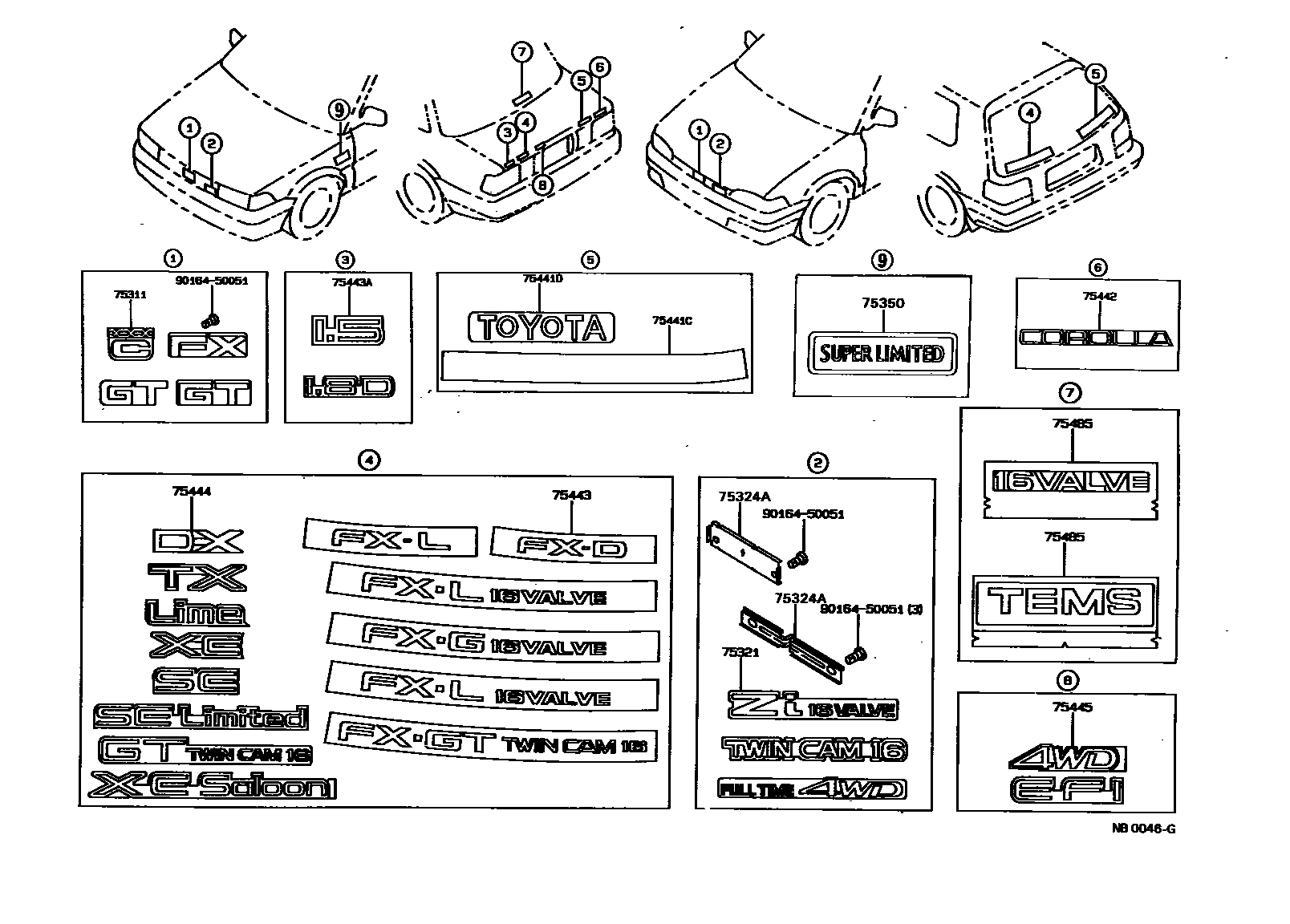

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1 0003 1

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75301-12310iAE91,95,CE90,EE90..4D,WG198705-198908

main75301-12320iCE97,EE97..L;AE92,95,CE90,95,EE90..4D;AE91..(4D,WG)..(EFI,EFIS)198905-199109

main75301-12330iAE91,95,CE90..SE198901-198905

main75301-12330iAE91..SE..EFI198811-198812

main75301-12340iAE91..SE..EFIS199005-199106

main75301-12340iAE91..SE..EFI198909-199005

main75301-12340iAE91..SE..EFIS199005-199106

main75311-13040iCE96,97,EE96,97,98198708-198908

main75311-13041iCE96,EE96,98198908-199109

main75311-1A430iAE91,EE90..3D,5D198705-198905

main75311-1A450iAE92..FXGT198705-198905

main75311-1A480iAE92..GT198705-198905

main75311-1A640iAE92..FXGT198901-198905

75321PLATE, RADIATOR GRILLE OR FRONT PANEL NAME

main75321-12220iAE92..FXGT198705-198905

main75321-12230iAE92..GT198705-198905

main75321-12250iAE92..3D198905-199205

main75321-12280iAE95,CE95198905-199106

main75321-12290iAE91..FXZI198705-198905

main75321-12300iAE95198710-198905

main75321-12340iAE92..GT198905-199106

main75321-12370iAE91..3D,5D198905-199205

main75321-12400iAE92..FXGTV198905-199205

main75321-12440iAE92..FXGT198905-199205

main75321-12450iAE92..FXGT198901-198905

main75321-12460iAE95..SE..CBR198901

75324ARETAINER, RADIATOR GRILLE NAME PLATE

main75324-12090iAE91,92..FXGT,FXZI198705-198905

main75324-12100iAE92..GT198705-198905

main75324-12180iAE92,95,CE95198905-199205

75350EMBLEM ASSY, FRONT FENDER

main75350-12010iAE91,95,CE90,95..XE198912-199106

main75350-12010iAE91..SE..EFI198811

main75350-12020iAE91..SE..EFI198909

main75350-12020iAE91..SE..EFI198811

main75350-12020iAE95..SE..CBR;AE91,CE90..SE..(CBR,DSL,EFI)198901

main75350-12020iAE91..SE..EFI198909-199106

main75350-12020iAE91..SE..EFIS199005-199106

main75350-12030iAE91..SE..EFIS198905-199106

75441CPLATE, BACK DOOR NAME

main75441-12500iAE91,92,EE90..3D,5D198705-199205

main75441-12600iAE92..FXGT198901-198905

75441DPLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1

main75441-12490iAE9#,CE90,95,EE90..4D198705-199106

sub75441-12460

main75441-12540iAE91..SE..EFI198909-199005

sub75441-12907

main75441-12540iAE91..SE..EFI198901-199010

sub75441-12907

main75441-12540iAE91..SE..EFI199005-199010

sub75441-12907

main75441-12540iAE91..SE..EFI198811-198812

sub75441-12907

main75441-12540-03iAE91..SE..EFIS199010-199106

sub75441-12540

sub75441-12907

main75441-12540-03iAE91..SE..EFIS199010-199106

sub75441-12540

sub75441-12907

main75441-12540-08iAE91..SE199010-199106

sub75441-12540

sub75441-12907

main75441-12540-08iAE91..SE..EFIS199010-199106

sub75441-12540

sub75441-12907

75442PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2

main75442-12860iAE9#,CE90,95,EE90..4D198705-199106

main75442-1A140iAE91,95,CE90..SE198901-199010

main75442-1A140iAE91..SE..EFI198909-199005

main75442-1A140iAE91..SE..EFI199005-199010

main75442-1A140iAE91..SE..EFI198811-198812

main75442-1A140-03iAE91..SE..EFIS199010-199106

sub75442-1A140

main75442-1A140-03iAE91..SE..EFIS199010-199106

sub75442-1A140

main75442-1A140-08iAE91..SE..EFIS199010-199106

sub75442-1A140

main75442-1A140-08iAE91..SE..EFIS199010-199106

sub75442-1A140

75443PLATE, BACK DOOR NAME, NO.3

main75443-12810iEE90..FXD198705-198905

main75443-12820iEE90..FXL198705-198905

main75443-12830iAE91..FXL198705-198905

main75443-12840iAE91..FXG198705-198905

main75443-12850iAE91..FXZI198705-198905

main75443-12860iAE92..FXGT198705-199205

main75443-13100iEE96,97..CTD,DX198708-199109

sub75444-13030

main75443-13110iEE96,97..GL198708-199109

sub75444-13040

main75443-13120iEE98..DX198708-199109

main75443-13130iEE98..GL198708-199109

sub75443-13140

main75443-13140iEE98..(3FC,5F)..GL198708-199109

sub75444-13060

main75443-13150iCE96..STD198708-199109

main75443-13160iCE96,97..CTD,DX198708-199109

main75443-13170iCE96,97..GL198708-199109

sub75443-13220

main75443-13220iCE96..GL198908-199109

main75443-13230iEE97198908-199109

sub75444-13080

main75443-13240iCE97198908-199109

main75443-13260iCE97,EE97198908-199109

sub75444-13090

main75443-1A270iAE91..FXG198905-199205

main75443-1A280iAE91..FXV198905-199205

main75443-1A290iAE91..FXVS198905-199205

main75443-1A300iAE91..FXZS198905-199205

main75443-1A310iAE92..FXGTV198905-199205

main75443-1A470iAE91..FXL198905-199205

75443APLATE, LUGGAGE COMPARTMENT DOOR, NO.3

main75443-1A190iAE91..4D..EFI198705-199106

main75443-1A210iCE90198705-199106

main75443-1A250iAE91..SE..EFI198909-199106

main75443-1A250-03iAE91..SE199010-199106

sub75443-1A250

main75443-1A250-08iAE91..SE198901-198905

sub75443-1A250

main75443-1A250-08iAE91..SE199010-199106

sub75443-1A250

main75443-1A440iCE90..SE198901-198905

75444PLATE, LUGGAGE COMPARTMENT DOOR, NO.4

main75444-12210iAE91,CE90,EE90..DX198705-199202

main75444-12220iAE91,95,CE90,95,EE90..TX198705-199106

main75444-12230iAE91,EE90..TX198705-198905

main75444-12240iAE91,95,CE90,EE90..XE198705-198905

main75444-12250iAE91,95,CE90,95..SE..(DSL,EFI)198705-199106

main75444-12260iAE91,95,CE90,95..SE..(DSL,EFI)198805-199106

main75444-12260iAE91..SE..EFIS198705-199106

main75444-12460iAE92..GT198705-199106

main75444-12540iAE91..SE..EFIS199005-199010

sub75444-12620

main75444-12540-03iAE91..SE199010-199205

sub75444-12540

sub75444-12620

main75444-12540-08iAE91..SE199010-199205

sub75444-12540

sub75444-12620

main75444-12560iAE91,95,CE90,95,EE90..XE198905-199106

main75444-12560iAE91,95,CE90,EE90..XE198805-198905

main75444-12610iAE91..SE..EFI198901-199010

sub75444-12260

main75444-12610iAE91..SE..EFIS199005-199010

sub75444-12260

main75444-12610iAE91..SE..EFI198909-199005

sub75444-12260

main75444-12610iAE91..SE..EFI198811-198812

sub75444-12260

main75444-12610-03iAE91..SE199010-199106

sub75444-12610

sub75444-12260

main75444-12610-03iAE91..SE199010-199106

sub75444-12610

sub75444-12260

main75444-12610-08iAE91..SE..EFIS199010-199106

sub75444-12610

sub75444-12260

main75444-12610-08iAE91..SE..EFIS199010-199106

sub75444-12610

sub75444-12260

main75444-12620iAE91..SE..EFIS198905-199106

75445PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.5

main75445-12110iAE95,CE95198710-199106

main75445-12130iAE91..SE..EFI198805-198905

main75445-12140iAE91..SE..EFI198811

main75445-12150iAE95..SE..CBR198901

75485PLATE, BACK WINDOW NAME

main75485-12080iAE91,95..4D198705-198905

sub75485-20180

main75485-12100iAE92..GT198705-198905

sub75485-22060

main75485-12110iAE92..FXGT198705-198905

sub75485-12200

main75485-12120iAE92..FXGT,GT198905-199008

main75485-12130iAE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE198905-199008

sub75485-22050

main75485-12140iAE91,95..(4D,WG)..EFI198905-199109

sub75485-12310

main75485-12160iAE91..SE..EFIS198905-199106

main75485-12180iCE95198910-199106

main75485-12190iAE9#..(4FC,5F)..(FXGT,FXGTV,FXVS,FXZS,GT,SE,TX,XE)199008-199205

sub75485-20190

main75485-12200iAE92..FXGT,GT198905-199205

sub75485-22060

main75485-12220iAE92..FXGT,GT199008-199205

sub75485-20470

9016450051

main90164-50051

13 parts on this diagram · 3 diagrams in section
