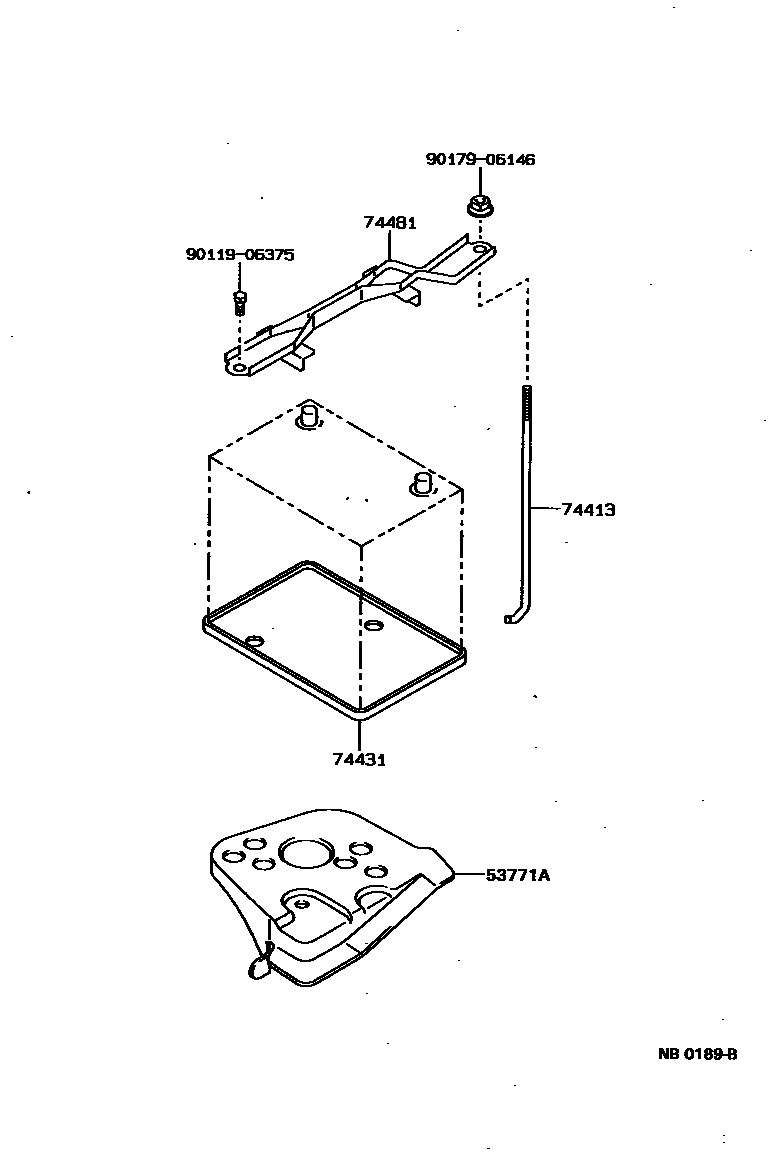

BATTERY CARRIER

53771ASUPPORT, BATTERY CARRIER

main53771-12100iAE9#,CE9#,EE9#198705-199205

74413BOLT, BATTERY CLAMP

main74451-12050iAE9#,CE9#,EE9#198705-199205

74431TRAY, BATTERY

main74431-14010iAE9#,EE9#198705-199205

sub74431-14050

main74431-14020iAE91,92..4FC..EFI198705-198808

main74431-14020iAE91..CBR;AE91..5F..EFI;AE92,EE9#..3FC,4F,5F198802-199205

main74431-14020iEE96,98..3FC198908-199109

main74431-14030iCE96,97;CE90,95..5F198705-199109

sub74431-52040

main74431-14040iCE90,95198805-199106

main74431-14040iCE96,97198705-198808

main74431-14040iCE96,97198908-199109

74481CLAMP, BATTERY HOLD DOWN

main74404-12250iAE9#,EE9#198705-199205

main74404-12280iCE9#198705-199109

9011906375

main90119-06375

9017906146

main90179-06146

6 parts on this diagram · 1 diagram in section
