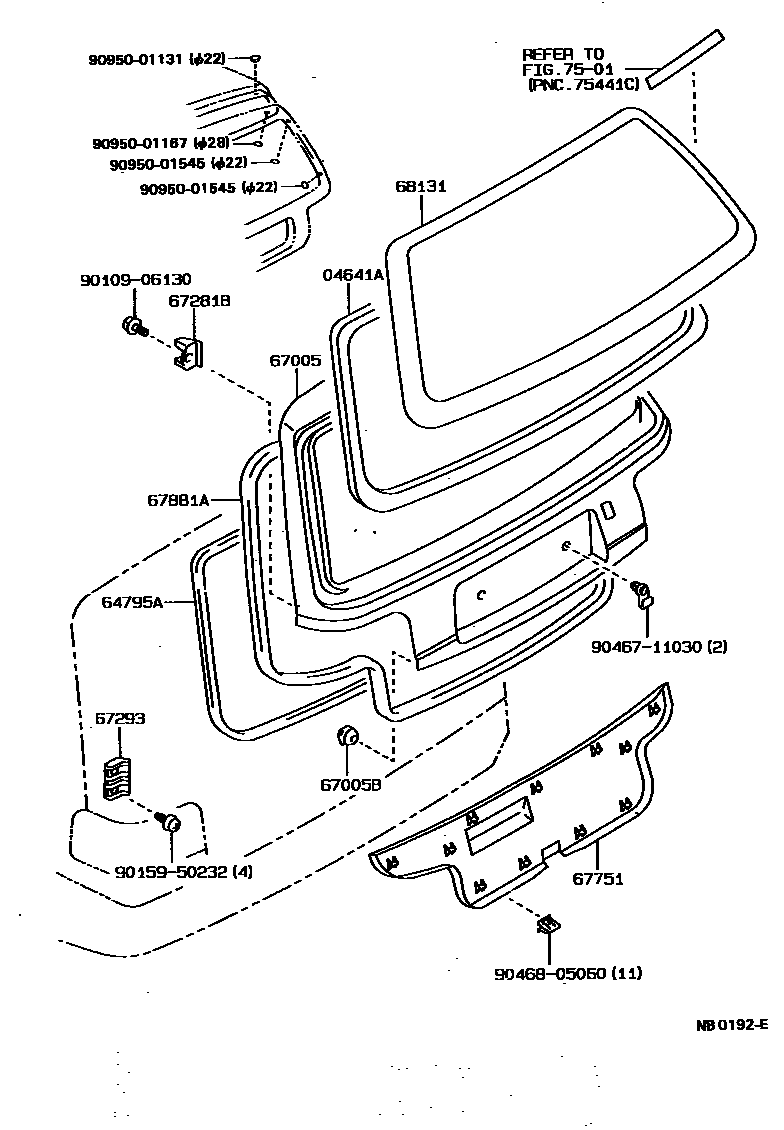

BACK DOOR PANEL & GLASS

0001 1 0002 1

04641ADAM KIT, BACK WINDOW GLASS ADHESIVE

main04562-12010iAE9#,CE9#,EE9#198705-199205

64795ATRIM, BACK WINDOW OPENING

main64795-12030iAE91,92,EE90..3D,5D198705-199205

67005PANEL SUB-ASSY, BACK DOOR

main67005-13740iCE96,97,EE96,97,98..CTD,DX,STD198708-199109

main67005-13750iCE96,97,EE96,97,98..CTD,DX,STD198708-199109

main67005-13760iCE96,97,EE96,97,98..DX198708-199109

main67005-13760iEE97..GL;CE96,97,EE96,98..GL,L198708-199109

main67005-13760iEE97198908-199109

main67005-13770iAE91..LT;AE91..G..CBR198708-199109

main67005-1A330iEE90..FXD198705-198905

main67005-1A340iEE90..FXD198705-198905

main67005-1A350iAE91,92..(3D,5D)..(4FC,5F)198705-198905

main67005-1A560iAE91,92..3D,5D198905-199205

main67005-1A570iAE91,92..(3D,5D)..(4FC,5F)198905-199205

main67005-1F040iAE91..G198908-199109

main67005-1F050iCE96,EE96,98..DX198908-199109

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-17002iAE91,92,EE90..3D,5D198705-199205

67281BSTOPPER, BACK DOOR, LOWER

main67281-12050iAE91,92,EE90..3D,5D198705-199205

main67281-13050iAE91,CE96,97,EE96,97,98..V,WG198708-199109

67293CUSHION, BACK DOOR LOWER STOPPER

main67293-12040iAE91,92,EE90..3D,5D198705-199205

main67293-13010iAE91,CE96,97,EE96,97,98..V,WG198708-199109

67751BOARD, BACK DOOR TRIM

main67751-12090-03iAE91,92,EE90..3D,5D198705-199205

SHADOW GRAY,TRIM1#

sub67751-12090

main67751-12090-04iAE91,92..3D..(FXGTV,FXV,FXVS,FXZS)198905-199205

DARK BLUE,TRIM8#

sub67751-12090

main67751-12090-05iAE91,EE90..3D,5D198705-198905

DARK BEIGE,TRIM4#

sub67751-12090

main67751-13090-03iCE96,97,EE96,97,98198708-199109

SHADOW GRAY,TRIM1#

sub67751-13090

main67751-13090-04iCE96,97,EE96,97,98..CTD,DX,GL,L198908-199109

DARK BLUE,TRIM8#

sub67751-13090

main67751-13090-05iCE96,97,EE96,97,98..DX,GL198708-198908

DARK BEIGE,TRIM4#

sub67751-13090

main67751-13100-03iAE91..LT;AE91..G..CBR198708-199109

SHADOW GRAY,TRIM1#

sub67751-13100

main67751-13100-04iAE91..LT198908-199109

DARK BLUE,TRIM8#

sub67751-13100

main67751-13110-03iAE91..G198908-199109

SHADOW GRAY,TRIM1#

main67751-13110-04iAE91..G198908-199109

DARK BLUE,TRIM8#

67881AWEATHERSTRIP, BACK DOOR

main67881-12210iAE91,92,EE90..3D,5D198705-199205

main67881-13100iAE91..G198708-198709

sub67881-13110

main67881-13110iAE91..WG198708-199109

main67881-13140iCE96,97,EE96,97,98198708-198709

sub67881-13160

main67881-13160iCE96,97,EE96,97,98198708-199109

68131GLASS, BACK DOOR

main68131-12540iEE90..FXL198705-198905

main68131-12550iEE90..FXL198705-198905

main68131-12560iEE90..FXD198705-198905

sub68131-12540

main68131-12660iAE91,92..3D,5D198705-199205

main68131-12680iAE91,92..3D,5D198705-198905

main68131-13170iCE96,97,EE96,97,98..CTD,DX,STD198708-199109

sub68131-13190

main68131-13180iAE91..G198908-199109

main68131-13190iAE91..LT;AE91,CE96,97,EE96,97,98..(V,WG)..(CBR,DSL)198708-199109

main68131-13210iAE91..G198908-199109

main68131-1A010iAE91,92..FXGT,FXZS198905-199205

sub68131-12680

main68131-1A260iAE92..FXGT198901-198905

7501

9010906130

main90109-06130

9015950232

main90159-50232

9046711030

main90467-11030

9046805060

main90468-05060

9095001131

main90950-01131

9095001167

main90950-01167

9095001545

main90950-01545

17 parts on this diagram · 2 diagrams in section
