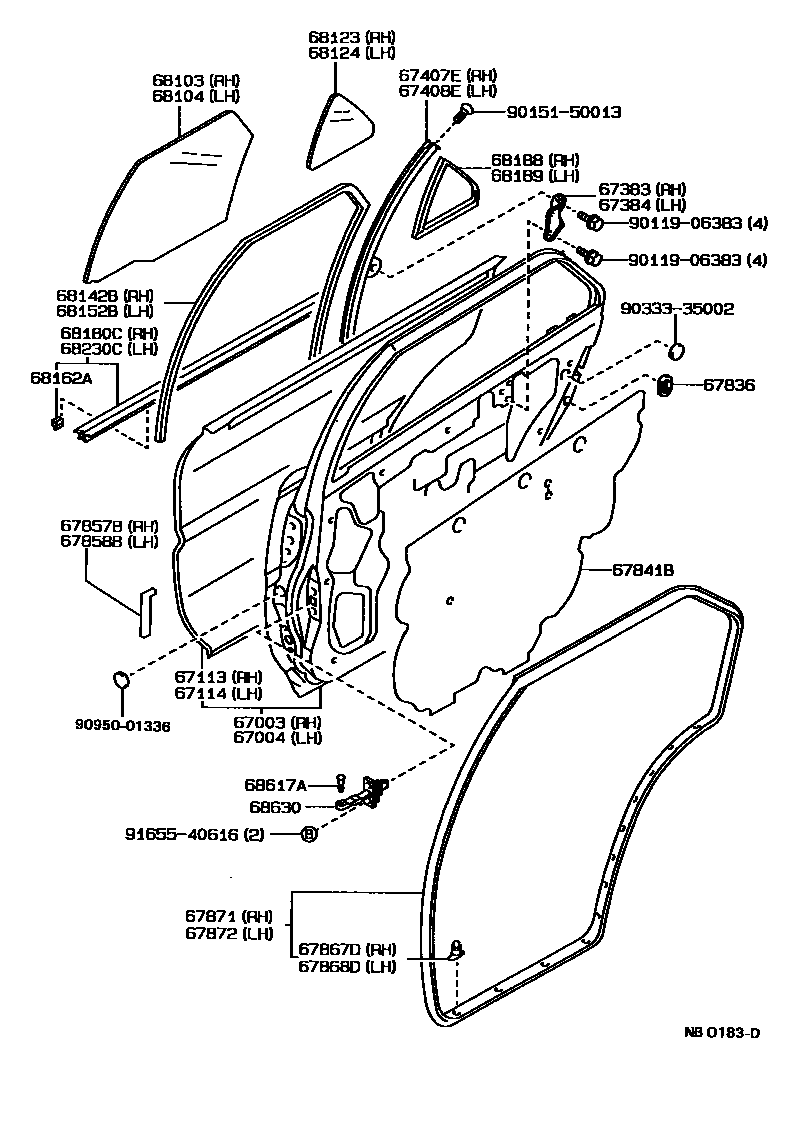

REAR DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-12500iAE9#,CE90,95,EE90..4D198705-199106

main67003-12600iAE91,EE90..5D198705-199205

main67003-13210iAE91,CE96,97,EE96,97,98..V,WG198708-199109

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-12500iAE9#,CE90,95,EE90..4D198705-199106

main67004-12600iAE91,EE90..5D198705-199205

main67004-13210iAE91,CE96,97,EE96,97,98..V,WG198708-199109

67113PANEL, REAR DOOR, OUTER RH

main67113-12140iAE9#,CE9#,EE9#..4D,5D,V,WG198705-199205

67114PANEL, REAR DOOR, OUTER LH

main67114-12140iAE9#,CE9#,EE9#..4D,5D,V,WG198705-199205

67383BRACKET, REAR DOOR INSIDE PANEL, NO.2 RH

main67383-12030iAE9#,CE9#,EE9#..4D,5D,V,WG198705-199205

67384BRACKET, REAR DOOR INSIDE PANEL, NO.2 LH

main67384-12030iAE9#,CE9#,EE9#..4D,5D,V,WG198705-199205

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-12140iAE9#,CE90,95,EE90..4D198705-199106

main67407-12160iAE91,EE90..5D198705-199205

main67407-13020iAE91..G198802-199109

main67407-13020iAE91..G198708-198802

main67407-13030iAE91..LT;AE91,CE96,97,EE96,97,98..(V,WG)..(CBR,DSL)198708-199109

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-12140iAE9#,CE90,95,EE90..4D198705-199106

main67408-12160iAE91,EE90..5D198705-199205

main67408-13020iAE91..G198802-199109

main67408-13020iAE91..G198708-198802

main67408-13030iAE91..LT;AE91,CE96,97,EE96,97,98..(V,WG)..(CBR,DSL)198708-199109

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-12030iAE9#,CE90,95,97,EE90,97..4D,5D,WG198705-199205

67841BCOVER, REAR DOOR SERVICE HOLE

main67841-12220iAE91,CE9#,EE9#..5D,V,WG198705-199205

sub67841-12210

67857BPROTECTOR, REAR DOOR PANEL, RH

67858BPROTECTOR, REAR DOOR PANEL, LH

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12120iAE91,CE96,97,EE9#..5D,V,WG198708-199205

main67868-12050iAE9#,CE90,95,EE90..4D198910-199008

ORANGE

main67868-12050iAE9#,CE90,EE90..4D,5D198705-199106

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67868-12030iAE9#,CE90,EE90..4D,5D198705-198805

sub67868-12050

main67868-12050iAE9#,CE90,EE90..4D198705-199106

main67868-12050iAE9#,CE90,95,EE90..4D198910-199008

ORANGE

main67868-12070iAE91,CE96,97,EE9#..5D,V,WG198708-199205

main67868-12080iAE9#,CE90,EE90..4D198905-198910

sub67868-12050

67871WEATHERSTRIP, REAR DOOR, RH

main67871-12290iAE9#,CE90,95,EE90..4D198705-199106

main67871-12320iAE91,EE90..5D198705-198905

sub67871-12321

main67871-12321iAE91..5D198905-199205

main67871-13110iAE91..G198708-198908

sub67871-13112

main67871-13112iAE91..WG198908-199109

main67871-13130iAE91..G198808-199109

main67871-13130iCE96,97,EE96,97,98198708-199109

67872WEATHERSTRIP, REAR DOOR, LH

main67872-12290iAE9#,CE90,95,EE90..4D198705-199106

main67872-12320iAE91,EE90..5D198705-198905

sub67872-12321

main67872-12321iAE91..5D198905-199205

main67872-13100iAE91..G198708-198908

sub67872-13102

main67872-13102iAE91..WG198908-199109

main67872-13120iCE96,97,EE96,97,98198708-199109

main67872-13120iAE91..G198808-199109

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-12150iAE91,CE90,EE90..DX198705-199106

sub68113-12190

main68113-12190iAE9#,CE90,95,EE90..GT,SE,TX,XE198705-199106

main68113-12200iAE91,95,CE90,EE90..XE198705-199106

main68113-12210iAE91..5D..EFIS198905-199205

sub68113-12280

main68113-12270iAE91,EE90..5D..(CBR,EFI)198705-199205

main68113-12280iAE91,EE90..5D198705-198905

main68113-12350iAE91..G198908-199109

main68113-13090iCE96,97,EE96,97,98..CTD,DX,L,STD198708-199109

sub68113-13100

main68113-13100iCE97,EE97198708-199109

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-12180iAE91,CE90,EE90..DX198705-199106

sub68114-12190

main68114-12190iAE9#,CE90,95,EE90..GT,SE,TX,XE198705-199106

main68114-12200iAE9#,CE90..GT,SE198705-199106

main68114-12210iAE91..5D..EFIS198905-199205

sub68114-12280

main68114-12270iAE91,EE90..5D..(CBR,EFI)198705-199205

main68114-12280iAE91,EE90..5D198705-198905

main68114-12350iAE91..G198908-199109

main68114-13090iCE96,97,EE96,97,98..CTD,DX,L,STD198708-199109

sub68114-13100

main68114-13100iAE91,CE96,97,EE96,97,98..G,GL,LT198708-199109

68123GLASS, REAR DOOR WINDOW, RH

main68123-12380iAE91,CE90,EE90..DX198705-199106

sub68123-12390

main68123-12390iAE9#,CE90,95,EE90..GT,SE,TX,XE198705-199106

main68123-12400iAE91,95,CE90,EE90..XE198705-199106

main68123-12410iAE91..5D..EFIS198905-199205

sub68123-12470

main68123-12460iAE91,EE90..5D..(CBR,EFI)198705-199205

main68123-12470iAE91,EE90..5D198705-198905

main68123-13100iCE96,97,EE96,97,98..CTD,DX,L,STD198708-199109

main68123-13110iAE91,CE96,97,EE96,97,98..G,GL,LT198708-199109

main68123-13140iAE91..G198908-199109

68124GLASS, REAR DOOR WINDOW, LH

main68124-12380iAE91,CE90,EE90..DX198705-199106

sub68124-12390

main68124-12390iAE9#,CE90,95,EE90..GT,SE,TX,XE198705-199106

main68124-12400iAE9#,CE90..GT,SE198705-199106

main68124-12410iAE91..5D..EFIS198905-199205

sub68124-12470

main68124-12460iAE91,EE90..5D..(CBR,EFI)198705-199205

main68124-12470iAE91,EE90..5D198705-198905

main68124-13090iCE96,97,EE96,97,98..CTD,DX,L,STD198708-199109

main68124-13100iAE91,CE96,97,EE96,97,98..G,GL,LT198708-199109

main68124-13130iAE91..G198908-199109

68142BRUN, REAR DOOR WINDOW, RH

main68142-12090iAE9#,CE90,95,EE90..4D198705-199106

main68142-12140iAE91,EE90..5D198705-199205

main68142-13050iCE96,97,EE97,98198708-199109

68152BRUN, REAR DOOR WINDOW, LH

main68152-12010iAE91,95,CE90,EE90..4D..(CBR,DSL)198705-199106

main68152-12060iAE91,EE90..5D198705-199205

main68152-13010iEE96198708-199109

68162ACLIP(FOR REAR DOOR GLASS OUTER WEATHERSTRIP)

main68211-12160iAE91,CE90,96,97,EE9#..CTD,DX,GL,L,STD198705-199109

68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH

main68180-12080iAE91,CE90,EE90..DX198705-199108

main68180-12090iCE96,97,EE96,97,98198708-199109

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-12180iAE91,CE90,EE90..DX198705-199106

main68188-12200iAE91,92..4D..EFI198705-199106

sub68188-12190

main68188-12220iAE91..5D..(FXG,FXL,FXZS)..(EFI,EFIS)198705-199205

main68188-13040iCE96,EE96,98;CE97,EE97..DX,L198708-199109

main68188-13050iAE91,CE97,EE97..G,GL,LT198708-199109

main68188-13050iCE96,EE98..(3FC,4FC,5F)..GL198708-199109

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-12180iAE91,CE90,EE90..DX198705-199106

main68189-12190iAE91,95,CE90,EE90..(SE,TX,XE)..(CBR,DSL)198705-199106

main68189-12230iAE91..5D..(FXG,FXL,FXZS)..(EFI,EFIS)198705-199205

main68189-13040iCE96,EE96,98;CE97,EE97..DX,L198708-199109

main68189-13050iAE91,CE97,EE97..G,GL,LT198708-199109

main68189-13050iEE98..(3FC,5F)..GL198708-199109

68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH

main68230-12050iAE91,CE90,EE90..DX198705-199108

main68230-12060iCE96,97,EE96,97,98198708-199109

68617APIN, REAR DOOR CHECK

main68617-12030iAE9#,CE9#,EE9#..4D,5D,V,WG198809-199205

main68617-22020iAE9#,CE9#,EE9#..4D,5D,V,WG198705-198809

68630CHECK ASSY, REAR DOOR

main68630-12040iAE9#,CE9#,EE9#..4D,5D,V,WG198705-199205

9011906383

main90119-06383

9015150013

main90151-50013

9033335002

main90333-35002

9095001336

main90950-01336

9165540616

main91655-40616

34 parts on this diagram · 3 diagrams in section
