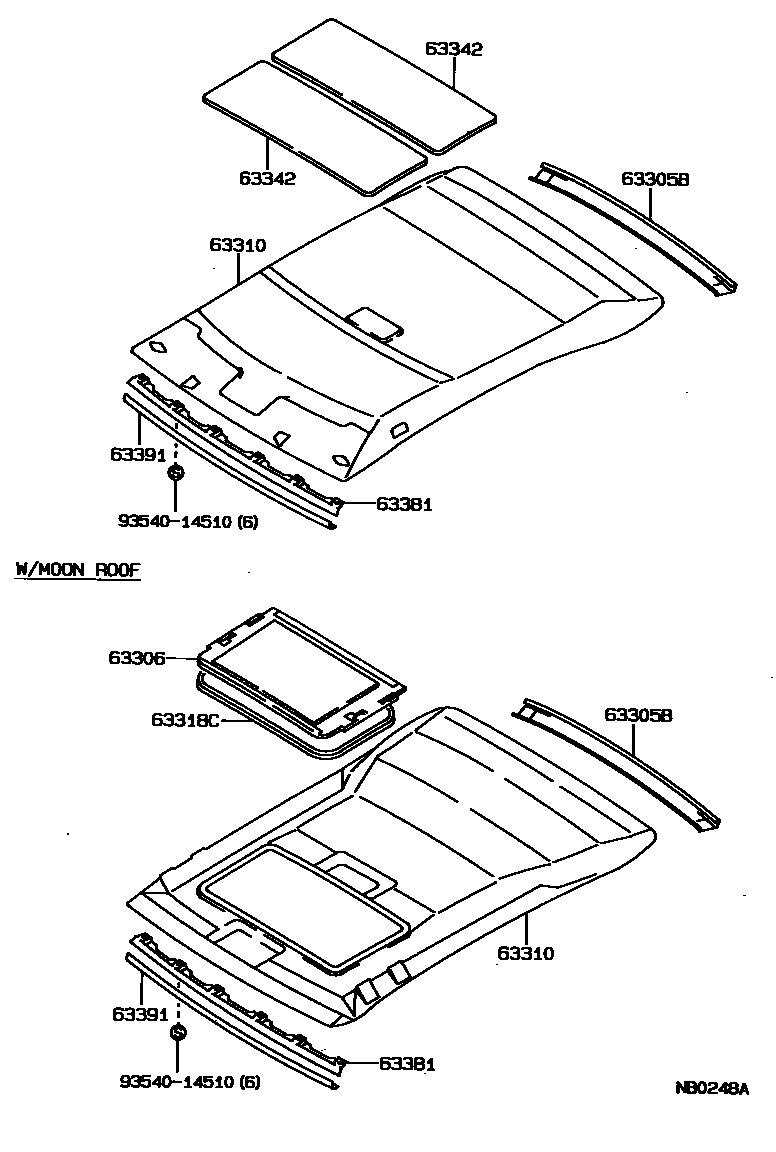

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1 0003 1

63305BTRIM SUB-ASSY, ROOF HEADLINING, REAR

main63305-12080-02iAE91,95,CE90,EE90..SE,XE198705-198809

MAROON,TRIM3#

sub63305-12080

main63305-12080-03iAE91,95,CE90,95,EE90..4D198705-199009

SHADOW GRAY,TRIM1#

sub63305-12080

main63305-12080-05iAE91,95,CE90,EE90..SE,TX,XE198705-198809

DARK BEIGE,TRIM4#

sub63305-12080

main63305-12080-B0iAE9#,CE90,95,EE90..4D199009-199106

SHADOW GRAY,TRIM1#

sub63305-12080

main63305-12080-D0iAE91,95,CE90,95,EE90..SE,XE198809-199106

MAROON,TRIM3#

sub63305-12080

main63305-12080-E0iAE91,95,CE90,EE90..SE,TX,XE198809-198905

DARK BEIGE,TRIM4#

sub63305-12080

main63305-12080-J0iAE91..3FC..XE;AE91..DX,SE,TX;AE95,CE90,95,EE90198905-199106

DARK BLUE,TRIM8#

sub63305-12080

main63305-12110-03iAE91,92,EE90..3D,5D198705-199205

SHADOW GRAY,TRIM1#

main63305-12110-04iAE91,92..3D..(FXGTV,FXV,FXVS,FXZS)198905-199205

DARK BLUE,TRIM8#

main63305-12110-05iAE91,EE90..3D,5D198705-198905

DARK BEIGE,TRIM4#

main63305-13010-03iAE91..WG198708-199109

SHADOW GRAY,TRIM1#

main63305-13010-04iAE91..WG198908-199109

DARK BLUE,TRIM8#

63306TRIM SUB-ASSY, SUNSHADE

main63306-12030-02iAE91,95,CE90..SE198705-198906

MAROON,TRIM3#

sub63306-12031

main63306-12030-03iAE9#,CE90..FXG,FXGT,FXGTV,FXV,FXVS,FXZI,FXZS,GT,SE198705-198906

LIGHT GRAY,TRIM1#

sub63306-12031

main63306-12030-04iAE9#,CE90..(3D,4D)..(FXGTV,FXV,FXVS,FXZS,SE)198905-198906

LIGHT BLUE,TRIM8#

sub63306-12031

main63306-12030-05iAE91,95,CE90..SE198705-198905

LIGHT BEIGE,TRIM4#

sub63306-12031

main63306-12031-02iAE91,95,CE90..SE198906-199005

MAROON,TRIM3#

main63306-12031-03iAE9#,CE90..FXG,FXGT,FXGTV,FXV,FXVS,FXZS,GT,SE198906-199005

LIGHT GRAY,TRIM1#

main63306-12031-04iAE9#,CE90..(3D,4D)..(FXGTV,FXV,FXVS,FXZS,SE)198906-199005

LIGHT BLUE,TRIM8#

main63306-12032-02iAE91,95,CE90..SE199005-199106

MAROON,TRIM3#

main63306-12032-03iAE9#,CE90..FXG,FXGT,FXGTV,FXV,FXVS,FXZS,GT,SE199005-199106

LIGHT GRAY,TRIM1#

main63306-12032-04iAE91,95,CE90..FXV,SE199005-199106

LIGHT BLUE,TRIM8#

63310HEADLINING ASSY, ROOF

main63310-12750-02iAE91,95,CE90,95..SE198705-199106

MAROON,TRIM3#

sub63310-12750

main63310-12750-03iAE9#,CE90,95..GT,SE198705-199106

LIGHT GRAY,TRIM1#

sub63310-12750

main63310-12750-04iAE91,95,CE90,95..SE198905-199106

LIGHT BLUE,TRIM8#

sub63310-12750

main63310-12750-05iAE91,95,CE90..SE198705-198905

LIGHT BEIGE,TRIM4#

sub63310-12750

main63310-12840-02iAE91,95,CE90..SE198705-198809

sub63310-12840

main63310-12840-03iAE9#,CE90..GT,SE198705-198809

sub63310-12840

main63310-12840-05iAE91,95,CE90..SE198705-198809

sub63310-12840

main63310-12840-B0iAE9#,CE90..GT,SE198809-199106

sub63310-12840

main63310-12840-D0iAE91,95,CE90..SE198905-199106

sub63310-12840

main63310-12840-E0iAE91,95,CE90..SE198809-198905

sub63310-12840

main63310-12840-J0iAE91,95,CE90..SE198905-199106

sub63310-12840

main63310-13130-03iCE96,97,EE96,97,98198708-199109

LIGHT GRAY,TRIM1#

sub63310-13150

main63310-13130-04iCE96,97,EE96,97,98..CTD,DX,GL,L198908-199109

LIGHT BLUE,TRIM8#

sub63310-13150

main63310-13130-05iCE96,97,EE96,97,98..DX,GL198708-198908

LIGHT BEIGE,TRIM4#

sub63310-13150

main63310-13140-03iAE91..WG198708-199109

LIGHT GRAY,TRIM1#

main63310-13140-04iAE91..WG198908-199109

LIGHT BLUE,TRIM8#

main63310-1A030-03iAE91,92,EE90..FXD,FXGTV,FXL,FXV,FXVS198705-199205

LIGHT GRAY,TRIM1#

main63310-1A030-04iAE91,92..FXGTV,FXV,FXVS198905-199205

LIGHT BLUE,TRIM8#

main63310-1A030-05iAE91,EE90..FXD,FXL198705-198905

LIGHT BEIGE,TRIM4#

main63310-1A040-03iAE91,92..FXG,FXGT,FXZI,FXZS198705-199205

LIGHT GRAY,TRIM1#

main63310-1A040-04iAE91..3D..FXZS198905-199205

LIGHT BLUE,TRIM8#

main63310-1A040-05iAE91..FXG,FXZI198705-198905

LIGHT BEIGE,TRIM4#

main63310-1A060-03iAE91,92..(3D,5D)..(4FC,5F)198705-199205

main63310-1A060-04iAE91,92..3D..(FXGTV,FXV,FXVS,FXZS)198905-199205

main63310-1A080-02iAE91,95,CE90,EE90..XE198705-198809

MAROON,TRIM3#

sub63310-1A080

main63310-1A080-03iAE91,95,CE90,EE90..DX,TX,XE198705-198809

LIGHT GRAY,TRIM1#

sub63310-1A080

main63310-1A080-05iAE91,95,CE90,EE90..TX,XE198705-198809

LIGHT BEIGE,TRIM4#

sub63310-1A080

main63310-1A080-B1iAE91,95,CE90,95,EE90..DX,TX,XE198809-199106

LIGHT GRAY,TRIM1#

sub63310-1A080

main63310-1A080-D1iAE91,95,CE90,95,EE90..XE198809-199106

MAROON,TRIM3#

sub63310-1A080

main63310-1A080-E2iAE91,95,CE90,EE90..TX,XE198809-198905

LIGHT BROWN,TRIM4#

sub63310-1A080

main63310-1A080-J1iAE91..DX,TX;AE91..3FC..XE;AE95,CE90,95,EE90..DX,TX,XE198905-199106

LIGHT BLUE,TRIM8#

sub63310-1A080

63318CMOULDING, SUN ROOF OPENING TRIM

main63318-12030-02iAE91,95,CE90..SE198705-198901

MAROON,TRIM3#

sub63318-12030

main63318-12030-03iAE9#,CE90..FXG,FXGT,FXZI,GT,SE198705-198905

LIGHT GRAY,TRIM1#

sub63318-12030

main63318-12030-05iAE91,95,CE90..SE198705-198905

LIGHT BEIGE,TRIM4#

sub63318-12030

main63318-12030-B3iAE9#,CE90..FXG,FXGT,FXGTV,FXV,FXVS,FXZS,GT,SE198905-199205

LIGHT GRAY,TRIM1#

sub63318-12030

main63318-12030-D1iAE91,95,CE90..SE198901-199106

MARRON,TRIM3#

sub63318-12030

main63318-12030-J2iAE9#,CE90..(3D,4D)..(FXGTV,FXV,FXVS,FXZS,SE)198905-199205

LIGHT BLUE,TRIM8#

sub63318-12030

63342PAD, ROOF SILENCER, NO.2

main63343-12050iAE9#,CE90,95,EE90..3D,4D,5D198705-199205

63381RETAINER, HEADLINING, FRONT

main63381-12190iAE9#,CE9#,EE9#198705-199205

63391TRIM, ROOF HEADLINING, FRONT

main63391-12060-02iAE91,95,CE90,EE90..SE,XE198705-198809

MAROON,TRIM3#

sub63391-12060

main63391-12060-03iAE9#,CE90,EE90198705-199009

SHADOW GRAY,TRIM1#

sub63391-12060

main63391-12060-05iAE91,95,CE90,EE90..FXD,FXG,FXL,FXZI,SE,TX,XE198705-198809

DARK BEIGE,TRIM4#

sub63391-12060

main63391-12060-B0iAE9#,CE90,95,EE90199009-199205

SHADOW GRAY,TRIM1#

sub63391-12060

main63391-12060-D0iAE91,95,CE90,95,EE90..SE,XE198809-199106

MAROON,TRIM3#

sub63391-12060

main63391-12060-E0iAE91,95,CE90,EE90..FXD,FXG,FXL,FXZI,SE,TX,XE198809-198905

DARK BEIGE,TRIM4#

sub63391-12060

main63391-12060-J0iAE91..3FC..XE;AE92,95,CE90,95,EE90..DX,FXGTV,SE,TX,XE;AE91..(3D,4D,WG)..(DX,FXV,FXVS,FXZS,G,LT,SE,TX)..(EFI,EFIS)198905-199205

DARK BLUE,TRIM8#

sub63391-12060

main63391-13040-03iCE96,97,EE96,97,98198708-199004

SHADOW GRAY,TRIM1#

sub63391-13041

main63391-13040-04iCE96,97,EE96,97,98..CTD,DX,GL,L198908-199004

DARK BLUE,TRIM8#

sub63391-13041

main63391-13040-05iCE96,97,EE96,97,98..DX,GL198708-198908

DARK BEIGE,TRIM4#

sub63391-13041

main63391-13041-03iCE96,97,EE96,97,98199004-199109

SHADOW GRAY,TRIM1#

main63391-13041-04iCE96,97,EE96,97,98..CTD,DX,GL,L199004-199109

DARK BLUE,TRIM8#

9354014510

main93540-14510

8 parts on this diagram · 3 diagrams in section
