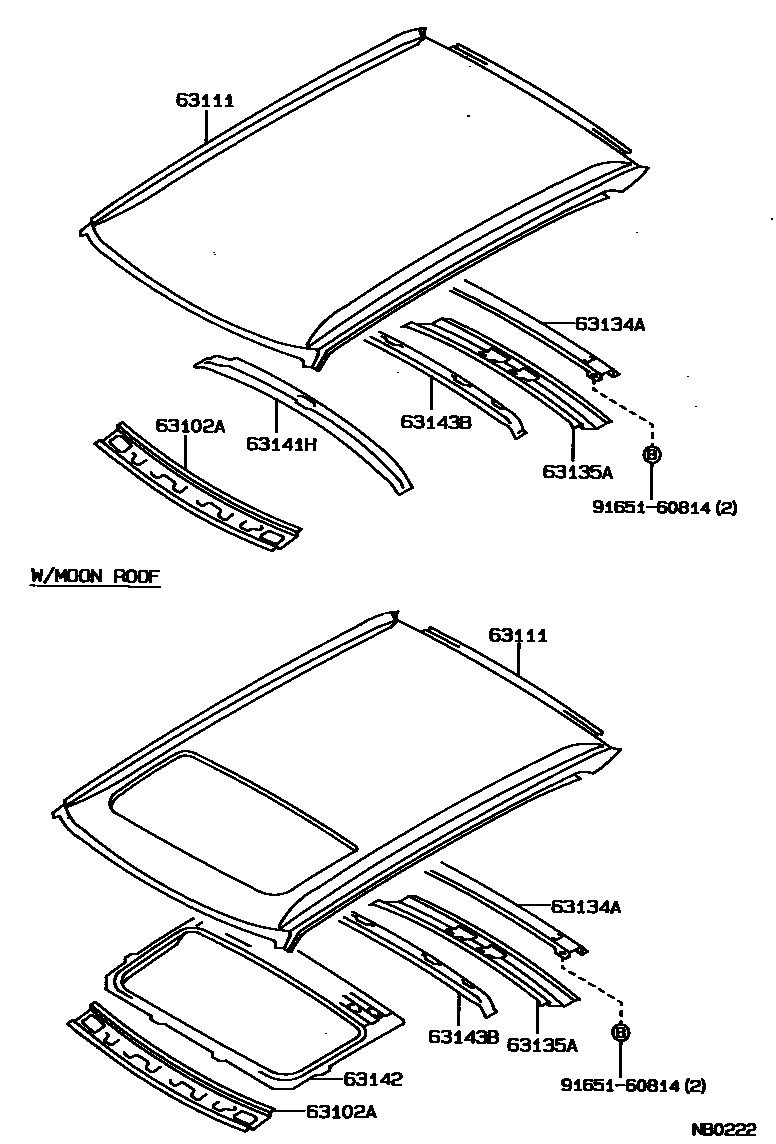

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1 0004 1

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-12040iAE9#,CE90,95,EE90..3D,4D,5D198705-199205

main63102-13010iAE91,CE96,97,EE96,97,98..V,WG198708-199109

63111PANEL, ROOF

main63111-12300iAE9#,CE90,EE90..4D198705-198808

sub63111-12301

main63111-12301iAE9#,CE90,95,EE90..4D198808-199106

main63111-12310iAE9#,CE90..GT,SE198705-198808

sub63111-12311

main63111-12311iAE9#,CE90..GT,SE198808-199106

main63111-12390iAE91,92,EE90..3D,5D198705-198808

sub63111-12391

main63111-12391iAE91,92,EE90..3D,5D198808-199205

main63111-12400iAE91,92..(3D,5D)..(4FC,5F)198705-198808

sub63111-12401

main63111-12401iAE91,92..(3D,5D)..(4FC,5F)198808-199205

main63111-13070iAE91,CE96,97,EE96,97,98..V,WG198708-199109

63134AFRAME, BACK DOOR OPENING, UPPER

main63134-12140iAE91,92,EE90..3D,5D198705-199205

63135AFRAME, BACK DOOR OPENING, LOWER

main63135-12080iAE91,92,EE90..3D,5D198705-199205

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-12130iAE9#,CE90,95,EE90..3D,4D,5D198705-199205

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-12030iAE9#,CE90..FXG,FXGT,FXGTV,FXV,FXVS,FXZI,FXZS,GT,SE198705-199205

main63142-13040iAE91,CE96,97,EE96,97,98..V,WG198708-199109

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-12040iAE91,92,EE90..3D,5D198705-199205

9165160814

main91651-60814

8 parts on this diagram · 4 diagrams in section
