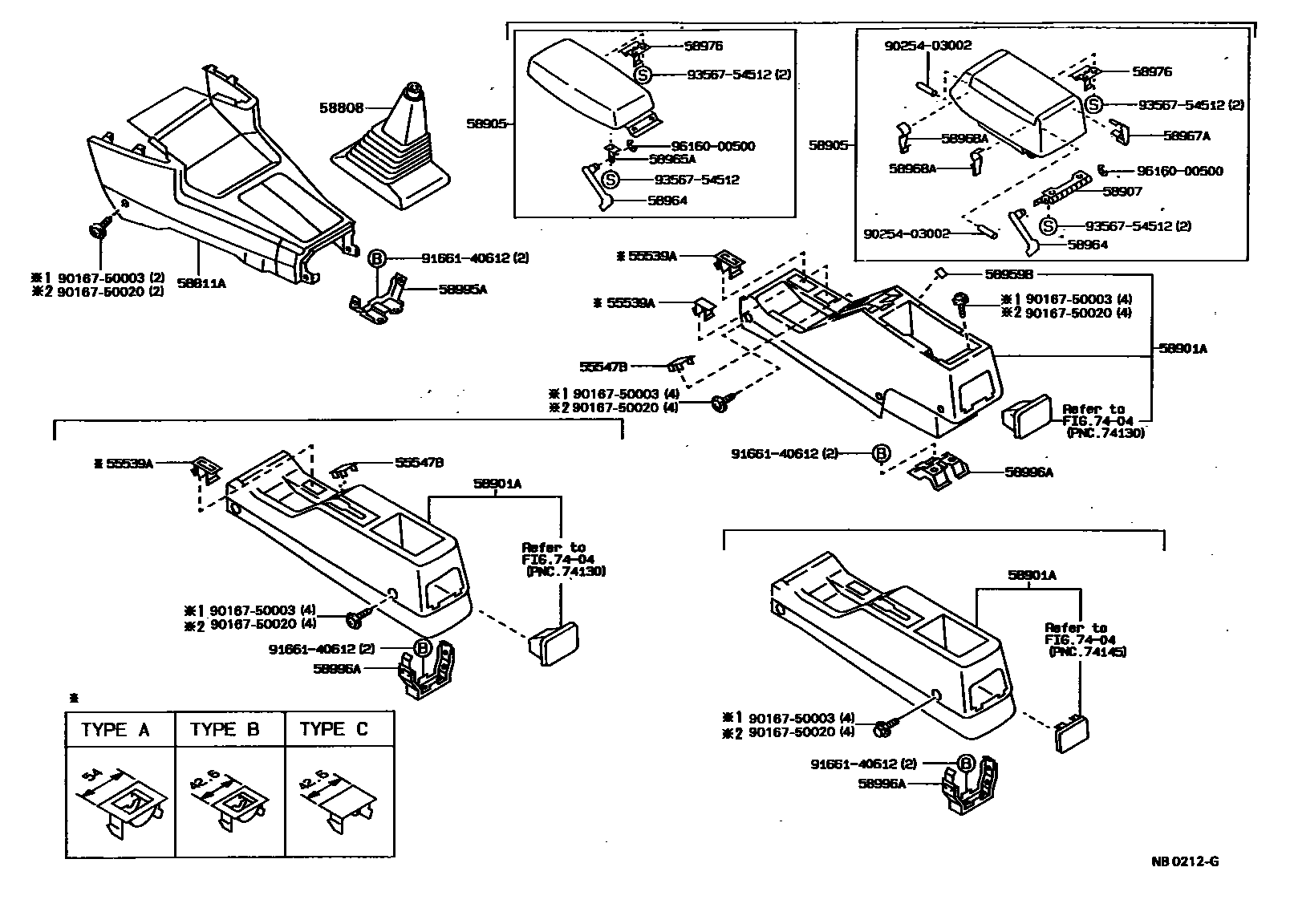

CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-12070-02iAE91,CE90,EE90..SE,XE198705-199106

sub55539-12070

main55539-12070-03iAE91,92,CE90,EE90..FXG,FXGT,FXL,FXZI,G,GT,SE,XE198705-199205

sub55539-12070

main55539-12070-04iAE91..3FC..XE;AE92,CE90,EE90..FXGTV,SE,TX,XE;AE91..(3D,4D,WG)..(FXV,FXVS,FXZS,G,LT,SE,TX)..(EFI,EFIS)198905-199205

sub55539-12070

main55539-12070-05iAE91,CE90,EE90..FXG,FXL,FXZI,SE,XE198705-198905

sub55539-12070

main55539-20020-03iAE95;AE91,92,CE90,EE90..DX,FXGT,GT198705-198908

sub55539-20020

main55539-20020-03iAE95;AE91,92,CE90,EE90..DX,FXGT,GT198905-199106

SHADOW GRAY,TRIM1#

sub55539-20020

main55539-20020-05iCE96,97,EE96,97,98..DX,GL198705-198908

sub55539-20020

main55539-20020-22iAE95..SE,XE198710-198807

sub55539-20020

main55539-20020-D0iAE95,CE95..5F..(SE,XE)198807-199106

MAROON,TRIM3#

sub55539-20020

main55539-20020-D0iAE95..(SE,XE)..CBR198807-199108

sub55539-20020

main55539-20020-J0iAE95;AE91,CE90,EE90..DX198905-199109

DARK BLUE,TRIM8#

sub55539-20020

main55539-20030-03iAE91,92,CE90,EE90..FXG,FXGT,FXL,FXZI,G,GT,SE,XE198705-199205

sub55539-32010

sub55539-20030

main55539-20030-05iAE91,CE90,EE90..FXG,FXL,FXZI,SE,XE198705-198905

sub55539-32010

sub55539-20030

main55539-20030-12iAE91,CE90,EE90..SE,XE198705-199106

sub55539-32010

sub55539-20030

main55539-20030-14iAE91..3FC..XE;AE92,CE90,EE90..FXGTV,SE,TX,XE;AE91..(3D,4D,WG)..(FXV,FXVS,FXZS,G,LT,SE,TX)..(EFI,EFIS)198905-199205

sub55539-32010

sub55539-20030

55547BCOVER, REMOTE CONTROL MIRROR HOLE

main55547-20020-03iAE91,CE9#,EE9#..CTD,DX,FXL,GL,L,LT,STD,TX198705-199205

SHADOW GRAY,TRIM1#

sub55547-20020

main55547-20020-05iCE96,97,EE96,97,98..DX,GL;AE91,95,CE90,EE90..FXD,FXL,TX,XE198705-198908

DARK BEIGE,TRIM4#

sub55547-20020

main55547-20020-12iAE91,95,CE90,EE90..XE198705-198905

MAROON,TRIM3#

sub55547-20020

main55547-20020-14iAE91,CE9#,EE9#..CTD,DX,GL,L,LT198905-199202

DARK BLUE,TRIM8#

sub55547-20020

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-12090-01iAE92..5F..(FXGT,GT)198705-199205

BLACK,TRIM1#

sub58808-12090

main58808-12090-02iAE91,CE90,EE90..MTM..(SE,XE)198705-199106

MAROON,TRIM3#

sub58808-12090

main58808-12090-03iAE91,92,CE90,96,97,EE9#..MTM..(CTD,DX,FXD,FXG,FXGTV,FXL,FXV,FXVS,FXZI,FXZS,G,GL,L,LT,SE,STD,TX,XE)198705-199205

SHADOW GRAY,TRIM1#

sub58808-12090

main58808-12090-04iAE92,CE90,EE90..MTM..(DX,FXGTV,SE,TX,XE);AE91..(3D,4D)..MTM..(DX,FXV,FXVS,FXZS,SE,TX)198905-199205

DARK BLUE,TRIM8#

sub58808-12090

main58808-12090-05iCE96,97,EE96,97,98..MTM..(DX,GL)198705-198908

DARK BEIGE,TRIM4#

sub58808-12090

main58808-12100-02iAE95,CE95..5F..(SE,XE)198710-199106

MAROON,TRIM3#

sub58808-12101

main58808-12100-03iAE95..5F..CBR;AE95..5F..(SE,XE)..EFI198710-199106

SHADOW GRAY,TRIM1#

sub58808-12101

main58808-12100-04iAE95,CE95..5F198905-199106

DARK BLUE,TRIM8#

sub58808-12101

main58808-12100-05iAE95..5F198710-198905

DARK BEIGE,TRIM4#

sub58808-12101

58811ABOX, CONSOLE, FRONT

main58811-12400-02iAE91,CE90,EE90..SE,XE198705-199106

MAROON,TRIM3#

sub58811-12400

main58811-12400-03iAE91,92,CE90,96,97,EE9#..CTD,DX,FXD,FXG,FXGTV,FXL,FXV,FXVS,FXZI,FXZS,G,GL,L,LT,SE,STD,TX,XE198705-199205

SHADOW GRAY,TRIM1#

sub58811-12400

main58811-12400-04iAE91..3FC..XE;AE91..(3D,4D,WG)..(DX,FXV,FXVS,FXZS,G,LT,SE,TX);AE92,CE90,96,97,EE9#..CTD,DX,FXGTV,GL,L,SE,TX,XE198905-199205

DARK BLUE,TRIM8#

sub58811-12400

main58811-12400-05iCE96,97,EE96,97,98..DX,GL198705-198908

DARK BEIGE,TRIM4#

sub58811-12400

main58811-12400-13iAE92..FXGT,GT198705-199205

SHADOW GRAY,TRIM1#

sub58811-12400

main58811-12430-02iAE95,CE95..SE,XE198710-199106

MAROON,TRIM3#

sub58811-12430

main58811-12430-03iAE95,CE95198710-199106

SHADOW GRAY,TRIM1#

sub58811-12430

main58811-12430-04iAE95,CE95198905-199106

DARK BLUE,TRIM8#

sub58811-12430

main58811-12430-05iAE95198710-198905

DARK BEIGE,TRIM4#

sub58811-12430

main58811-12470-02iAE91..SE198905-199106

sub58811-12470

main58811-12470-03iAE91,92..FXGTV,FXVS,FXZS,SE198905-199205

sub58811-12470

main58811-12470-04iAE91,92..(3D,4D)..(FXGTV,FXVS,FXZS,SE)198905-199205

sub58811-12470

main58811-12470-13iAE92..FXGT,GT198905-199205

sub58811-12470

main58811-13010-02iAE95..SE,XE199008-199106

sub58811-13010

main58811-13010-03iAE95199008-199106

sub58811-13010

main58811-13010-04iAE95199008-199106

sub58811-13010

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-12140-03iCE96,EE96..05S;AE91,CE90,97,EE90,97,98..DX,FXD,GL,TX198705-199009

SHADOW GRAY,TRIM1#

sub58901-12140

main58901-12140-05iCE97,EE97,98;AE91,CE90,EE90..FXD,TX;CE96,EE96..(DX,GL)..05S198705-198908

DARK BEIGE,TRIM4#

sub58901-12140

main58901-12140-B1iCE96,EE96..05S;AE91,CE90,97,EE90,97,98..DX,GL,L199009-199205

SHADOW GRAY,TRIM1#

sub58901-12140

main58901-12140-J0iAE91,CE90,EE90..DX198905-199205

DARK BLUE,TRIM8#

sub58901-12140

main58901-12150-02iAE91,CE90,EE90..SE,XE198705-198910

MAROON,TRIM3#

sub58901-12150

main58901-12150-03iAE91,92,CE90,EE90..FXG,FXGT,FXL,FXZI,G,GT,SE,XE198705-199009

SHADOW GRAY,TRIM1#

sub58901-12150

main58901-12150-04iAE91..3FC..XE;AE92,CE90,EE90..FXGTV,SE,TX,XE;AE91..(3D,4D,WG)..(FXV,FXVS,FXZS,G,LT,SE,TX)..(EFI,EFIS)198905-198910

DARK BLUE,TRIM8#

sub58901-12150

main58901-12150-05iAE91,CE90,EE90..FXG,FXL,FXZI,SE,XE198705-198905

DARK BEIGE,TRIM4#

sub58901-12150

main58901-12150-B1iAE91,92,CE90,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,GT,LT,SE,TX,XE199009-199205

SHADOW GRAY,TRIM1#

sub58901-12150

main58901-12150-D0iAE91,CE90,EE90..SE,XE198910-199106

MAROON,TRIM3#

sub58901-12150

main58901-12150-J0iAE91..3FC..XE;AE92,CE90,EE90..FXGTV,SE,TX,XE;AE91..(3D,4D,WG)..(FXV,FXVS,FXZS,G,LT,SE,TX)198910-199205

DARK BLUE,TRIM8#

sub58901-12150

main58901-12160-03iCE96,EE96..02S198708-199109

SHADOW GRAY,TRIM1#

main58901-12160-04iCE96,EE96..DX..02S198908-199109

DARK BLUE,TRIM8#

main58901-12160-05iCE96,EE96..DX..02S198708-198908

DARK BEIGE,TRIM4#

main58901-12170-03iAE95..TX198710-198905

SHADOW GRAY,TRIM1#

main58901-12170-05iAE95..TX198710-198905

DARK BEIGE,TRIM4#

main58901-12180-02iAE95,CE95..SE,XE198710-199106

MAROON,TRIM3#

main58901-12180-03iCE95;AE95..SE,XE;AE95..TX..EFI198710-199106

SHADOW GRAY,TRIM1#

main58901-12180-04iAE95,CE95198905-199106

DARK BLUE,TRIM8#

main58901-12180-05iAE95..SE,XE198710-198905

DARK BEIGE,TRIM4#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-12070-02iAE91,95,CE90,95,EE90..(SE,XE)..(CBR,DSL,EFI)198705-199106

MAROON,TRIM3#

main58905-12070-03iAE91..FXZI;AE91..(FXG,FXL,G,SE,XE)..CBR;AE92,95,CE90,EE90..FXGT,FXL,GT,SE,XE198705-199205

SHADOW GRAY,TRIM1#

main58905-12070-04iAE91..(FXV,G,LT,SE,TX)..EFI;AE92,95,CE90,95,EE90..FXGTV,SE,TX,XE;AE91..(3D,4D)..(3FC,4FC,5F)..(FXVS,FXZS,XE)198905-199205

DARK BLUE,TRIM8#

main58905-12070-05iAE91..FXZI;AE91,95,CE90,EE90..(FXG,FXL,SE,XE)..(CBR,DSL)198705-198905

DARK BEIGE,TRIM4#

main58905-12080-02iAE91..SE..EFIS198805-199106

MAROON,TRIM3#

sub58905-12080

main58905-12080-02iAE91,95,CE90..SE..(CBR,DSL)198705-199106

sub58905-12080

main58905-12080-02iAE91..SE..EFI199005-199106

sub58905-12080

main58905-12080-03iAE91..SE..EFI199005-199106

sub58905-12080

main58905-12080-03iAE91,95,CE90..SE..(CBR,DSL)198705-199106

sub58905-12080

main58905-12080-03iAE91..SE..EFI198805-199106

SHADOW GRAY,TRIM1#

sub58905-12080

main58905-12080-04iAE91..SE..EFI199005-199106

sub58905-12080

main58905-12080-04iAE91,95,CE90,95..SE..(DSL,EFI)198908-199106

sub58905-12080

main58905-12080-04iAE91..SE..EFIS198905-199106

DARK BLUE,TRIM8#

sub58905-12080

main58905-12080-05iAE91..SE..EFI198805-198905

DARK BEIGE,TRIM4#

sub58905-12080

main58905-12080-05iAE91,95,CE90..SE..(CBR,DSL)198705-198905

sub58905-12080

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-12020iAE91,95,CE90..SE..(CBR,DSL)198705-199106

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-16010iAE9#,CE90,95,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,GT,LT,SE,TX,XE198705-199205

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-20020iAE9#,CE90,EE90..FXG,FXGT,FXL,FXZI,G,GT,SE,XE198806-199205

main58964-30030iAE9#,CE90,EE90..FXG,FXGT,FXL,FXZI,G,GT,SE,XE198705-198805

main58964-30060iAE9#,CE90,EE90..FXG,FXGT,FXL,FXZI,G,GT,SE,XE198805-198806

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-12010iAE91..FXVS,FXZS;AE9#,CE90,95,EE90..(FXG,FXGT,FXGTV,FXL,FXV,G,GT,LT,SE,TX,XE)..(CBR,DSL,EFI)198705-199205

58967ASPRING, CONSOLE DOOR STOPPER

main58967-12010iAE95..SE..CBR198710-199106

58968ABRACKET, CONSOLE DOOR STOPPER

main58968-12010iAE91..SE..EFIS198710-199106

58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK

main58976-22020iAE9#,CE90,EE90..FXG,FXGT,FXL,FXZI,G,GT,SE,XE198705-199205

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-12060iAE91,92,CE90,96,97,EE9#198705-199205

main58995-12070iAE95198710-198905

main58995-12071iAE95,CE95198905-199106

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-12030iAE91,CE9#,EE9#..DX,FXD,GL,STD,TX198705-199109

main58996-12050iAE91,92,CE90,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZS,G,GT,LT,SE,TX,XE198705-199205

main58996-12060iAE95..TX198710-198905

main58996-12070iCE95;AE95..SE,XE;AE95..TX..EFI198710-199106

7404

9016750003

main90167-50003

9016750020

main90167-50020

9025403002

main90254-03002

9166140612

main91661-40612

9356754512

main93567-54512

9616000500

main96160-00500

22 parts on this diagram · 1 diagram in section
