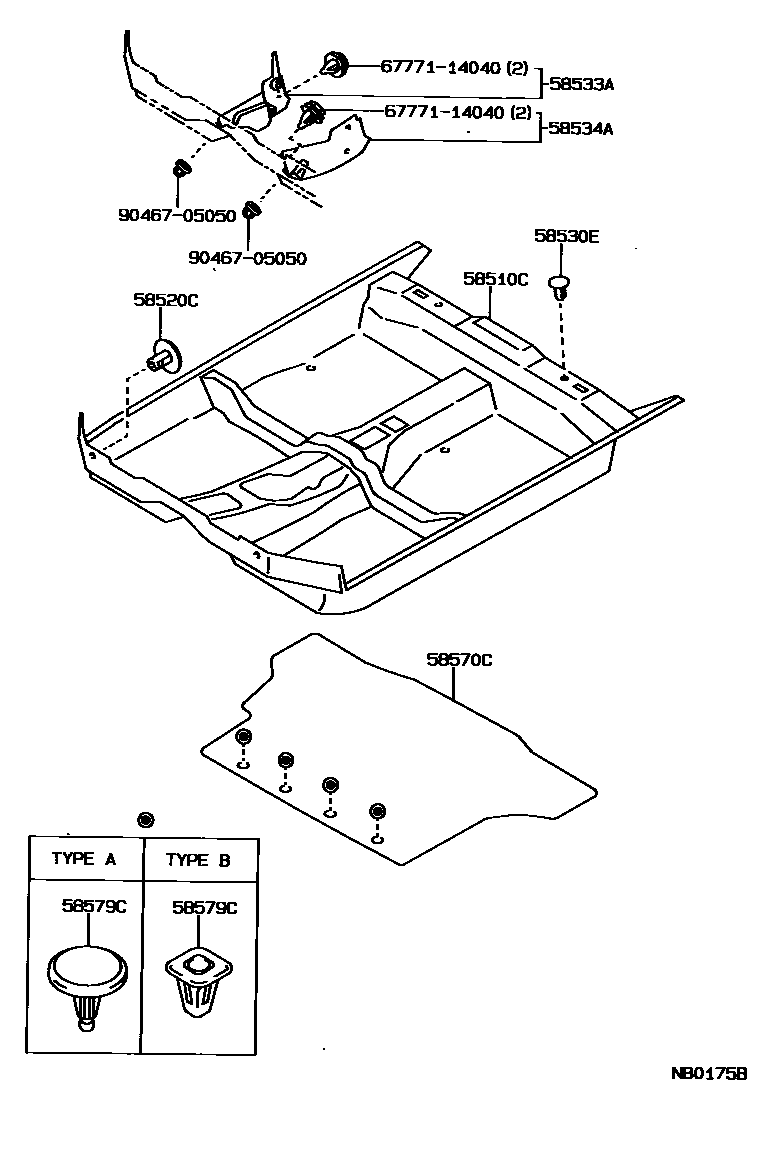

MAT & CARPET

0001 1 0002 1 0003 1

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-13300-03iCE97,EE97,98;CE96,EE96..(DX,GL)..05S198708-199109

SHADOW GRAY,TRIM1#

sub58510-13230

main58510-13300-04iCE97,EE97,98;CE96,EE96..(DX,GL)..05S198908-199109

DARK BLUE,TRIM8#

sub58510-13230

main58510-13300-05iCE97,EE97,98;CE96,EE96..(DX,GL)..05S198708-198908

DARK BEIGE,TRIM4#

sub58510-13230

main58510-13330-03iCE97,EE97,98;CE96,EE96..(DX,GL)..05S198708-199109

main58510-13330-04iCE97,EE97,98;CE96,EE96..(DX,GL)..05S198908-199109

main58510-13330-05iCE97,EE97,98;CE96,EE96..(DX,GL)..05S198708-198908

main58510-1A210-02iAE91,CE90,EE90..XE198705-199106

MAROON,TRIM3#

sub58510-1A510

main58510-1A210-03iAE91,CE90,EE90..(4D,5D,WG)..(DX,FXL,LT,TX,XE)198705-199205

SHADOW GRAY,TRIM1#

sub58510-1A510

main58510-1A210-04iAE91..3FC..XE;AE91..DX,LT,TX;CE90,EE90..DX,TX,XE198905-199109

DARK BLUE,TRIM8#

sub58510-1A510

main58510-1A210-05iAE91,CE90,EE90..(4D,5D)..(FXL,TX,XE)198705-198905

DARK BEIGE,TRIM4#

sub58510-1A510

main58510-1A220-02iAE91,CE90..SE198705-198905

MAROON,TRIM3#

sub58510-1A221

main58510-1A220-03iAE91,92,CE90..(4D,5D,WG)..(FXG,FXZI,G,GT,SE)198705-198908

SHADOW GRAY,TRIM1#

sub58510-1A221

main58510-1A220-05iAE91,CE90..(4D,5D)..(FXG,FXZI,SE)198705-198905

DARK BEIGE,TRIM4#

sub58510-1A221

main58510-1A221-02iAE91,CE90..SE198905-199106

MAROON,TRIM3#

sub58510-1A260

main58510-1A221-03iAE91,92,CE90..(4D,5D,WG)..(FXG,FXZS,G,GT,SE)..(DSL,EFI,EFIS)198905-199205

SHADOW GRAY,TRIM1#

sub58510-1A260

main58510-1A221-04iAE91,CE90..(G,SE)..(DSL,EFI,EFIS)198905-199109

DARK BLUE,TRIM8#

sub58510-1A260

main58510-1A230-02iAE91,CE90,EE90..XE198705-199106

main58510-1A230-03iAE91,CE90,EE90..(4D,5D,WG)..(DX,FXL,LT,TX,XE)198705-199205

main58510-1A230-04iAE91..3FC..XE;AE91..DX,LT,TX;CE90,EE90..DX,TX,XE198905-199109

main58510-1A230-05iAE91,CE90,EE90..(4D,5D)..(FXL,TX,XE)198705-198905

main58510-1A240-02iAE91,CE90..SE198705-198905

sub58510-1A241

main58510-1A240-03iAE91,92,CE90..(4D,5D,WG)..(FXG,FXZI,G,GT,SE)198705-198908

sub58510-1A241

main58510-1A240-05iAE91,CE90..(4D,5D)..(FXG,FXZI,SE)198705-198905

sub58510-1A241

main58510-1A241-02iAE91,CE90..SE198905-199106

main58510-1A241-03iAE91,92,CE90..(4D,5D,WG)..(FXG,FXZS,G,GT,SE)..(DSL,EFI,EFIS)198905-199205

main58510-1A241-04iAE91,CE90..(G,SE)..(DSL,EFI,EFIS)198905-199109

main58510-1A410-03iAE91,EE90..3D..(FXD,FXL)198705-198905

SHADOW GRAY,TRIM1#

sub58510-1A411

main58510-1A410-05iAE91,EE90..3D..(FXD,FXL)198705-198905

DARK BEIGE,TRIM4#

sub58510-1A411

main58510-1A411-03iAE91..FXV198905-199205

SHADOW GRAY,TRIM1#

sub58510-1A451

main58510-1A411-04iAE91..FXV198905-199205

DARK BLUE,TRIM8#

sub58510-1A451

main58510-1A420-03iAE91,92..3D..(4FC,5F)198705-198905

SHADOW GRAY,TRIM1#

sub58510-1A421

main58510-1A421-03iAE91,92..3D..(FXGT,FXGTV,FXVS,FXZS)198905-199205

SHADOW GRAY,TRIM1#

sub58510-1A471

main58510-1A421-04iAE91,92..3D..(FXGTV,FXVS,FXZS)198905-199205

DARK BLUE,TRIM8#

sub58510-1A471

main58510-1A430-03iAE91,EE90..3D..(FXD,FXL)198705-198905

sub58510-1A431

main58510-1A430-05iAE91,EE90..3D..(FXD,FXL)198705-198905

sub58510-1A431

main58510-1A431-03iAE91..FXV198905-199205

main58510-1A431-04iAE91..FXV198905-199205

main58510-1A440-03iAE91,92..3D..(4FC,5F)198705-198905

sub58510-1A441

main58510-1A441-03iAE91,92..3D..(FXGT,FXGTV,FXVS,FXZS)198905-199205

main58510-1A441-04iAE91,92..3D..(FXGTV,FXVS,FXZS)198905-199205

main58510-1A570-02iAE95,CE95..XE198710-199106

MAROON,TRIM3#

sub58510-1A520

main58510-1A570-03iAE95,CE95..TX,XE198710-199106

SHADOW GRAY,TRIM1#

sub58510-1A520

main58510-1A570-04iAE95,CE95..TX,XE198905-199106

DARK BLUE,TRIM8#

sub58510-1A520

main58510-1A570-05iAE95..TX,XE198710-198905

DARK BEIGE,TRIM4#

sub58510-1A520

main58510-1A580-02iAE95..SE198710-198905

MAROON,TRIM3#

sub58510-1A581

main58510-1A580-03iAE95..SE198710-198905

SHADOW GRAY,TRIM1#

sub58510-1A581

main58510-1A580-05iAE95..SE198710-198905

DARK BEIGE,TRIM4#

sub58510-1A581

main58510-1A581-02iAE95,CE95..SE198908-199106

MAROON,TRIM3#

sub58510-1A530

main58510-1A581-03iAE95,CE95..SE198905-199106

SHADOW GRAY,TRIM1#

sub58510-1A530

main58510-1A581-04iAE95,CE95..SE198905-199106

DARK BLUE,TRIM8#

sub58510-1A530

main58510-1A590-02iAE95,CE95..XE198710-199106

sub58510-1A601

main58510-1A590-03iAE95,CE95..TX,XE198710-199106

sub58510-1A601

main58510-1A590-04iAE95,CE95..TX,XE198905-199106

sub58510-1A601

main58510-1A590-05iAE95..TX,XE198710-198905

sub58510-1A601

main58510-1A600-02iAE95..SE198710-198905

sub58510-1A601

main58510-1A600-03iAE95..SE198710-198905

sub58510-1A601

main58510-1A600-05iAE95..SE198710-198905

sub58510-1A601

main58510-1A601-02iAE95,CE95..SE198908-199106

main58510-1A601-03iAE95,CE95..SE198905-199106

main58510-1A601-04iAE95,CE95..SE198905-199106

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-09068-01iAE91,92,CE90,EE90..DX,FXGT,GT198705-198905

BLACK,TRIM1#,4#

sub90467-09068

main90467-09068-01iAE91,CE90,EE90..SE,XE198705-198905

BLACK,TRIM1#,3#,4#

sub90467-09068

main90467-09068-01iAE91,CE90,EE90..SE,XE198705-198905

BLACK,TRIM1#

sub90467-09068

main90467-09068-03iAE91,CE97,EE97,98..V,WG;CE96,EE96..(DX,GL)..05S198708-198908

SHADOW GRAY,TRIM1#

sub90467-09068

main90467-09068-05iCE97,EE97,98;CE96,EE96..(DX,GL)..05S198708-198809

DARK BEIGE,TRIM4#

sub90467-09068

main90467-09068-11iAE95,CE90,EE90..SE,XE;AE91..(3FC,4FC,5F)..(SE,XE)198905-199205

BLACK,TRIM1#,8#

sub90467-09068

main90467-09068-11iAE9#,CE90,EE90..(3D,4D)..(DX,FXGTV,FXV,FXVS,FXZS,TX)198905-199205

BLACK,TRIM1#,3#,8#

sub90467-09068

main90467-09068-11iAE91..5D;AE92..FXGT,GT198905-199205

BLACK,TRIM1#

sub90467-09068

main90467-09068-11iAE91..5D;AE92..FXGT,GT198905-199205

BLACK,TRIM1#,3#

sub90467-09068

main90467-09068-E0iCE97,EE97,98;CE96,EE96..(DX,GL)..05S198809-198908

DARK BEIGE,TRIM4#

sub90467-09068

58530ECLIP(FOR FRONT FLOOR REAR CARPET)

main90467-06049-01iAE91..3FC..XE;AE92,95,CE90,95,EE90..DX,FXGTV,SE,TX,XE;AE91..(3D,4D,WG)..(DX,FXV,FXVS,FXZS,G,LT,SE,TX)..(EFI,EFIS)198705-199205

BLACK,TRIM1#

sub90467-06049

main90467-06049-01iAE91,92,CE90,EE90..DX,FXGT,GT198705-198905

BLACK,TRIM1#,3#,4#

sub90467-06049

main90467-06049-01iAE91,92,CE90,EE90..DX,FXGT,GT198705-198905

BLACK,TRIM1#,4#

sub90467-06049

main90467-06049-01iEE96..DX..05S;CE97,EE97,98..(4F,4FC,5F)..(DX,L);CE96,EE98..(3FC,4FC,5F)..(DX,GL)..05S198905-199205

BLACK,TRIM1#,8#

sub90467-06049

main90467-06049-03iAE9#,CE90,EE90198705-198908

GRAY,TRIM1#

sub90467-06049

main90467-06049-12iAE91,95,CE90,EE90..SE,XE198705-198809

MAROON,TRIM3#

sub90467-06049

main90467-06049-15iAE91..3D..FXL;AE95,CE90,EE90..FXD,FXL,SE,TX,XE;AE91..(4D,5D)..(FXG,FXL,FXZI,SE,TX,XE)198705-198809

DARK BEIGE,TRIM4#

sub90467-06049

main90467-06049-B0iCE97,EE97,98;CE96,EE96..(DX,GL)..05S198905-199205

SHADOW GRAY,TRIM1#

sub90467-06049

main90467-06049-D0iAE91,95,CE90,95,EE90..SE,XE198809-199106

MAROON,TRIM3#

sub90467-06049

main90467-06049-E0iAE91,95,CE90,EE90..FXD,FXG,FXL,FXZI,SE,TX,XE198809-198908

DARK BEIGE,TRIM4#

sub90467-06049

main90467-06049-J1iAE91..3FC..XE;AE92,95,CE90,95,EE90..DX,FXGTV,SE,TX,XE;AE91..(3D,4D,WG)..(DX,FXV,FXVS,FXZS,G,LT,SE,TX)..(EFI,EFIS)198905-199205

DARK BLUE,TRIM8#

sub90467-06049

58533ACOVER, FLOOR CARPET, CENTER RH

main58533-12020iAE91,92,CE90,96,97,EE9#198705-199205

main58533-12030iAE95,CE95198710-199106

58534AMAT, TRANSMISSION COVER

main58534-12010iAE9#,CE9#,EE9#198705-199205

58570CCARPET ASSY, REAR FLOOR

main58570-12320-03iAE91,92,EE90..FXD,FXGTV,FXL,FXV,FXVS198705-199205

SHADOW GRAY,TRIM1#

sub58570-12330

main58570-12320-04iAE91,92..FXGTV,FXV,FXVS198905-199205

DARK BLUE,TRIM8#

sub58570-12330

main58570-12320-05iAE91,EE90..FXD,FXL198705-198905

DARK BEIGE,TRIM4#

sub58570-12330

main58570-12330-03iAE91,92..FXG,FXGT,FXZI,FXZS198705-199205

SHADOW GRAY,TRIM1#

main58570-12330-04iAE91..3D..FXZS198905-199205

DARK BLUE,TRIM8#

main58570-13140-03iCE97,EE97..GL198708-198801

sub58570-13141

main58570-13140-03iEE98..(3FC,5F)..GL198708-198801

SHADOW GRAY,TRIM1#

sub58570-13141

main58570-13140-05iCE97,EE97..GL198708-198801

sub58570-13141

main58570-13140-05iEE98..(3FC,5F)..GL198708-198801

DARK BEIGE,TRIM4#

sub58570-13141

main58570-13141-03iCE96,EE98..(3FC,4FC,5F)..GL198801-199109

main58570-13141-03iCE97,EE97..GL198801-198908

SHADOW GRAY,TRIM1#

main58570-13141-03iCE97,EE97198908-199109

main58570-13141-04iCE97,EE97198908-199109

main58570-13141-04iCE97,EE97198908-199109

main58570-13141-05iCE97,EE97..GL198801-198908

DARK BEIGE,TRIM4#

main58570-13141-05iEE98..(3FC,5F)..GL198801-198908

58579CCLIP, REAR FLOOR CARPET SET

main90467-07049-03iCE97,EE97..GL198708-198908

GRAY,TRIM1#

sub90467-07049

main90467-07049-03iCE97,EE97..GL198708-199109

sub90467-07049

main90467-07049-03iCE97,EE97198908-199109

sub90467-07049

main90467-07049-15iEE98..(3FC,5F)..GL198708-198908

BEIGE,TRIM4#

sub90467-07049

main90467-07049-15iEE98..(3FC,5F)..GL198708-198908

sub90467-07049

main90467-07049-J0iCE96,EE98..(3FC,4FC,5F)..GL198908-199109

sub90467-07049

main90467-07049-J0iCE97,EE97198908-199109

sub90467-07049

main90467-07077-03iAE91..WG198708-199109

SHADOW GRAY,TRIM1#

sub90467-07077

main90467-07077-04iAE91..WG198908-199109

DARK BLUE,TRIM8#

sub90467-07077

main90467-07079-03iAE9#,EE90..3D,5D198705-198707

sub90467-07079

main90467-07079-05iAE91,EE90..3D,5D198705-198707

sub90467-07079

main90467-07084-03iAE91,92,EE90..3D,5D198708-199205

sub90467-07084

main90467-07084-04iAE91,92..3D..(FXGTV,FXV,FXVS,FXZS)198905-199205

sub90467-07084

main90467-07084-05iAE91,EE90..3D,5D198708-198905

sub90467-07084

main90467-10023iAE91,92,EE90..3D,5D198705-199205

main90467-10023iAE9#,EE90..3D,5D198707-198708

6777114040WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-14040

9046705050

main90467-05050

9 parts on this diagram · 3 diagrams in section
