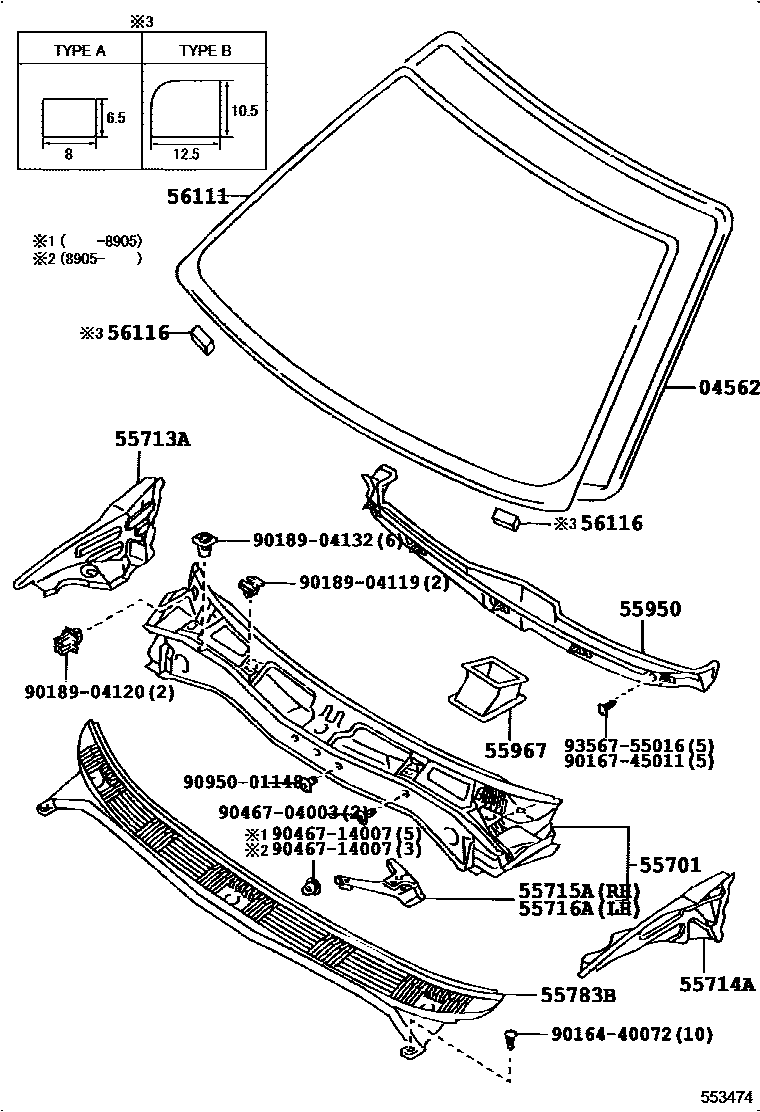

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-12010iAE9#,CE9#,EE9#198705-199205

55701PANEL SUB-ASSY, COWL

main55700-12450iAE91198705-198801

sub55700-12460

main55700-12460iAE95198710-199205

main55700-12470iEE9#198705-198905

sub55700-12750

main55700-12480iCE9#198705-199109

main55700-12490iAE92198705-199205

main55700-12750iEE9#198905-199109

55713APANEL, COWL TOP SIDE, RH

main55713-12070iAE9#,CE9#,EE9#198705-199205

55714APANEL, COWL TOP SIDE, LH

main55714-12070iAE9#,CE9#,EE9#198705-199205

55715ABRACE, COWL TOP TO APRON, RH

main55715-12090iAE9#,CE9#,EE9#198705-199205

55716ABRACE, COWL TOP TO APRON, LH

main55716-12090iAE9#,CE9#,EE9#198705-199205

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55708-12020iAE9#,CE9#,EE9#198705-199205

main55708-12060iAE9#,CE9#,EE9#198705-199205

55950NOZZLE ASSY, DEFROSTER

main55950-12100iAE9#,CE9#,EE9#198705-199205

55967NOZZLE, DEFROSTER, LOWER

main55967-12010iAE9#,CE9#,EE9#198705-199205

56111GLASS, WINDSHIELD

main56111-12890iAE91,CE90,EE90..DX,FXD198705-198708

sub56111-1A220

main56111-1A020iAE9#,CE90,EE90..FXG,FXGT,FXL,FXZI,GT,TX,XE198705-198708

sub56111-1A230

main56111-1A030iAE9#,CE90,EE90..FXG,FXGT,FXL,FXZI,GT,SE,XE198705-198708

sub56111-1A260

main56111-1A040iAE91,CE90..SE198705-198708

sub56111-1A270

main56111-1A040iAE91,CE90..SE198705-198708

sub56111-1A270

main56111-1A080iAE91,92..FXGT,FXZS198905-199205

sub56111-1A400

main56111-1A220iCE9#,EE9#..CTD,DX,L,STD198708-199109

main56111-1A230iAE9#,CE9#,EE9#..FXG,FXGTV,FXL,FXV,FXVS,GL,L,LT198708-199205

sub56111-1A270

main56111-1A260iAE9#,CE90,EE90..FXG,FXGT,FXL,FXZI,GT,SE198708-199109

sub56111-1A400

main56111-1A270iAE91..G..EFI198708-199109

sub56111-1A271

main56111-1A270iAE91..G..EFI198708-198909

sub56111-1A271

main56111-1A400iAE91..SE..EFI198909-199106

main56111-1A400iAE91,95,CE90..SE198901-198905

main56111-1A400iAE91..SE..EFIS199005-199106

56116SPACER, WINDSHIELD GLASS

main56116-12020iAE9#,CE9#,EE9#198907-199009

main56116-24010iAE9#,CE9#,EE9#198705-199205

9016440072

main90164-40072

9016745011

main90167-45011

9018904119

main90189-04119

9018904120

main90189-04120

9018904132

main90189-04132

9046704003

main90467-04003

9046714007

main90467-14007

9095001148

main90950-01148

9356755016

main93567-55016

20 parts on this diagram · 1 diagram in section
