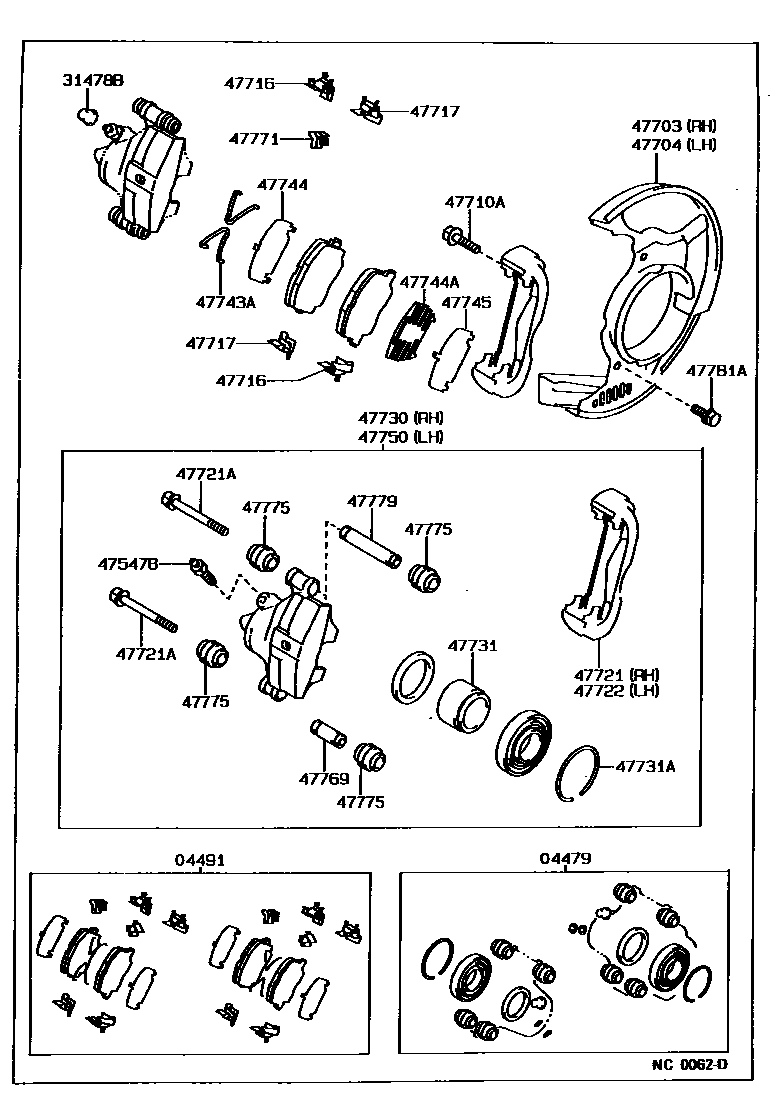

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-12091iAE9#,CE9#,EE9#198705-199205

main04479-12140iAE92198905-199205

04491PAD KIT, DISC BRAKE, FRONT

main04491-12290iAE91,EE90,97..CBR198705-198802

sub04491-12291

main04491-12291iAE91,EE90,97..CBR198802-198812

sub04491-12292

main04491-12292iAE91,EE90,97..CBR198812-198908

sub04465-17070

main04491-12300iAE92198705-198812

sub04491-12301

main04491-12301iAE92198812-198905

sub04465-12010

main04491-12350iAE95;AE91,CE9#..DSL,EFI198705-198812

sub04491-12351

main04491-12351iAE91,CE9#..DSL,EFI198812-198908

sub04491-12352

main04491-12352iCE96198908-199109

sub04465-12010

main04491-12360iAE95198802-198812

sub04491-12361

main04491-12361iAE95198812-198905

sub04465-21010

main04491-12431iAE91199201-199205

sub04491-12432

main04491-12450iAE95,CE95198905-199202

sub04465-12250

main04491-12480iCE97..L;AE91,CE90..DSL,EFI,EFIS198905-199201

sub04465-17070

main04491-12510iAE91..FXVS,FXZS,SE198905-199205

sub04465-12010

main04491-13010iEE96,98198708-198812

sub04491-13011

main04491-13011iEE96,98198812-198905

sub04491-13012

main04491-13012iEE96..STD198905-198910

sub04491-13020

main04491-13020iEE9#198910-199109

sub04491-20541

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iAE9#,CE9#,EE9#198705-199205

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iAE9#,CE9#,EE9#198705-199205

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47703-12120iAE9#,CE9#,EE9#198705-198901

sub47703-12121

main47703-12121iEE96198901-198908

main47703-32040iAE92198905-199205

main47781-12150iAE91,95,CE90,EE90..3D,4D,5D198905-199205

sub47781-20290

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47704-12120iAE9#,CE9#,EE9#198705-198901

sub47704-12121

main47704-12121iAE91,95,CE90,EE90..CBR,DSL198901-198908

main47704-32040iAE92198905-199205

main47782-12150iAE91,95,CE90,EE90..3D,4D,5D198905-199205

sub47782-20290

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12040iAE91,92..(FXGT,FXZI,GT,SE)..EFI198705-199205

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-32010iAE9#,CE9#,EE9#198705-198812

sub47716-32031

main47716-32031iAE9#198812-199205

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-32010iAE9#,CE9#,EE9#198705-198812

sub47717-32031

main47717-32031iAE9#,CE9#,EE9#198812-199205

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-12110iAE91,95,CE9#,EE9#198705-199109

main47721-12120iAE91198705-199205

main47721-12130iAE91..FXVS,FXZS,SE198905-199205

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-09003iAE9#,CE9#,EE9#198705-199205

main90119-09004iAE9#198705-199205

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-12110iEE97..GL,L;AE91,CE96,97,EE90,96,98..(CTD,DX,G,GL,STD,TX,XE)..(CBR,DSL)198705-199109

main47721-12120iCE97..L;AE91,95,CE90,95..DSL,EFI,EFIS198705-199205

main47721-12130iAE91..FXVS,FXZS,SE198905-199205

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-12290iAE91,95,CE9#,EE9#198705-199109

main47730-12310iAE92198705-199205

main47730-12320iAE92198905-199205

main47730-12350iAE92198901-199102

sub47730-12310

47731PISTON, FRONT DISC BRAKE

main47731-12130iAE92198905-199205

main47731-12150iAE9#,CE9#,EE9#198705-199205

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-61001iAE91,CE90,EE90198705-199205

main90522-64003iAE92198905-199205

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-12040iAE95198802-198905

main47743-12070iAE91,95,CE90,95,97199010-199205

main47743-32010iAE92198705-199010

sub47743-12070

main47743-32020iAE92198905-199205

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-16011iEE97..GL;AE91,CE96,97,EE96,98..CBR,DSL198705-198908

sub47744-32010

main47744-32010iAE9#,CE9#,EE9#198905-199205

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47742-12020iEE96,98198712-198812

main47742-17010iEE96,98198708-198712

main47742-32040iAE9#198812-199205

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47744-16011iAE9#,CE9#,EE90,97198705-198908

sub47744-32010

main47745-12050iEE96,98198712-198812

main47745-17020iEE96,98198708-198712

main47745-32040iAE9#198812-199205

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-12290iEE97..GL,L;AE91,CE96,97,EE90,96,98..(CTD,DX,G,GL,STD,TX,XE)..(CBR,DSL)198705-199109

main47750-12310iAE92198901-199205

main47750-12320iAE92198905-199205

main47750-12350iCE97..L;AE91,95,CE90,95..DSL,EFI,EFIS198705-199102

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-12030iAE9#,CE9#,EE9#198705-199205

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-32010iAE9#198705-199205

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-32010iAE9#,CE9#,EE9#198705-199205

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-16010iAE9#198705-199205

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
