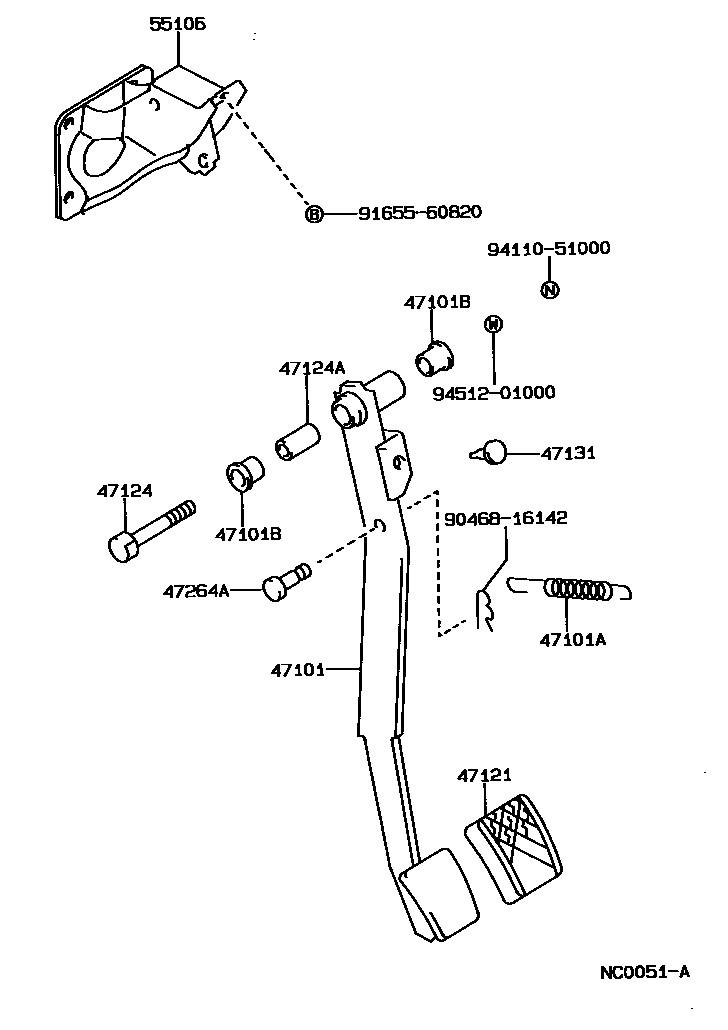

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-12420iAE9#,CE9#,EE9#..MTM198705-199205

main47101-12430iAE9#,CE90,96,97,EE90,96,98..ATM198705-199205

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12011iAE9#,CE9#,EE9#198705-199007

main90507-14037iAE9#,CE9#,EE9#199007-199205

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iAE9#,CE9#,EE9#199002-199205

main90386-13192iAE9#,CE9#,EE9#198705-199002

47121PAD, BRAKE PEDAL

main31321-12030iAE9#,CE90,EE90..MTM198705-198708

main31321-12040iAE9#,CE9#,EE9#..MTM198708-199205

main47121-12020iAE9#,CE90,96,97,EE90,96,98..ATM198705-199205

47124SHAFT, BRAKE PEDAL

main90101-10015iAE9#,CE9#,EE9#198705-199205

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iAE9#,CE9#,EE9#198705-199205

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iAE9#,CE9#,EE9#198705-199205

47264APIN(FOR PUSH ROD)

main90249-08051iAE9#,CE9#,EE9#198705-199205

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-12590iAE9#,CE9#,EE9#198705-199205

9046816142

main90468-16142

9165560820

main91655-60820

9411051000

main94110-51000

9451201000

main94512-01000

13 parts on this diagram · 1 diagram in section
