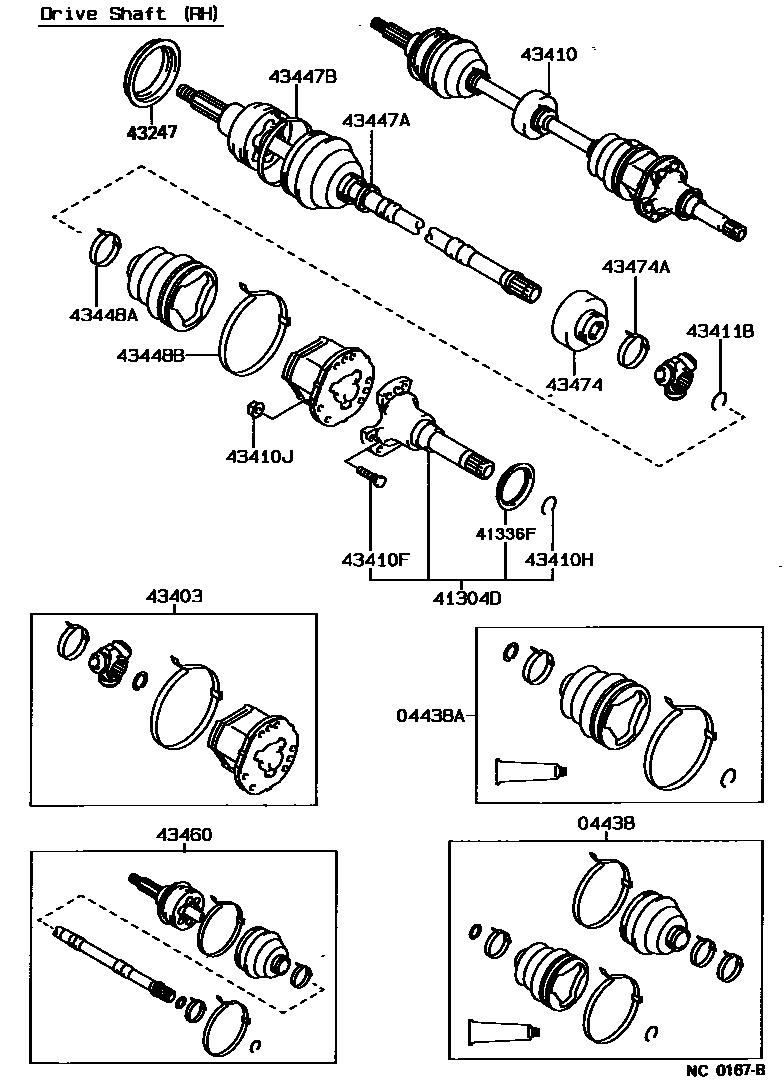

FRONT DRIVE SHAFT

0001 1 0004 1 0007 1 0011 1 0015 1 0017 1 0019 1 0022 1

04438BOOT KIT, FRONT DRIVE SHAFT

main04438-12031iCE9#198705-199009

main04438-12040iAE92..5F198705-198709

main04438-12080iAE91,EE98;AE92..4FC198705-199009

sub04438-12170

main04438-12110iAE95198710-198802

sub04438-12180

main04438-12120iAE92..5F198709-199002

sub04438-12190

main04438-12120iEE90,96,97198805-198807

sub04438-12190

main04438-12140iCE95198802-199002

sub04438-12200

main04438-12170iAE92..4FC;AE91..FXVS,FXZS,SE199002-199009

sub04438-12171

main04438-12171iEE90,98199009-199205

sub04438-12370

main04438-12190iAE92..5F199002-199109

main04438-12191iAE92..5F199009-199205

sub04438-20110

main04438-12200iAE95,CE95199002-199009

sub04438-12201

main04438-17012iEE90,96,97198705-198711

main04438-32171iAE95,CE95199009-199106

sub04438-12301

04438ABOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT

main04438-12011iEE90,96,97198705-198711

main04438-12050iCE90,96,97198705-199009

main04438-12060iAE92..5F198705-198709

sub04438-17031

main04438-12070iAE91,92,EE90..3D,4D,5D198705-199002

sub04438-12160

main04438-12130iAE95198710-198802

sub04438-32080

main04438-12150iCE95198802-199002

sub04438-12210

main04438-12160iAE92..4FC;AE91..FXVS,FXZS,SE199002-199109

sub04438-12161

main04438-12161iAE91,EE9#;AE92..4FC199009-199205

sub04438-12410

main04438-12210iAE95,CE95199002-199009

sub04438-12211

main04438-32161iAE95,CE95199009-199106

sub04438-32230

41304DSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH

main41304-12010iEE90,96,97198705-198711

main41304-17010iAE92..5F198705-198709

main41304-20010iCE90,96,97198705-199009

41336FCOVER, DUST(FOR FRONT AXLE INBOARD JOINT SET)

main41336-12010iEE97198705-199205

main41336-12040iAE95,CE95198710-199106

LH

main41336-20040iAE95,CE95198710-199106

RH

main41336-32010iCE97198705-199109

RH

main41336-32020iCE96..5F..(DX,GL)198705-199109

LH

43247DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2

main43247-12010iAE9#..(4FC,5F)..(FXGT,FXGTV,FXVS,FXZS,GT,SE,TX,XE)199008-199205

main43247-12010iAE91,92..FXGT,FXGTV,FXVS,FXZS,GT,SE198905-199008

main43247-32011iAE9#,CE9#,EE9#198905-199106

sub43247-33010

main43247-33010iAE9#199106-199205

43403JOINT SET, FRONT AXLE INBOARD, RH

main43030-20020iCE90,96,97199009-199109

main43403-12040iAE91,92,EE9#198909-199205

main43403-12050iAE95,CE95199001-199106

main43403-19036iEE90,96,97198705-198711

main43403-19055iAE91,EE98;AE92..4FC198705-198709

sub43403-19085

main43403-19065iAE95,CE95198710-199001

sub43403-12050

main43403-19085iAE91,92,EE9#198709-198909

main43403-39016iCE90,96,97198705-199009

main43403-39025iAE92..5F198705-198709

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-12030iAE95198710-198802

sub43410-12180

main43410-12080iEE90,96,97198705-198711

sub43410-12081

sub43525-20030

sub90179-22020

main43410-12130iAE91,EE98;AE92..4FC198705-199101

main43410-12131iAE91,EE9#;AE92..4FC199101-199205

main43410-12140iAE92..5F198705-198709

sub43410-12141

sub43525-20030

sub90179-22020

main43410-12150iCE9#198705-199009

sub43410-12151

sub43525-20030

sub90179-22020

main43410-12170iAE92..5F198709-199101

sub43410-12171

sub43525-20030

sub90179-22020

main43410-12171iAE92..5F199101-199205

sub43410-12172

sub90178-22001

main43410-12180iAE95198802-199010

sub43410-12230

main43410-12181iAE95199101-199106

sub43410-42020

main43410-12190iAE92..4FC;AE91..FXVS,FXZS,SE198905-199101

sub43410-12191

sub43525-20030

sub90179-22020

main43410-12191iAE92..4FC;AE91..FXVS,FXZS,SE199101-199205

sub43410-12192

sub90178-22001

main43410-12200iAE92..5F198905-199101

sub43410-12201

sub43525-20030

sub90179-22020

main43410-12201iAE92..5F199101-199205

sub43410-12202

sub90178-22001

main43410-12220iAE95199008-199101

sub43410-12221

sub43525-20030

sub90179-22020

main43410-12221iAE95199101-199106

sub43410-42010

main43410-12230iAE95199010-199101

sub43410-12181

sub43525-20030

sub90179-22020

main43410-20340iCE90,96,97199009-199101

sub43410-20341

sub43525-20030

sub90179-22020

main43410-20341iCE90,96,97199101-199109

sub43410-20342

sub90178-22001

main43410-32140iCE95198910-199101

sub43410-32141

sub43525-20030

sub90179-22020

main43410-32141iCE95199101-199106

sub43410-32142

sub90178-22001

43410FBOLT, SERRATION (FOR FRONT DRIVE SHAFT)

main90114-08006iCE90,96,97198705-199009

43410HRING, HOLE SNAP (FOR FRONT DRIVE SHAFT)

main90521-26002iAE92,EE90,96,97..3FC,4F,5F198705-198711

main90521-27005iCE90198705-199109

43410JNUT (FOR FRONT DRIVE SHAFT)

main90179-08053iCE90198705-199009

43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)

main90520-22005iAE9#,CE9#,EE9#198705-199205

43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main42345-14010iCE90,96;AE92,CE97..5F198705-199205

main90949-01078iAE92..4FC;AE91,EE90..3D,4D,5D198705-199205

43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main90949-01076iEE90,96,97198805-198807

sub42345-12160

main90949-01076iAE92..5F;AE95,CE9#198705-199205

sub42345-12160

main90949-01080iAE92..4FC;AE91,EE90..3D,4D,5D198705-199205

43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main42345-14010iCE96,97198705-199009

main42345-14010iEE90,96,97198805-198807

main90949-01078iAE92..4FC;AE91..FXVS,FXZS,SE198705-199205

43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main42345-14020iCE90198705-199009

main90949-01076iAE95;AE92,CE95..5F198705-199205

sub42345-12160

main90949-01079iEE90,96,97198705-198711

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-19116iEE90,96,97198705-198711

sub43460-19097

main43460-19275iAE91,EE90,98..CBR198705-199101

sub43460-19276

sub43525-20030

sub90179-22020

main43460-19276iAE91,EE9#;AE92..4FC199101-199205

sub43460-19277

sub90178-22001

main43460-19285iCE90,96;AE92,CE97..5F198705-199009

sub43460-19286

sub43525-20030

sub90179-22020

main43460-19305iAE92..5F198709-199101

sub43460-19306

sub43525-20030

sub90179-22020

main43460-19305iEE90,96,97198805-198807

sub43460-19306

sub43525-20030

sub90179-22020

main43460-19306iAE92..5F199101-199205

sub43460-19309

sub90178-22001

main43460-19355iAE92..5F198905-199101

sub43460-19356

sub43525-20030

sub90179-22020

main43460-19356iAE92..5F199101-199205

sub43460-19357

sub90178-22001

main43460-19365iAE92..4FC;AE91..FXVS,FXZS,SE198905-199101

sub43460-19366

sub43525-20030

sub90179-22020

main43460-19366iAE92..4FC;AE91..FXVS,FXZS,SE199101-199205

sub43460-19367

sub90178-22001

main43460-29145iCE90,96,97199009-199101

sub43460-29146

sub43525-20030

sub90179-22020

main43460-29146iCE90,96,97199101-199109

sub43460-29147

main43470-19265iAE95198710-199008

sub43470-19266

main43470-19266iAE95199008-199101

sub43470-19267

sub43525-20030

sub90179-22020

main43470-19267iAE95199101-199106

sub43470-49015

main43470-19585iAE95199008-199101

sub43470-19586

sub43525-20030

sub90179-22020

main43470-19586iAE95199101-199106

sub43470-49025

main43470-39085iCE95198910-199101

sub43470-39086

sub43525-20030

sub90179-22020

main43470-39086iCE95199101-199106

sub43470-39087

43474DAMPER, DRIVE SHAFT

main43474-12020iAE91,92,CE90,96,97,EE9#198705-199205

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-14010iAE92..4FC;AE91,CE90,96,97,EE9#198905-199205

main42345-14010iAE91,92,CE9#,EE9#198705-198905

18 parts on this diagram · 8 diagrams in section
