TRANSFER GEAR

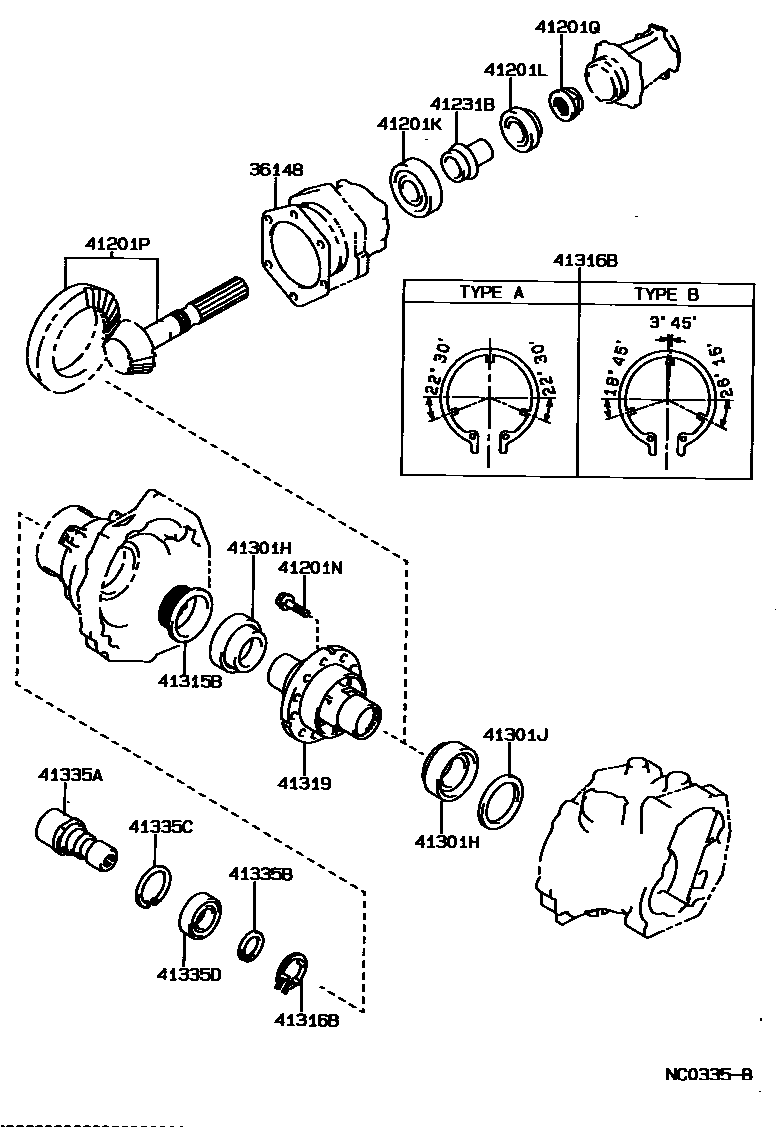

Parts diagram
36148SHIM, PINION BEARING CAGE
main36148-20010i198710-198905
sub36148-32010
main36148-20020i198710-198905
sub36148-32020
main36148-20030i198710-198905
sub36148-32030
main36148-20040i198710-198905
sub36148-32040
main36148-20050i198710-198905
sub36148-32050
main36148-20060i198710-198905
sub36148-32060
main36148-20070i198710-198905
sub36148-32070
main36148-20080i198710-198905
sub36148-32080
main36148-20090i198710-198905
sub36148-32090
main36148-20100i198710-198905
sub36148-32100
main36148-32010i198905-199106
main36148-32020i198905-199106
main36148-32030i198905-199106
main36148-32040i198905-199106
main36148-32050i198905-199106
main36148-32060i198905-199106
main36148-32070i198905-199106
main36148-32080i198905-199106
main36148-32090i198905-199106
main36148-32100i198905-199106
41201KBEARING (FOR TRANSFER DRIVEN PINION FRONT)
main90366-40044i198710-198908
sub90366-40055
main90366-40052i198710-199106
main90366-40055i198908-199106
41201LBEARING (FOR TRANSFER DRIVEN PINION REAR)
main90366-32019i198710-199106
41201NBOLT (FOR TRANSFER GEAR )
main90105-11026i198710-199106
41201PGEAR KIT, TRANSFER
main41201-12160i198710-199106
main41201-12170i199008-199106
main41201-12170i198910-199106
41201QNUT (FOR TRANSFER GEAR)
main90179-30004i198710-199106
41231BSPACER, TRANSFER PINION BEARING
main41231-12040i198710-199106
41301HBEARING(FOR RING GEAR MOUNTING CASE)
main90366-54008i198710-199106
main90366-55017i198710-199106
main90366-55039i198910-199106
main90366-55039i199008-199106
main90366-58007i199008-199106
main90366-58007i198910-199106
41301JWASHER, PLATE(FOR RING GEAR MOUNTING CASE)
main90201-68025i198710-199106
main90201-68026i198710-199106
main90201-68027i198710-199106
main90201-68028i198710-199106
main90201-68029i198710-199106
main90201-68030i198710-199106
main90201-68031i198710-199106
main90201-68032i198710-199106
main90201-68033i198710-199106
main90201-68034i198710-199106
main90201-68035i198710-199106
main90201-68036i198710-199106
main90201-68037i198710-199106
main90201-68038i198710-199106
main90201-68039i198710-199106
main90201-68040i198710-199106
main90201-68041i198710-199106
main90201-68042i198710-199106
main90201-68043i198710-199106
main90201-68044i198710-199106
main90201-68045i198710-199106
main90201-68046i198710-199106
main90201-68047i198710-199106
main90201-68048i198710-199106
41315BNUT, BEARING ADJUSTING
main41315-12030i198710-199106
main41315-12050i198910-199106
main41315-12050i199008-199106
41316BPLATE, ADJUSTING NUT LOCK
main41316-12020i198710-199106
main41316-20030i198710-199106
sub41316-20040
main41316-20040i198710-199106
41319CASE, TRANSFER RING GEAR MOUNTING
main41319-12010i198710-199106
41335AHOLDER, DIFFERENTIAL SIDE GEAR SHAFT
main41335-12010i198710-198807
sub41335-12011
main41335-12011i198807-199106
main41335-12020i198710-199106
41335BRING, SHAFT SNAP (FOR SIDE GEAR SHAFT HOLDER)
main90520-40001i198710-199106
41335CRING, HOLE SNAP (FOR SIDE GEAR SHAFT HOLDER)
main90521-75004i198710-199106
sub90521-76005
main90521-76004i198710-199106
41335DBEARING (FOR SIDE GEAR SHAFT HOLDER)
main90365-44003i198710-198910
sub90365-44005
main90365-44005i198910-198912
sub90365-44006
main90365-44006i198710-199106

16 parts on this diagram · 3 diagrams in section
