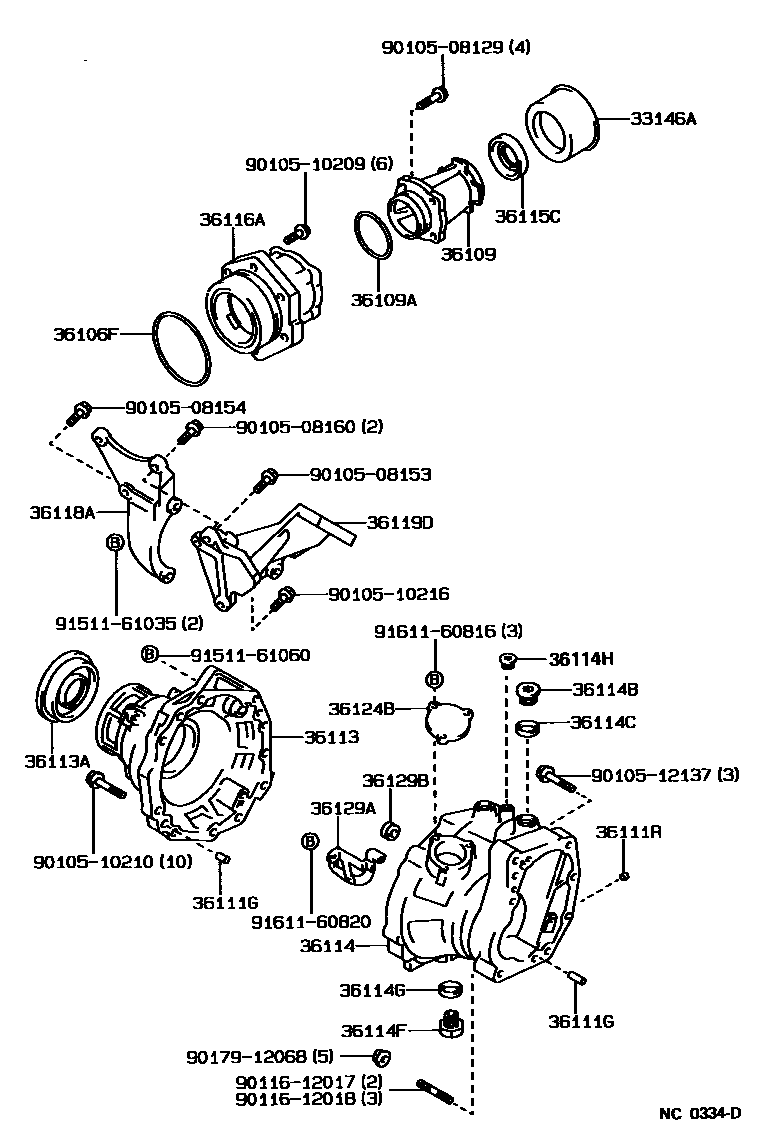

TRANSFER CASE & EXTENSION HOUSING

0001 1E55F5 0002 1E55F,��(������ ���-� ����) 0003 1A241H 0004 1E59F

33146ADEFLECTOR, TRANSFER EXTENSION HOUSING DUST

main33146-30010iAE95,CE95¥1,680198710-199106

sub33146-30020¥990

36106FRING, O (FOR TRANSFER PINION BEARING CAGE)

main90301-94001iAE95..4FC¥600198710-199106

main90301-99049iAE95,CE95..5F¥350198710-199106

36109HOUSING SUB-ASSY, TRANSFER EXTENSION

main36109-12010iAE95..5F¥10,600198710-198808

sub36109-12011¥10,600

main36109-12011iAE95,CE95..5F¥10,600198808-199106

36109ARING, O (FOR TRANSFER EXTENSION HOUSING)

main90301-63005iAE95,CE95¥180198710-199106

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10017iAE95,CE95..5F¥130198710-199106

main90250-10021iAE95..4FC¥130198710-199106

main90250-12005iAE95,CE95..5F¥240198710-199106

36111RPLUG, TIGHT (FOR TRANSFER CASE)

main90331-08002iAE95,CE95..5F¥110198710-199106

36113CASE, TRANSFER, RH

main36113-12010iAE95..5F¥38,900198710-199106

main36113-12030iCE95¥23,300198910-199106

main36113-20030iAE95..5F¥43,900199008-199106

36113ASEAL, OIL (FOR TRANSFER CASE RH)

main90311-47003iAE95,CE95..5F¥770198710-199106

36114CASE, TRANSFER, LH

main36114-12010iAE95..5F¥32,800198710-198905

sub36114-12030¥32,500

sub90105-12207¥320

sub90341-12004¥140

main36114-12011iAE95..5F¥52,400198905-198910

sub36114-12030¥32,500

sub90341-12004¥140

main36114-12030iAE95,CE95..5F¥32,500198910-199106

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-22001iAE95,CE95..5F¥580198710-199106

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main90430-22002iAE95,CE95..5F¥280198710-199106

36114FPLUG (FOR TRANSFER DRAIN)

main90341-18006iAE95..5F¥180198710-199106

main90341-18021iAE95..4FC¥240198808-198905

main90341-18057iAE95..4FC¥350198710-199106

36114GGASKET (FOR TRANSFER DRAIN PLUG)

main90430-18008iAE95,CE95¥110198710-199106

36114HPLUG, NO.2 (FOR TRANSFER CASE)

main90341-12004iAE95..5F¥140198910-199106

main90341-18023iAE95..5F¥190199008-199106

main90341-18023iCE95¥190198910-199106

36115HOUSING, TRANSFER EXTENSION

main36105-12020iAE95..4FC¥11,400198710-199106

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90311-38030iAE95..4FC¥400198710-199106

sub90311-38032¥400

main90311-38032iAE95,CE95..5F¥400198710-199106

36116ACAGE, TRANSFER PINION BEARING

main36116-12010iAE95,CE95..5F¥9,400198710-199106

36118APLATE, TRANSFER STIFFENER, RH

main36118-12011iAE95..5F..(SE,XE)¥5,500198710-199106

main36118-12021iAE95..TX¥5,500198710-199106

main36118-12040iAE95..4FC¥5,100198710-199106

main36118-12060iCE95¥9,400198910-199106

36119DPLATE, TRANSFER STIFFENER, CENTER

main36119-12010iAE95..5F¥4,970198710-199106

main36119-12020iCE95¥2,760198910-199106

main36119-12030iAE95..4FC¥4,970198710-199106

main36119-20020iAE95..5F..(SE,XE)¥10,700199008-199106

main36119-20020iAE95..5F..(SE,XE)¥10,700199008-199106

36124BCOVER, TRANSFER INSPECTION HOLE

main36124-12010iAE95,CE95..5F¥510198710-199106

main36124-12020iAE95..4FC¥510198710-199106

36129ATUBE, TRANSFER OIL

main36129-20010iAE95,CE95..5F¥1,520198710-199106

36129BCUSHION (FOR TRANSFER OIL TUBE)

main90540-06027iAE95,CE95..5F¥200198710-199106

9010508129

main90105-08129¥140

9010508153

main90105-08153¥160

9010508154

main90105-08154¥90

9010508160

main90105-08160¥140

9010510209

main90105-10209¥190

9010510210

main90105-10210¥240

9010510216

main90105-10216¥200

9010512137

main90105-12137¥310

9011612017

main90116-12017¥410

9011612018

main90116-12018¥410

9017912068

main90179-12068¥110

9151161035

main91511-61035¥230

9151161060

main91511-61060¥240

9161160816

main91611-60816¥230

9161160820

main91611-60820¥200

37 parts on this diagram · 4 diagrams in section
