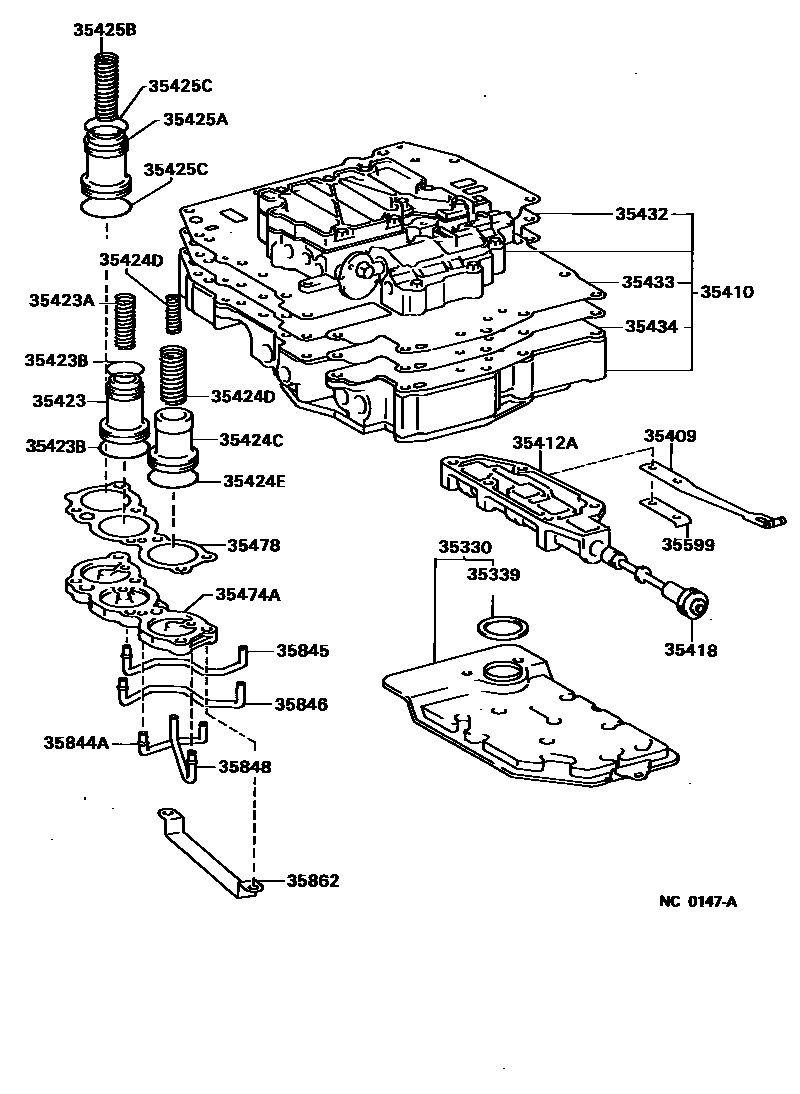

VALVE BODY & OIL STRAINER (ATM)

0001 1A131L,A132L 0002 1A131L,A132L 0003 1A131L,A132L 0004 1A131L 0005 1A132L 0006 1A240L,A240E,A241L,A241H 0007 1A240L,A241L,A241H 0008 1A240E 0009 1A240L,A241L,A241H 0010 1A240E 0011 1A240L,A240E,A241L 0012 1A241H 0013 1A240L,A241L,A241H 0014 1A240E

35330STRAINER ASSY, VALVE BODY OIL

main35330-12010iAE9#,CE90,96..4FC..(DX,FXG,FXGT,G,GL,GT,SE,TX,XE)198705-198804

sub35330-12011

main35330-12011iAE91,92,CE9#..4FC198804-199003

sub35330-12020

main35330-12020iAE95..4FC198712-199205

main35330-20010iAE91,EE90,98..3FC198705-198903

sub35330-20H00

sub35330-20H01

sub35330-20H02

main35330-20011iAE91,EE90,96,98..3FC198903-199205

sub35330-20012

35339GASKET, OIL STRAINER

main35339-12010iAE9#,CE90,96,97..4FC198705-199205

main35339-32010iAE91,EE96,98..3FC198705-199205

35409SPRING SUB-ASSY, MANUAL DETENT

main35409-12010iAE9#,CE90,96..4FC198705-198808

main35409-20010iAE9#,CE90,96,97..4FC198808-199205

main35409-32020iAE91,EE90,98..3FC198705-198808

main35409-32030iAE91,EE90,96,98..3FC..CBR198808-199205

35410BODY ASSY, TRANSMISSION VALVE

main35410-12101iAE91..3FC198705-198910

main35410-12130iAE92..4FC198705-198905

main35410-12161iAE95..4FC198710-198803

sub35410-12163

main35410-12163iAE95..4FC198803-199106

main35410-12170iEE90,98..3FC198705-199005

sub35410-12320

sub35403-20010

sub90301-22185

sub90301-29187

sub90501-20114

sub90501-24016

main35410-12250iCE90,96,97..4FC198908-199109

main35410-12290iAE92..4FC198909-199205

main35410-12300iAE91..3FC198910-199205

main35410-12320iEE90,96,98..3FC199005-199112

main35410-20080iAE91..4FC198705-198803

sub35410-20081

main35410-20090iCE90,96..4FC198705-198711

main35410-20091iCE90,96..4FC198711-198803

sub35410-20092

main35410-20092iCE9#..4FC198803-198908

sub35410-20093

main35410-20150iAE92..4FC198905-198909

sub35410-12290

sub35677-12040

main35410-20231iAE91..4FC198803-198908

main35410-20290iAE91..4FC198908-199205

sub35410-12540

sub82125-20240

35412ABODY, MANUAL VALVE

main35412-32010iAE91..3FC198705-199205

35418VALVE, MANUAL

main35418-12020iAE9#,CE90,96,97..4FC198705-199205

main35418-32010iAE91,EE96,98..3FC198705-199205

35423PISTON, B-2 ACCUMULATOR

main35403-20010iEE90,96,98..3FC199005-199112

main35423-20010iAE95..4FC;AE91..4FC..EFI198705-199205

main35423-32010iCE90,96,97..4FC198705-199205

35423ASPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)

main90501-14101iAE91,95..4FC..(EFI,EFIS)198705-199106

main90501-16111iAE91..4FC198712-199205

main90501-20114iEE90,96,98..3FC199005-199112

main90501-23062iEE90,98..3FC198705-199005

main90501-26014iAE91..3FC198705-199205

main90501-26041iCE90,96,97..4FC198711-199101

main90501-26044iAE92..4FC198705-199205

main90501-26048iAE95..4FC;AE91..4FC..(EFI,EFIS)198705-199205

main90501-27006iCE90,96..4FC198705-198711

main90501-27015iCE90,96,97..4FC199101-199109

main90501-28002iAE91..4FC..CBR198705-198908

35423BRING, O (FOR B-2 ACCUMULATOR PISTON)

main90301-22185iAE91..(3D,WG)..ATM198705-199205

main90301-29187iAE91..(4D,5D)..3FC198705-199205

35424CPISTON, C-1 ACCUMULATOR

main35424-20010iAE9#,CE90,96..4FC..(DX,FXG,FXGT,G,GL,GT,SE,TX,XE)198705-199205

main35424-20020iEE90,96,98..3FC199102-199112

main35424-32010iAE91,EE90,96,98..3FC..CBR198705-199205

35424DSPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)

main90501-20118iEE90,96,98..3FC199102-199112

main90501-21013iAE91..3FC199101-199205

main90501-22005iAE91..3FC198705-199101

sub90501-21013

main90501-23044iAE91..3FC198705-199205

main90501-23058iAE9#,CE90,96..4FC198705-199205

main90501-23065iAE91,92,CE90,96,97..4FC198705-199205

main90501-23078iEE90,98..3FC198705-199002

main90501-23079iAE92..4FC198705-199007

main90501-23100iEE90,96,98..3FC199002-199102

main90501-23115iCE90,96,97..4FC199101-199109

main90501-24007iAE95..4FC198712-199007

main90501-24018iAE95..4FC199007-199106

main90501-26053iAE95..4FC198712-199106

35424ERING, O (FOR C-1 ACCUMULATOR PISTON)

main90301-29187iAE9#..ATM198705-199205

35425APISTON, C-2 ACCUMULATOR

main35425-12020iAE9#,CE90,96,97..4FC198705-199205

main35425-32010iAE91..3FC198705-199205

35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

main90501-23042iAE91..3FC..CBR198705-199205

main90501-23057iAE92..4FC198705-199205

main90501-23062iEE90,96,98..3FC198705-199112

main90501-23063iAE95,CE90,96,97..4FC198705-199109

main90501-25012iAE91..4FC199101-199205

35425CRING, O (FOR C-2 ACCUMULATOR PISTON)

main90301-23194iAE9#,CE90,96,97..4FC198705-199205

main90301-26190iEE96,98..3FC198705-199205

main90301-29187iAE9#..(3D,5D)..ATM198705-199205

35432PLATE, VALVE BODY, NO.1

main35432-12091iAE91..3FC198705-198910

main35432-12100iAE92..4FC198705-198905

main35432-12120iAE95..4FC198710-199106

main35432-12150iAE91..3FC198910-199205

main35432-17010iAE92..4FC198905-199205

main35432-20031iEE90,98..3FC198705-199005

main35432-20040iAE91..4FC198705-198908

sub35432-18010

main35432-20050iCE90,96..4FC198705-198711

main35432-20110iCE90,96,97..4FC198711-199109

main35432-20190iAE91..4FC198908-199205

sub35432-18010

main35432-20220iEE90,96,98..3FC199005-199112

sub35432-12250

35433GASKET, VALVE BODY, NO.1

main35433-12020iAE92..4FC198705-199205

main35433-12030iAE91..3FC198705-199205

main35433-12040iAE95..4FC198710-199106

main35433-20020iEE90,96,98..3FC198705-199112

main35433-20030iAE91,CE90,96..4FC..(CBR,DSL)198705-199205

35434GASKET, VALVE BODY, NO.2

main35434-12010iAE92..4FC198705-199205

main35434-12020iAE95..4FC198710-199106

main35434-20010iAE91,CE90,96..4FC..(CBR,DSL)198705-199205

main35434-32020iAE91,EE90,96,98..3FC198705-199205

35474ACOVER, ACCUMULATOR

main35474-12010iAE91..4FC..EFI;AE91..ATM..(CBR,EFIS);AE92,95,CE90,96,97..4FC198705-199205

main35474-20010iEE90,96,98..3FC198912-199112

main35474-32010iEE90,98..3FC198705-198912

35478GASKET, ACCUMULATOR COVER

main35478-32010iCE96,EE98..ATM198705-199205

35599COVER, MANUAL DETENT SPRING

main35599-12010iAE9#,CE90,96,97..4FC198705-199205

main35599-32010iAE91,EE96,98..3FC198705-199205

35844ATUBE, ACCUMULATOR BACK PRESSURE, NO.1

main35844-12020iAE91..3FC..CBR198705-199205

main35844-12030iAE9#,CE90,96..4FC..(DX,FXG,FXGT,G,GL,GT,SE,TX,XE)198705-199205

main35844-32021iEE90,96,98..3FC198705-199112

35845TUBE, RR CLUTCH ACCUMULATOR

main35845-12020iAE91..3FC198705-198808

sub35330-20H00

main35845-12021iAE91..3FC..CBR198808-199205

main35845-32011iEE90,98..3FC198705-198808

sub35845-32012

main35845-32012iEE90,96,98..3FC198808-199112

35846TUBE, BRAKE ACCUMULATOR

main35846-12030iAE91..3FC198705-198808

sub35330-20H00

main35846-12031iAE91..3FC..CBR198808-199205

main35846-12040iAE9#,CE90,96..4FC..(DX,FXG,FXGT,G,GL,GT,SE,TX,XE)198705-199205

main35846-20020iEE90,96,98..3FC198912-199112

main35846-32021iEE90,98..3FC198705-198808

sub35846-32022

main35846-32022iEE90,98..3FC198808-198912

35848TUBE, FORWARD CLUTCH ACCUMULATOR

main35848-12020iAE91..3FC198705-199205

main35848-12030iAE9#,CE90,96..4FC..(DX,FXG,FXGT,G,GL,GT,SE,TX,XE)198705-199205

main35848-32011iEE90,96,98..3FC198705-199112

35862BRACKET, ACCUMULATOR APPLY TUBE

main35862-12011iAE91..3FC..CBR198705-199205

main35862-12020iAE9#,CE90,96,97..4FC198705-199205

main35862-32011iEE90,96,98..3FC198705-199112
