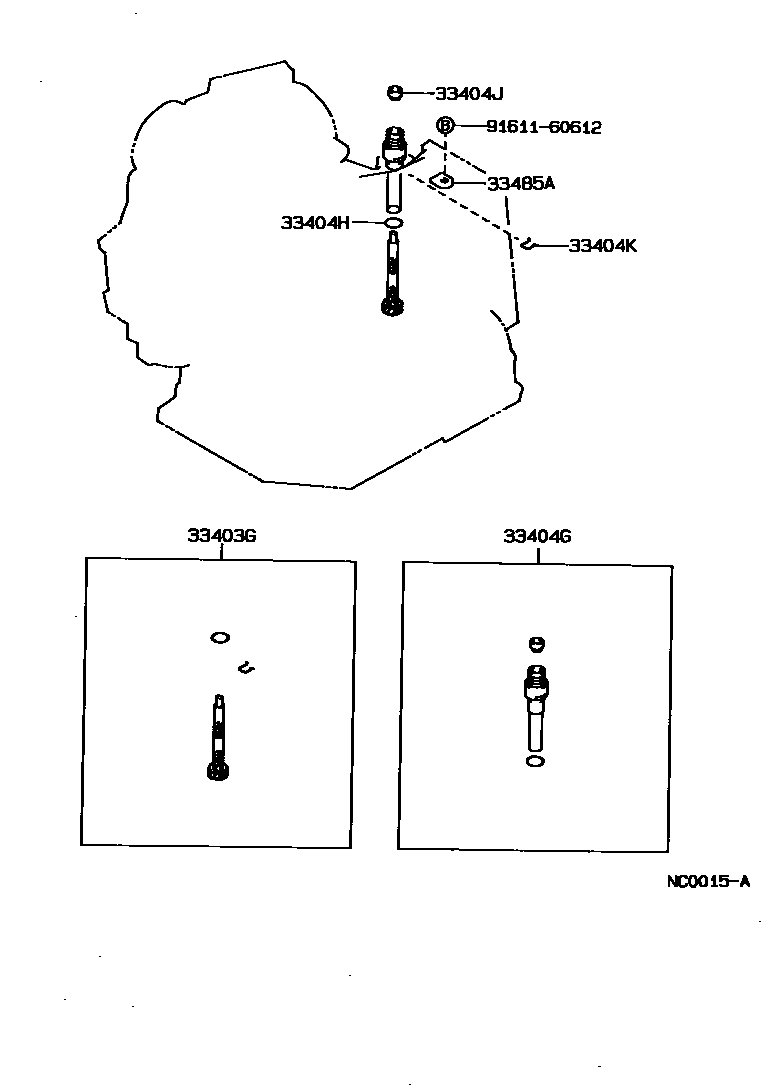

SPEEDOMETER DRIVEN GEAR (ATM)

0001 1A131L,A132L 0002 1A240L,A240E 0003 1A241H 0004 1A241L

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-19285iAE91,92..4FC198705-199205

main33403-19295iAE91..4FC..SE..EFI198905-199106

main33403-19305iAE91,EE90,96,98..3FC198705-199205

main33403-19425iAE95..4FC198710-199106

main33403-39085iCE90,97..4FC198705-199109

main33403-39115iCE96..4FC;CE90..4FC..SE198708-199109

33404GSLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-12030iAE91,92..4FC198705-199205

main33404-16010iCE90,96,97..4FC198705-199109

main33404-32010iAE91,EE90,96,98..3FC198705-199205

main33404-35010iAE95..4FC198710-199106

33404HRING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iAE95..4FC198710-199106

main96711-24018iCE90..4FC;AE91,CE96,97,EE90,96,98..ATM..(CTD,DX,FXL,GL,L,TX,XE)198705-199205

main96711-24030iAE91,92..4FC198705-199205

33404JSEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iAE9#,CE90,96,97,EE90,96,98..ATM198705-199205

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iAE9#,CE90,96,97,EE90,96,98..ATM198705-199205

33485APLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-12020iAE95..4FC198710-199106

main33485-14010iCE90..4FC;AE91,CE96,97,EE90,96,98..ATM..(CTD,DX,FXL,GL,L,TX,XE)198705-199205

main33485-30020iAE91,92..4FC198705-199205

9161160612

main91611-60612

7 parts on this diagram · 4 diagrams in section
