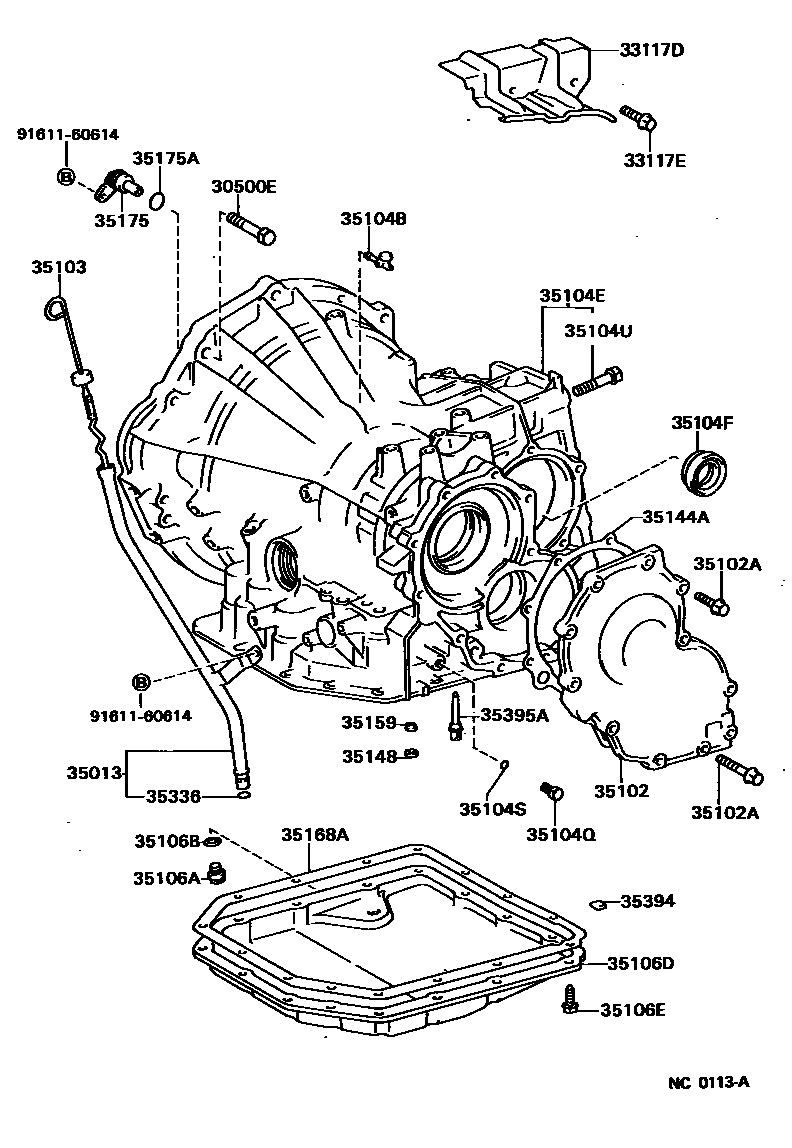

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A131L,A132L 0002 1A240L,A240E,A241L,A241H

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-08040iCE90,96,97..4FC198705-199109

sub91641-H0820

main90105-10077iAE9#,CE90,96,97..ATM198705-199205

main90105-10097iEE90,96,98..3FC198705-199109

main90119-12168iAE9#,EE90,96,98..ATM198705-199205

main91611-61025iAE91,95,EE90,96,98..ATM198705-199205

sub91612-61025

main91619-61245iCE90,96,97..4FC198705-199205

33117DPROTECTOR, AUTOMATIC TRANSMISSION CASE

main33117-12030iAE9#,CE90,96,97..4FC198705-199205

main33117-12040iAE91,EE90,96,98..3FC198705-199205

33117EBOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)

main90105-08040iAE9#,CE90,96,97,EE90,96,98..ATM198705-199205

sub91641-H0820

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-12210iAE95..4FC198710-198802

main35013-12211iAE95..4FC198802-198808

sub35013-20300

main35013-12220iAE91..3FC198705-198905

main35013-12230iAE91,92,CE90,96,97..4FC198705-199205

main35013-12260iEE90,96,98..3FC198705-199109

main35013-12270iAE91..3FC198905-199205

main35013-20300iAE95..4FC198808-199106

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-10010iEE90,98..3FC198705-198709

sub35102-10011

main35102-10011iEE90,96,98..3FC198709-199109

main35102-12020iAE91..3FC198705-199205

main35102-20050iAE95..4FC..CBR;AE91,92,CE90,96,97..4FC198705-199205

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08050iAE91,EE90,96,98..3FC198705-199205

main90105-08056iAE91,EE90,96,98..3FC198705-199205

main90105-08065iAE9#,CE90,96,97..4FC198705-199205

main90105-08068iAE9#,CE90,96,97..4FC198705-199205

sub90105-08333

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-12090iAE95..4FC198710-198802

main35103-12091iAE95..4FC198802-198808

sub35103-20150

main35103-12120iAE91,92,CE90,96,97..4FC198705-199205

main35103-12150iAE91..3FC198705-199205

main35103-12160iEE90,96,98..3FC198705-199109

main35103-20150iAE95..4FC198808-199106

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03089iAE91,EE90,96,98..3FC198705-199205

main90930-03101iAE9#,CE90,96,97..4FC198705-199205

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-12161iAE91..3FC198705-199205

main35104-12191iEE90,98..3FC198705-198802

sub35104-12192

main35104-12192iEE90,98..3FC198802-199102

main35104-12193iEE90,96,98..3FC199102-199109

35104FSEAL, OIL (FOR TRANSAXLE CASE)

main90310-35002iCE90,96..4FC198705-198806

sub90311-35020

main90311-34005iAE91,EE90,98..3FC198705-198709

sub90311-34012

main90311-34010iAE91,92..4FC198705-198811

sub90311-34013

main90311-34012iAE91,EE90,96,98..3FC198709-199205

main90311-34013iAE91,92..4FC198811-199205

sub90311-34026

main90311-35020iCE90,96,97..4FC198806-199109

sub90311-35047

main90311-44004iAE95..4FC198710-199106

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001iAE91..3FC198705-199205

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196iAE91..3FC198705-199205

35104UBOLT (FOR TRANSAXLE CASE)

main90105-10008iAE91,EE90,96,98..3FC198705-199205

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10003iAE95..4FC198710-198905

sub90341-10011

main90341-10006iAE95..4FC..EFI;AE91,92,CE90,96,97..4FC198705-199205

sub90341-10011

main90341-18016iAE91,EE90,96,98..3FC198705-199205

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iAE9#,CE90,96,97..4FC198705-199205

main90430-18008iAE91,EE90,96,98..3FC198705-199205

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-10021iEE90,98..3FC198705-199008

sub35106-10022

main35106-10022iAE91..3FC198705-199109

main35106-12050iAE9#,CE9#..4FC198705-198912

sub35106-12070

main35106-12070iAE9#,CE90,96,97..4FC198912-199205

main35106-12080iAE91..3FC198910-199205

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173iAE9#,CE90,96,97..4FC198705-199205

35144AGASKET, TRANSAXLE REAR COVER

main34112-32010iAE91..3FC198705-199012

sub35144-12020

main35144-10010iEE90,98..3FC198705-198710

sub35144-12010

main35144-12010iEE90,96,98..3FC198710-199109

sub35144-12020

main35144-12020iAE91..3FC199012-199205

sub35144-12030

35148GASKET, GOVERNOR APPLY, NO.1

main35148-16010iAE9#,CE90,96,97,EE90,96,98..ATM198705-199205

35159GASKET, BRAKE DRUM

main35159-20010iAE9#,CE90,96,97..4FC198705-199205

main35159-32011iAE91,EE90,96,98..3FC198705-199205

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-12020iAE9#,CE90,96,97..4FC198705-199205

main35168-32010iAE91,EE90,96,98..3FC198705-199205

35175CAP, TRANSAXLE CASE, NO.2

main35175-32010iAE91,EE90,96,98..3FC198705-199205

35175ARING, O (FOR TRANSAXLE CASE CAP)

main90301-21002iAE91,EE90,96,98..3FC198705-199205

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iAE9#,CE90,96,97,EE90,96,98..ATM198705-199205

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iAE91,CE96,97..4FC..(CBR,DSL)198705-199205

35395ASTRAINER, GOVERNOR OIL

main35395-12010iAE95..4FC198808-199106

sub35395-12020

main35395-12020iAE91,CE90,96,97..4FC198808-199205

main35395-20010iAE91,CE90,96..4FC198705-198808

main35395-32011iAE91..3FC..CBR198705-199205

main35395-32020iEE90,96,98..3FC198802-199112

sub35395-32030

9161160614

main91611-60614

27 parts on this diagram · 2 diagrams in section
